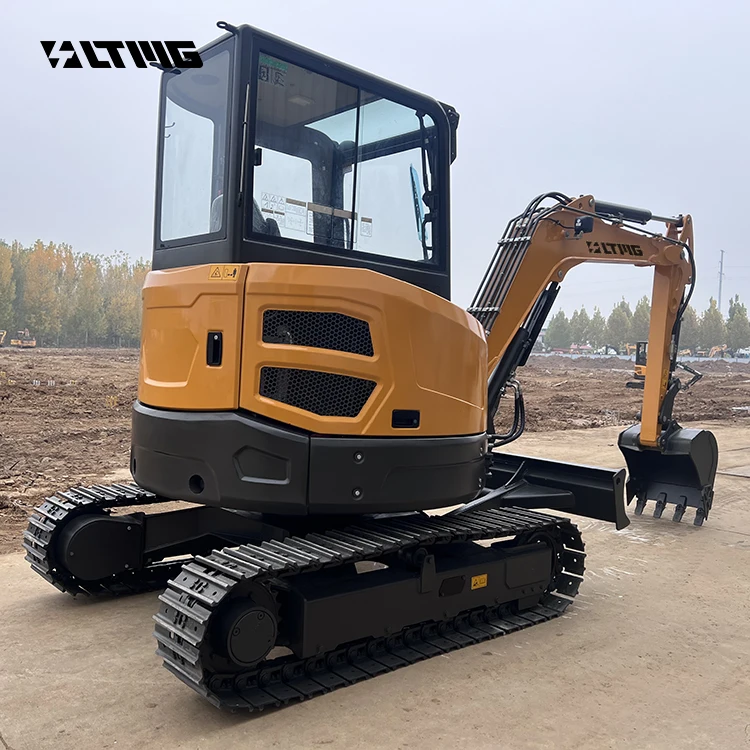

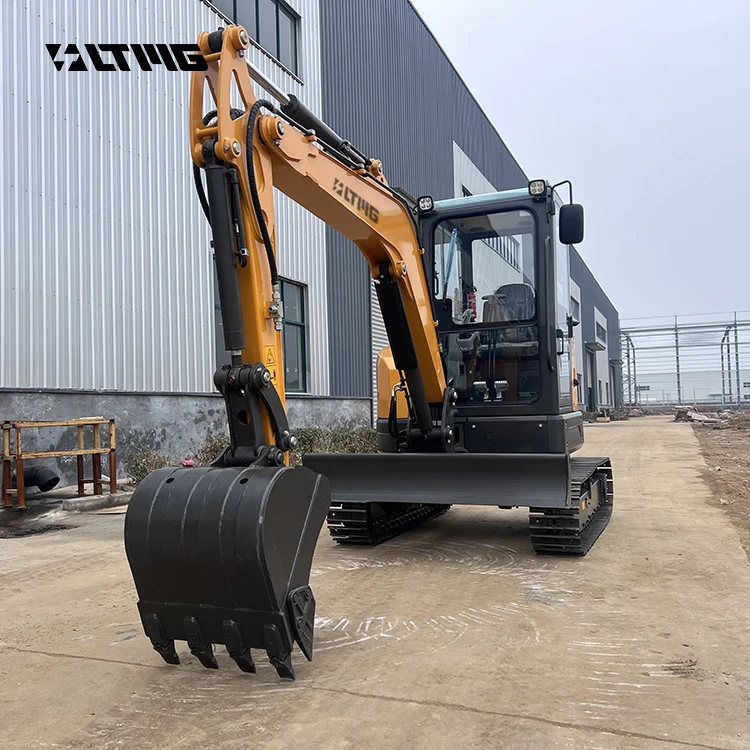

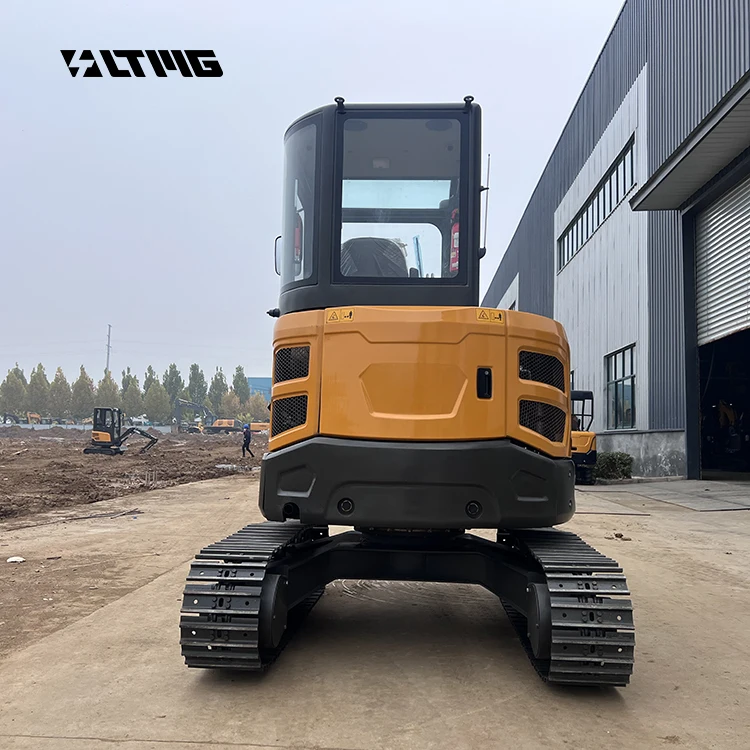

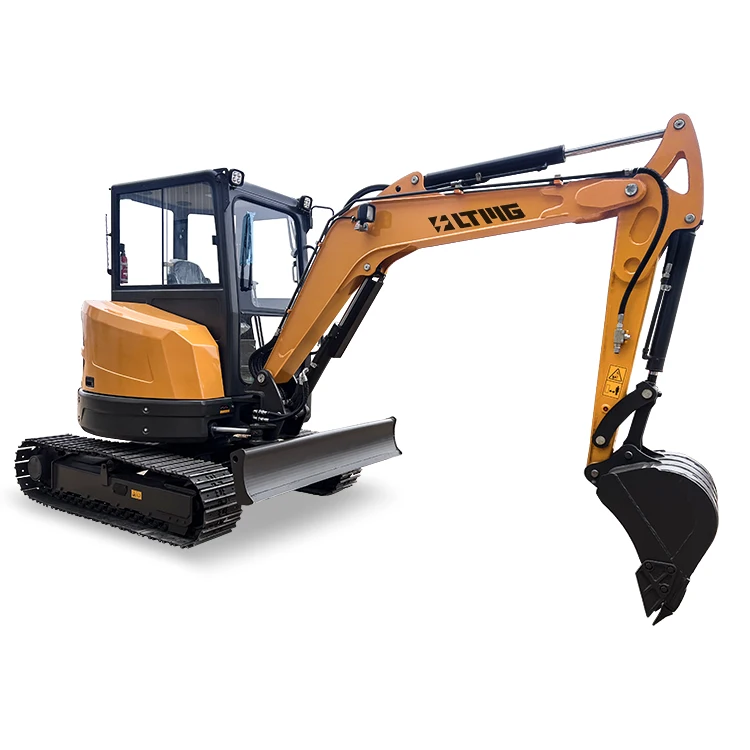

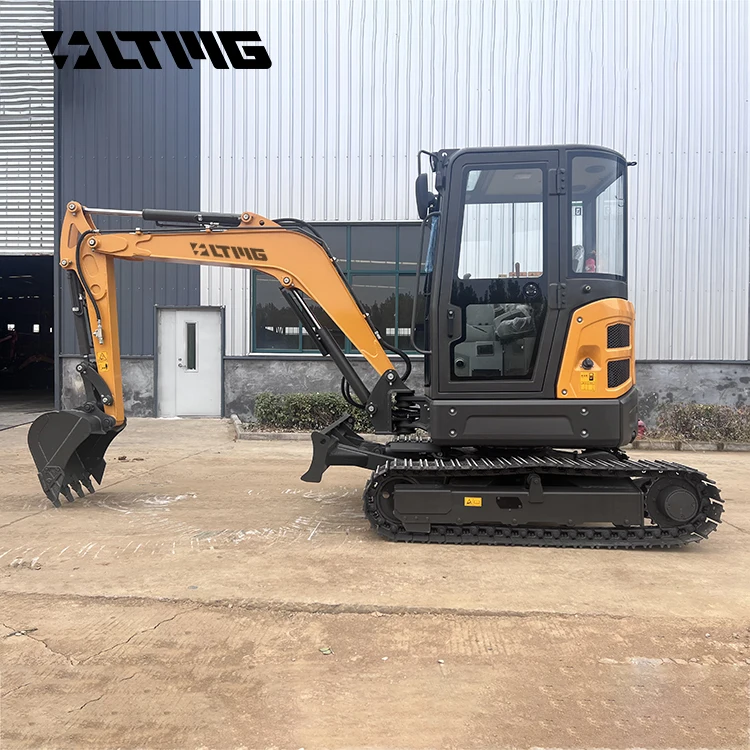

LTMG LTE35 3.5t Mini Excavator EPA Euro 5 Hydraulic Digger Wholesale Excavators
- Категория товара: Earth-moving Machinery >>>
- Поставщик (Оптовый магазин): Xiamen,LTMG,Machinery,Co.,Ltd.Xiamen,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Advantages
1. Special design on separating engine and radiation space, using enhanced cooling fan to increase cooling efficiency
2. Famous brand hydraulic system parts ensure the stable quality.
3. Equipped with double fuel filter to guarantee fuel purity to protect engine
4. Extend hydraulic line for various attachments.
5. Comfort cabin, wide and open sight make operator easy to work.
6. Korean pilot control joystick make your operation easy &joyful
7. Could be widely used in gardening, orchard, farming, basement reconstruction, waste residue carrying in coal washing factory, papermaking factory etc. and could replace 4~5 manpower.
2. Famous brand hydraulic system parts ensure the stable quality.
3. Equipped with double fuel filter to guarantee fuel purity to protect engine
4. Extend hydraulic line for various attachments.
5. Comfort cabin, wide and open sight make operator easy to work.
6. Korean pilot control joystick make your operation easy &joyful
7. Could be widely used in gardening, orchard, farming, basement reconstruction, waste residue carrying in coal washing factory, papermaking factory etc. and could replace 4~5 manpower.
Crawler excavator parameters | ||||
Model | LTE35 | |||
Engine | ||||
Model | Kubota D1703 18.2KW/2200rpm | |||
Max. Turque | 97.4N.m/1500RPM | |||
Type | In-line, water cooled, Mechanical pump, normally aspirated | |||
Displacement | 1.647L | |||
No. of cylinder | 3 | |||
Main Performance | ||||
Swing Speed | r/min | 0-11 | ||
Traveling Speed(high/low) | km/H | 4.4/2.4km/h | ||
Grade ability | ° | 58% | ||
Max. Bucket Digging Force | kN | 30.4 | ||
Arm Digging Force | kN | 18.2 | ||
Ground Pressure | Kpa | 32 | ||
Hydraulic system pressure | Mpa | 22.5 | ||
Machine Weight | KG | 3810 | ||
Boom Length | Mm | 2535 | ||
Arm Length | Mm | 1400 | ||
Fuel Tank capacity | L | 42 | ||
Hydraulic Tank capacity | L | 48.5 | ||
Engine oil capacity | L | 7 | ||
Carrier roller(each side) | 1 | |||
Supporting roller(each side) | 4 | |||
Overall Dimensions | ||||
Overall Length | mm | 4915 | ||
Overall Width | mm | 1720 | ||
Overall Height | mm | 2525 | ||
Mini Ground clearance | mm | 295 | ||
Track width | mm | 300 | ||
Axle base(Track length on ground) | mm | 1670 | ||
Length of track | mm | 2154 | ||
Track Gauge | Mm | 1420 | ||
Swing radius at tail | Mm | 860 | ||
Swing radius at front | Mm | 2538 | ||
Height of blade | Mm | 350 | ||
Operation parameters | ||||
Bucket Capacity | m3 | 0.12 | ||
Max. Digging Radius | mm | 5480 | ||
Max. Digging Depth | mm | 3208 | ||
Max. Digging Height | mm | 4800 | ||
Max. Dumping Height | mm | 3406 | ||
Max. vertical digging depth | mm | 3208 | ||
ODM/OEM
Optional Attachment
Packaging and Shipping
Company Profile
Certifications
Customer Sharing
Recommend Products
FAQ
1.Factory
Q: Are you mini excavator manufacturer?A: Yes. We are the excavator mini manufacturer with 20 years manufacture experience of mini excavator 1 ton.
2. Warranty
Q: How to identify the quality about mini excavator 3.5 ton?
A: Our mini excavator 2 ton have a 12 months warranty or 2000 working hours after sale.
3. Packing
Q:What is the container size of mini excavator attachment?
A:Generally, the actual size can adjust with how many cheap mini excavator you need.
4. Lead time
Q: How many days it takes before you deliver the chinese mini excavator to us?
A: For these mini digger excavator, we need 1 or 2 more days to order wooden boxes or pallets, and 3 days to book flight/vessel and ship the mini excavator china to named port/airport.
5.Customer
Q: Where country customer you sale about mini excavator kubota?
A: mini excavator 1.5 ton in dubai , mini excavator 2.5 ton for sale malaysia , 2 ton mini excavator in india , our customer also in Australia, USA, Hongkong, Taiwan, Vietnam and southeast asia.
