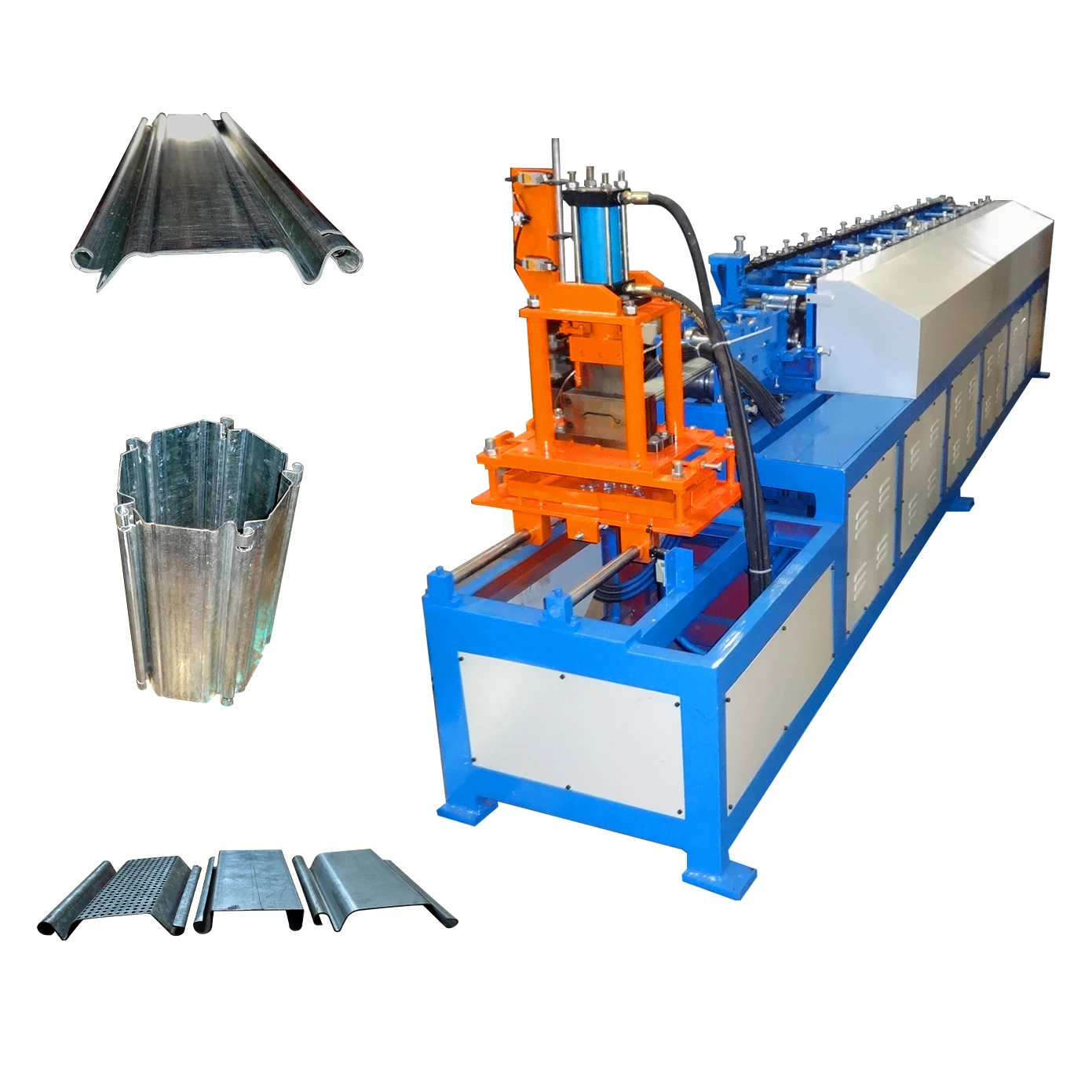

LMS metal sheet door roller shutter slats equipment machine
roller shutter equipment
roller shutter slats equipment
door roller shutter slats equipment
Company Information
Product Description
Suitable Raw Material Specification
i. Materials GI,CR,HR
ii. Material thickness 0.6-1.2mm
iii. Product width customized
iv. Product height customized
v. Profile specification same as drawing
Producing Process:
Material coil - Roll forming machine– Hydraulic cut off – finish Product
One complete set of production line consist of following units
Technical Parameter:

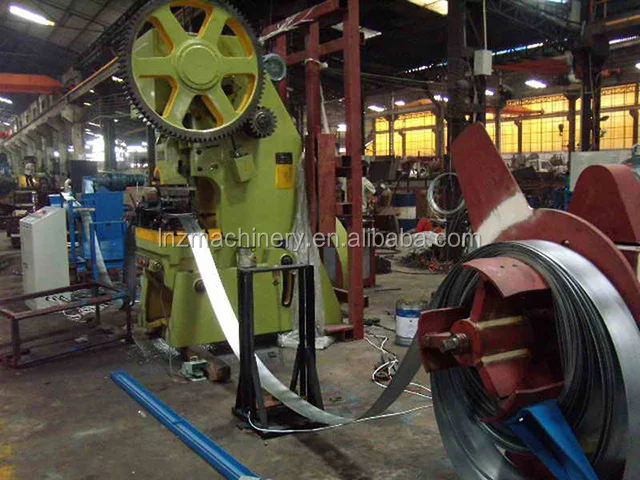

Decoiler
i. Loading capacity 2000KGS
ii. Maximum outer diameter 1500mm
iii. Inner diameter 400 - 450mm
iv. Coil width 400mm
v. Manual Expanding

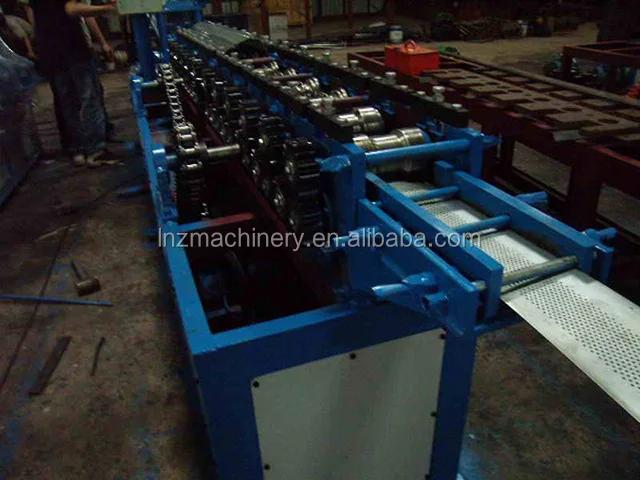

Roll forming machine
1) Rollers 14 groups (including reinforcing rollers)
2) Roller’s material Gr15 steel
3) Roller’s surface Hard chromium plating
4) Heat treatment HRC 55 -57
5) Main axis diameter 40mm 45# steel
6) Pinch wall thickness 22mm
7) Main bearing 60208
8) Motor power 5.5KW, cycloidal pin gear speed reducer
9) Forming speed 3-10m/min
10) Adopt to water cooling device

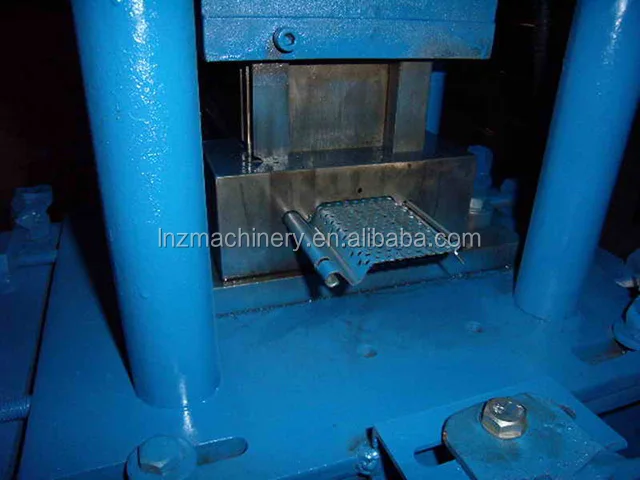

Hydraulic Cut off
i. Hydraulic station 1set, including: motor, oil pump,
magnetic valve,oil cylinder
ii. Hydraulic station motor 3KW
iii. Cooling device 1 set
iv. Cutting blade 1set (cut off with waste)
v. Adopt to water cooling device.
Simple Discharge bracket
Welding by angle steel
Length 6m
Electric control system
1)Control System Japan frequency converter
2)Main Electronic Components Shilin & others
3)Length Measurement by travel switch and baffle
4)Cutting Method Stop and then cut
Power Supply 380V,50HZ,3PH
Packaging & Shipping
In bulk in container for door shutter roll forming machine
