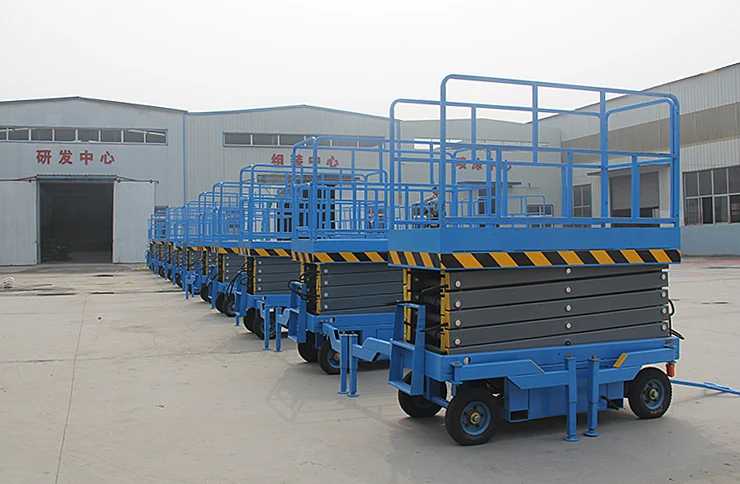

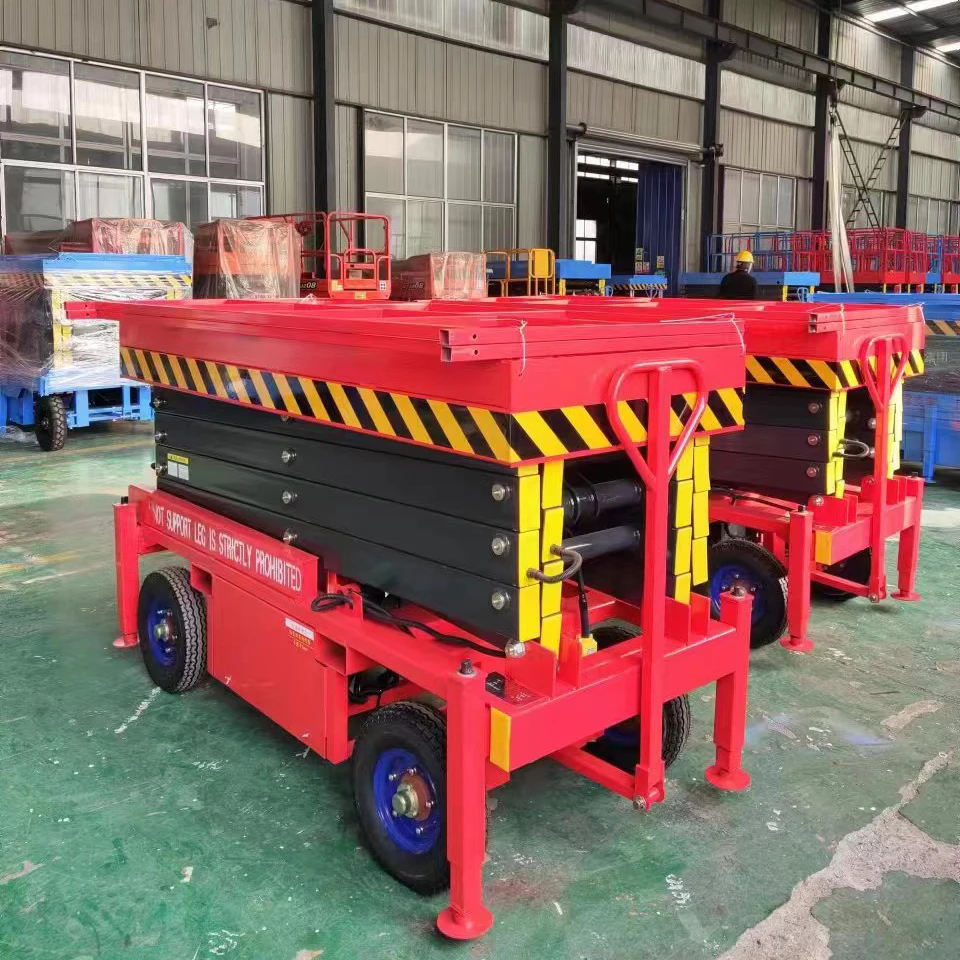

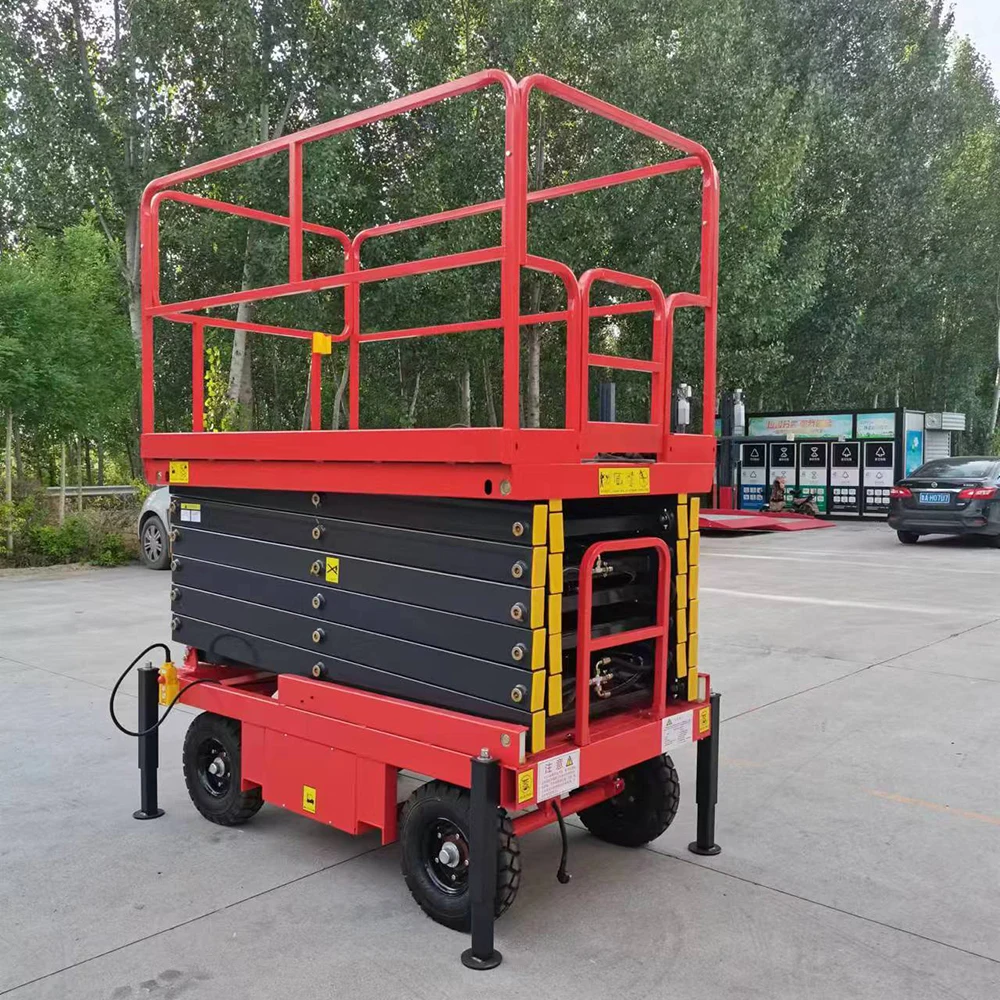

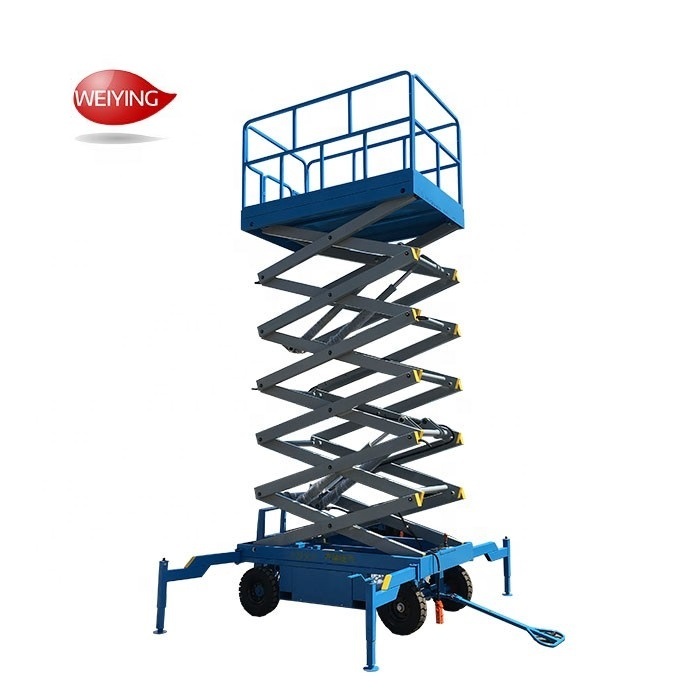

Электрическая приподнятая Мобильная воздушная Рабочая платформа гидравлический автоматический подъемник для строительных
- Категория товара: Lift Tables >>>
- Поставщик (Оптовый магазин): Hangzhou,Hangzhu,Hoisting,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
PRODUCT PARAMETERS
MATERIALS AND CONFIGURATIONS | ||||
Order Number | Name | Material | ||
1 | Platform | 3mm flat plate bending | ||
2 | Scissor fork support rod | 120*60*3.75mm Q235 | ||
3 | Chassis | 100*50*3.75mm Q235 | ||
4 | Rail | 5mm flat plate bending is used as the track, and nylon slider is used as the guide wheel. The contact surface is large, the lifting is stable, and the shaking is small. | ||
5 | hydro-cylinder | HSG80/45 1 piece; sealing ring, durable and not leaking. | ||
6 | Hydraulic tubing | 2-10-43MPa double-layer steel mesh high-pressure oil pipe | ||
7 | Pumping Station | Special hydraulic pump station for lifting operation platform. Install an emergency descent valve, which can manually control the descent when the platform is powered off. The built-in overflow valve can prevent the system pressure from being too high during upward movement, providing protection function | ||
8 | Power and voltage | 1.1kw/380v/50hz | ||
9 | tyre | 400-8 4 pneumatic tires | ||
10 | Outrigger | 100*50*3.75mm Q235 | ||
11 | Power Distribution Box | Delixi brand | ||
12 | Control form | Up and down control. Install safety emergency stops in the control section to maximize property and personal safety. Use 36V safety control voltage for each operating part | ||
13 | Travel switch | Delixi brand | ||
14 | Dowel | 45 # round steel is prepared and galvanized. | ||
15 | Hydraulic oil | 32 # Great Wall Anti Wear Hydraulic Oil | ||
16 | Lifting speed | 4-6 meters/minute, adjustable descent speed | ||
17 | Derusting treatment | Shot blasting and sandblasting for rust removal; Removing rust and splashing on the surface of steel structural components can create a certain | ||
degree of unevenness on the surface of the steel components, increasing the adhesion of the powder | ||||
18 | Spray treatment | Using electrostatic powder spraying; The coating has excellent appearance quality, strong adhesion and mechanical strength, high color brightness, and long-lasting color fastness. | ||

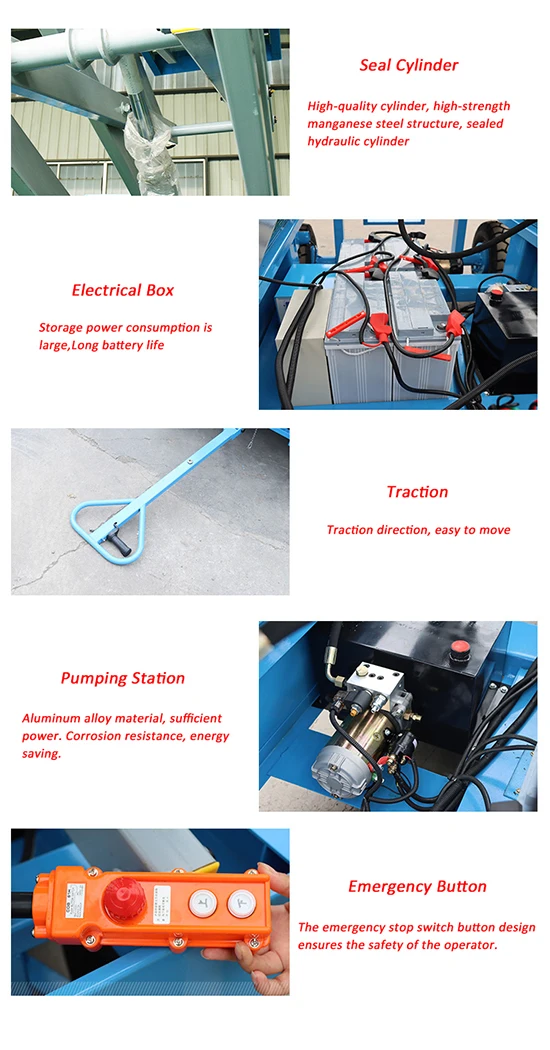

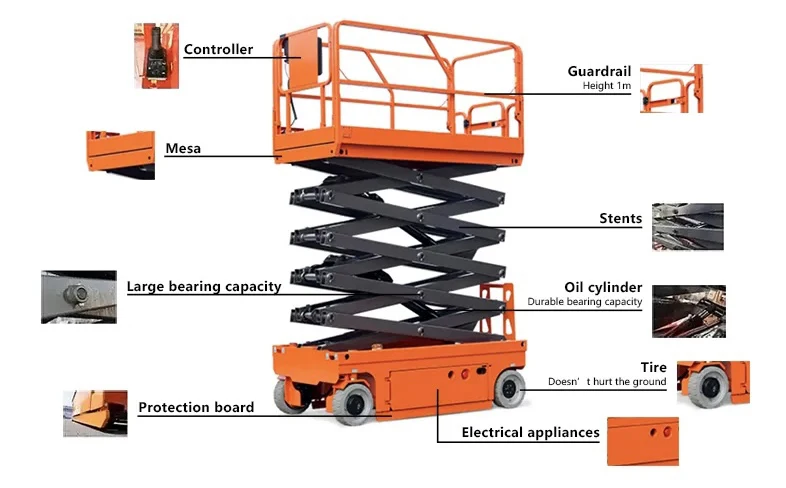

PRODUCT DETAILS

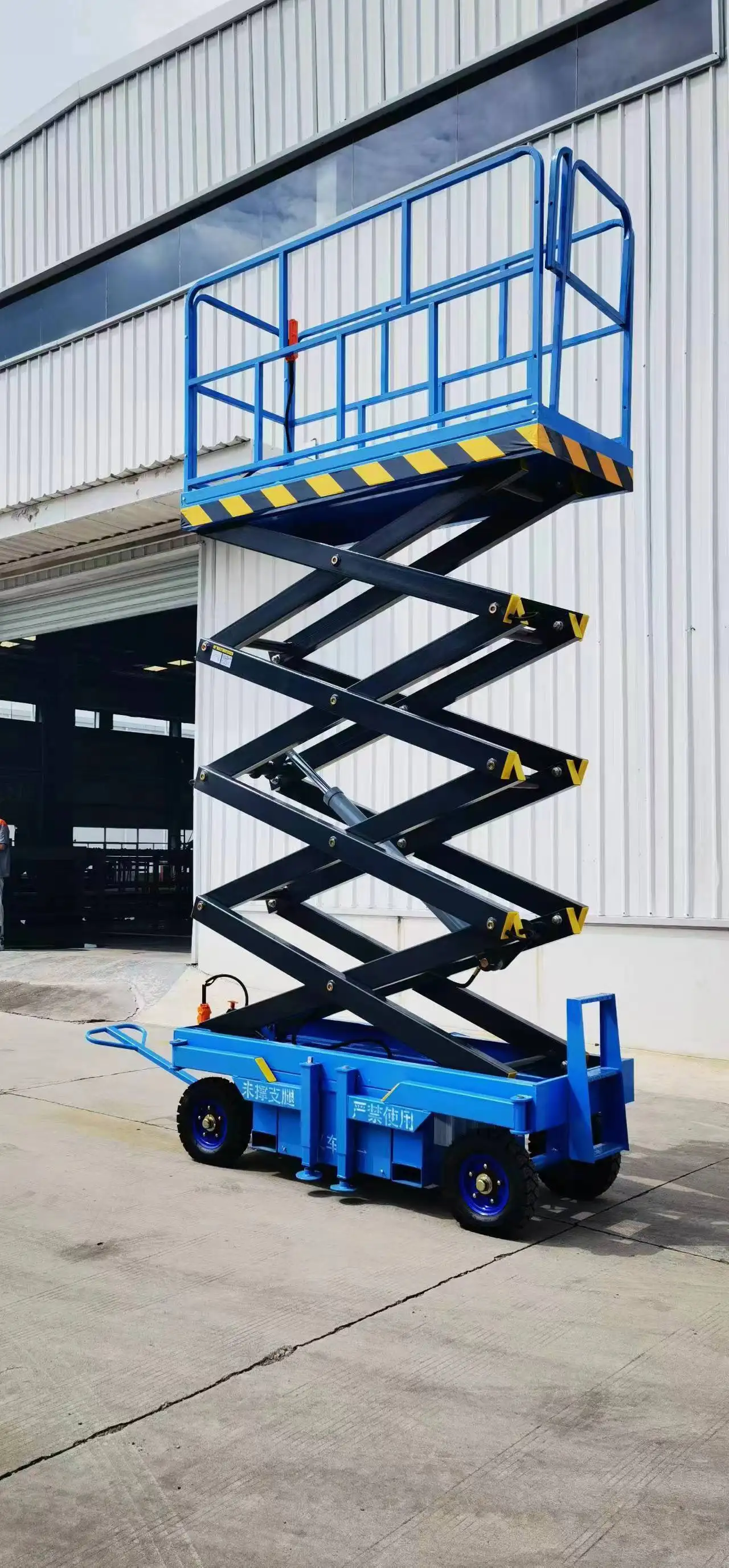

PRODUCT DISPLAY
RELATED PRODUCTS
COMPANY PROFILE
SHIPPING METHOD
FAQ
Q: Do you provide samples? Is it free or extra?
Q: Can you make our brand on your product?
Q: Can you make your products in our colors?
A: We can provide samples, but you need to pay the cost of samples and shipping.
Q: Can you make our brand on your product?
A: Yes. If you can meet our MOQ, we can print your logo on the product and packaging.
Q: Can you make your products in our colors?
A: Yes, product color can be customized if you can meet our MOQ.
Q : How to guarantee the quality of your products?
A: a. Strict testing in the production process. b. Strict sampling inspection is carried out on the products before shipment to ensure that the product packaging is in good condition.
Q: I cannot install and use this product, what should I do?
A: We will provide free online technical guidance.
