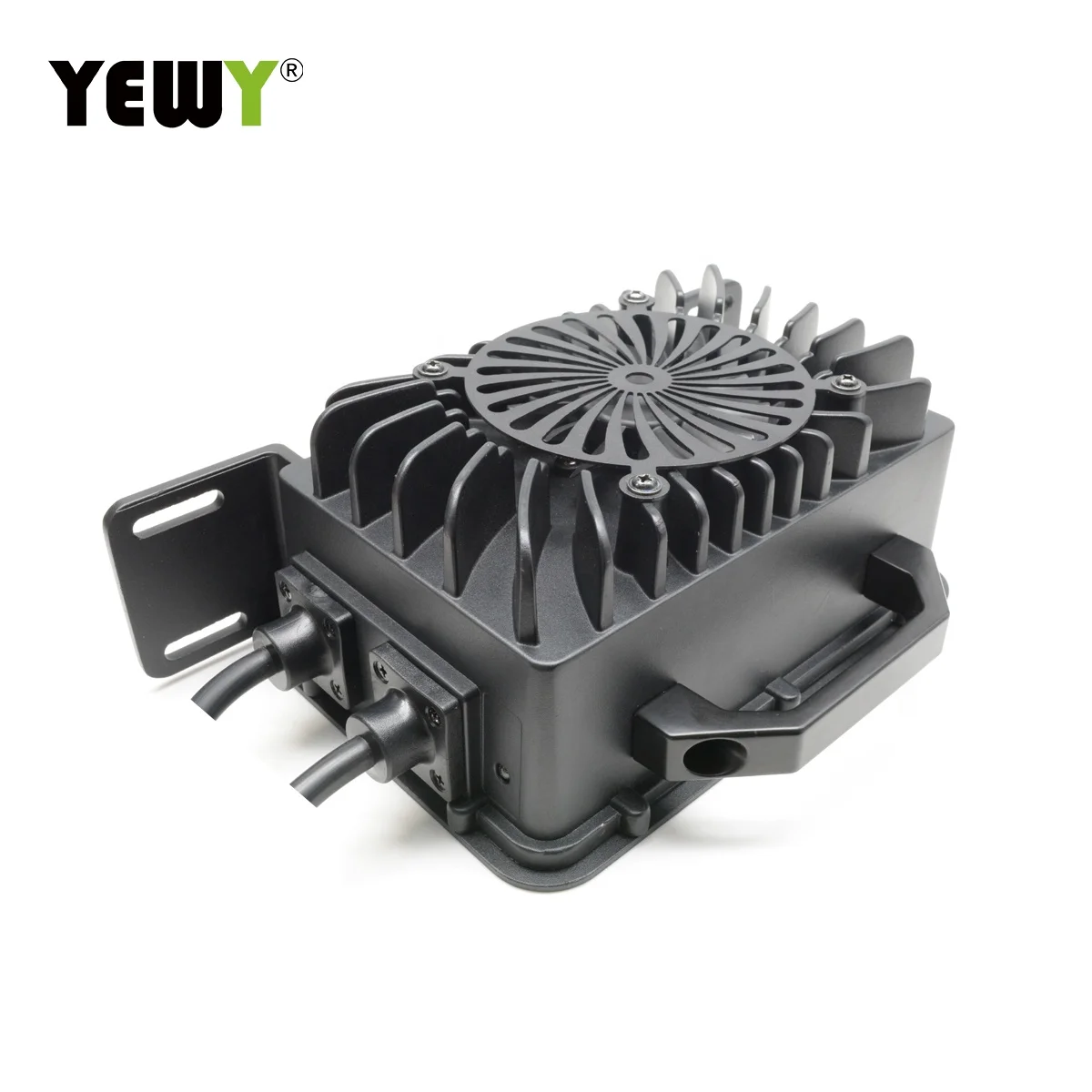

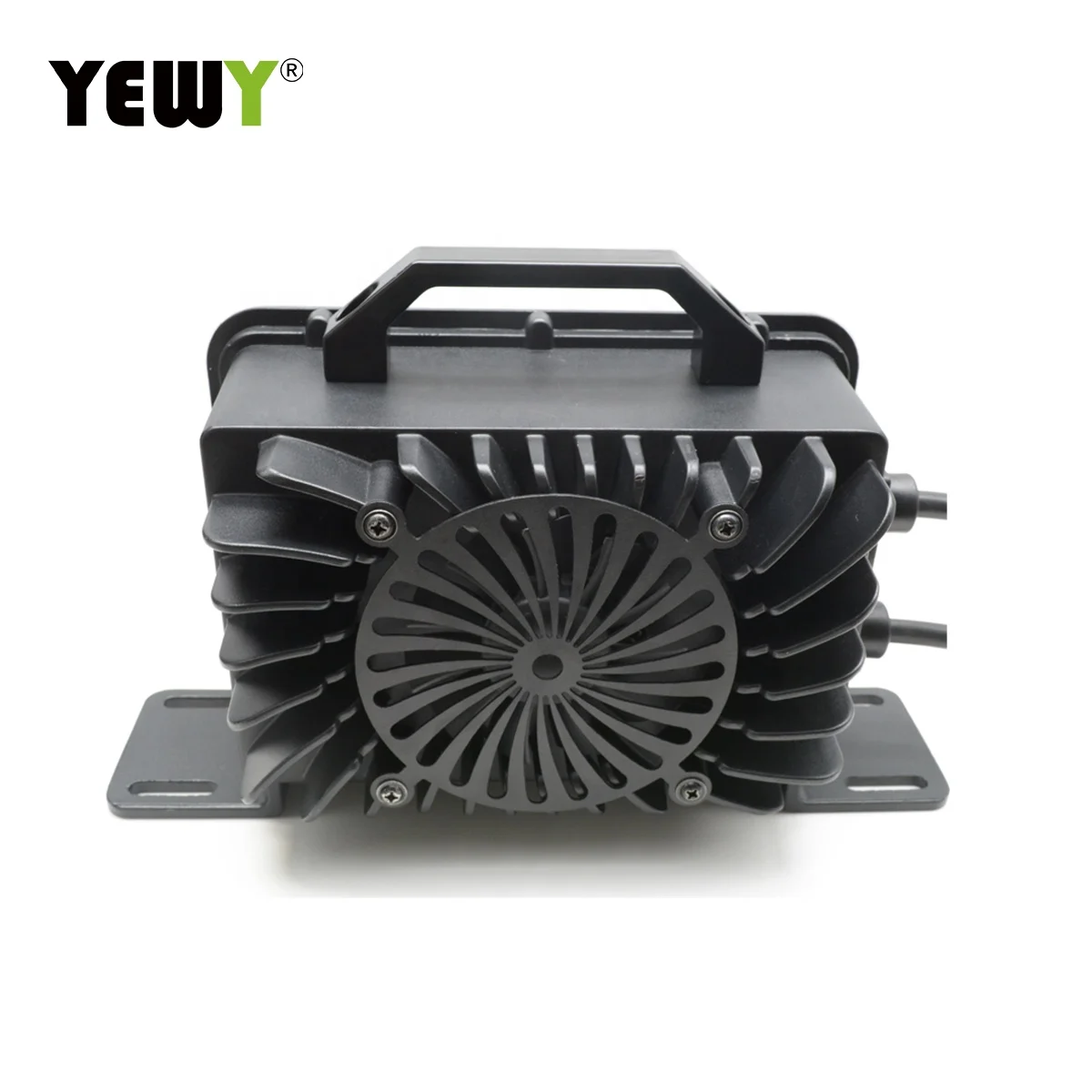

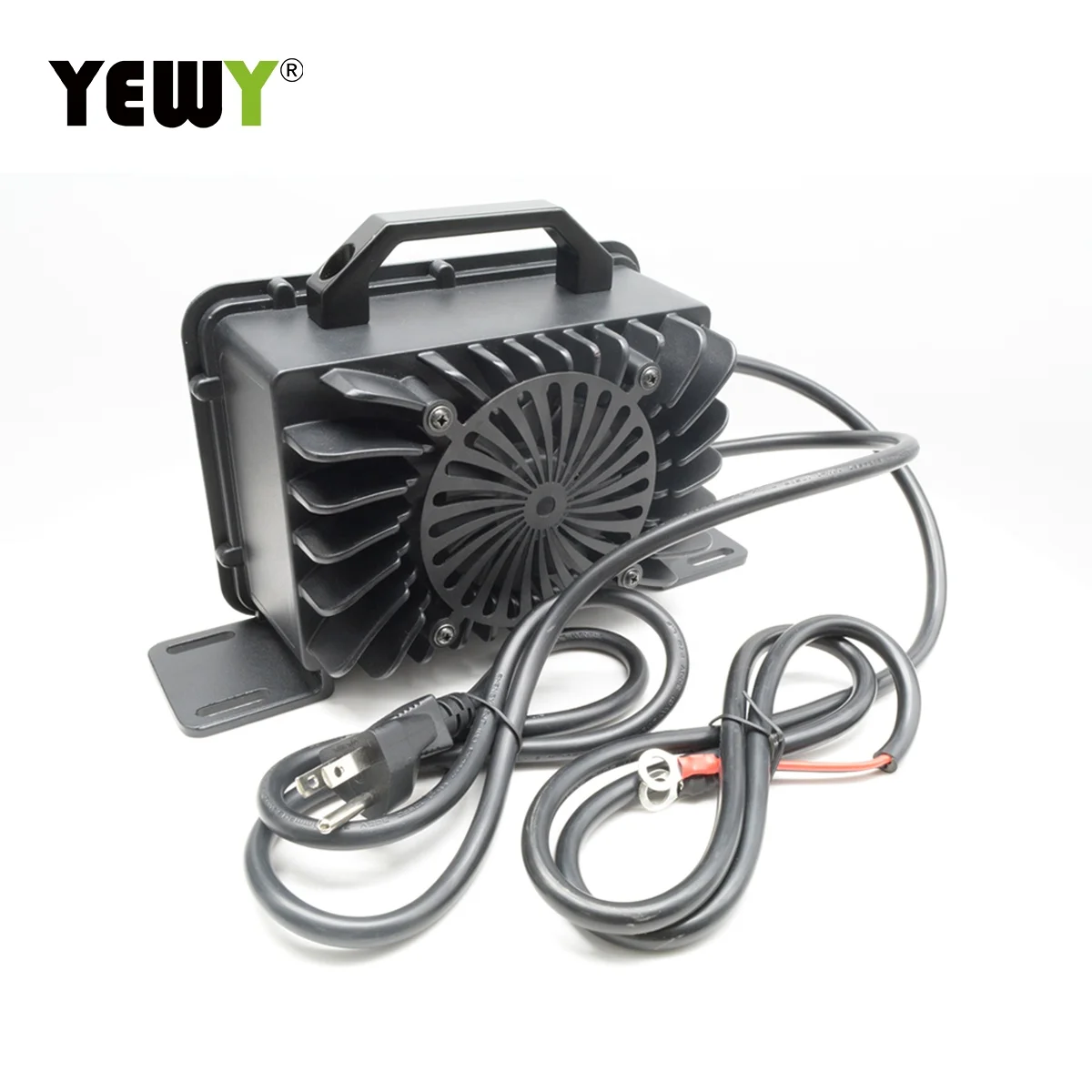

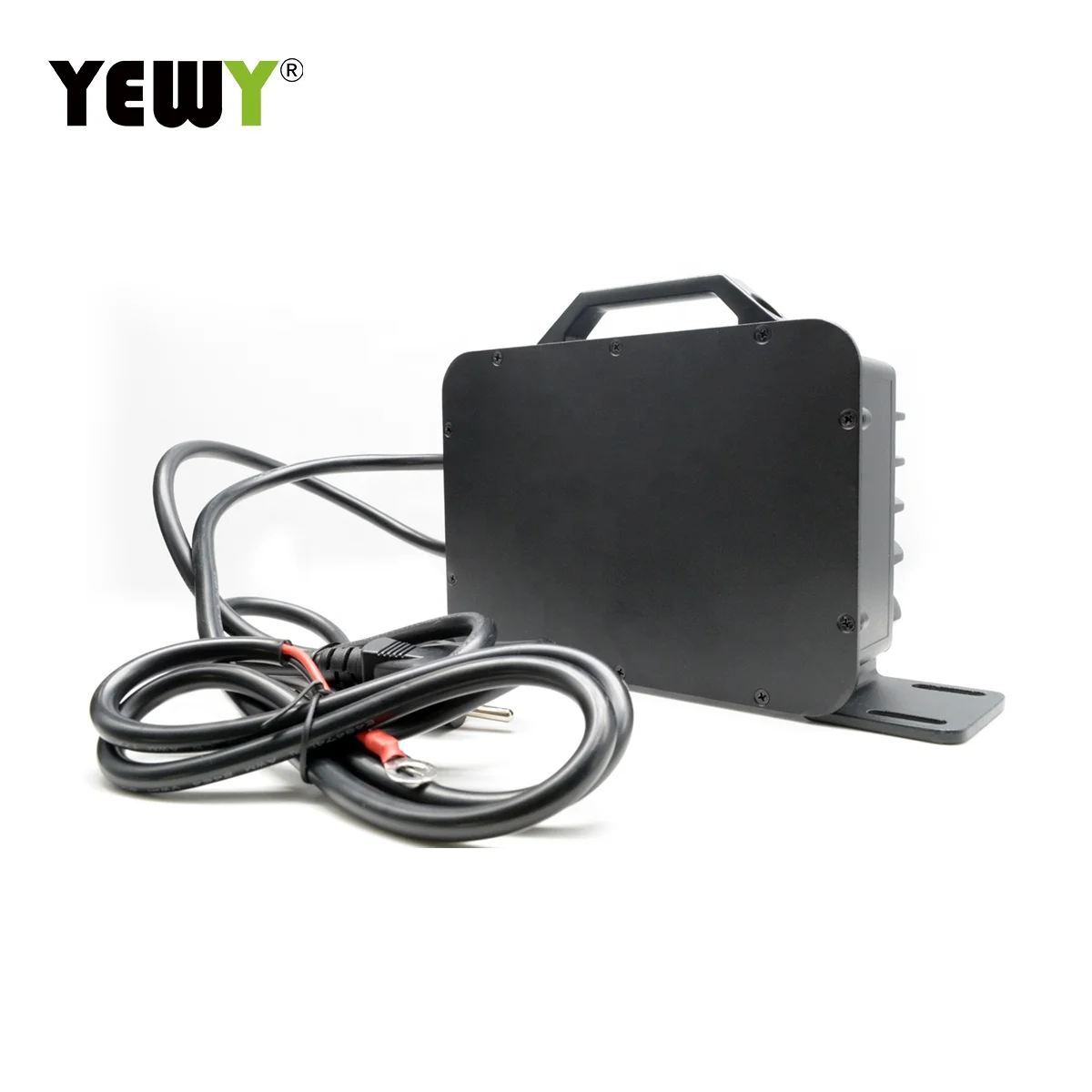

600 Вт 12V25A зарядное устройство для гольф-кары водонепроницаемое IP65 OBC на борту L-A 12 В свинцово-кислотный
- Категория товара: Vehicle Parts & Accessories >>>
- Поставщик (Оптовый магазин): Guangzhou,Yunyang,Electronic,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Guangzhou Yunyang Electronic Technology Co.,Ltd.
Professional Battery Charger Manufacturer
China "National Hi-Tech Enterprise"
Product Details
Charger Model: | UY600S | Max Power: | 600 W | ||

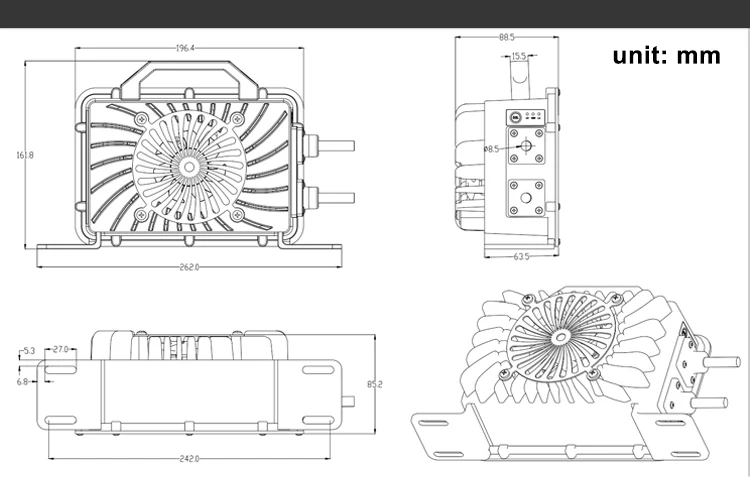

Shell: | Aluminium Alloy | Size: | 262*88.5*161.8mm | ||
AC Input: | 100-240Vac/47~63 Hz | Waterproof: | IP65 | ||
Communication: | CAN, RS485,Bluetooth | ||||
Max Efficiency: | >=93% | Operating Temperature: | -20 to 40℃ | ||
Storage Temperature: | -40 to +70℃ | Noise: | <=40dB | ||
Cooling: | Active cooling with fan | ||||
Protection: | 1,Input low-voltage&over-voltage protection. 2,Overheat protection. 3,Output empty-load protection. 4,Output short&reverseprotection. 5,Output over-current&over-voltage protection. | ||||

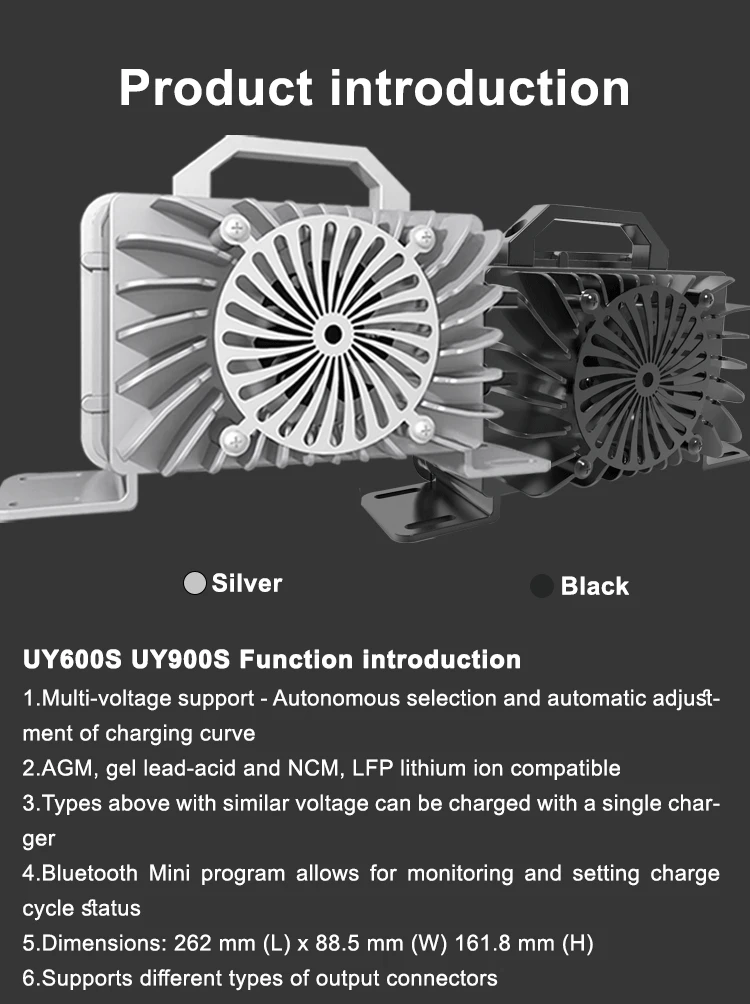

1. Multi-voltage support - Autonomous selection and automatic adjustment of charging curve |
2. AGM, gel lead-acid and NCM, LFP lithium ion compatible |
3. Types above with similar voltage can be charged with a single charger |
4. Bluetooth Mini program allows for monitoring and setting charge cycle status. |
5. Certification: CE, FCC, and DOE, ect |
6. Supports different types of output connectors |

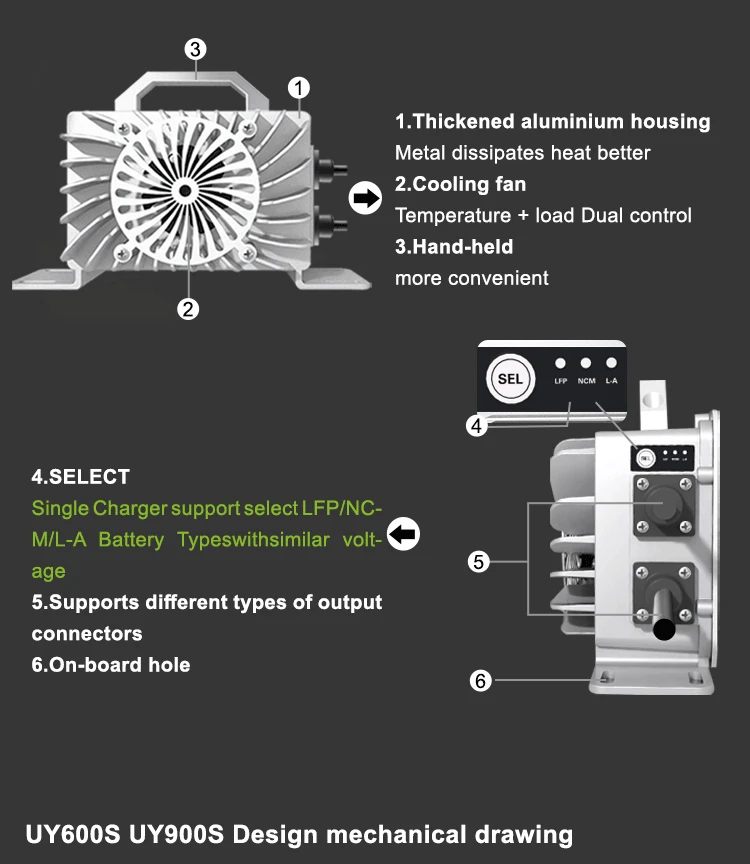

1.Thickened aluminium housing
Metal dissipates heat better
Metal dissipates heat better
2.Cooling fan
Temperature + load Dual control
Temperature + load Dual control
3.Hand-held
4.SEL
Single Charger support select LFP/NCM/L-A Battery Types with similar voltage
5.Supports different types of output connectors
6.On-board hole
Lithium Battery Charger Charging Curve
Charging mode：6 stage
Pre-Charge, CC mode, CV mode ,Battery Full, Recharge
Lead Acid Battery Charger Charging Curve
Charging mode：5 stage
Pre-Charge, CC mode, CV mode ,Battery Full&Float Charge

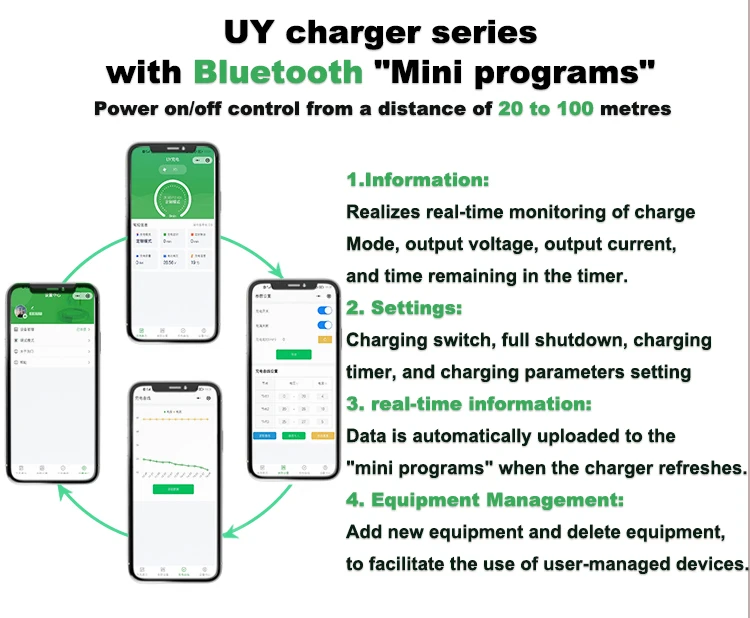

UY charger series with Bluetooth "Mini programs"
Power on/off control from a distance of 20 to 100 metres.
1.Information: Realizes real-time monitoring of charge Mode, output voltage, output current, and time remaining in the timer.
2. Settings: Charging switch, full shutdown, charging timer, and charging parameters setting
3. Real-time Information: Data is automatically uploaded to the "mini programs" when the charger refreshes.
4. Equipment Management: Add new equipment and delete equipment, to facilitate the use of user-managed devices.
2. Settings: Charging switch, full shutdown, charging timer, and charging parameters setting
3. Real-time Information: Data is automatically uploaded to the "mini programs" when the charger refreshes.
4. Equipment Management: Add new equipment and delete equipment, to facilitate the use of user-managed devices.
Type | Specification | DC Voltage | Charging Current | Light Turning(A) | ||||||||||
Type | Specification | Li-ion | LiFePo4 | Lead-acid | Lithium | Lead-acid | ||||||||
UY600S | 12V25A | 12.6V/16.8V | 14.4/14.6V | 14.7V | 30A | 8% | 25% | |||||||
24V18A | 25.2V/29.4V | 29.2V | 29.4V | 20A | 8% | 25% | ||||||||
36V12A | 42V | 43.8V | 44.1V | 15A | 8% | 25% | ||||||||
48V10A | 50.4V/54.6V/58.8V | 58.4V | 58.8V | 10A | 8% | 25% | ||||||||
60V8A | 63V/67.2V/71.4V | 69.35/73V | 73.5V | 8A | 8% | 25% | ||||||||
72V6A | 84V/88.2V | 87.6V | 88.2V | 6A | 8% | 25% | ||||||||
We are manufacturer!We can customize the charging profile according to your battery or your requests | ||||||||||||||
Input&Output Plug
Input Plug from 1 to 10, Output Plug from A to J, choose according to your demand.
If you have any special requirement, please contact us!
YEWY Battery Charger Parameters | ||||||||||||||||
Model | Input 47~63Hz | Power | (voltage & Current) | 24v | 36v | 48v | 60v | 72v | ||||||||
Model | Input 47~63Hz | Power | 12V | 24V | 36V | 48V | 60V | 72V | ||||||||
Umini | 100-240Vac | 120w | 6A | 4A | 2.5A | 2A | 1.5A | 1A | ||||||||
UY120 | 100-240Vac | 120w | 6A | 4A | 2.5A | 2A | - | - | ||||||||
UY180 | 110/220Vac | 180w | 8A | 6A | 4A | 3A | 2A | 2A | ||||||||
UY240 | 110/220Vac | 240W | 15A | 8A | 5A | 4A | 3A | 2A | ||||||||
UY360 | 110/220Vac | 360W | 18A | 12A | 8A | 6A | 5A | 4A | ||||||||
UY600 | 110/220Vac | 600W | 30A | 20A | 12A | 10A | 8A | 6A | ||||||||
UY900 | 110/220Vac | 900W | 40A | 28A | 18A | 15A | 12A | 10A | ||||||||
UY1200 | 110/220Vac | 1200W | 50A | 35A | 25A | 20A | 15A | 12A | ||||||||
UY1500 | 110/220Vac | 1500W | 70A | 45A | 30A | 25A | 20A | 16A | ||||||||
UY2000 | 110/220Vac | 2000W | 100A | 60A | 40A | 30A | 25A | 20A | ||||||||
UY2500 | 110/220Vac | 2500W | 100A | 70A | 60A | 60A | 50A | 23A | ||||||||
UY240LP | 100-240Vac | 240W | 10A | 8A | 5A | 4A | 3A | 2A | ||||||||
UY300LP | 100-240Vac | 300W | 15A | 10A | 7A | 5A | 4A | 3A | ||||||||
UY360L | 100-240Vac | 360W | 20A | 12A | 8A | 6A | 5A | 4A | ||||||||
UY360LP | 100-240Vac | 360W | 20A | 12A | 8A | 6A | 5A | 4A | ||||||||
UY600S | 100-240Vac | 600W | 25A | 18A | 12A | 10A | 8A | 6A | ||||||||
UY900S | 100-240Vac | 900W | - | 20A | 18A | 15A | 12A | 10A | ||||||||
UY900L | 100-240Vac | 900W | 35A | 30A | 20A | 15A | 12A | 10A | ||||||||
UY1200S | 100-240Vac | 1200W | 50A | 35A | 25A | 20A | 16A | 12A | ||||||||
UY1500S | 100-240Vac | 1500W | 50A | 45A | 30A | 25A | 20A | 16A | ||||||||
L: PFC +LLC charger, Universal, with PFC, the efficiency up to 93%. LP/S: PFC+LLC, Waterproof | ||||||||||||||||
Application Scenario
Our charger ADAPTS to lithium iron phosphate battery, lithium ion battery, lithium polymer battery, lithium manganese acid battery, lead-acid battery, AGM, colloidal battery, silicone battery, etc.
Scope of application: Power tools, electric bikes, electric motorcycles, electric sweepers, electric atVs, electric cars, AGV, Forklift, robat, on the boat, drones,golf carts, surfboards, etc.
Scope of application: Power tools, electric bikes, electric motorcycles, electric sweepers, electric atVs, electric cars, AGV, Forklift, robat, on the boat, drones,golf carts, surfboards, etc.
Company Profile
About us
Guangzhou Yunyang Electronic Technology Co., Ltd. was established in 2013 and is a national high-tech enterprise specializing in the research, development, production, and sales of chargers. We provide professional charger solutions for various global new energy batteries, AGV warehousing and transportation, agricultural unmanned aerial vehicles, AI robots, and more.
Our company has a research and development team with dozens of members and a manufacturing base covering thousands of square meters.
We have obtained over 25 patents and multiple international certifications, including CE, UL, CB, GS, FCC, KC, SAA, and c-TUV-us.
Certifications
IOS 9001:2015,CE,CB,LVD,C-TUV-US,ROHS,FCC,UL,CQC,GS,KC,KCC,RCM
Shipping & Payment
FAQ
Q: How do I choose chargers?
A: To make sure our charger is suitable for your battery pack,
Please send us the following information:
(1) Battery type (2) Number of series units (3) Battery pack capacity (AH) (4) Maximum charging voltage.
Please send us the following information:
(1) Battery type (2) Number of series units (3) Battery pack capacity (AH) (4) Maximum charging voltage.
Q: How to buy YEWY chargers?
A: First, you should tell us your product requirements. We will recommend appropriate products according to your requirements and quote. After you confirm the payment, we will immediately arrange the production. Always a pre-production sample before mass production. Final Inspection before shipment.
Q: Why choose us?
A :* More competitive prices! As a manufacturer, we have our own factory and R&D team, so the price will be more competitive.
* Fast delivery! Mature factory, experienced engineers and efficient workers.
* Good transportation service! We have long-term cooperation with DHL, UPS and EMS, so we can promise to save more transportation costs and provide better services.
* Experienced professional service! More than 15 years of professional research and development team and experience. Maintain good cooperative relationship with more than 200 dealers. Have a good reputation in the industry.
* Warranty service! The warranty lasts for 18 months.
*Certification! All Charger certified by CE& ROHS. Also have relevant certificates of FCC, CB, LVD, KC & KCC for waterproof series products.
A :* More competitive prices! As a manufacturer, we have our own factory and R&D team, so the price will be more competitive.
* Fast delivery! Mature factory, experienced engineers and efficient workers.
* Good transportation service! We have long-term cooperation with DHL, UPS and EMS, so we can promise to save more transportation costs and provide better services.
* Experienced professional service! More than 15 years of professional research and development team and experience. Maintain good cooperative relationship with more than 200 dealers. Have a good reputation in the industry.
* Warranty service! The warranty lasts for 18 months.
*Certification! All Charger certified by CE& ROHS. Also have relevant certificates of FCC, CB, LVD, KC & KCC for waterproof series products.
Q: Can I have a sample order?
A: Yes, we can provide n initial sample for your requirements.
