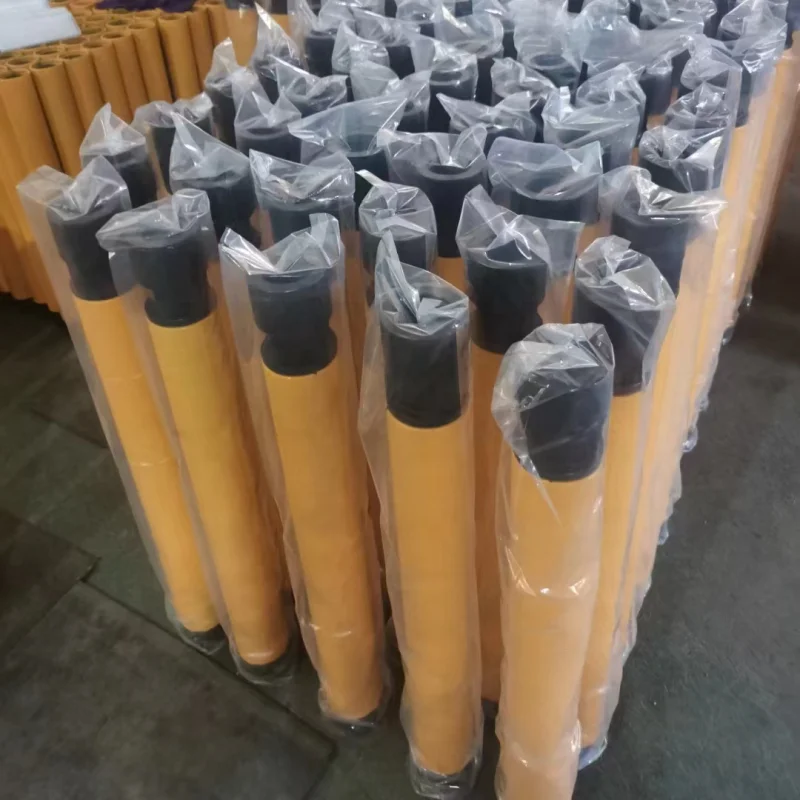

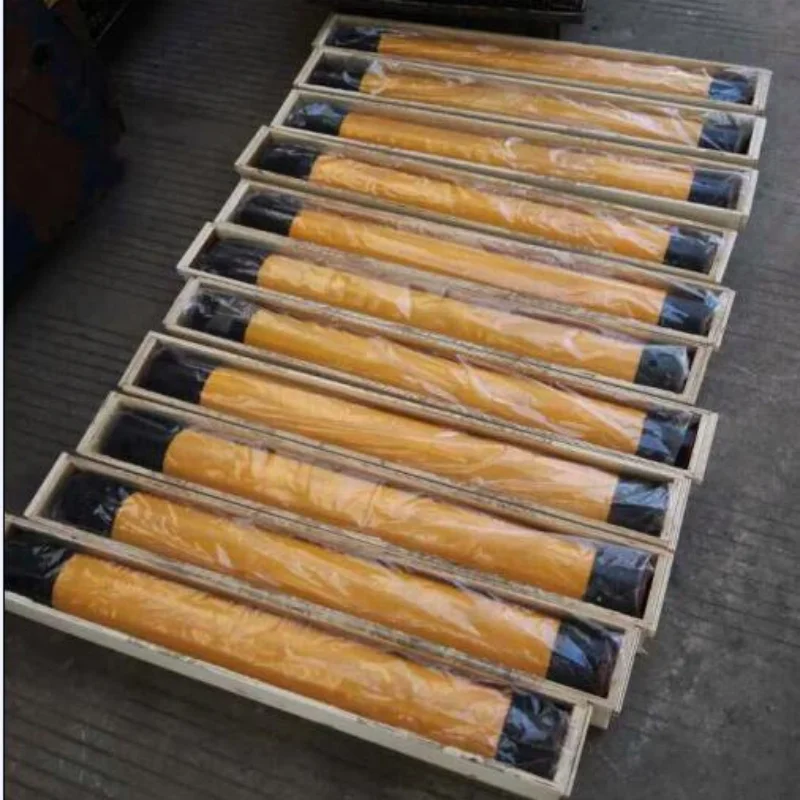

CIR70 DTH hammer для
- Категория товара: Mining Machine Parts >>>
- Поставщик (Оптовый магазин): Xiamenshi,Xinmeixi,Mechanical&,Electrical,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Hammers | Bit Shank | Connection Thread | Suitable bit | Working pressure | Air consumption | ||
1-3" Middle-low pressure | BR1 | RD40 box | 64-76mm | 0.7-1.75Mpa | 0.7 Mpa | 4.5 m3/min | |
DTH hammers | BR2 | RD50 box | 70-90mm | 1.0 Mpa | 4 m3/min | ||
BR3 | API 2 3/8" Reg | 90-110mm | 1.4 Mpa | 5 m3/min | |||
3" hammers | DHD3.5 | API 2 3/8"Reg | 90-110mm | 1.0-1.5Mpa | 1.0 Mpa | 4.5 m3/min | |
COP32/COP34 | |||||||
M30 | 1.5 Mpa | 9 m3/min | |||||
4" hammers | DHD340 | API 2 3/8"Reg | 105-130mm | 1.0-2.5Mpa | 1.0 Mpa | 6 m3/min | |
COP44 | |||||||
QL40 | |||||||
SD4 | 1.8 Mpa | 10 m3/min | |||||
M40 | 2.4 Mpa | 15 m3/min | |||||
5" hammers | DHD350 | API 2 3/8"Reg | 130-156mm | 1.0-2.5Mpa | 1.0 Mpa | 9 m3/min | |
COP54 | API 3 1/2"Reg | ||||||
QL50 | |||||||
SD5 | 1.8 Mpa | 15 m3/min | |||||
M50 | 2.4 Mpa | 23 m3/min | |||||
6" hammers | DHD360 | API 3 1/2"Reg | 152-203mm | 1.0-2.5Mpa | 1.0 Mpa | 10 m3/min | |
COP64 | |||||||
QL60 | |||||||
SD6 | 1.8 Mpa | 20 m3/min | |||||
M60 | 2.4 Mpa | 28.5 m3/min | |||||
8" hammers | DHD380 | API 4 1/2"Reg | 200-279mm | 1.0-2.5Mpa | 1.0Mpa | 15m3/min | |
COP84 | |||||||
QL80 | |||||||
SD8 | 1.8Mpa | 26m3/min | |||||
M80 | 2.4Mpa | 34m3/min | |||||
10" hammers | SD10 | API 6 5/8"Reg | 254-330mm | 1.0-2.5Mpa | 1.0Mpa | 22m3/min | |
NUMA100 | 1.8Mpa | 40m3/min | |||||
2.4Mpa | 55m3/min | ||||||
12" hammers | DHD1120 | API 6 5/8"Reg | 305-381mm | 1.0-2.5Mpa | 1.0Mpa | 30m3/min | |
SD12 | |||||||
NUMA120 | 1.8Mpa | 56m3/min | |||||
NUMA125 | 2.4Mpa | 78m3/min | |||||
Adavantages of Our dth hammer :
1.superior alloy steel:Hardness and wear resistance combined alloy stell,supplied by national top level specialsteel
manufacturersuperior
2.Longer Service Life:All parts of the DTH hammer and bits are heat treated,longer life,less failure.
3.High Efficiency:More efficient energy transfer, faster drilling speed,15%-30% faster penetration than conventional DTH hammer.
4.Saving Oil:lower air consumption and lower oil consumption.
5.wording pressure from 6 Bar to 35 Bar(0.6~ 3.5Mpa)
manufacturersuperior
2.Longer Service Life:All parts of the DTH hammer and bits are heat treated,longer life,less failure.
3.High Efficiency:More efficient energy transfer, faster drilling speed,15%-30% faster penetration than conventional DTH hammer.
4.Saving Oil:lower air consumption and lower oil consumption.
5.wording pressure from 6 Bar to 35 Bar(0.6~ 3.5Mpa)
