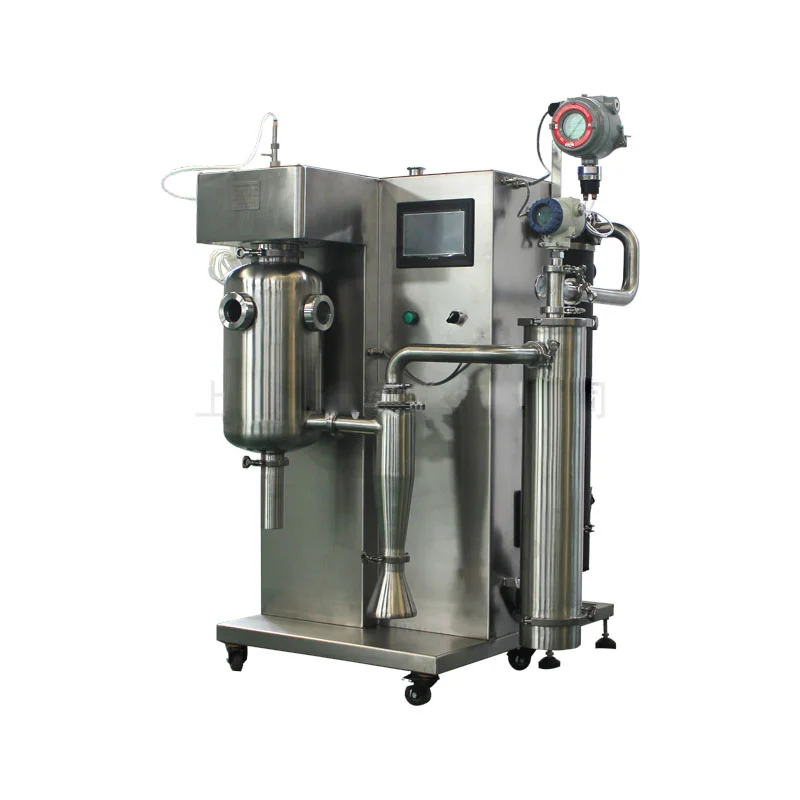

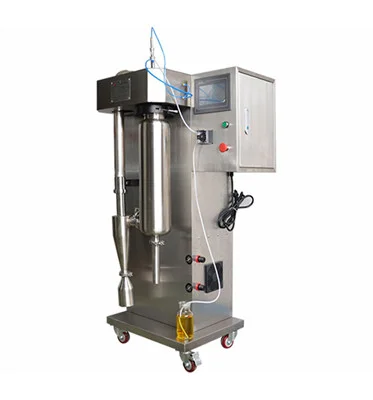

Производитель поставщик автоматическая лабораторная распылительная сушильная машина мини-распылительная
- Категория товара: Chemical Machinery & Equipment >>>
- Поставщик (Оптовый магазин): Hangzhou,Anyan,Instrument,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

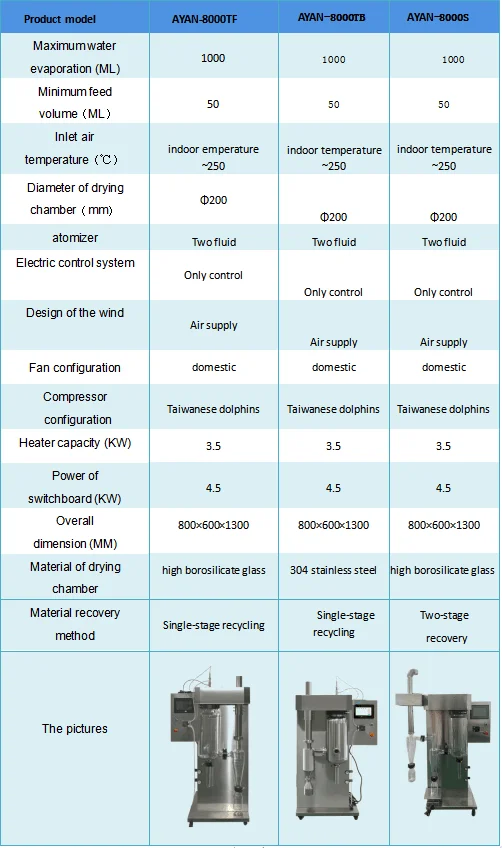

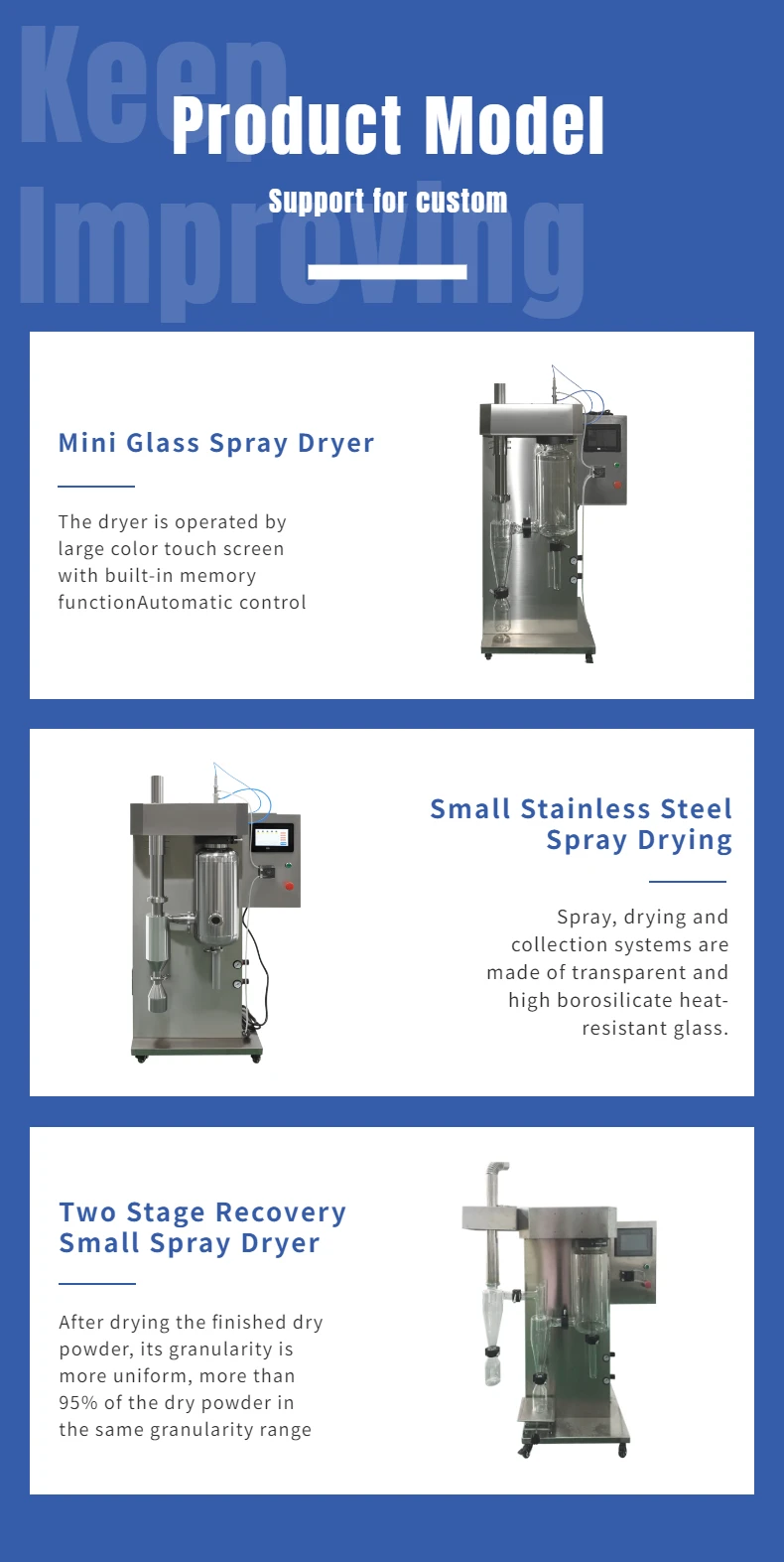

Product Model
Parameters of the blanket | ||||||

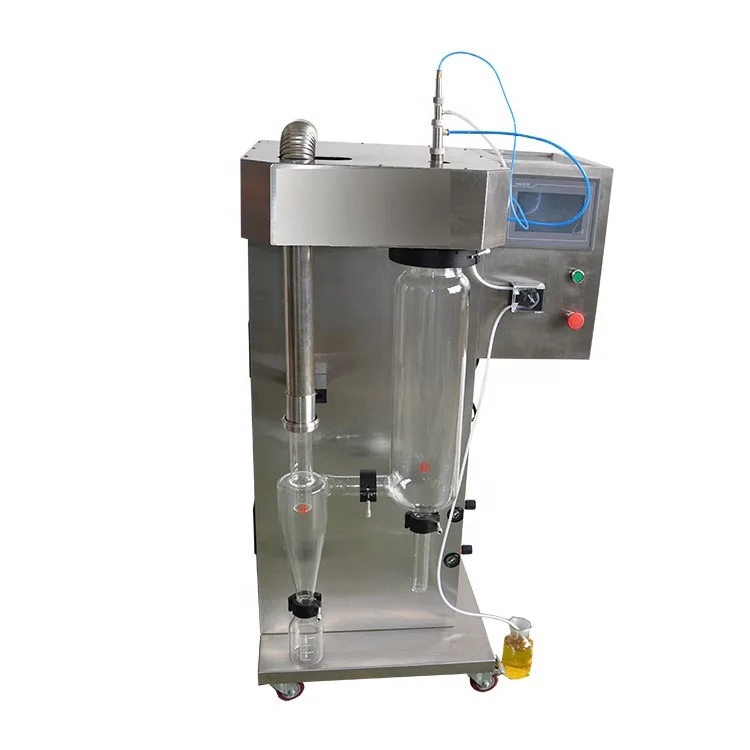

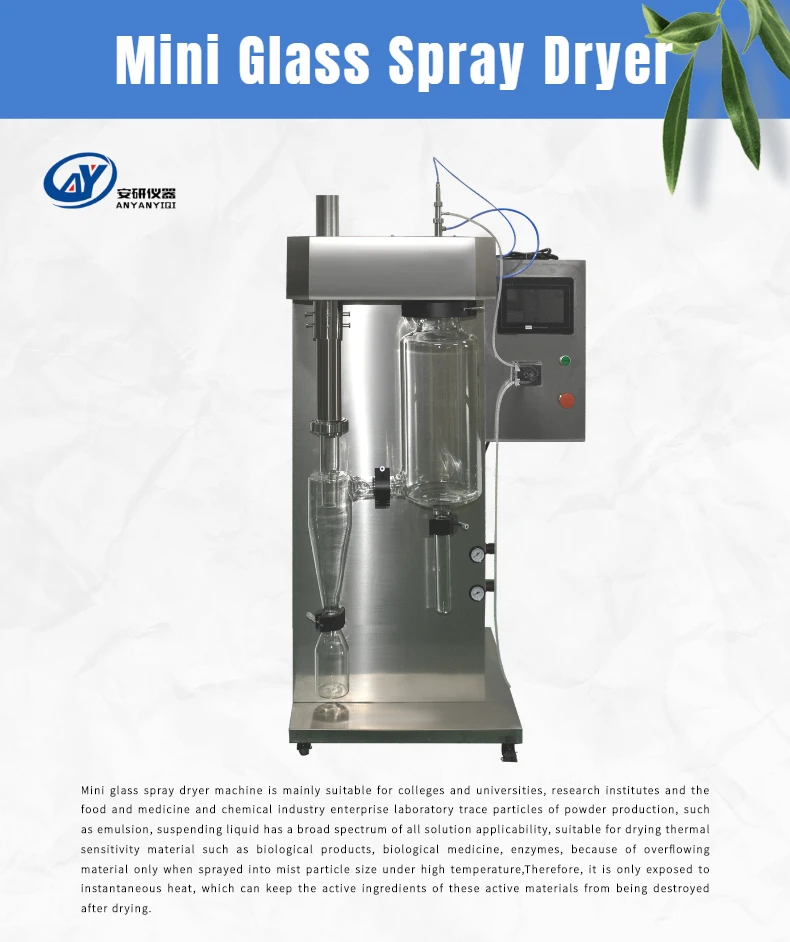

Product name | Mini Glass Spray Dryer | Product model | AYAN-8000TF | |||
Handling capacity | 1000ml/h | Minimum feeding capacity | 50ml | |||
Dry chamber diameter | ￠190(mm) | Atomization mode | two fluid flow | |||
Electronic control system | Anyan small atomization system dedicated | Maximum inlet air temperature | room temperature ~250℃ (adjustable) | |||
Hot air supply nozzle specifications | blowing-in | Nozzle specifications | The standard 0.75 mm (0.5 mm / 0.7 mm / 1.0 mm / 1.5 mm / 2.0 mm optional) | |||
Machine power (KW) | 3.8Kw | Dimensions (mm) (L×W×H) | 770×590×1380 | |||
Installation weight (reference) | 78KG | Power supply | 220V/-3￠(can be customized according to different national standards related voltage | |||
Brief Description | 1. Atomization chamber, cyclone separator, material collection bottle and waste collection bottle are made of high borosilicate glass. 2. The chassis adopts SUS304. 3. Bag device (optional) : improve recovery rate. The water evaporation and heater power shall be based on the inlet air temperature of 250℃. Note: External dimensions are reference dimensions and can be adjusted according to the site. | |||||
Parameters of the blanket | ||||||

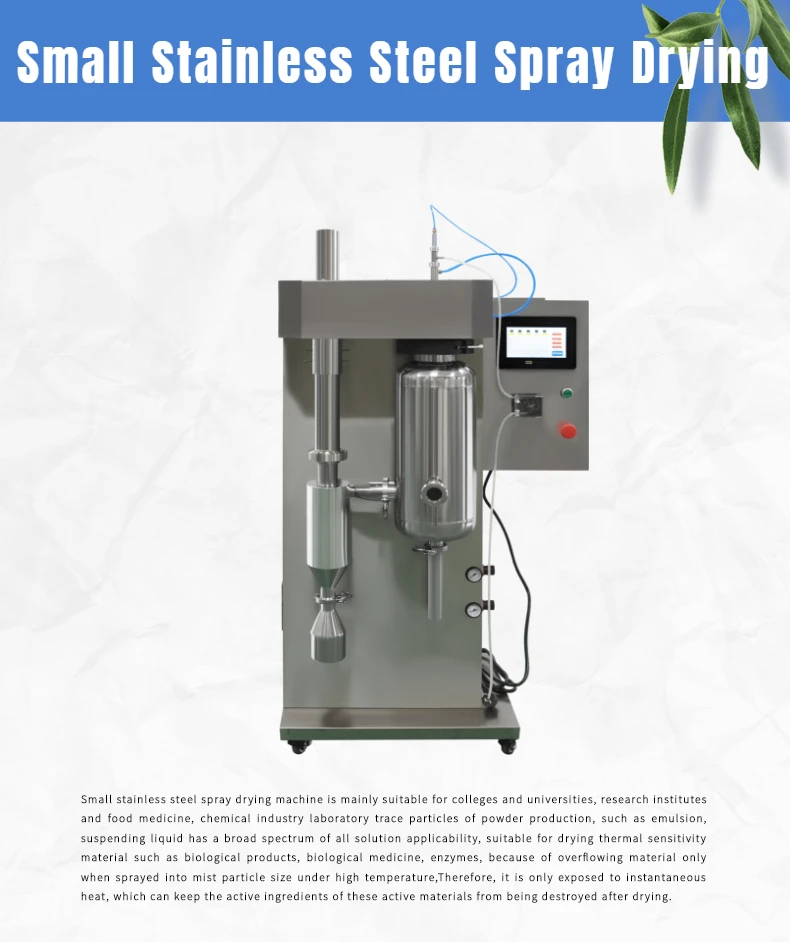

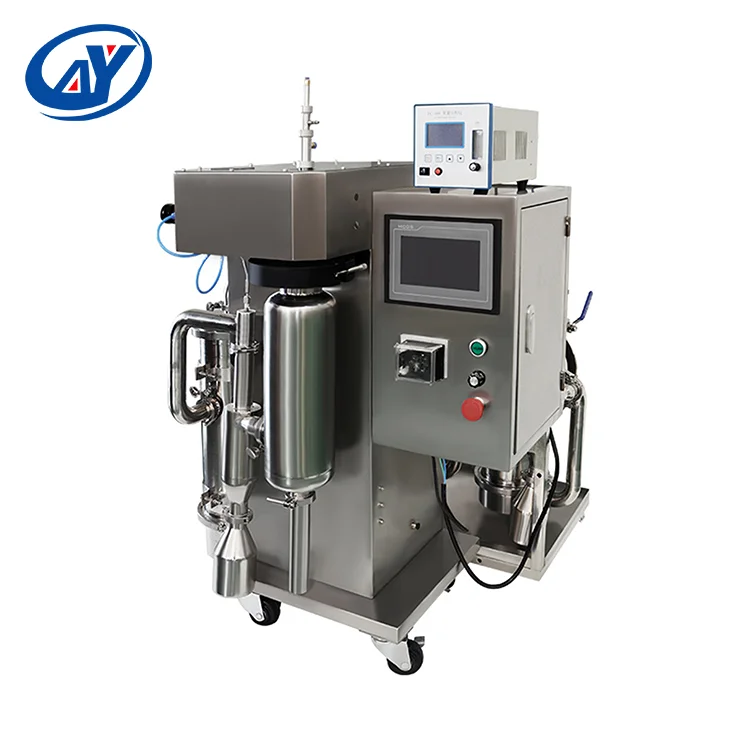

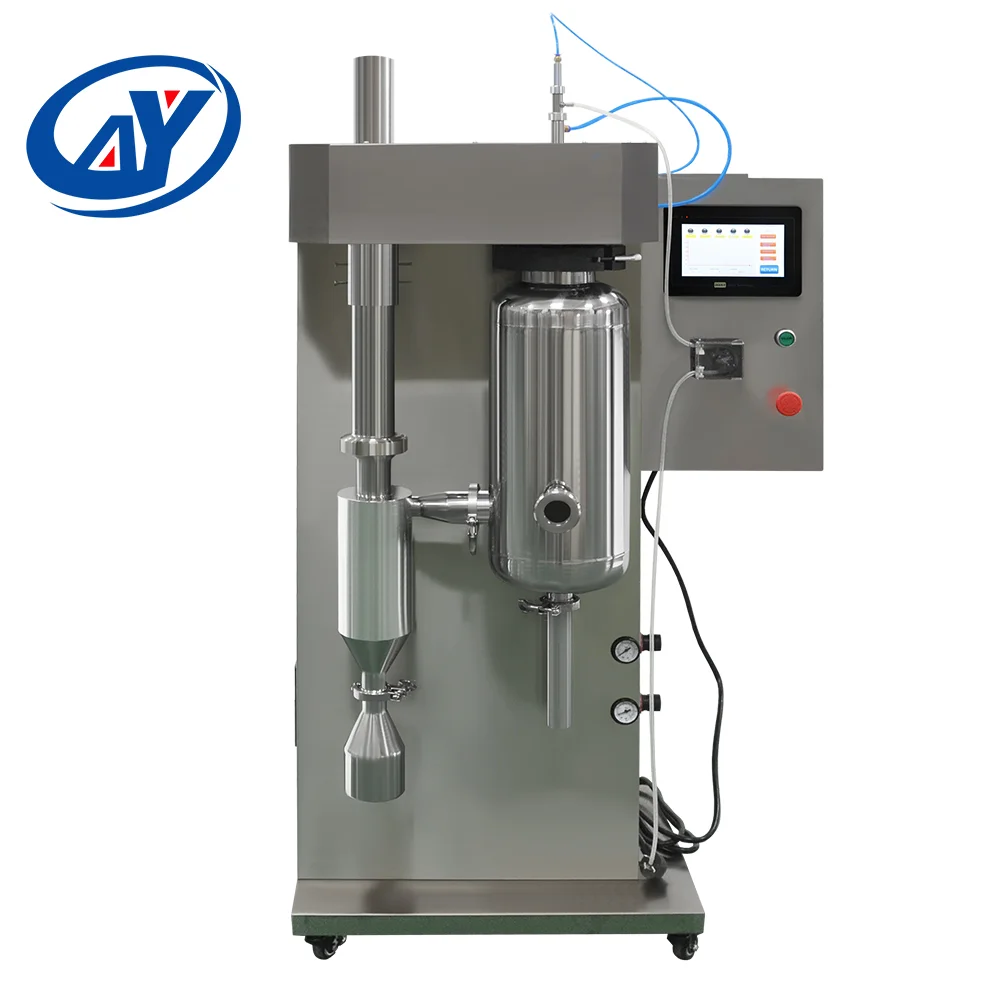

Product name | Small Stainless Steel Spray Drying | Product model | AYAN-8000TB | |||
Handling capacity | 1000ml/h | Minimum feeding capacity | 50ml | |||
Dry chamber diameter | ￠190(mm) | Atomization mode | two fluid flow | |||
Electronic control system | Anyan small atomization system dedicated | Maximum inlet air temperature | room temperature ~250℃ (adjustable) | |||
Hot air supply nozzle specifications | blowing-in | Nozzle specifications | The standard 0.75 mm (0.5 mm / 0.7 mm / 1.0 mm / 1.5 mm / 2.0 mm optional) | |||
Machine power (KW) | 3.8Kw | Dimensions (mm) (L×W×H) | 770×590×1380 | |||
Installation weight (reference) | 120kg | Power supply | 220V/-3￠(can be customized according to different national standards related voltage | |||
brief description | 1. Atomization chamber, cyclone separator, material collection bottle and waste collection bottle are made of high borosilicate glass. 2. The chassis adopts SUS304. 3. Bag device (optional) : improve recovery rate. The water evaporation and heater power shall be based on the inlet air temperature of 250℃. Note: External dimensions are reference dimensions and can be adjusted according to the site. | |||||
Parameters of the blanket | ||||||

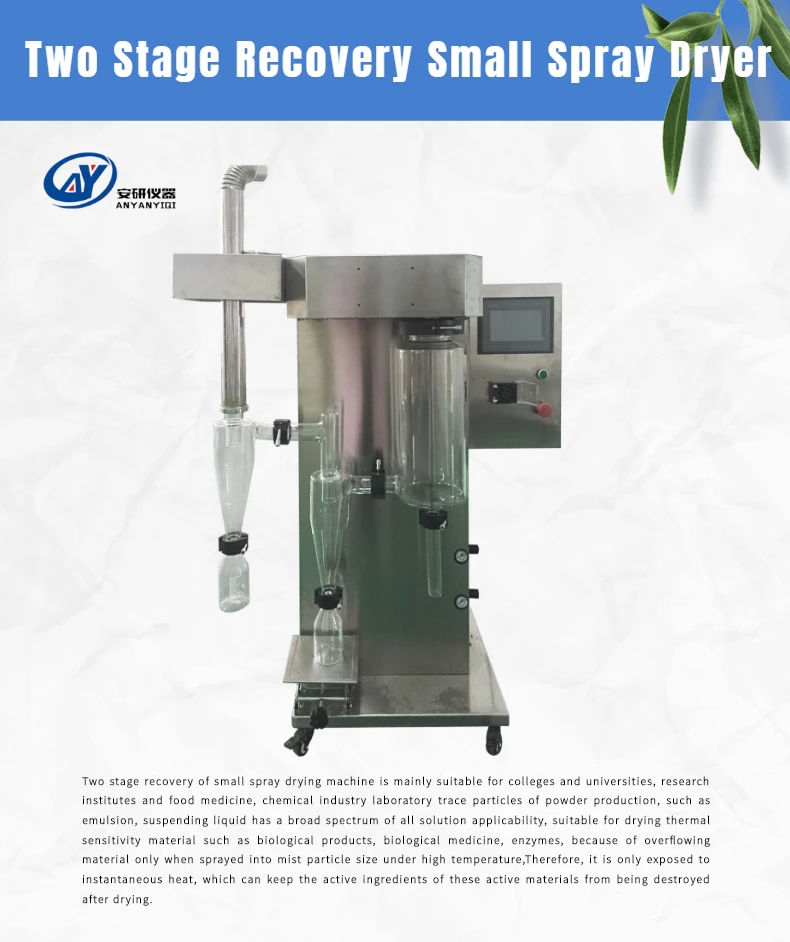

Product name | Two Stage Recovery Small Spray Dryer | Product model | AYAY-8000S | |||
Handling capacity | 1000ml/h | Minimum feeding capacity | 50ml | |||
Dry chamber diameter | ￠190(mm) | Atomization mode | two fluid flow | |||
Electronic control system | Anyan small atomization system dedicated | Maximum inlet air temperature | room temperature ~300℃ (adjustable) | |||
Hot air supply nozzle specifications | blowing-in | Nozzle specifications | The standard 0.75 mm (0.5 mm / 0.7 mm / 1.0 mm / 1.5 mm / 2.0 mm optional) | |||
Machine power (KW) | 3.8Kw | Dimensions (mm) (L×W×H) | 770×590×1380 | |||
Installation weight (reference) | 80kg | Power supply | 220V/-3￠(can be customized according to different national standards related voltage | |||
Brief Description | 1. Atomization chamber, cyclone separator, material collection bottle and waste collection bottle are made of high borosilicate glass. 2. The chassis adopts SUS304. 3. Bag device (optional) : improve recovery rate. The water evaporation and heater power shall be based on the inlet air temperature of 250℃. Note: External dimensions are reference dimensions and can be adjusted according to the site. | |||||

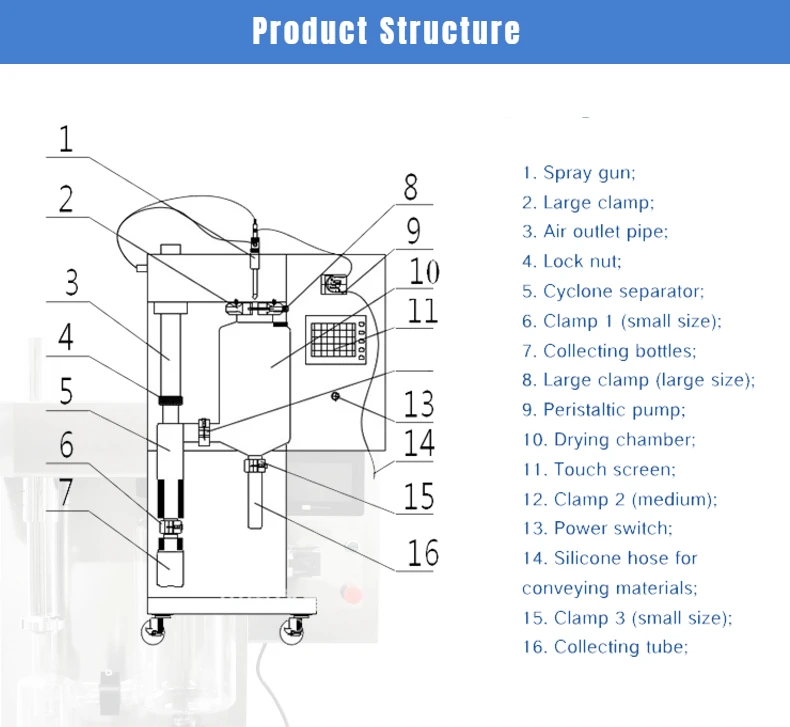

Product Structure

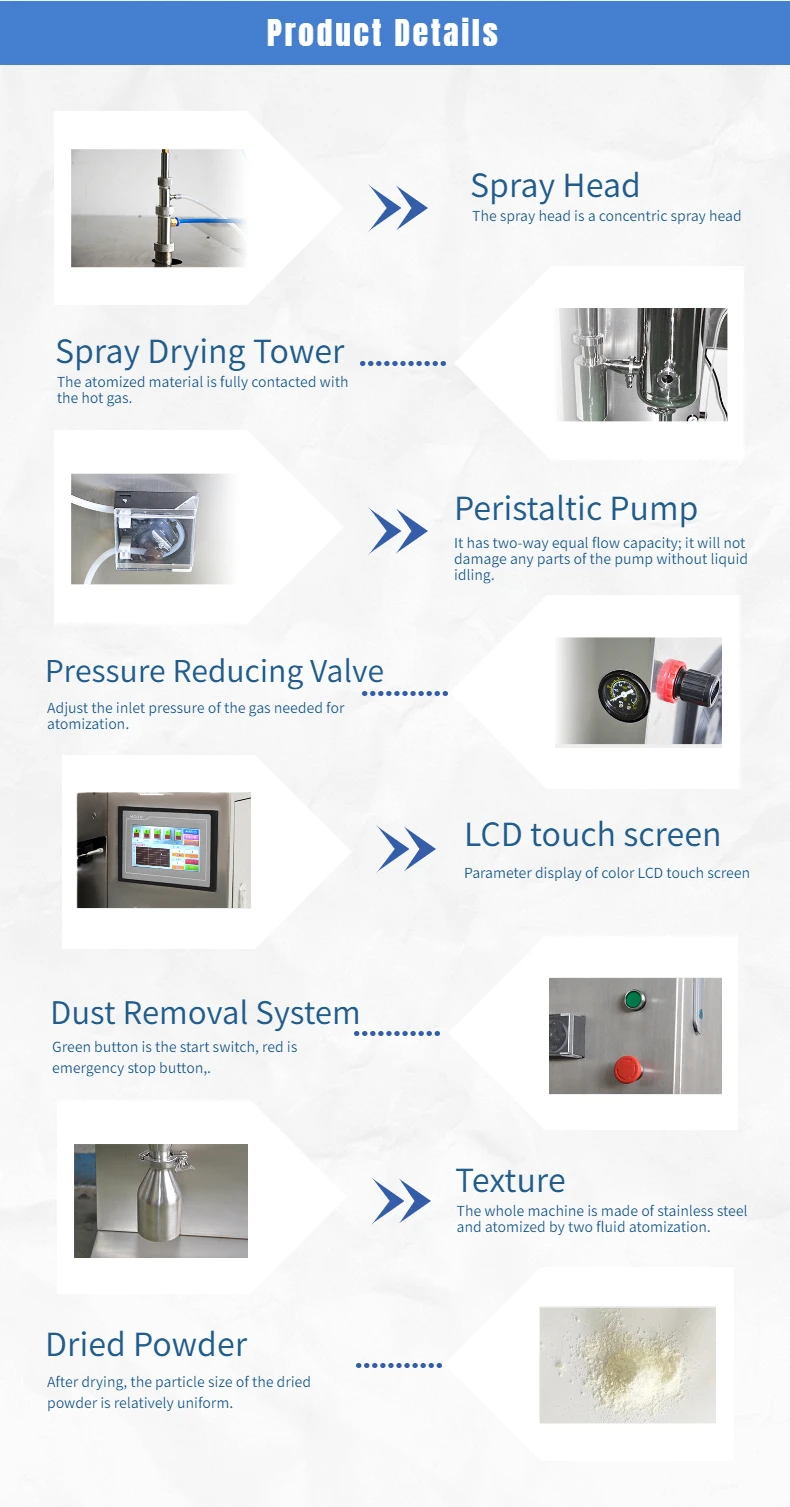

Details Images
Related Products
Certifications

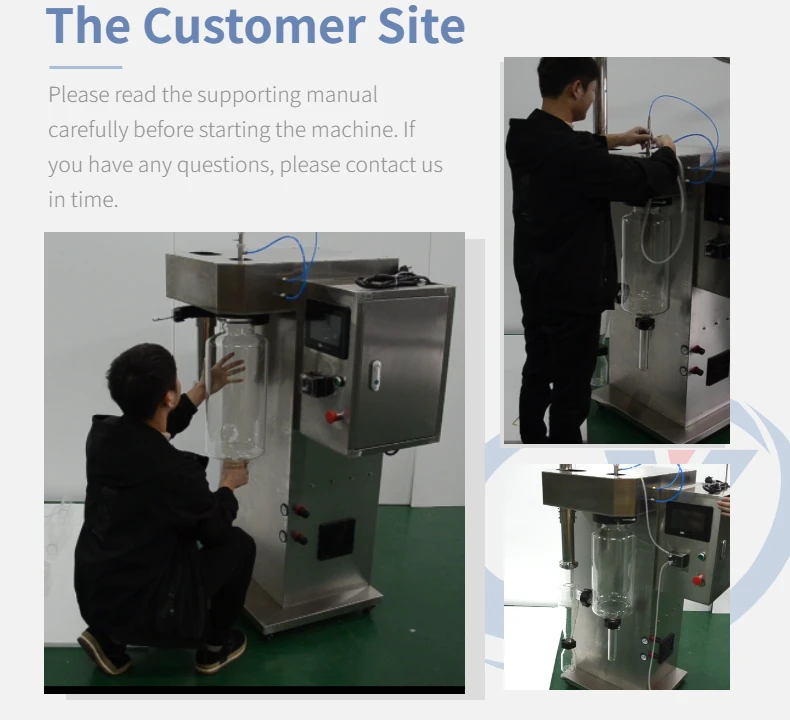

Our Cases
