Product Description

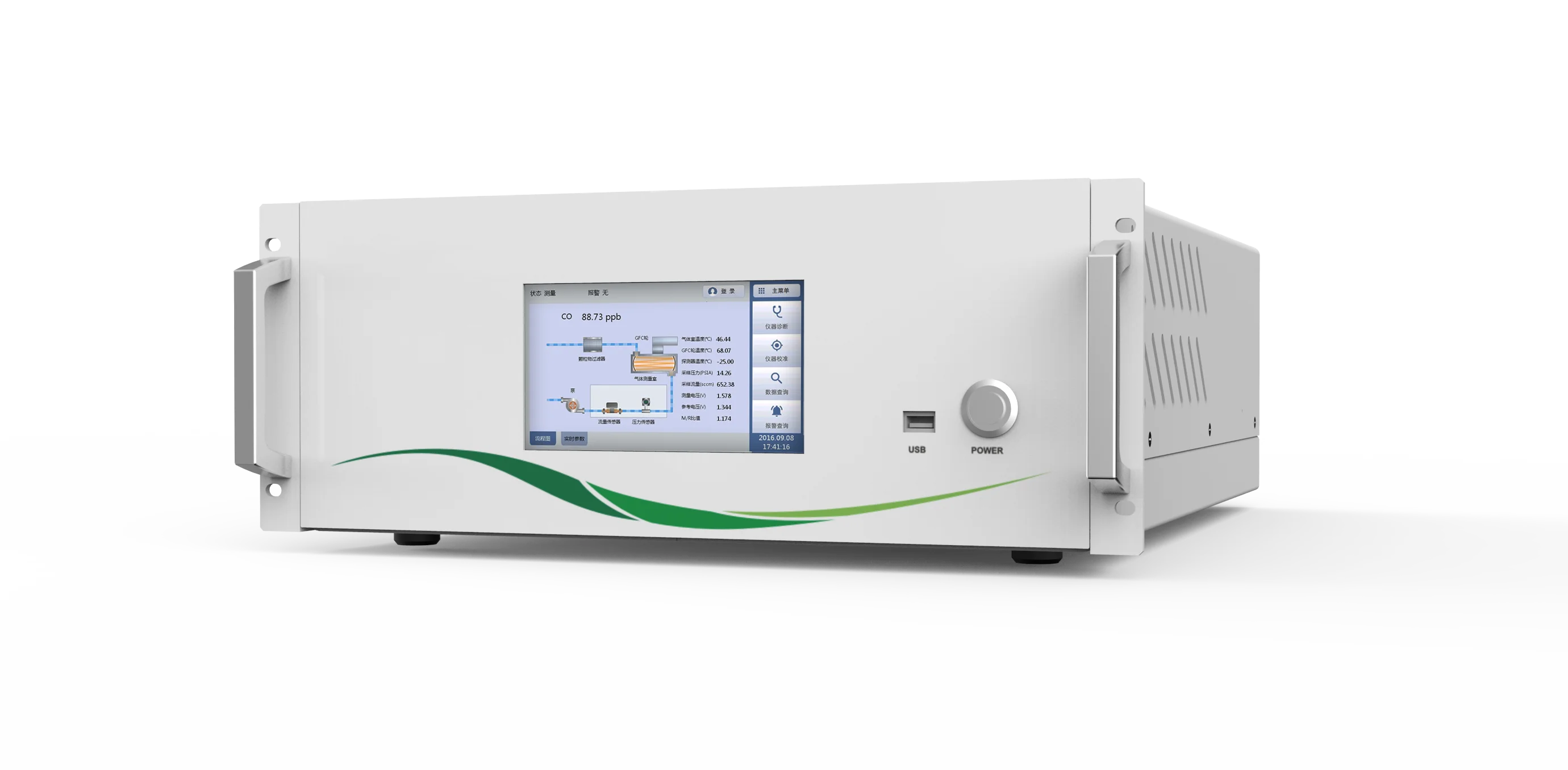

Carbon Monoxide Analyzer
CO
AQMS-400




AQMS-400 carbon monoxide (CO) analyzer measures ambient CO concentration by employing nondispersive infrared with gas filter correlation method technology.


Technical Specifications:


Standard Range
Max:0~1000ppm Min:0~50ppm (Selectable)
Principle
NDIR
Zero Noise
≤0.02ppm (RMS)
Span Noise
≤0.25ppm (RMS)
Lower Detectable Limit
≤0.04ppm (RMS)
Display
Digital
Zero Drift
<0.1ppm/24h
Span Drift
±0.5ppm/24h
Linearity
<1%F.S.
Precision
<1%
Response Time
T90<60s
Sample Flow Rate
(800±80)sccm

Data Transmission
2 channel analog (4~20) mA;
12 digital input/output;
4-way relay output;
Communication
RS232/RS485/Ethernet

Operating Temperature
US EPA Specification 20~30°C
Actual applicable:-5~55°C
Operating Humidity
0~95%RH
Calibration
Multi-point calibrator
Power Requirement
(220±10%)V AC (50±1)Hz (1.5)A; 110V/60Hz
Dimensions and Weight
178(H)x432(W)x597(D)mm, 28kg


Product Features:


1. 14 meters optical path to perform high reliability;
2. Five years guarantee on GFC wheel;
3. Compliance with US EPA reference method;
4. Various outputs include ethernet and RS232;
5. User friendly interface with large screen;
6. Continuous system diagnosis with alarm;
7. Multi-tasking software allows viewing test variables while operating;
8. Temperature and pressure compensation;
9. Internal data logging with 1 min to 365 day multiple averages;


Principle:


Infrared energy emitted by light source is passed through gas chamber containing the air sample, and the quantitative absorption of energy by CO in the sample cell is measured by corresponding detector.


GFC:


GFC (Gas filter correlation) technology is utilized to remove interference caused by moisture and other backgrounds.

Two gas filled chambers are mounted on a rotating disc, which pass through an IR beam alternately. The measure chamber is filled with nitrogen while the reference chamber is filled with high concentration CO. IR beam then passes through the sample gas cell. The difference in absorbance is measured and provides a direct output of the gas concentration.


Data storage and analysis:


Stored data are easily retrievable through the serial or ethernet port via PC client software, allowing operators to perform predictive diagnostics and enhanced data analysis by tracking parameter trends.
