Жесткий централизатор для буровых труб для скважинных инструментов API Spec 10D
- Категория товара: Oil Field Equipment >>>
- Поставщик (Оптовый магазин): Dongying,Lake,Petroleum,Technology,Co.,Ltd.Dongying,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
Description:
Casing Centralizer is a device used to place the casing at the center of the hole so as to improve the efficiency of the
cementing. It is an important device because if the Casing Centralizer touches the formation at any part of the hole, then cement
slurry does not pass through the area of the contact resulting in a poor cementing job.
Casing Centralizer is a device used to place the casing at the center of the hole so as to improve the efficiency of the
cementing. It is an important device because if the Casing Centralizer touches the formation at any part of the hole, then cement
slurry does not pass through the area of the contact resulting in a poor cementing job.

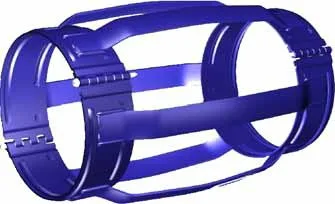

Products Drawing
Features
Features:
1. All products conform to API10D production specifications.
2. Our product can be run in vertical, highly-deviated and horizontal wells.

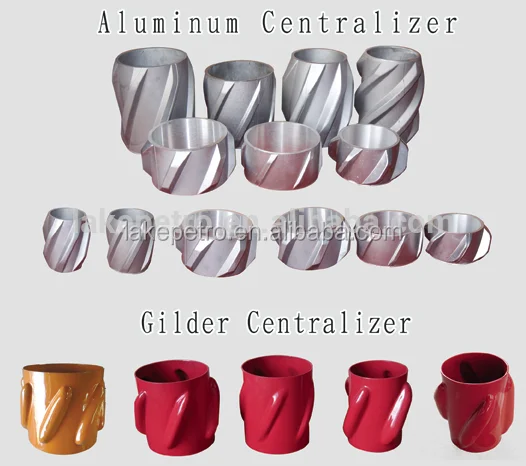

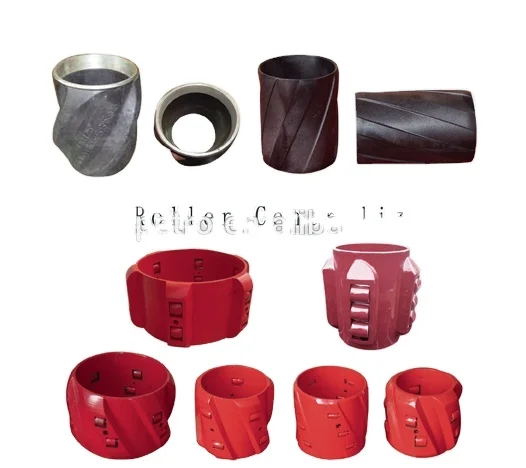

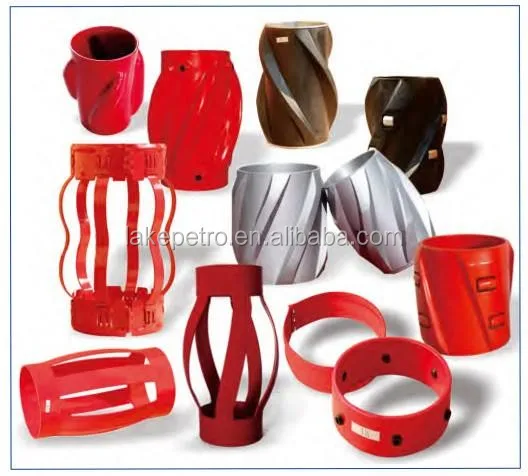

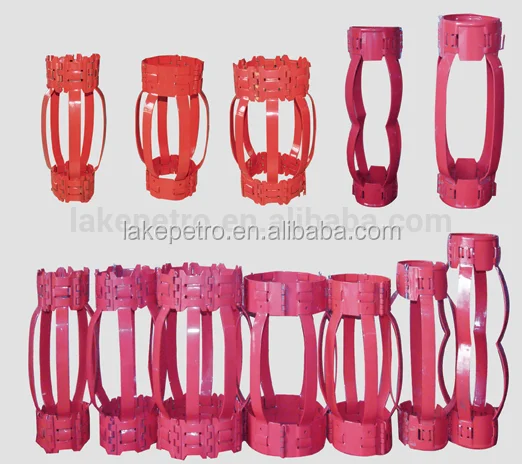

3. We can produce all types of centralizers: solid body type, positive type, welded spiral type, non-welded type, double bow
type and so on.
4. All products are equipped with stop rings.
Specifications:
Type: Solid Rigid Type, Positive Type, Welded Spiral Type, Non-Welded Type, Double Bow type
Casing Size O.D.: 4-1/2 ~ 20 in (114 ~ 508 mm)
Hole Size O.D.: 6 ~ 26 in (165 ~ 680 mm)
Standard: API Spec. 10D
1. All products conform to API10D production specifications.
2. Our product can be run in vertical, highly-deviated and horizontal wells.
3. We can produce all types of centralizers: solid body type, positive type, welded spiral type, non-welded type, double bow
type and so on.
4. All products are equipped with stop rings.
Specifications:
Type: Solid Rigid Type, Positive Type, Welded Spiral Type, Non-Welded Type, Double Bow type
Casing Size O.D.: 4-1/2 ~ 20 in (114 ~ 508 mm)
Hole Size O.D.: 6 ~ 26 in (165 ~ 680 mm)
Standard: API Spec. 10D
Product Parameters
Model | Hooping in Dia. (mm) | Hooping Thickness (mm) | Hooping Height (mm) | Total Length (mm) | Max Out Dia. (mm) | Spring Pieces |
5 1/2*8 1/2 | 142-148 | 5-7 | 50-60 | 650±50 | 225±5 | 5 |
6*8 1/2 | 154-158 | 5-7 | 50-60 | 650±50 | 225±5 | 5 |
13 3/8*17 1/2 | 342-349 | 8 | 50-60 | 580 | 450±5 | 6 |
20*26 | 510-518 | 8 | 50-60 | 650±50 | 670±5 | 10 |
FAQ
Why you need to choose Lake Petro?
As a professional oil and gas service company, Lake Petro has many good experience in selling and serves for the oilfield
industries for years. Quality is the culture of the company, we provide API and BV certified products for customer.
Can you make us the best quality products as well as a good price.
Yes. we can give you really high quality products with competitive price. We have a better understanding in Chinese market, withus
your money will be safe.
What is special compare with other companies?
First, we provide the quality products, with BV and API certified; At the same time, we provide our customer with the best service
after sale, any time any where.
As a professional oil and gas service company, Lake Petro has many good experience in selling and serves for the oilfield
industries for years. Quality is the culture of the company, we provide API and BV certified products for customer.
Can you make us the best quality products as well as a good price.
Yes. we can give you really high quality products with competitive price. We have a better understanding in Chinese market, withus
your money will be safe.
What is special compare with other companies?
First, we provide the quality products, with BV and API certified; At the same time, we provide our customer with the best service
after sale, any time any where.
