45 мм 55 мм 77 мм Изолированная машина для формовки затвора двери
US $57500-$59500

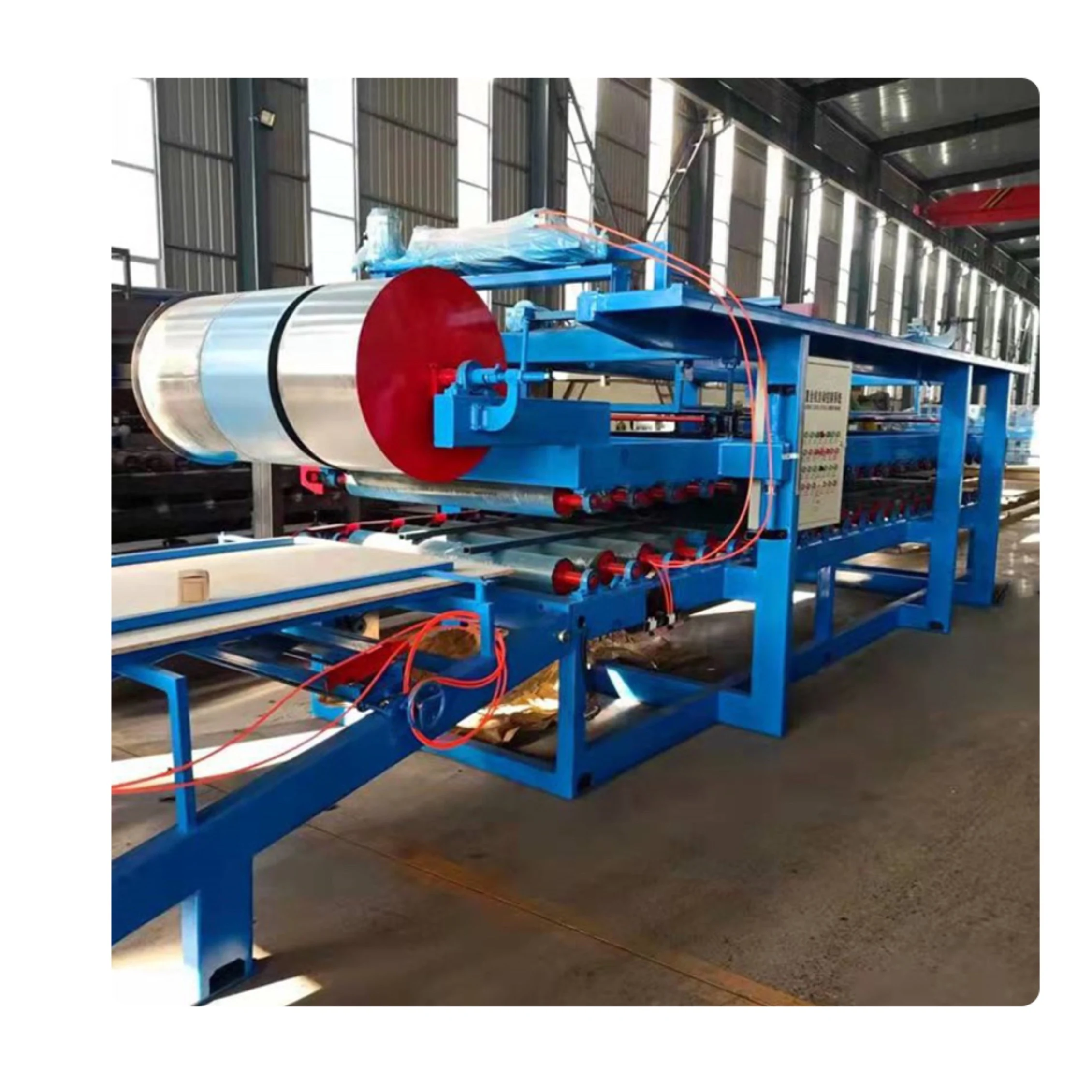

Сэндвич-панель PU формируя производственную линию машины
- Категория товара: Other Construction Material Making Machinery >>>
- Поставщик (Оптовый магазин): Foshan,Shengya,Automatic,Equipment,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
TECHNICAL PROCESS
FEEDING RACK -- 950/970 TILE PRESSING MACHINE -- FEEDING MACHINE FRAME -- AUTOMATIC COMPOSITE BOARD HOST -- AUTOMATIC CUTTING MACHINE --RECEIVING RACK
Product Paramenters

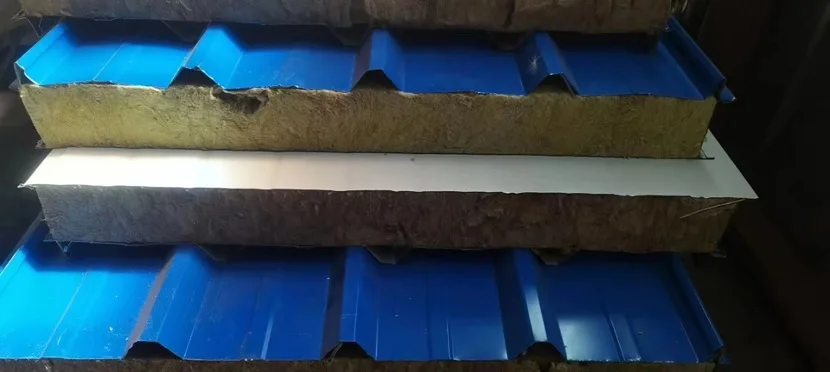

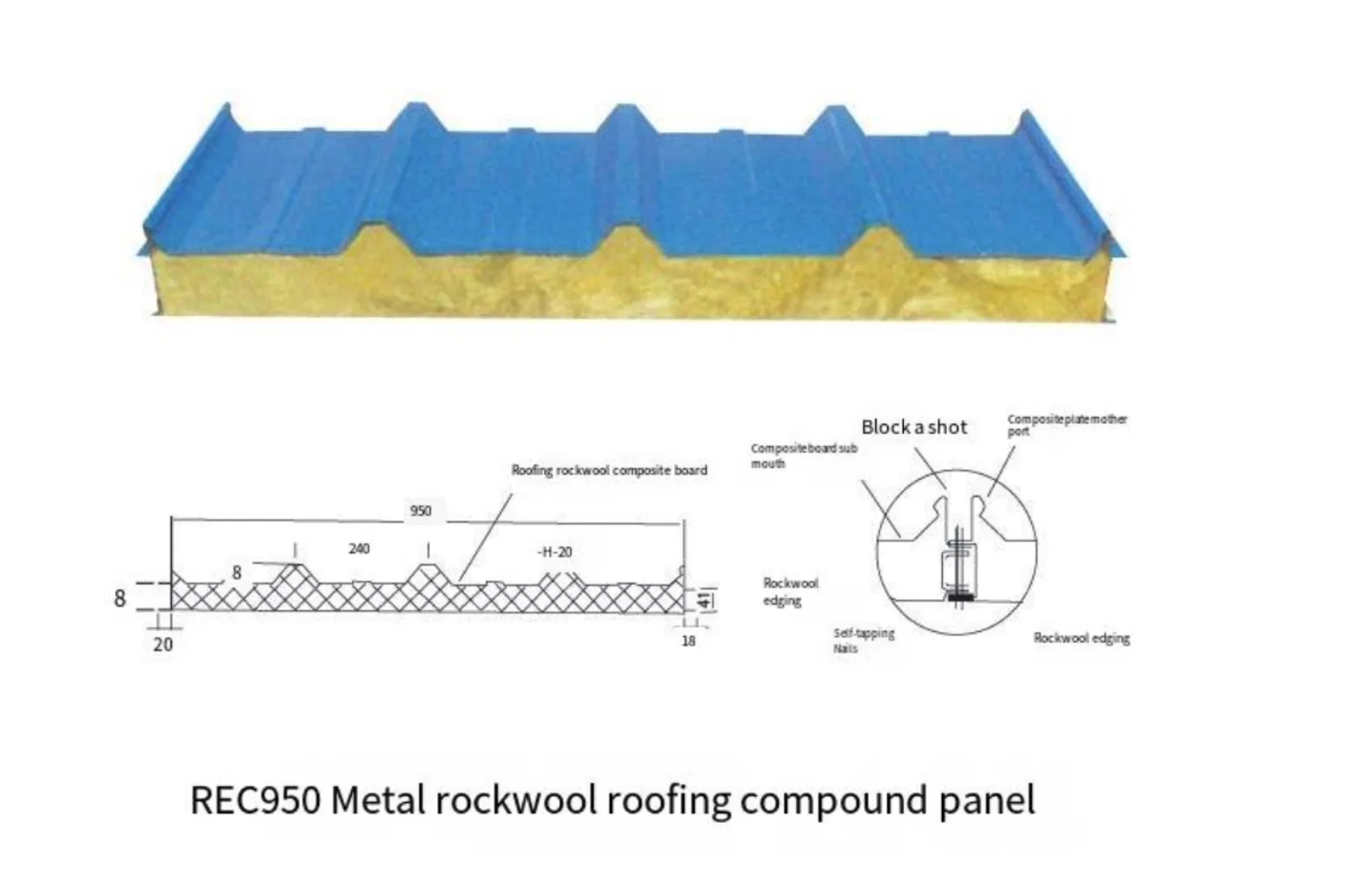

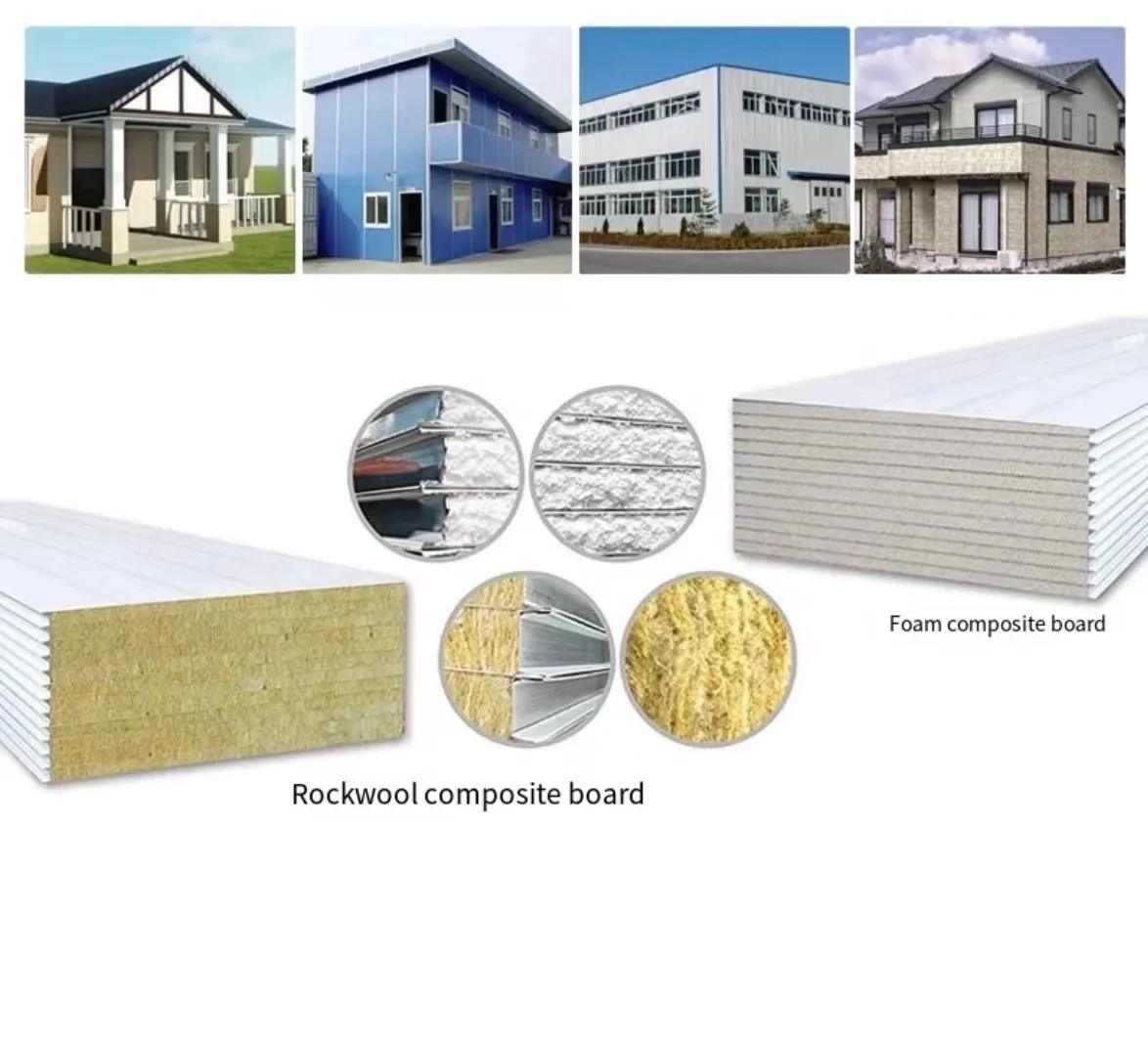

Technical parameters of 980 foam board /950 rock wool board double layer tile machine
1. External dimensions: 8000mm*1500mm*1300mm
2. Board inlet width: 1200mm (wall panel 1000mm into board)
3. Thickness of pressing: 0.2-0.8mm color steel plate
4. Motor power: 3kw geared motor
5. Number of forming rows: 980/13 rows 950/14 rows roll molding (wall panel molding 950)
6. Frame of machine: 300H steel
7. Forming shaft: 70mm diameter
8. Forming wheel: 45#
9. Bearings: 210
10. Transmission mode: Motor drives the chain
11. Chain: 6 points (1 inch main chain)
12. Molding speed: 8-12 m
1. External dimensions: 8000mm*1500mm*1300mm
2. Board inlet width: 1200mm (wall panel 1000mm into board)
3. Thickness of pressing: 0.2-0.8mm color steel plate
4. Motor power: 3kw geared motor
5. Number of forming rows: 980/13 rows 950/14 rows roll molding (wall panel molding 950)
6. Frame of machine: 300H steel
7. Forming shaft: 70mm diameter
8. Forming wheel: 45#
9. Bearings: 210
10. Transmission mode: Motor drives the chain
11. Chain: 6 points (1 inch main chain)
12. Molding speed: 8-12 m
Product Description
1. Working speed : 6-12m/min, continuous stepless adjustable, frequency conversion speed regulation, digital display
2. Automatic glue-brushing system : High precision and low speed metering pump glue, frequency conversion speed control, digital simulation quantity display. The amount of glue is continuously stepless adjustable in 1kg per minute, and use the glue dripping and gluing method.
3. Press foam board thickness: The lifting frame is adjustable in the range of 50-300 mm, with a ruler to indicate
4. Main machine forming shafts row number : A total of 55 shafts (rubber shaft diameter 180mm)
5. Large rack: welded 80*180mm square tubes
6. Cut section: Pneumatic, motor 5.5KW
7. Main motor: 3kw geared motor
8. Computer numerical control system: PLC frequency conversion control system
9. Self fork: With 9 self-forks
10. Production process: Motor drives chain - bearing - molding shaft - rolling molding compound
11. Cutting method: Pneumatic tracking shear count (motor driven saw blade cutting) upper cutting knife relative to lower cutting knife in the range of ±300mm adjustable, with ruler instructions
2. Automatic glue-brushing system : High precision and low speed metering pump glue, frequency conversion speed control, digital simulation quantity display. The amount of glue is continuously stepless adjustable in 1kg per minute, and use the glue dripping and gluing method.
3. Press foam board thickness: The lifting frame is adjustable in the range of 50-300 mm, with a ruler to indicate
4. Main machine forming shafts row number : A total of 55 shafts (rubber shaft diameter 180mm)
5. Large rack: welded 80*180mm square tubes
6. Cut section: Pneumatic, motor 5.5KW
7. Main motor: 3kw geared motor
8. Computer numerical control system: PLC frequency conversion control system
9. Self fork: With 9 self-forks
10. Production process: Motor drives chain - bearing - molding shaft - rolling molding compound
11. Cutting method: Pneumatic tracking shear count (motor driven saw blade cutting) upper cutting knife relative to lower cutting knife in the range of ±300mm adjustable, with ruler instructions
Specification
item | value |
Condition | New |
Applicable Industries | Building Material Shops, Manufacturing Plant, Retail, Construction works , Other |
Weight (KG) | 18000 |
Showroom Location | None |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | Hot Product 2023 |
Warranty of core components | 1 Year |
Core Components | motor, PLC |
Place of Origin | China |
Guangdong | |
Brand Name | SAYAIM |
Warranty | 1 Year |

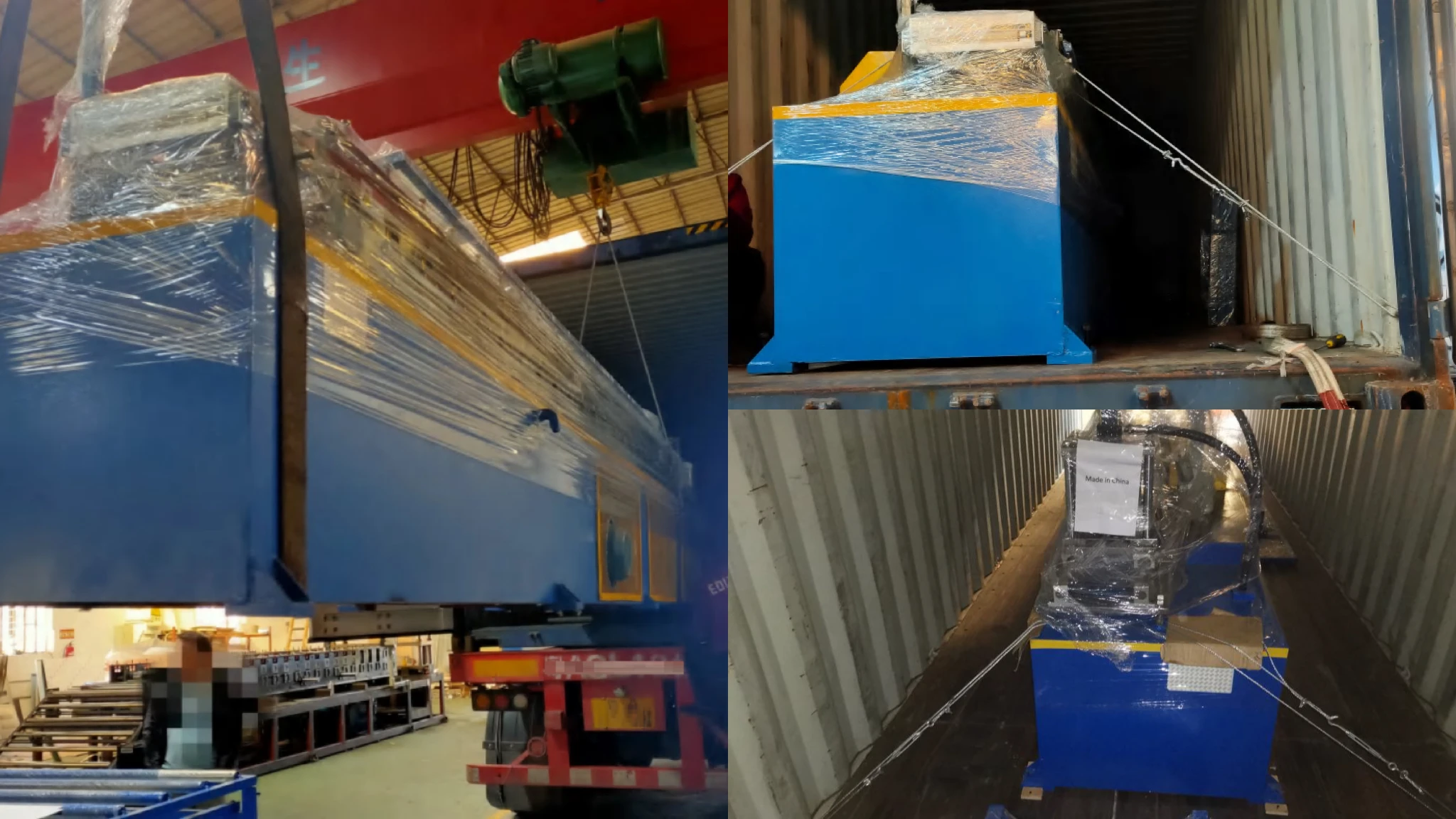

Packing & Delivery
Carefully packaged with Plastic Film Cover ,wooden case is optional, and professionally shipped
1.All items will be covered by plastic film to avoid causing scratches during shipping.
2. Rust-risking parts will be coated with anti-rust paint before loading.
3. The machines will be tie by ropes to ensure fixed after loading to the container.
Port:Shenzhen Port, Guangzhou Port, Foshan Port
1.All items will be covered by plastic film to avoid causing scratches during shipping.
2. Rust-risking parts will be coated with anti-rust paint before loading.
3. The machines will be tie by ropes to ensure fixed after loading to the container.
Port:Shenzhen Port, Guangzhou Port, Foshan Port
