Specification
Warranty | 1 Year |
After-sale Service | Online technical support |
Design Style | Modern |
Place of Origin | China |
Brand Name | Chisung |
Model Number | High-end RTU5024 |
3G/4G Version | can work in the worldwide 3G/4G Networks |
Digital Output | NC/NO dry contact, 3A/240VAC |
DC Power supply | 9~24VDC |
Power consumption | 12V input Max. 50mA |
SIM Card | Support 3V SIM Card |
Antenna | 50Ω SMA Antenna interface |
Temperature range | -20~+60 °C |
Relative humidity | 10~90% |
Exterior dimension | W130mm*D74mm*H27mm |
Keyword | Gsm Remote Controller |

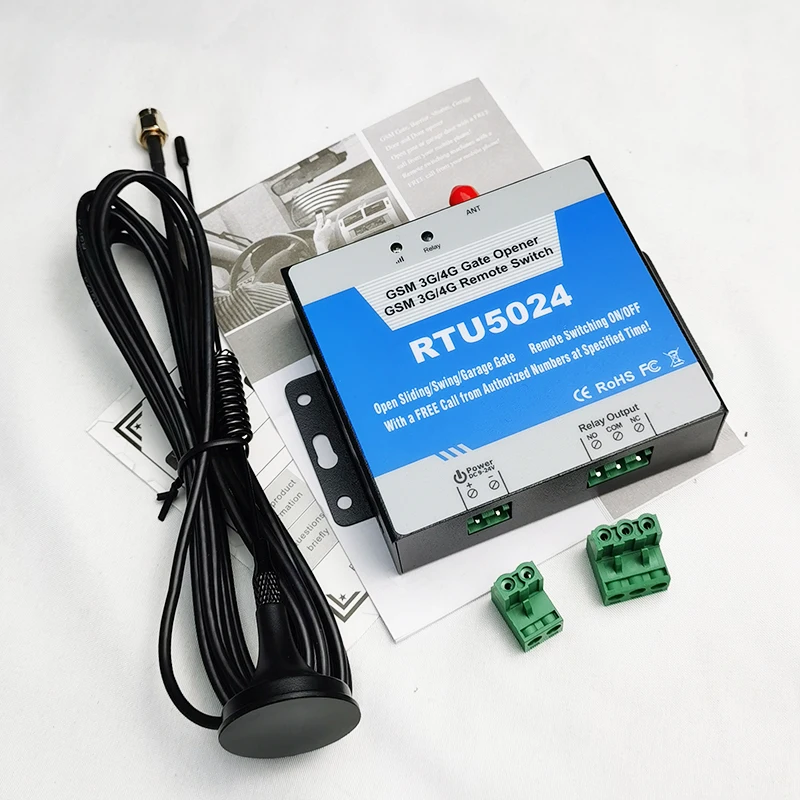

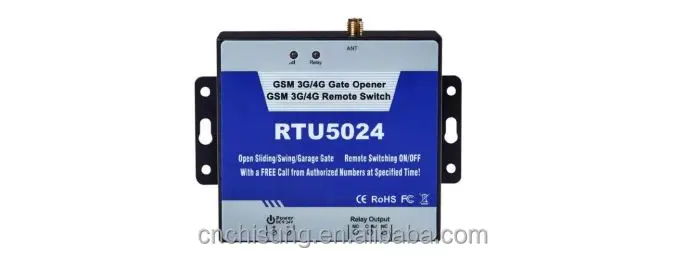

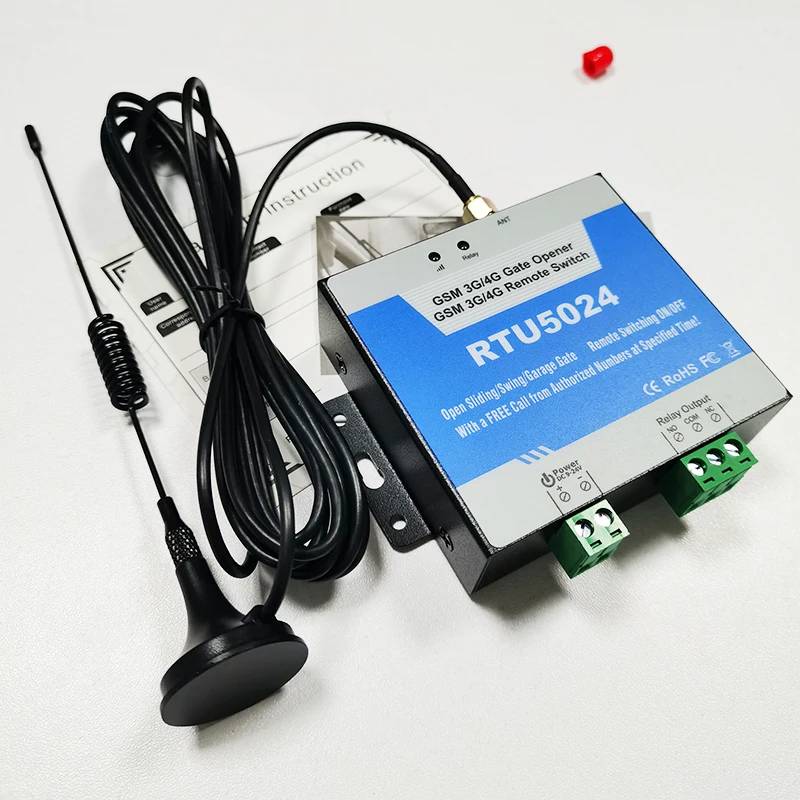

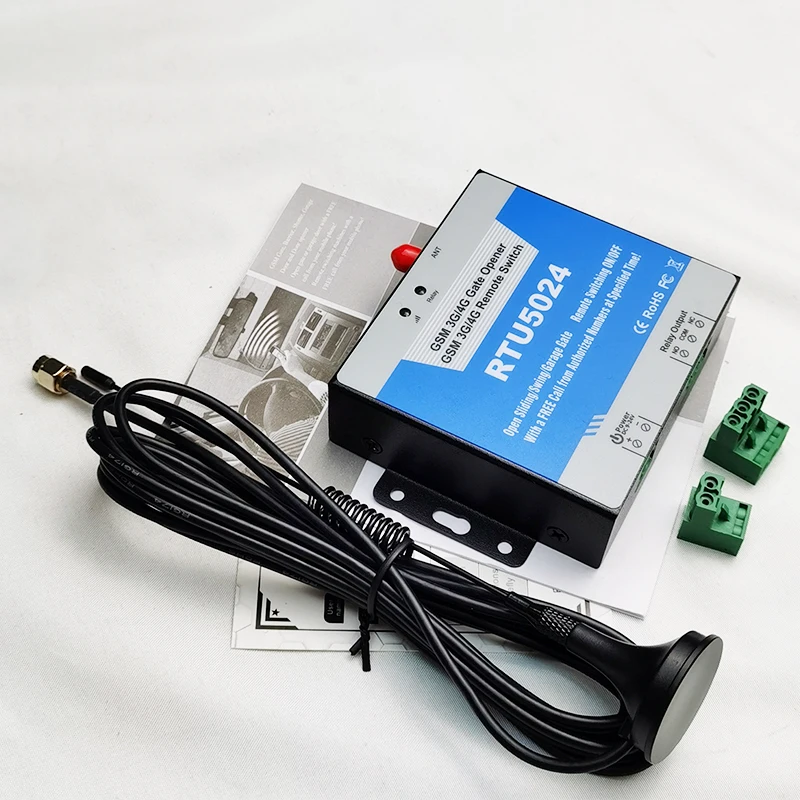

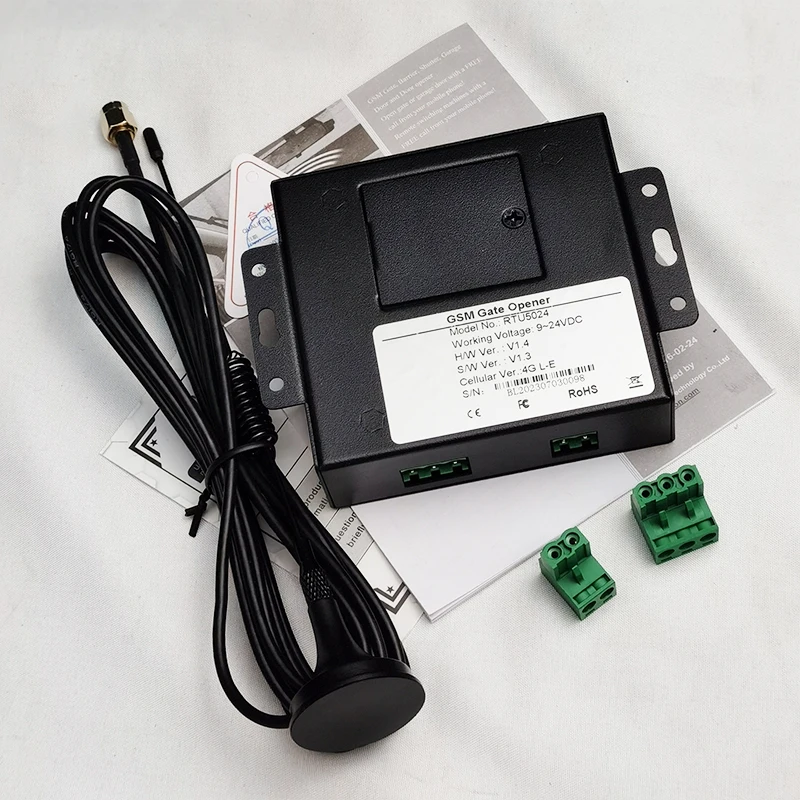

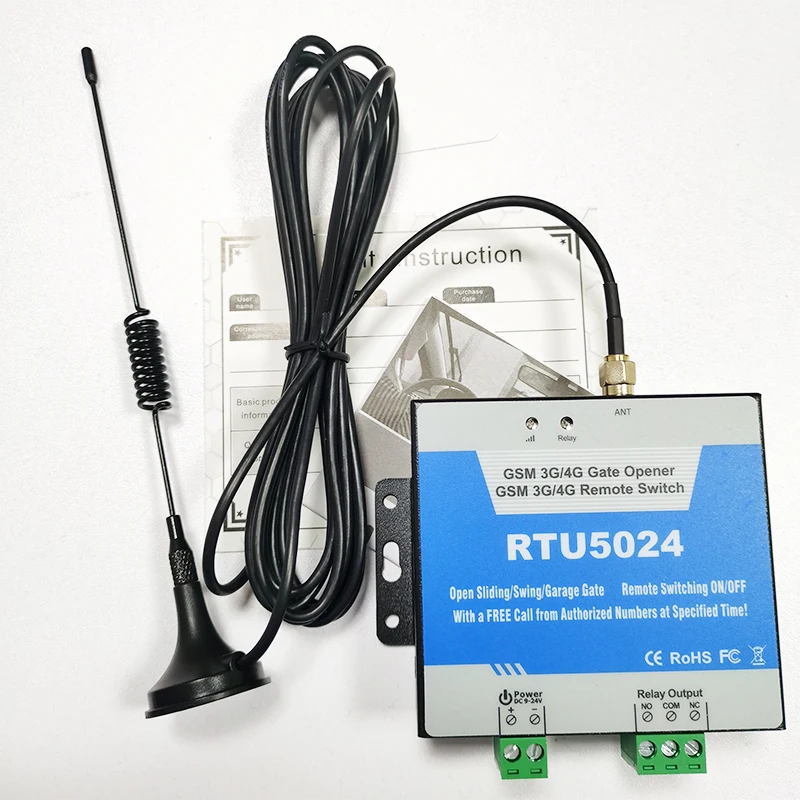

Main Device
【1】 External power supply: This device uses 9-24V DC power. Please pay attention to distinguishing between positive and negative poles when using it
【2】 Relay output: This device comes with 1 relay output, which can be controlled separately through phone calls, text messages, configuration software, or central software; this
A device used for pulse control equipment opening and closing. Example: switching value equipment such as Electromagnetic lock
【3】 Llight: GSM signal light, registration slow flashing, no SIMCARD or no network off, communication fast flashing, standby constant on [4] RELAY light: relay indicator light, closed on, disconnected off
【2】 Relay output: This device comes with 1 relay output, which can be controlled separately through phone calls, text messages, configuration software, or central software; this
A device used for pulse control equipment opening and closing. Example: switching value equipment such as Electromagnetic lock
【3】 Llight: GSM signal light, registration slow flashing, no SIMCARD or no network off, communication fast flashing, standby constant on [4] RELAY light: relay indicator light, closed on, disconnected off
Product Description
Product Features
1. Support 200 groups of numbers, each of which can be set to control relays within a specified time period.
2. One relay output, the authorized number will close when called in, and automatically disconnect when the set time is reached.
3. After controlling the relay through permission phone, action messages can be sent to the user.
Between 4.0 and 999 seconds, the closing time of the relay can be controlled arbitrarily, with 0 indicating that the relay will open 0.5 seconds after it is closed, and 999 indicating that the relay will remain closed until the permission number is called in.
5. The current status of the device (relay status and GSM signal value) can be queried through SMS instructions.
6. The current status of the device can be uploaded to the first user in a timed manner via SMS.
7. Use the clock on the module to send yourself a text message to synchronize the time after each startup.
2. One relay output, the authorized number will close when called in, and automatically disconnect when the set time is reached.
3. After controlling the relay through permission phone, action messages can be sent to the user.
Between 4.0 and 999 seconds, the closing time of the relay can be controlled arbitrarily, with 0 indicating that the relay will open 0.5 seconds after it is closed, and 999 indicating that the relay will remain closed until the permission number is called in.
5. The current status of the device (relay status and GSM signal value) can be queried through SMS instructions.
6. The current status of the device can be uploaded to the first user in a timed manner via SMS.
7. Use the clock on the module to send yourself a text message to synchronize the time after each startup.

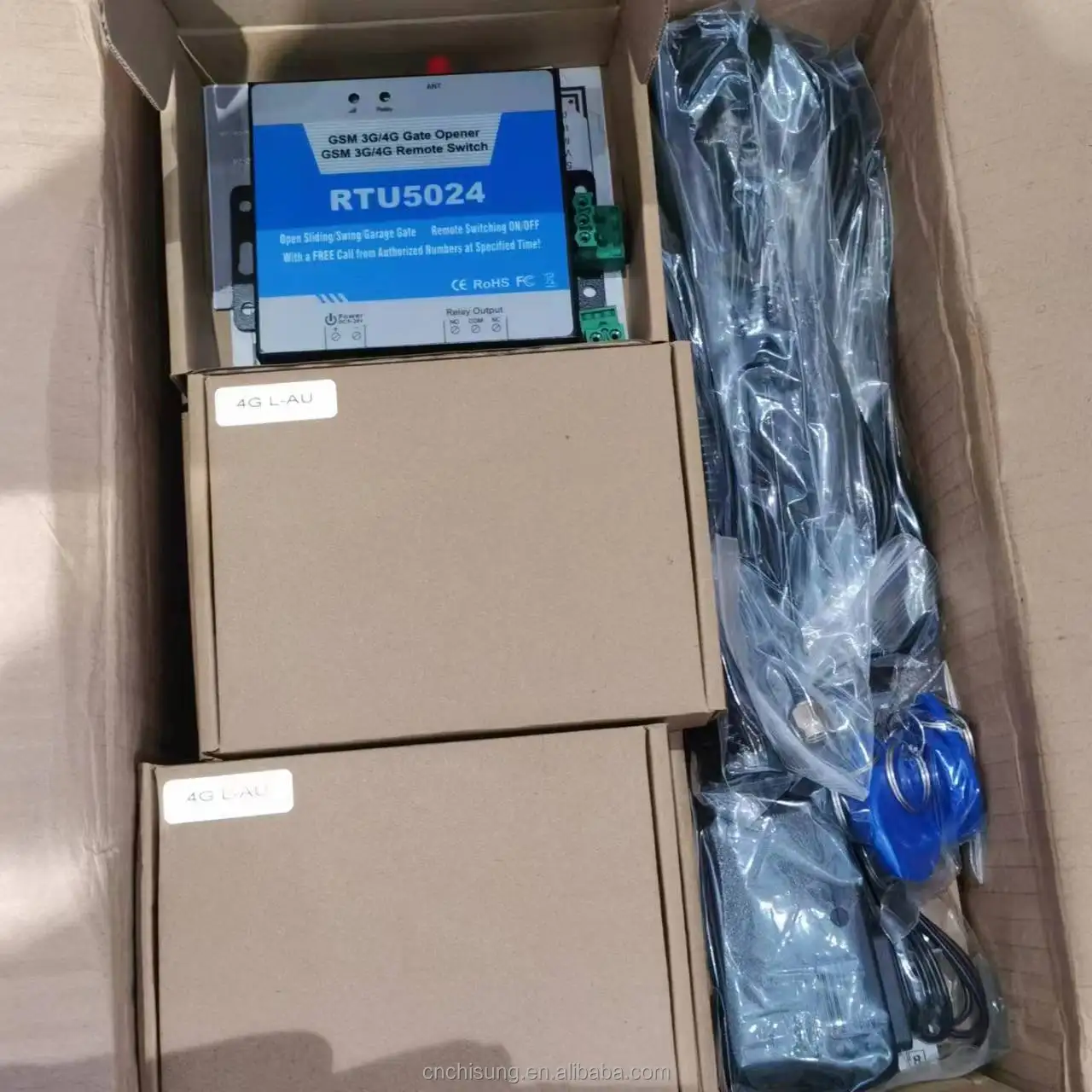

Packing & Delivery
Carton
Packing list
Main Device *1
Main Device *1
GSM long antenna *1
Instruction manual *1
