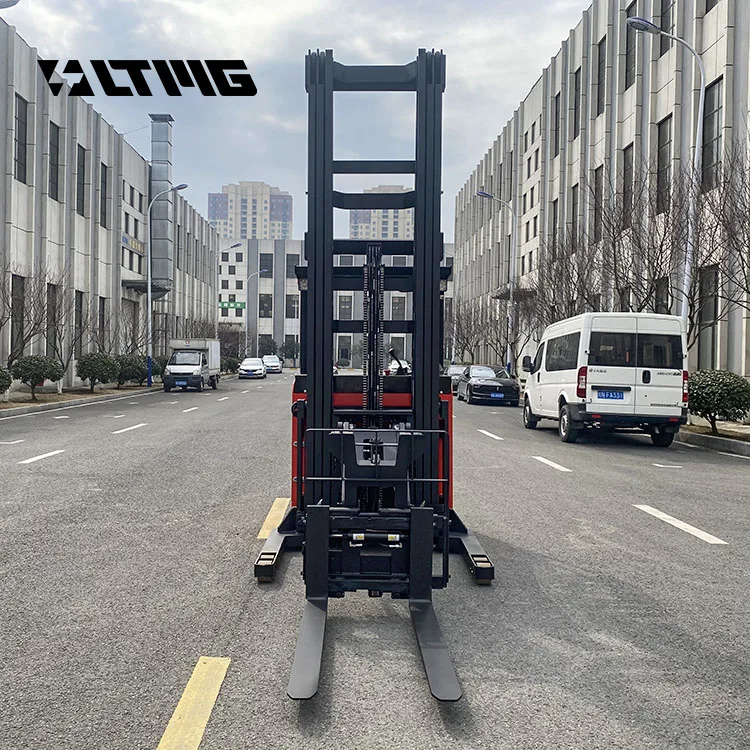

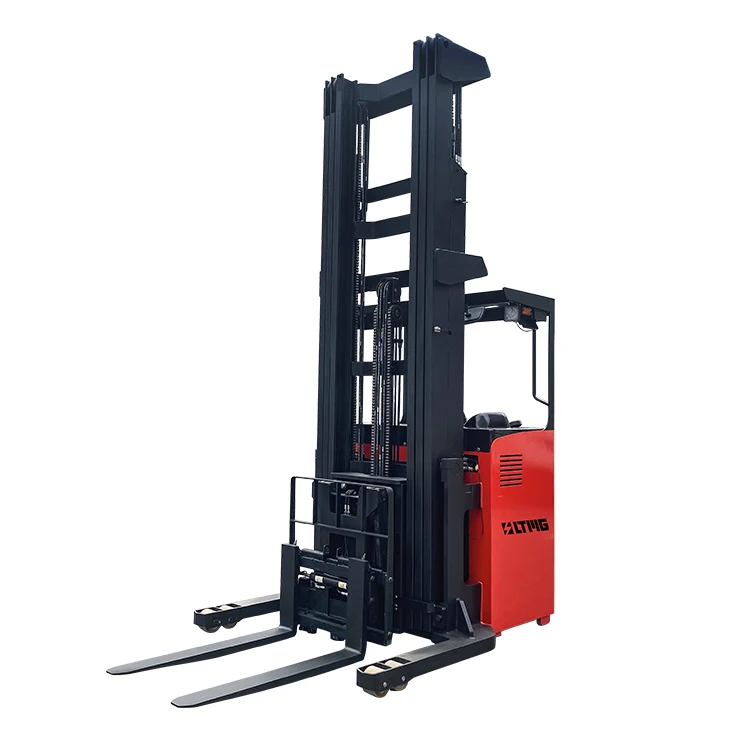

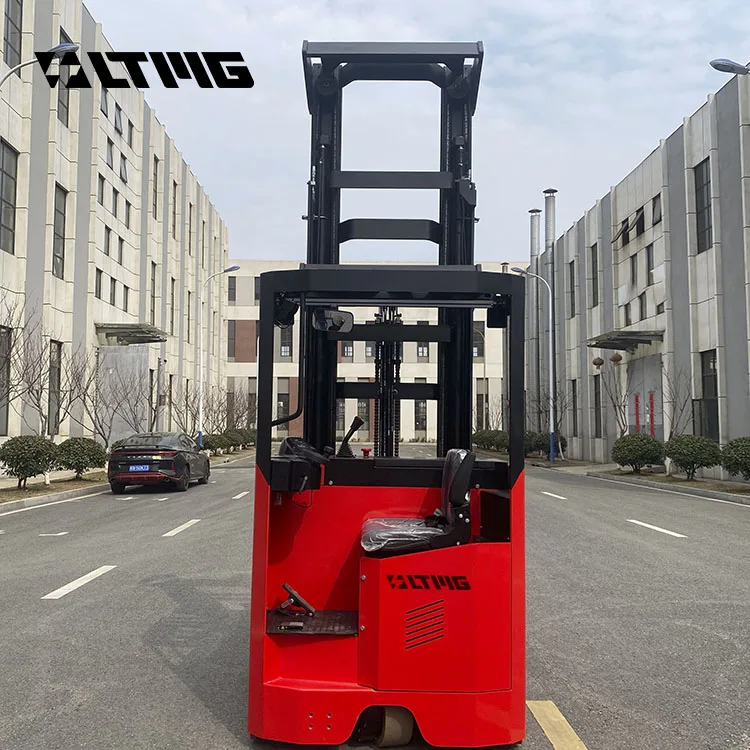

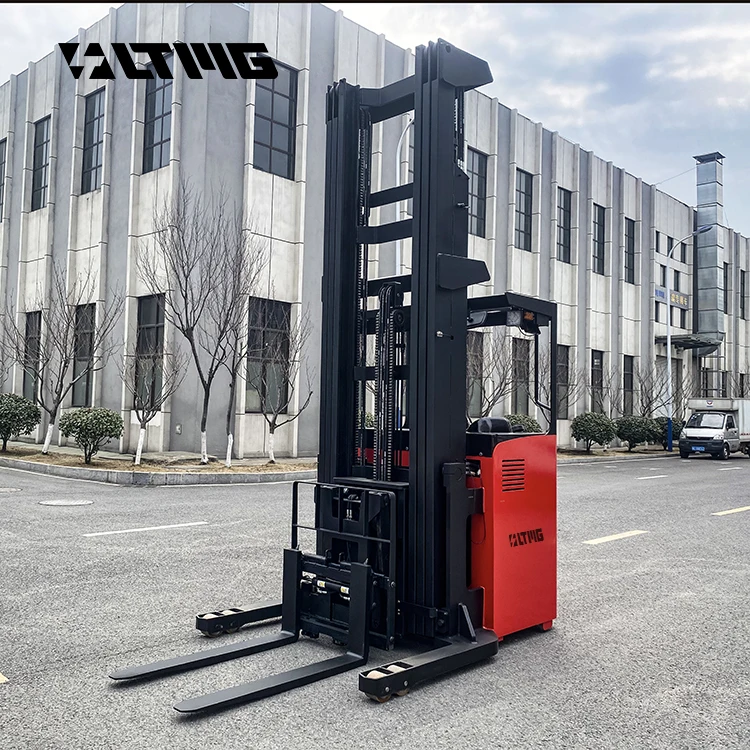

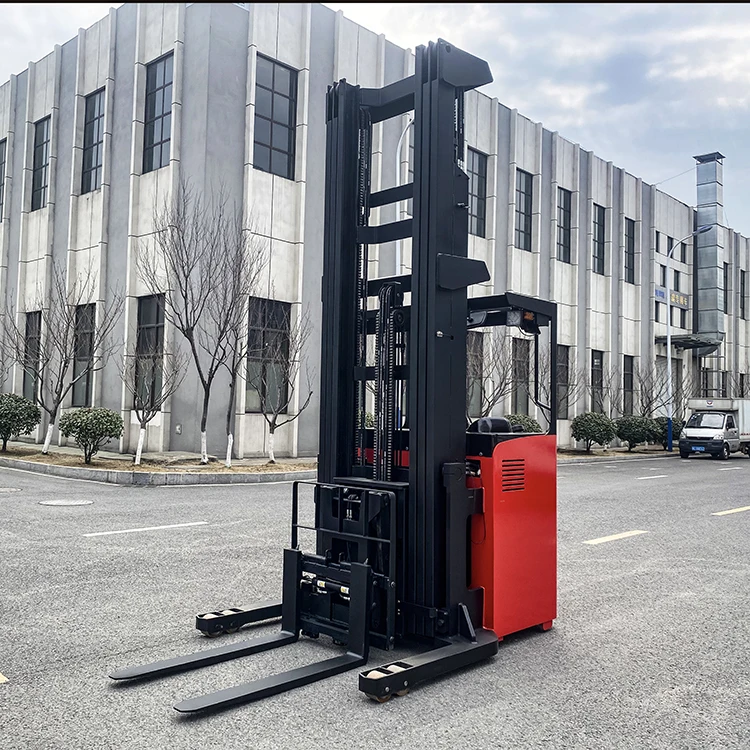

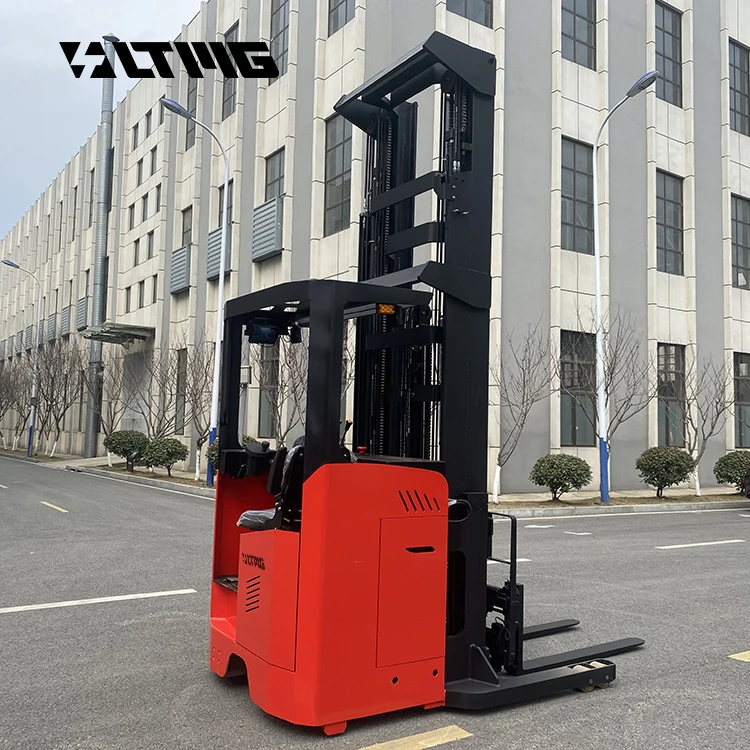

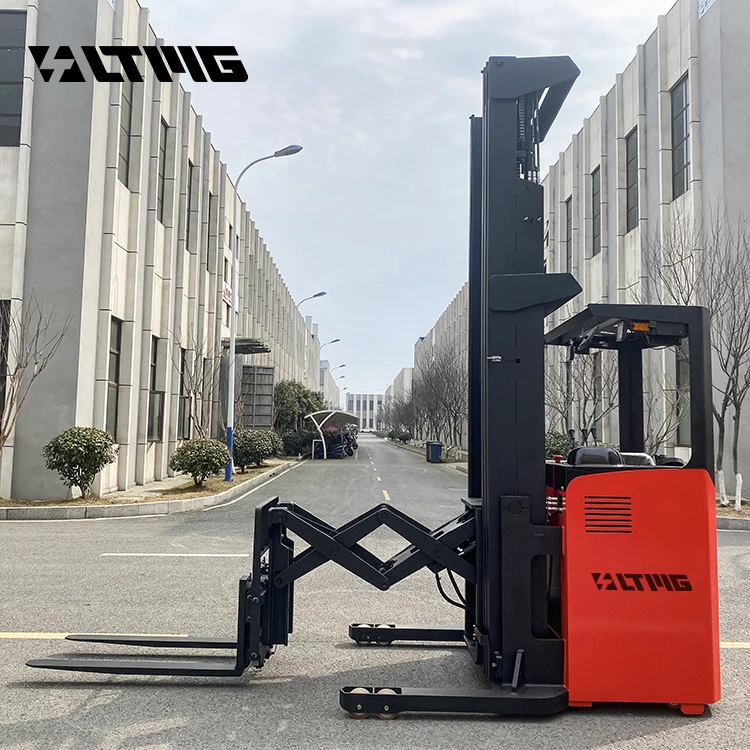

LTMG глубокий двойной ножничный тройной Мачтовый поддон вилочный погрузчик штабелеукладчик 1 т 1,5 т 2 т сидячий Тип электрический штабелер
- Категория товара: Forklifts >>>
- Поставщик (Оптовый магазин): Xiamen,LTMG,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Specifications
Capacity | Q(kg) | 2000 | |
Load center | C(mm) | 500 | |
Front overhang | X(mm) | 180 | |
wheelbase | Y(mm) | 1540 | |
Total weight including the battery | kg | 2535 | |
Wheel type | PU | ||
front wheel | Ø x w(mm) | 254*104 | |
Driving Wheel | Ø x w(mm) | 230*75 | |
Balance wheel | Ø x w(mm) | 150*50 | |
Wheel tread:Front | b10(mm) | 976 | |
Wheel tread:Rear | 772 | ||
Mast height(fork lowering) | h1(mm) | 2120 | |
Max Lifting Height | h3(mm) | 4500 | |
Max.height | h4(mm) | 5485 | |
Overhead guard height | h14(mm) | 2090 | |
Fork height when gantry retracted | h13(mm) | 40 | |
Mast/carriage tilt angle(front/rear) | 0 | 3/5 | |
Overall height（with forks) | 11 (mm) | 2389 | |
Overall length (without fork) | I2(mm) | 1874 | |
Overall width | b1(mm) | 1090 | |
Fork dimension | s/e/l(mm) | 40/122/1070 | |
Fork spread | b5(mm) | 244-705 | |
Reach distance | L(mm) | 600 | |
Min ground clearance | 80 | ||
（Min.stacking.aisle.1000*1200pall） | Ast(mm) | 2872 | |
Turning radius | Wa(mm) | 1780 | |
Max travel speed)(No load /Full | km/h | 5月4日 | |
Lifting speed (No load /Full) | m/s | 0.135/0.100 | |
Lowered speed (No load /Full) | m/s | 0.085/0.140 | |
Max.Grade ability No load /Full | % | 8/4 | |
Brake form | Electromagnetic braking | ||
Driving motor | kw | 2.5 | |
Lifting motor | kw | 3DC | |
Battery type | Lead acid battery | ||
Battery capacity | V/Ah | 24/280 | |
Charger-Intelligent | V/A | 24/40 | |
Features
1. The lift cylinder with buffering function, to ensure the goods' safety during the lift and down;
2. All electric connector with water-proof and dust-proof design;
3. Better Stability;
4. Side battery loading design, easy to change and maintenance
5. Use Vertical drive cell to Increase the working life;
6. Ergonomics design and shock absorption configuration, with more comfortable operation;
2. All electric connector with water-proof and dust-proof design;
3. Better Stability;
4. Side battery loading design, easy to change and maintenance
5. Use Vertical drive cell to Increase the working life;
6. Ergonomics design and shock absorption configuration, with more comfortable operation;
Company Profile
Factory Introduction
Certifications
FAQ
1.What the Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System. All of our products with CE certificate. Some of our products meets the EPA requirements.
2.Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements. However, All the customizing and refit should be implemented safely and scientifically. The colors can be painted as client's need.
3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.
4.Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5.What the payment terms do you accept?
On T/T term 30% down payment is required in advance,and 70% balance shall be settled before shipment.
6.What logistics ways we can work for shipment ?
We can ship construction machinery by various transportation tools.
1.For 90% of our shipment,we will go by sea,to all main continents such as South America,Middle East,Africa,Oceania and Europe etc,either by container or Bulk shipment.
2.For neighborhood countries of China,such as Russia,Mongolia, Kazakhstan,Uzbekistan etc., we can ship trucks by railway.
3.For light spare parts in urgent demand,we can ship it by international courier service,such as DHL,TNT,UPS,or Fedex.
7.Delivery time:
Standard configuration products are always in stock. The production period of Customizing products is from 7 days to 60 days.
LTMG workshop meet with the ISO9001:2008 Quality System. All of our products with CE certificate. Some of our products meets the EPA requirements.
2.Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements. However, All the customizing and refit should be implemented safely and scientifically. The colors can be painted as client's need.
3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.
4.Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5.What the payment terms do you accept?
On T/T term 30% down payment is required in advance,and 70% balance shall be settled before shipment.
6.What logistics ways we can work for shipment ?
We can ship construction machinery by various transportation tools.
1.For 90% of our shipment,we will go by sea,to all main continents such as South America,Middle East,Africa,Oceania and Europe etc,either by container or Bulk shipment.
2.For neighborhood countries of China,such as Russia,Mongolia, Kazakhstan,Uzbekistan etc., we can ship trucks by railway.
3.For light spare parts in urgent demand,we can ship it by international courier service,such as DHL,TNT,UPS,or Fedex.
7.Delivery time:
Standard configuration products are always in stock. The production period of Customizing products is from 7 days to 60 days.
