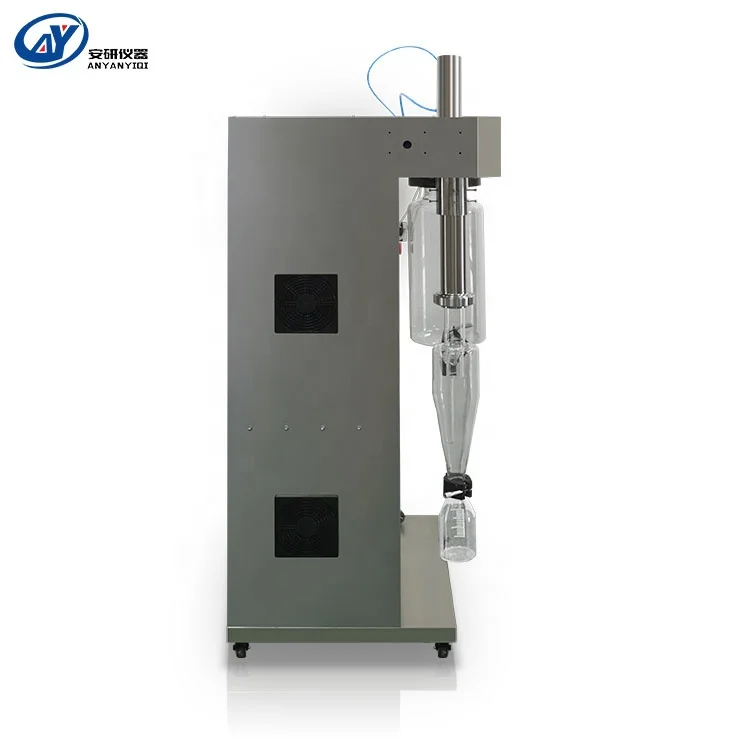

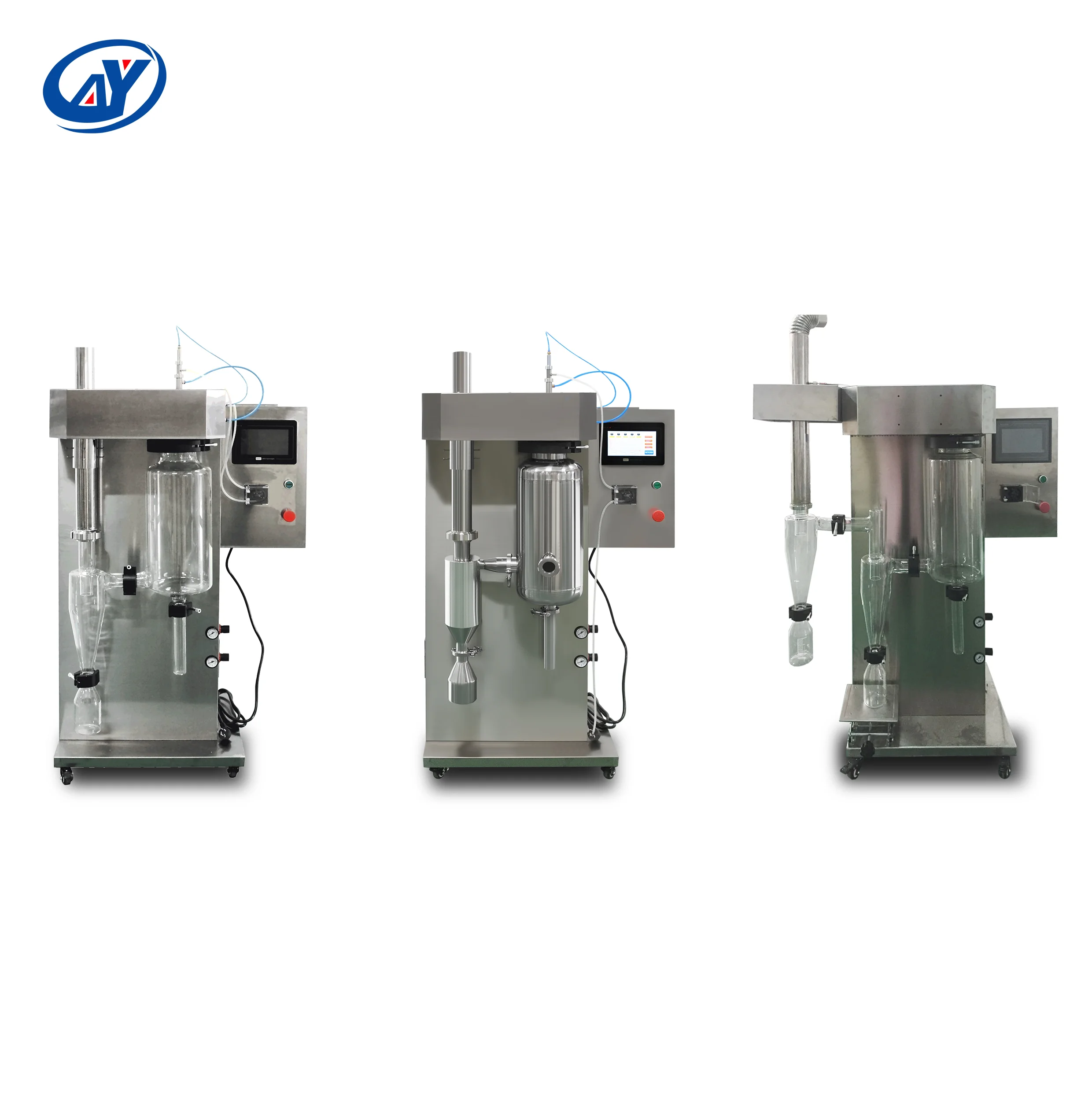

Небольшая лабораторная распылительная
- Категория товара: Chemical Machinery >>>
- Поставщик (Оптовый магазин): Hangzhou,Anyan,Instrument,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Parameters of the blanket | ||||||

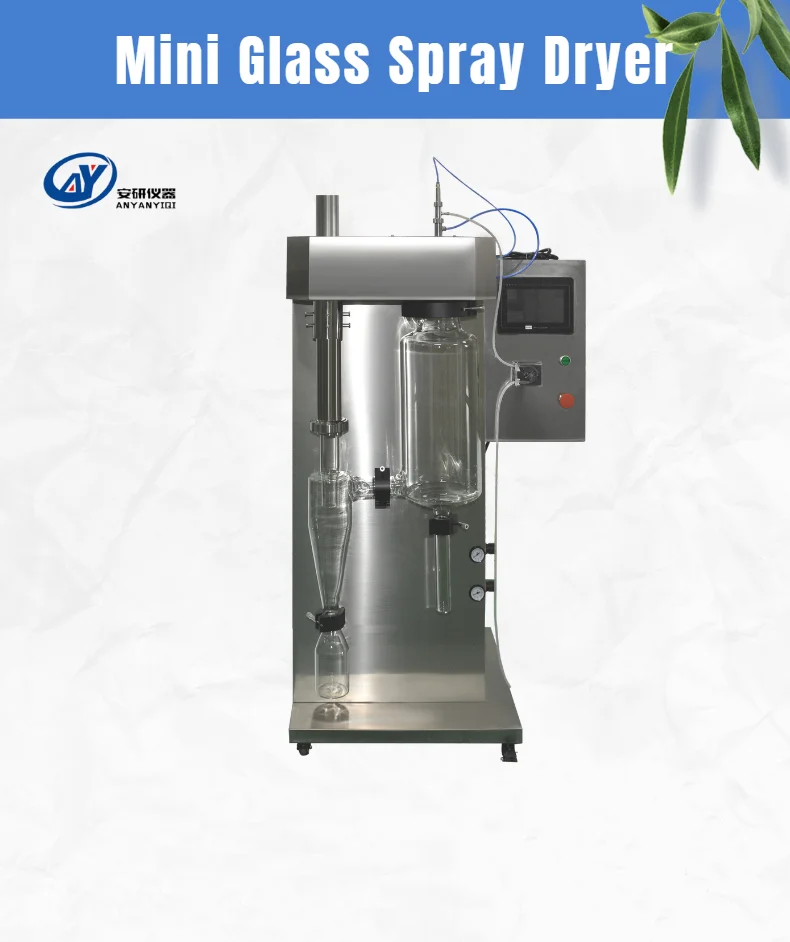

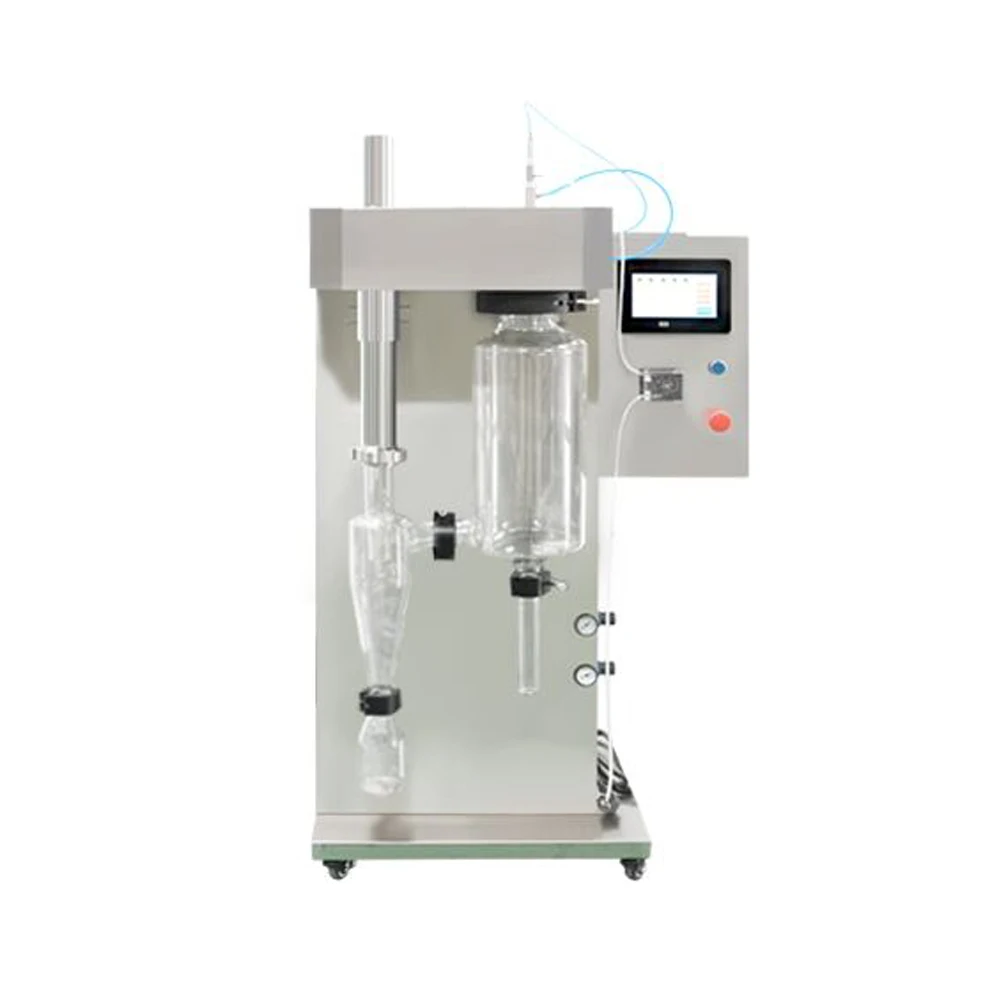

Product name | Mini Glass Spray Dryer | Product model | FY-PWGZ100 | |||
Handling capacity | 1500-2000ml/h | Minimum feeding capacity | 50ml | |||
Dry chamber diameter | ￠190(mm) | Atomization mode | two fluid flow | |||
Inlet air temperature control | 30℃～250℃ | Air outlet temperature control | 30℃～150℃ | |||
drying time | 0.8～1.0S | Nozzle specifications | The standard 0.75 mm (0.5 mm / 0.7 mm / 1.0 mm / 1.5 mm / 2.0 mm optional) | |||
Machine power (KW) | 3.8Kw | Dimensions (mm) (L×W×H) | 1380x770x590mm | |||
Installation weight (reference) | 85KG | Power supply | 220V/-3￠(can be customized according to different national standards related voltage | |||

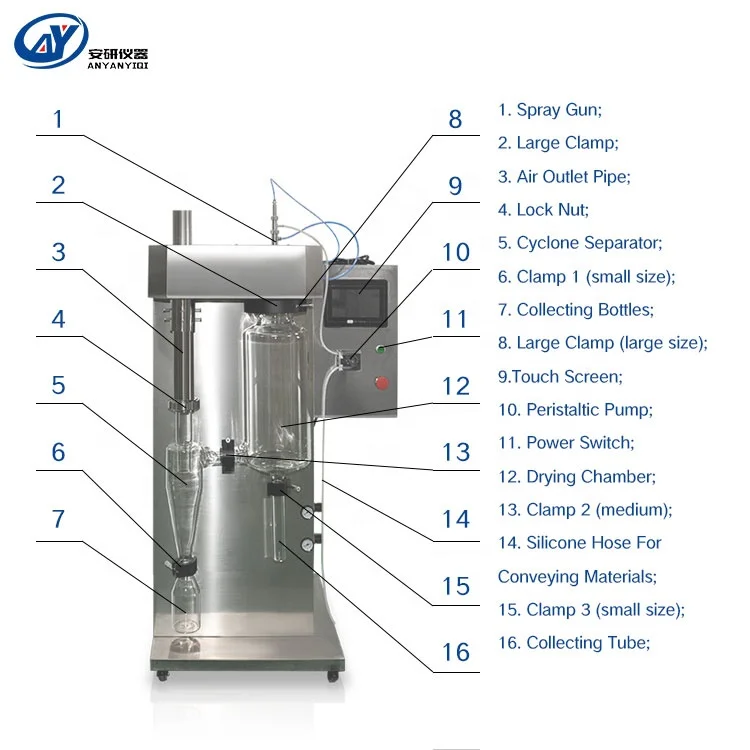

Brief Description | 1. Atomization chamber, cyclone separator, material collection bottle and waste collection bottle are made of high borosilicate glass. 2. The chassis adopts SUS304. 3. Bag device (optional) : improve recovery rate. The water evaporation and heater power shall be based on the inlet air temperature of 250℃. Note: External dimensions are reference dimensions and can be adjusted according to the site. | |||||

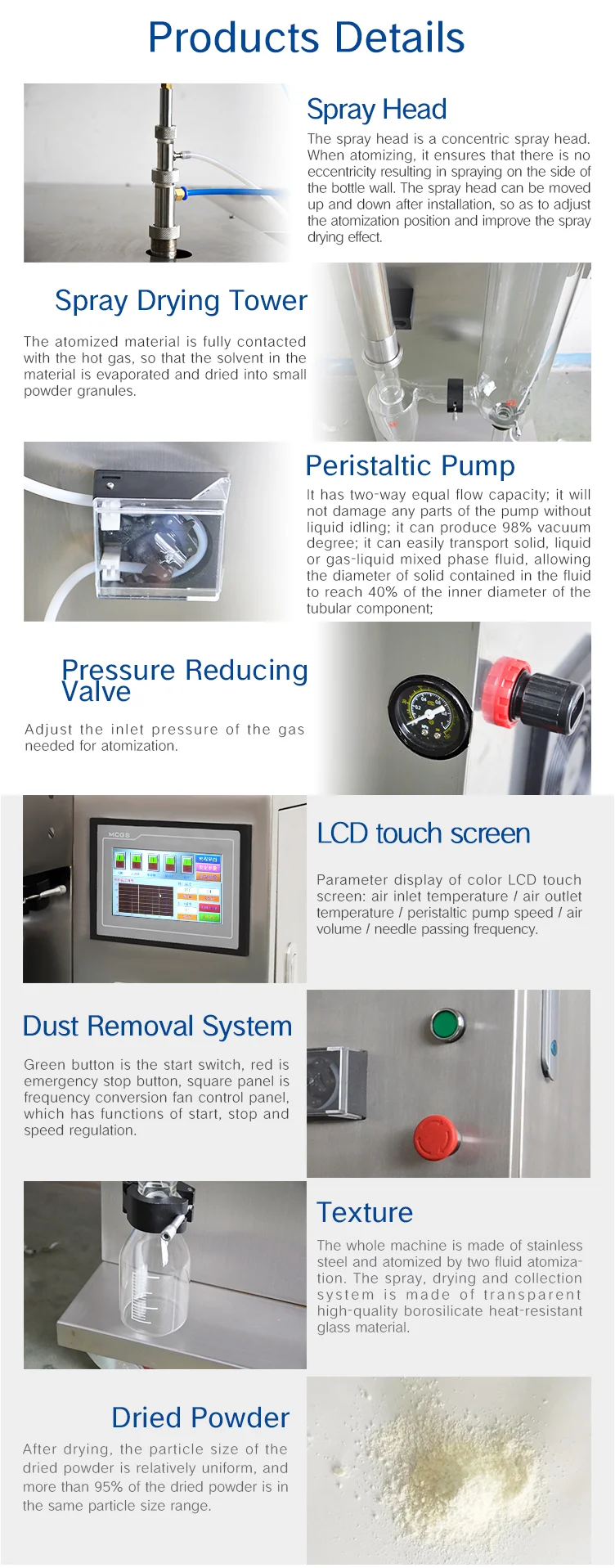

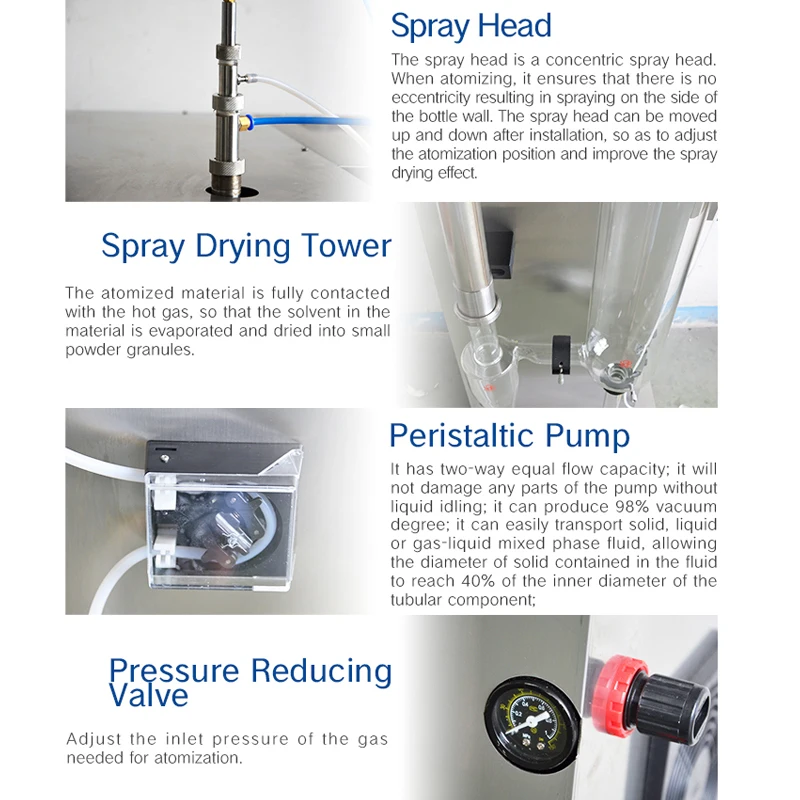

Details Images

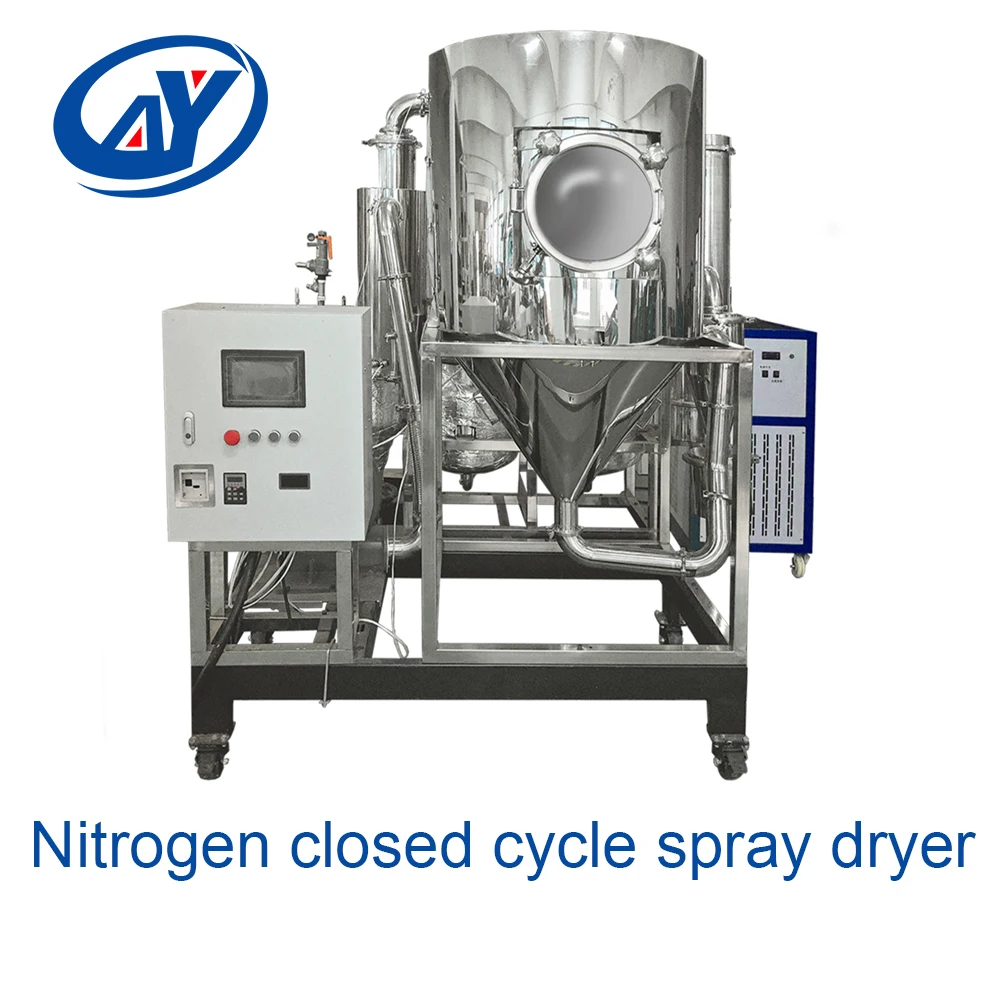

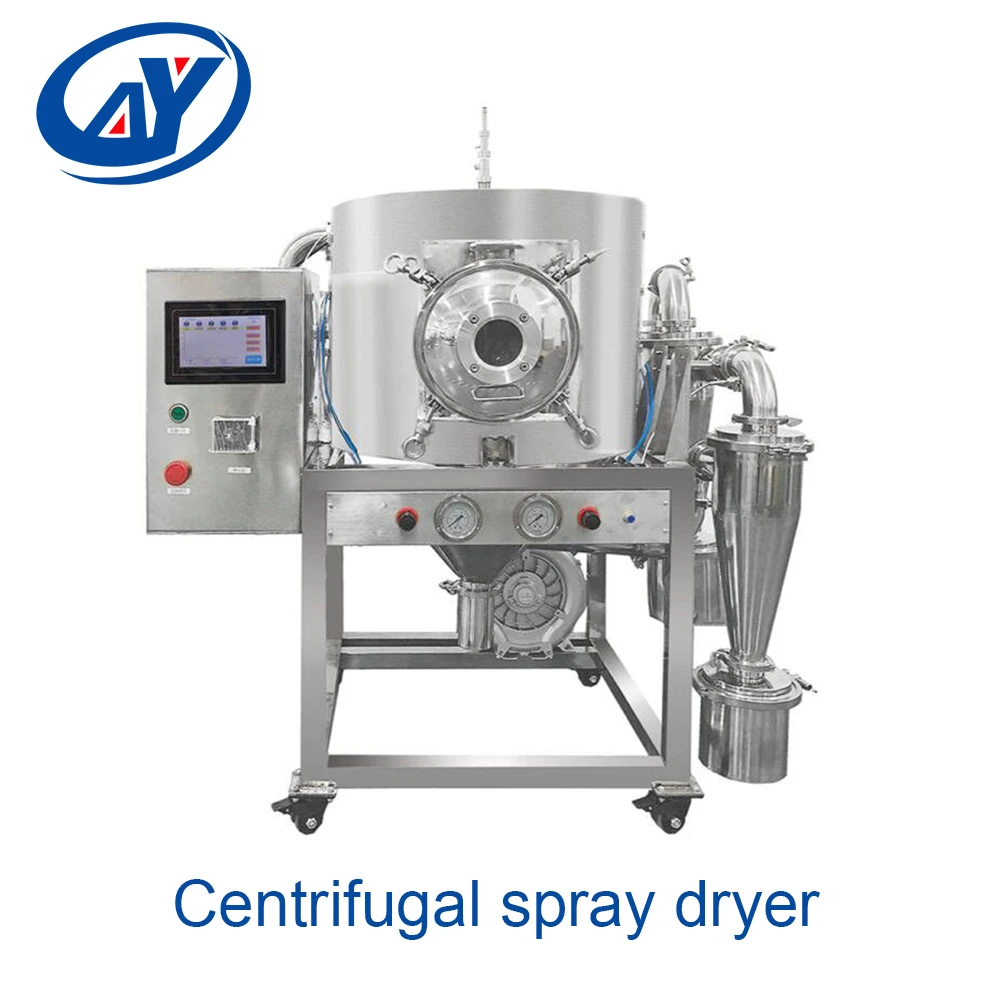

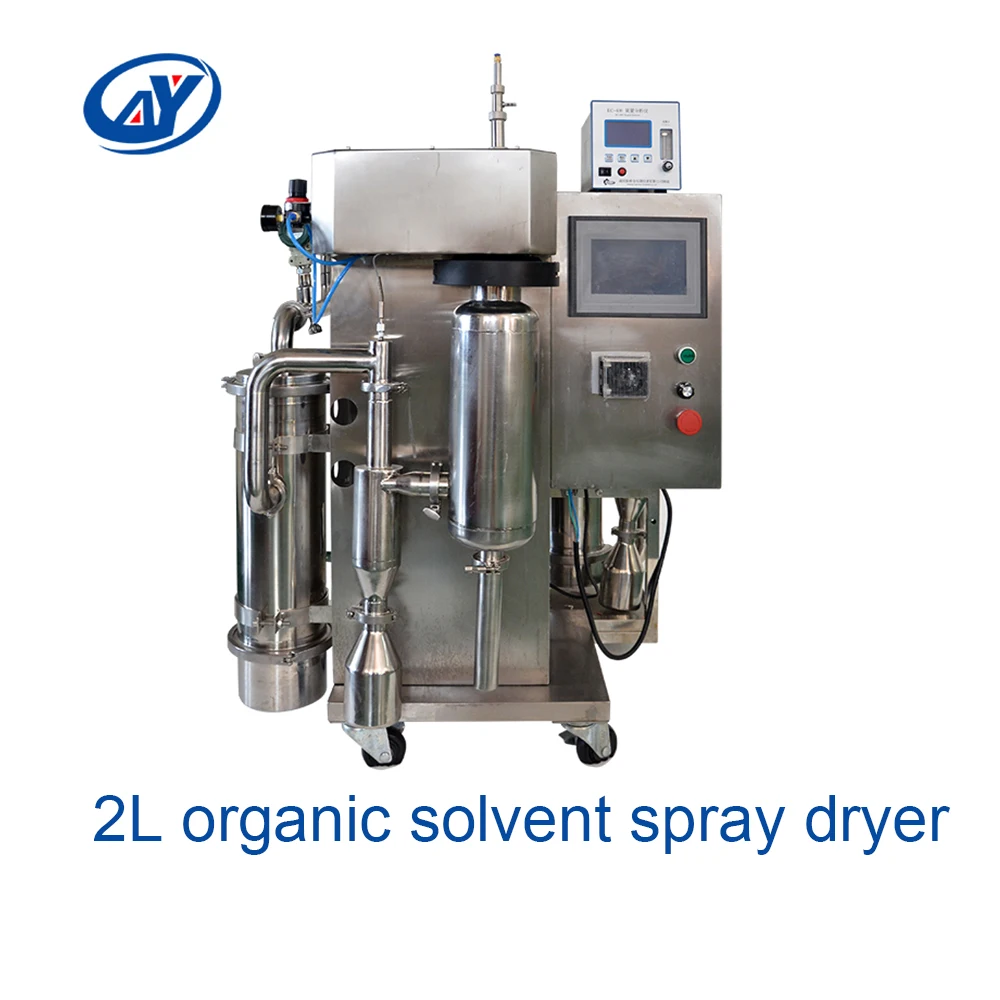

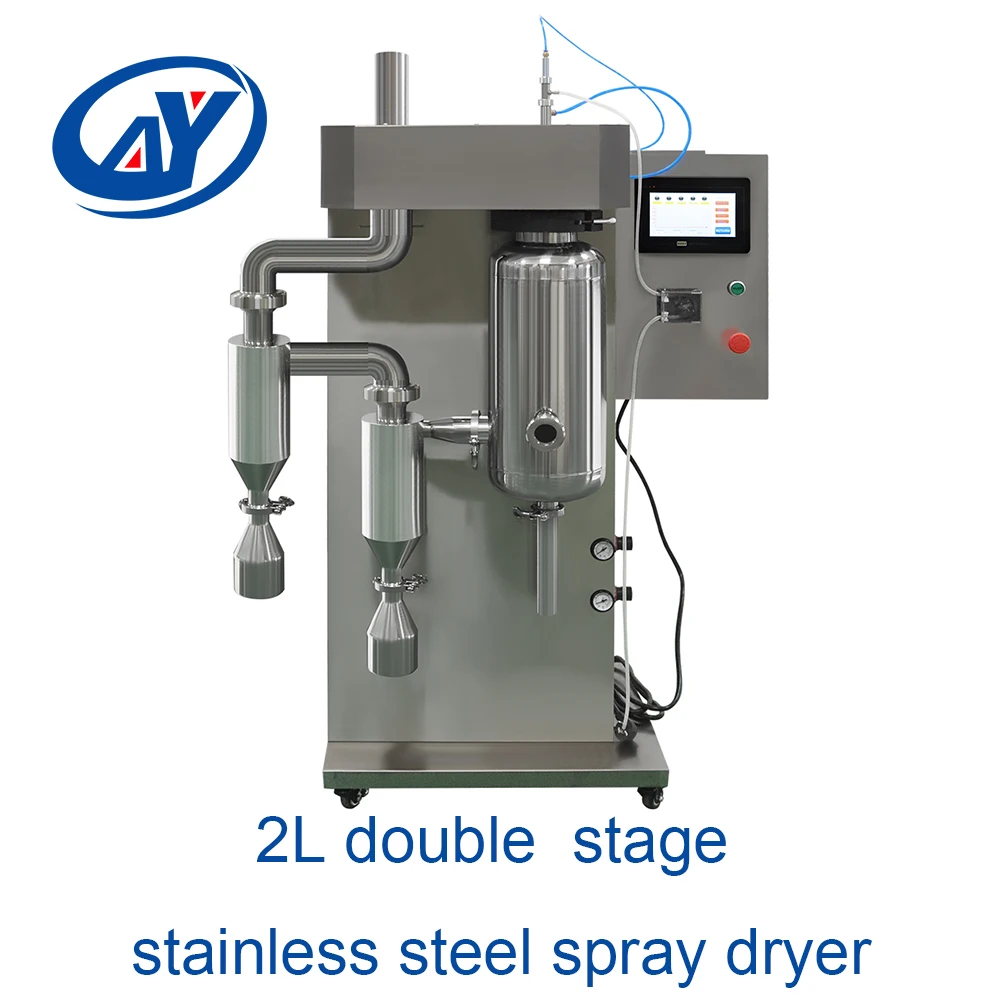

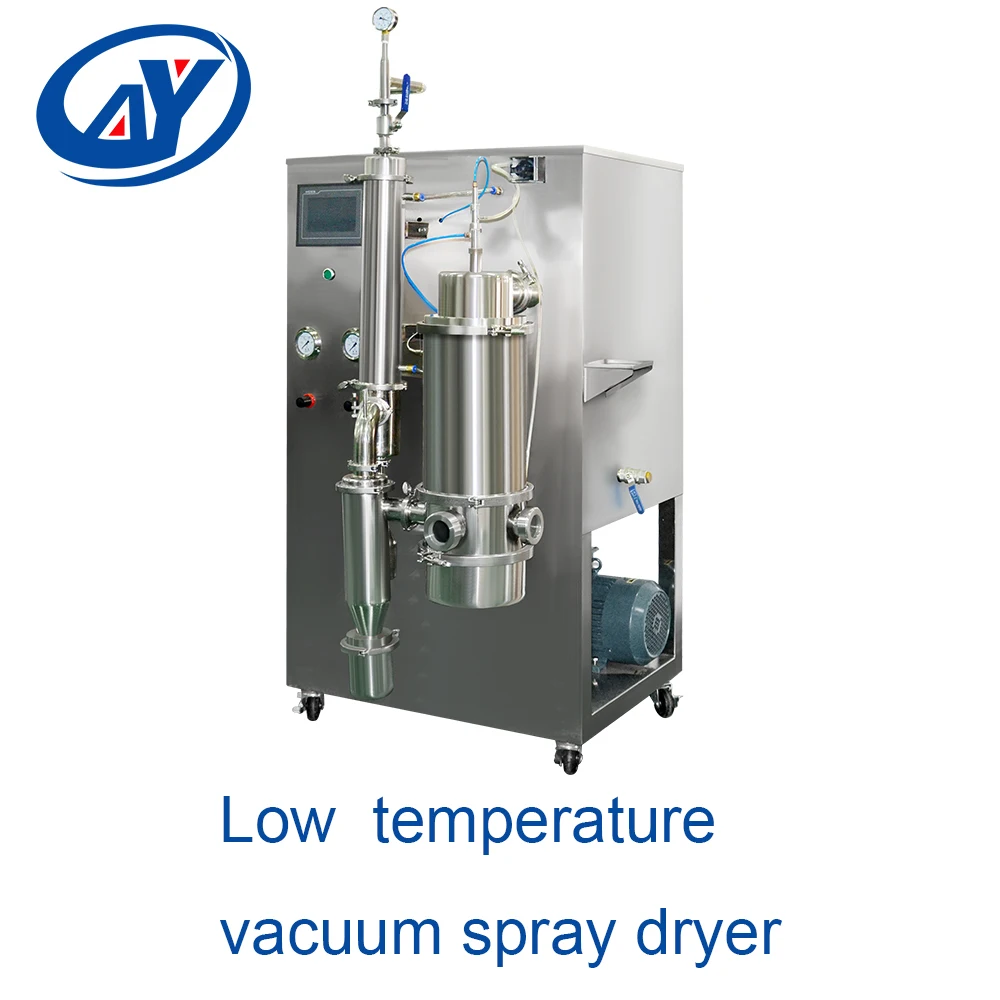

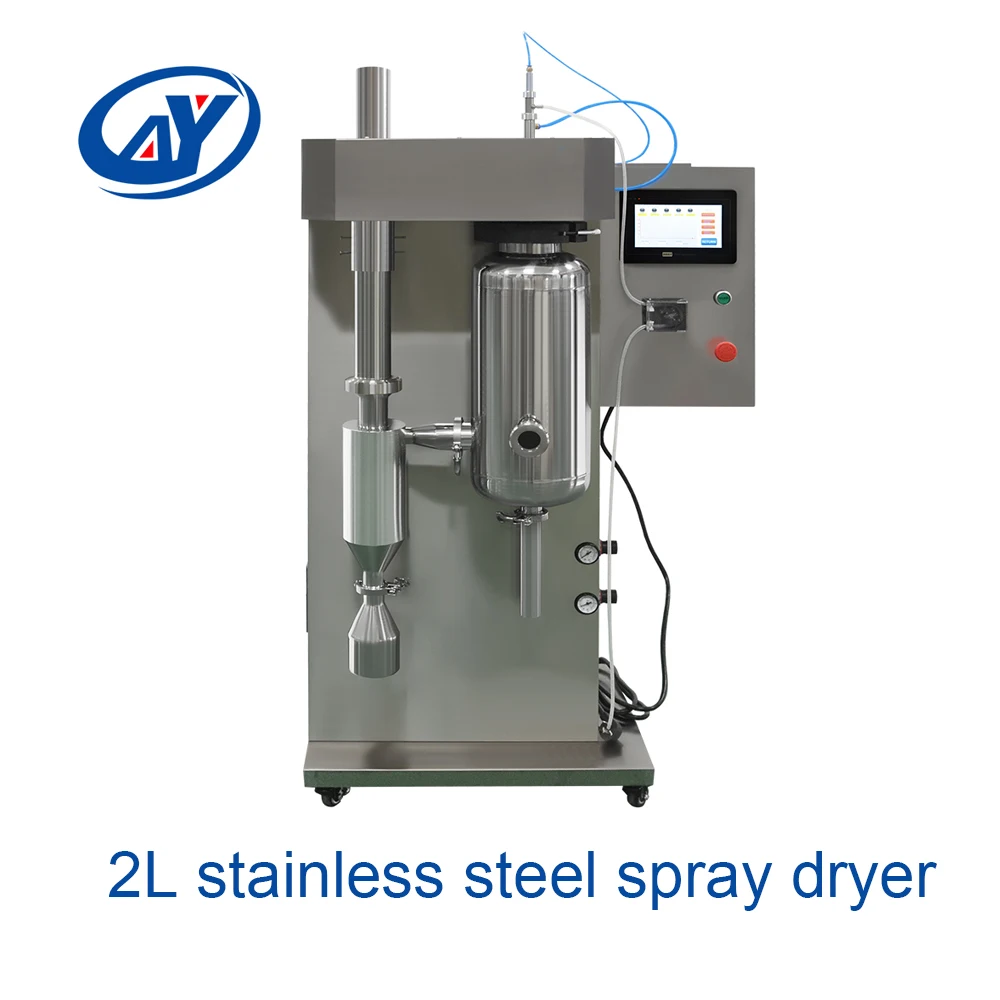

Related Products

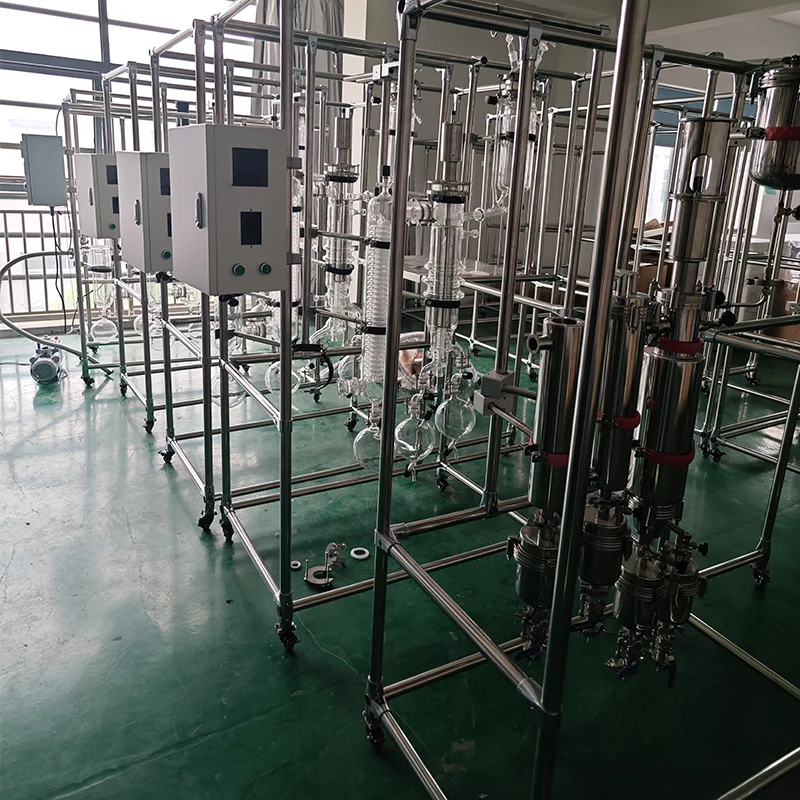

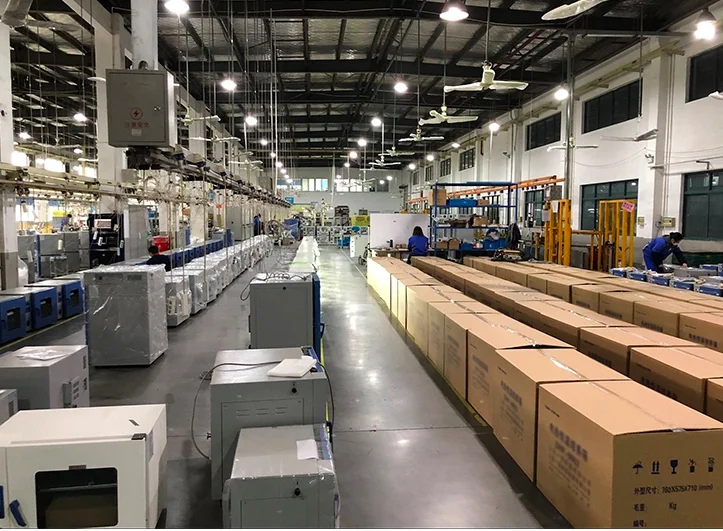

Factory Profile
Hangzhou Anyan Instrument Manufacturing Co., Ltd. Is located in Yuhang District, Hangzhou city. It’s a professional manufacturer focusing on R&D, production, sales and service of lab equipments. More than 90% of the company’s R&D personnel are senior experts engaged in scientific research instrument industry for many years. Strong technical force greatly ensure the quality of our products and technical support service. The company’s main products are Molecular distillation equipment, Thin film evaporator,Fully-closed nitrogen blowing instrument, Nitrogen generator, Constant temperature thawing instrument, Low temperature spray dryer, Solid phase extractor, Fat analyzer, Soxhlet extractor and so on.
Anyan products are CE certified, and strictly implementing ISO9001-2000 quality control system instructions in the whole procedure of R&D and production. Currently, we have established long-term cooperation with many domestic universitylaboratories, well-known hospitals, Pharmaceutical companies, Food processing plants, Chemical plants and etc., sales channel cover over 30 provinces and autonomous regions in China, and has been exported to Europe, America, Oceania, the Middle East, Southeast Asia and other Countries and Regions. The products are well received by customers.
Anyan products are CE certified, and strictly implementing ISO9001-2000 quality control system instructions in the whole procedure of R&D and production. Currently, we have established long-term cooperation with many domestic universitylaboratories, well-known hospitals, Pharmaceutical companies, Food processing plants, Chemical plants and etc., sales channel cover over 30 provinces and autonomous regions in China, and has been exported to Europe, America, Oceania, the Middle East, Southeast Asia and other Countries and Regions. The products are well received by customers.

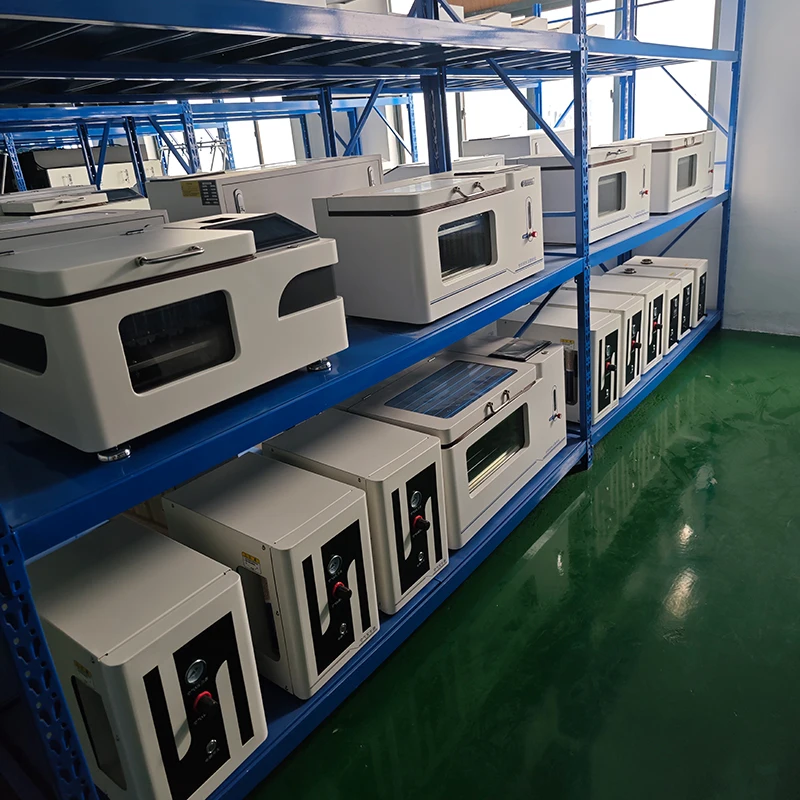

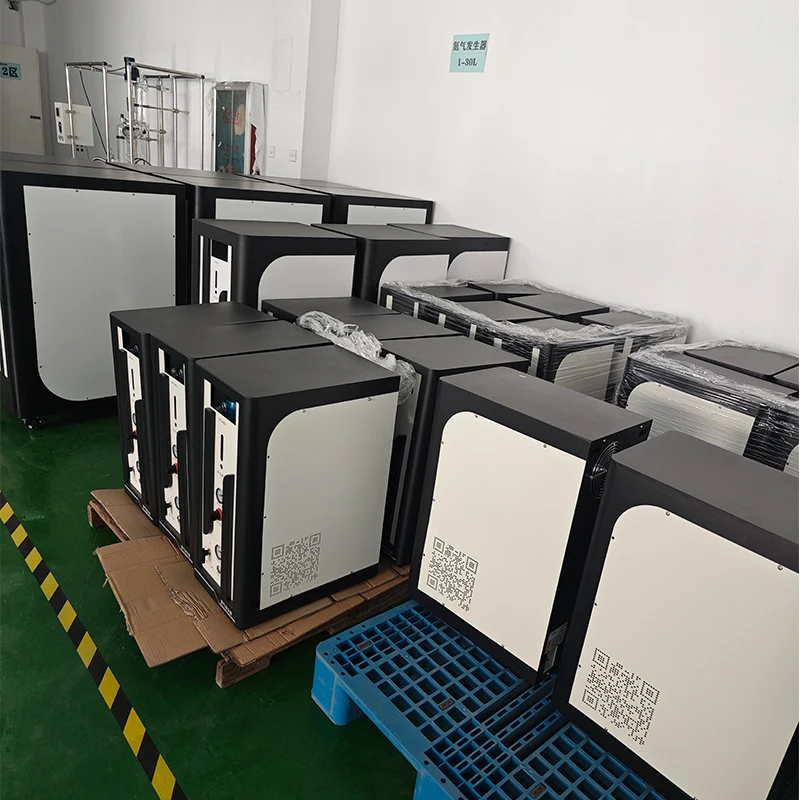

Some products are in stock, we can ship it now!

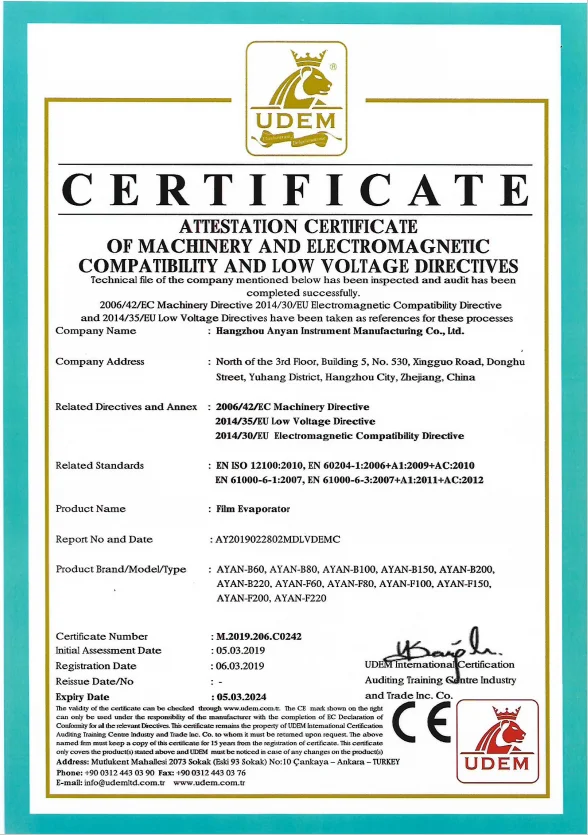

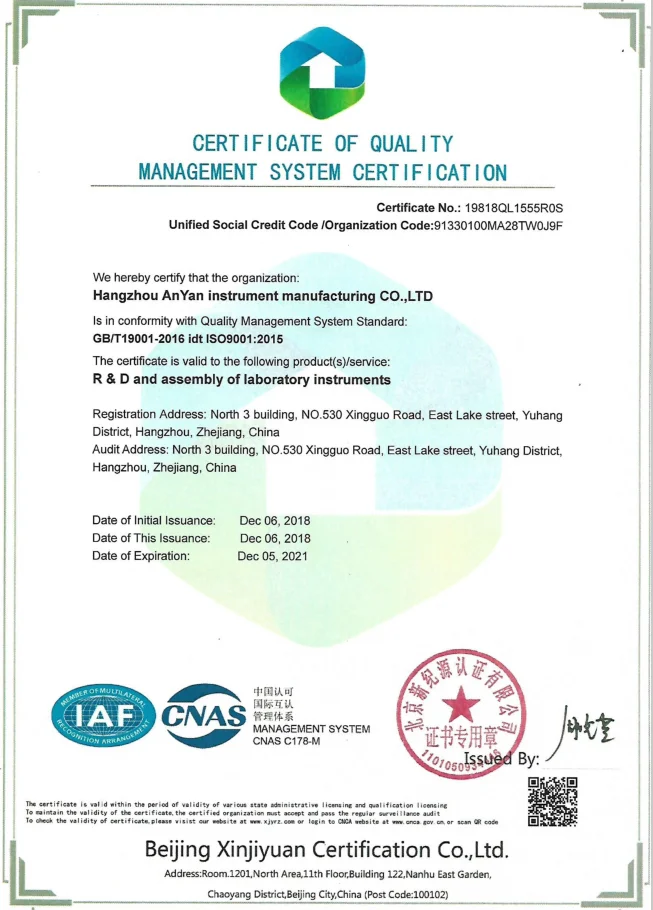

Certifications
Exhibition
packing&delivery
FAQ
1. who are we?
We are based in Zhejiang, China, start from 2005,sell to Domestic Market(90.00%),North America(2.00%),Southeast Asia(2.00%),Eastern Europe(2.00%),Western Europe(1.00%),South Asia(1.00%),Southern Europe(1.00%),Northern Europe(1.00%). There are total about 51-100 people in our office.
3.How long is your delivery?
4. Why did you choose us?
We are a professional manufacturer that focused on R&D and the production of lab equipment and distillation equipment. Has over 15 years of experience in our focused area, can provide high-quality products, customization service, and turnkey solutions.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
Always final Inspection before shipment;
3.How long is your delivery?
Generally our delivery time is within 15 working days. Ayan occupies a 2000 M2 production base, is able to guarantee our quality and fast delivery to users. Genuine products are assured by factory direct sales.
4. Why did you choose us?
We are a professional manufacturer that focused on R&D and the production of lab equipment and distillation equipment. Has over 15 years of experience in our focused area, can provide high-quality products, customization service, and turnkey solutions.
5. What about the warranty with after - sales services?
The testing machine is guaranteed for 12 months ,One year promise including free maintenance and changing Instrument components.Besides, Full-life cycle technical support is provided.
