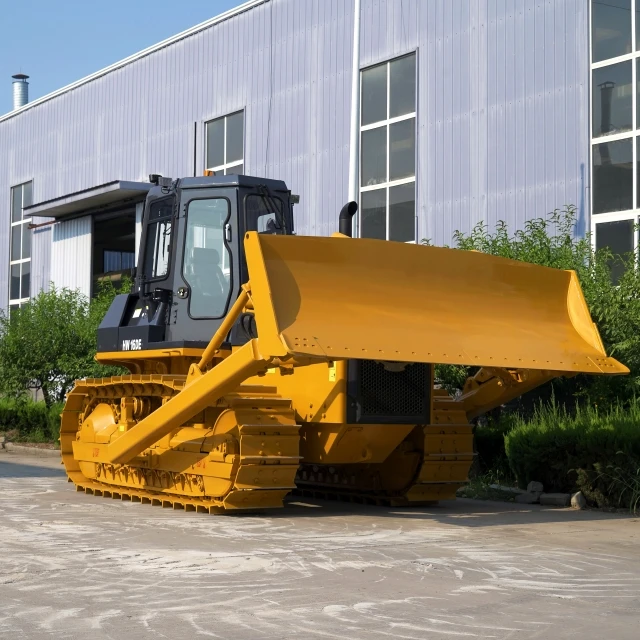

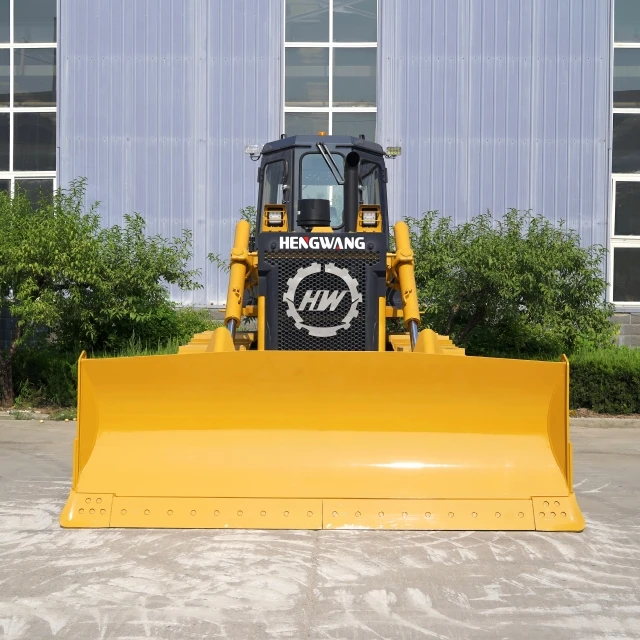

Хороший Китай гусеничный бульдозер для продажи цена техника
- Категория товара: >>>
- Поставщик (Оптовый магазин): Jining,Huixin,Machinery,Co.,Ltd.Jining,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Our Advantages
1. Complete products, one-stop purchasing, saving your cost and time.2. Install and test the products one by one, to ensure the quality.
3. Inventory advantage, stable supply, short delivery time.
4. High performance-to-price ratio : While meeting the engineering needs, the price remains moderate.
5. Quality assurance : through the CE quality certification.
6. We can realize your various design needs and provide OEM ODM.
Our Service
* Warranty: We supply one year warranty for all the machines we exported, during the warranty, if there is problem caused by machine quality without improper operation, we will supply the replace genuine parts by DHL to clients freely to keep the machine in high efficiency work.
* Spare Parts: We have 12years experience on machine and spare parts supplying, we are efforts to supply Genuine spare parts with good prices, quick response and professional service.
Product Description

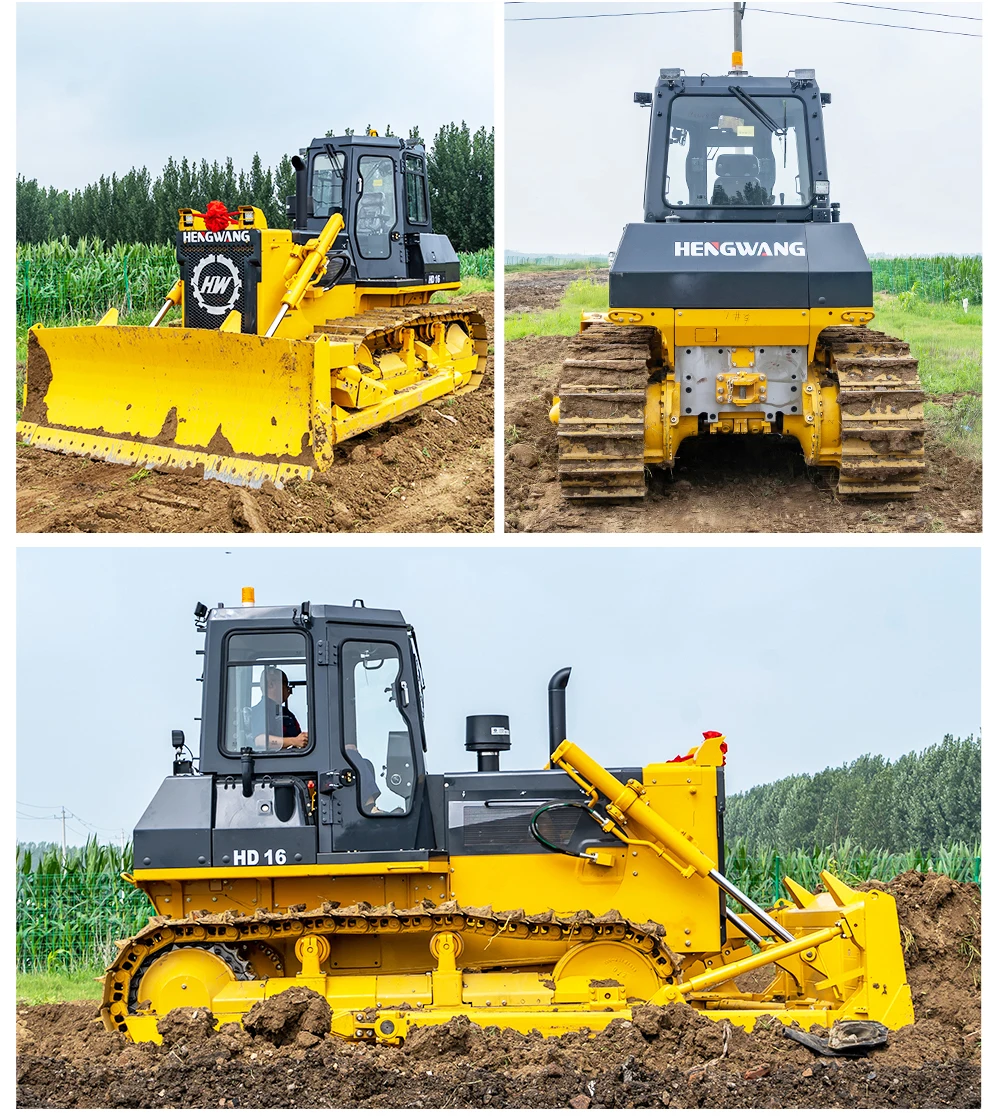

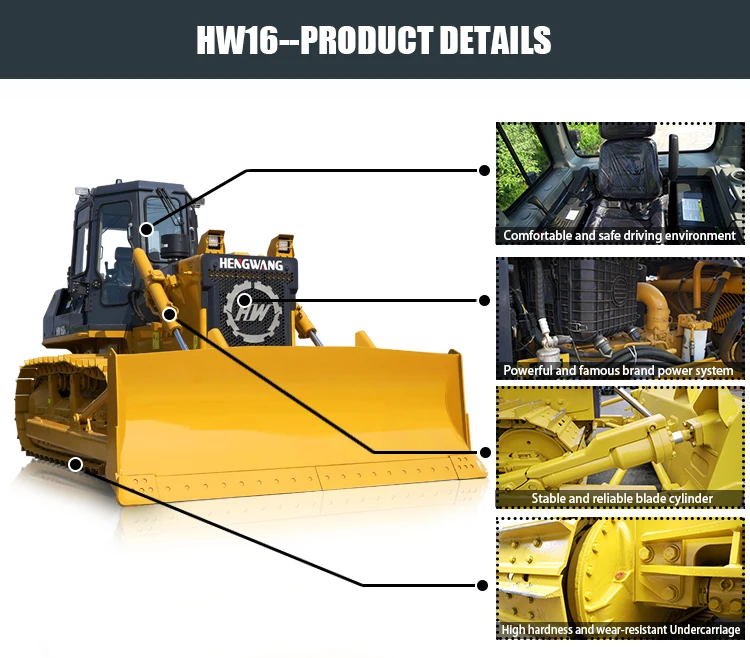

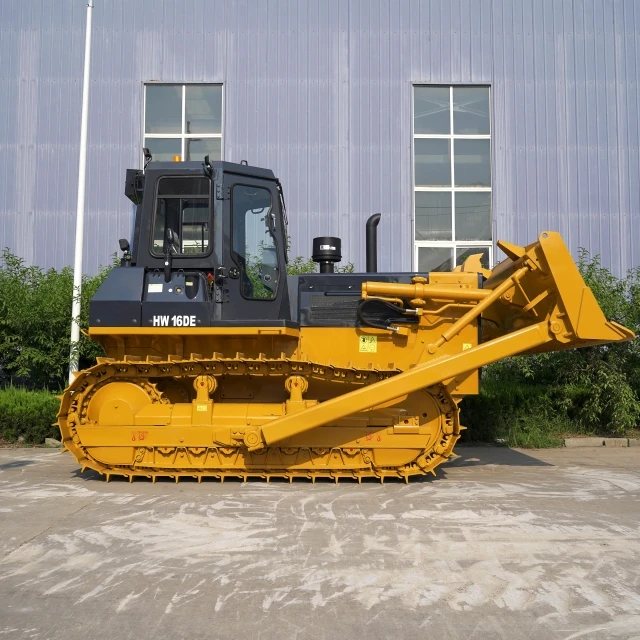

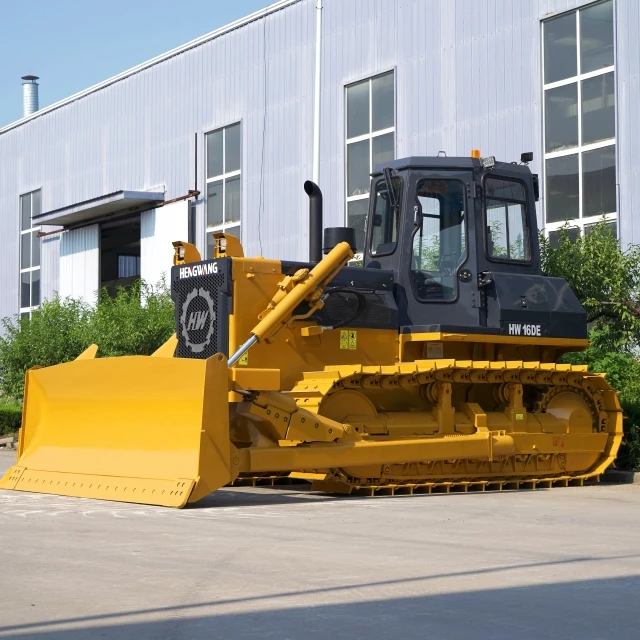

HW16 (Standard version)Bulldozer | ||||||
Operating weight (Kg) | 17000 | Number of track shoes (one side/piece) | 37 | |||
Minimum turning radius (mm) | 4466 | Chain track pitch (mm) | 203.2 | |||
Ground length(mm) | 2430 | Number of rollers (one side) | 2 | |||
Ground specific pressure (kpa) | 0.067 | Fuel tank (L) | 320 | |||
Engine model | WD10G178E25/Customization | Working hydraulic tank(L) | 108 | |||
Rated power/rated speed (kW/rpm) | 131/1850 | Blade type | Straight tilting blade , Angle Blade, U-shaped Blade and Semi-U blade | |||
Overall dimensions of machine (mm) | 5140*3388*3032 | Blade Capacity (m³) | 4.5/4.3/Customization | |||
Forward speed (km/h) | F1:0-3.29 F2:0-5.82 F3:0-9.63 | Ripper type | Single-shank three-shank | |||
Reversing speed (km/h) | R1:0-4.28 R2:0-7.59 R3:0-12.53 | Ripping depth (mm) | 695 (Single-shank) and 666 (Three-shank) | |||
Track center distance (mm) | 1880 | Winch type | Hydraulic winch/Customization | |||
Track shoe width (mm) | 510/560 | Winch motor model | INM7-3600D480111/Customization | |||

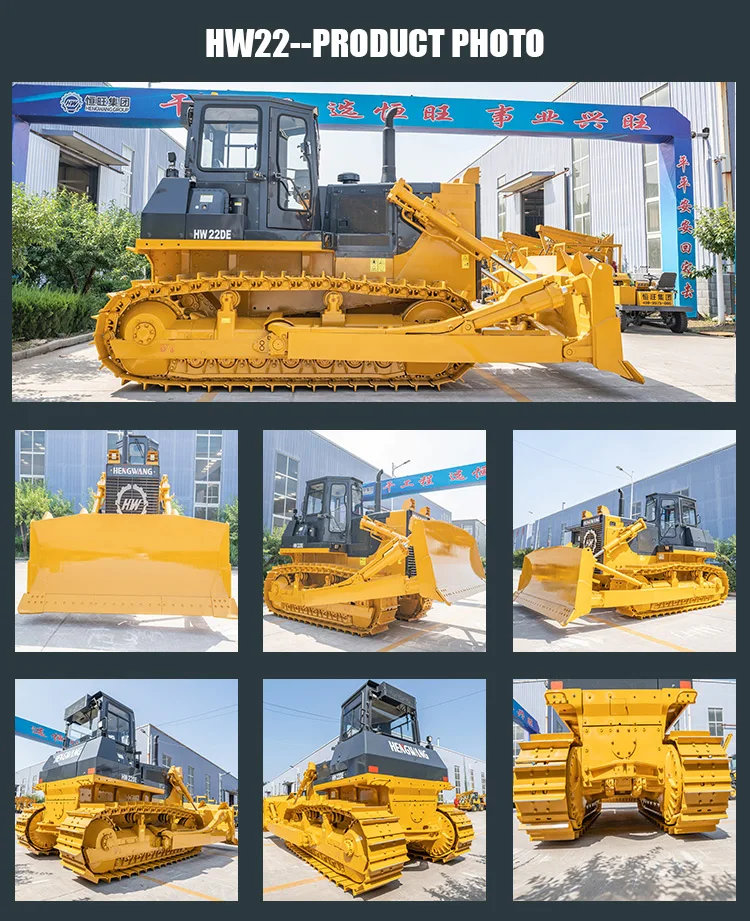

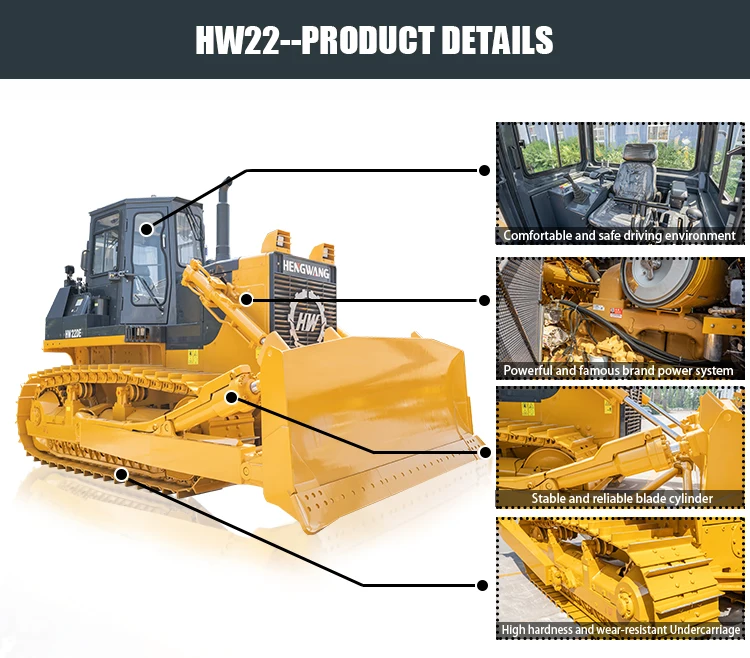

HW22 (Standard version)Bulldozer | ||||||
Operating weight (Kg) | 23450( With tow frame) | Chain track pitch (mm) | 215.9 | |||
Minimum turning radius (mm) | 3300 | Number of rollers (one side) | 2 | |||
Ground specific pressure (kpa) | 0.077 | Number of supporting wheels (one side) | 6 | |||
Engine model | NT885-C280S10/Customization | Fuel tank (L) | 450 | |||
Rated power/rated speed (kW/rpm) | 175/1800 | Working hydraulic tank(L) | 110 | |||
Overall dimensions of machine (mm) | 5750*3725*3402 | Blade type | Straight tilting blade , Angle Blade, U-shaped Blade and Semi-U blade | |||
Forward speed (km/h) | F1:0-3.6 F2:0-6.5 F3:0-11.2 | Blade Capacity (m³) | 4.5/4.3/Customization | |||
Reversing speed (km/h) | R1:0-4.3 R2:0-7.7 R3:0-13.2 | Ripper type | Single-shank three-shank | |||
Track center distance (mm) | 2000 | Ripping depth (mm) | 695 (Single-shank) and 666 (Three-shank) | |||
Track shoe width (mm) | 560 | Winch type | Hydraulic winch/Customization | |||
Number of track shoes (one side/piece) | 38 | Winch motor model | INM7-3600D480111/Customization | |||
Advantage:

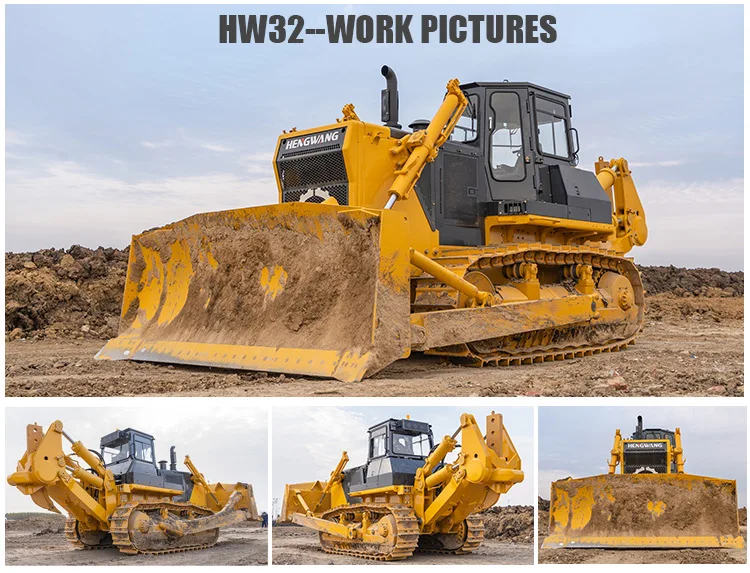

The HW16 HW22 and HW32 bulldozers have reinforced chassis, arms, and blades, which can handle the most challenging large obstacles,such as large rocks and boulders.
*The blade is thicker, and the arm coating is improved to enhance strength and durability.
*It is particularly suitable for heavy mining applications.
*It is one of the best-selling products of Hengwang in Africa, where large-scale mining is prevalent.
*Widely used in mining, rock, coal, wetland, farm, water conservancy, power station, scrap station, transportation and other use scenarios.
The HW16 HW22 and HW32 bulldozers have reinforced chassis, arms, and blades, which can handle the most challenging large obstacles,such as large rocks and boulders.
*The blade is thicker, and the arm coating is improved to enhance strength and durability.
*It is particularly suitable for heavy mining applications.
*It is one of the best-selling products of Hengwang in Africa, where large-scale mining is prevalent.
*Widely used in mining, rock, coal, wetland, farm, water conservancy, power station, scrap station, transportation and other use scenarios.
Pre-sale services
We provide OEM/ODM customization services, including cab style, color, engine, logo and your other needs.

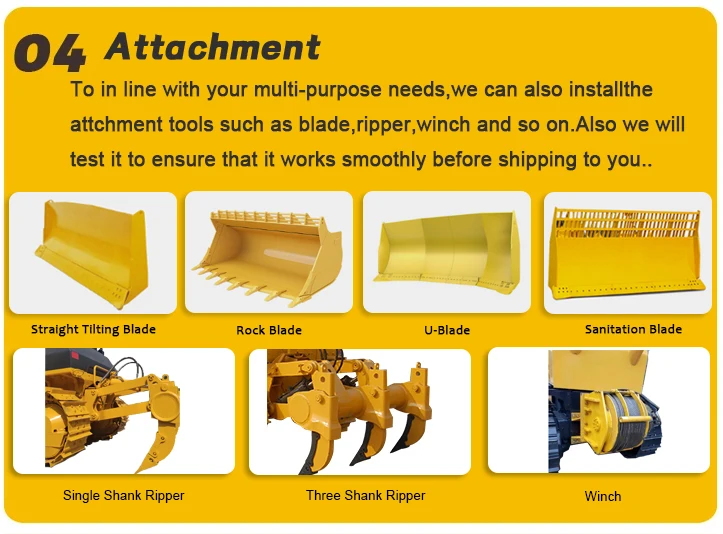

All types of blades, ripper and winches .
All types of blades, ripper and winches .
Please send inquiry, list the tonnage and model you need, and we will recommend or customize the model suitable for you,you can also get the factory price,discounts and detailed parameters!!!
Company Profile
Bulldozer Operating Workshop
Our factories have passed the certification of relevant organizations.
For example, ISO, CNAS, IAF and so on.
Products have also passed CE, GHOST certification and so on.
Advantage:
1:Over 10 Years'Foreign Trade Experience
2:Rich experience in sea transportation
3:Professional and enthusiastic salesman
For example, ISO, CNAS, IAF and so on.
Products have also passed CE, GHOST certification and so on.
Advantage:
1:Over 10 Years'Foreign Trade Experience
2:Rich experience in sea transportation
3:Professional and enthusiastic salesman
We have already exported our products to more than 80 countries and regions, including: Africa, the Middle East,
South America,Central Asia, Russia, Mexico, Australia, New Zealand, Holland, British, Mongolia and so on.
We have received more than 1000 clients and training engineers from more than 100 countries around the world.
2023,We have also participated in German BMW Exhibition, Russia Exhibition,Spain exhibition, Dubai exhibition , Changsha International Engineering Exhibition,National Manufacturing Innovation Achievements Exhibition ,Construction Machinery Exhibition in Malaysia and other Exhibition.
Pre-sale service
Dear friends, before the sale, we will fully understand your needs, according to your machine requirements and your budget, choose the right model for you, to ensure that you buy high-quality products at a lower price.
At the same time, you are welcome to visit our factory.
After-sale service
*Warranty
HENGWANG grants clients a twelve-month-period (1Year) or2000-hours warranty for any machine purchased from us. During the warranty period, products or parts that have quality problems due to non-human reasons will be repaired free of charge.Products or parts that are determined to be unusable will be replaced free of charge and maintenance fees will be waived , parts fee, door-to-door service fee, transportation fee.

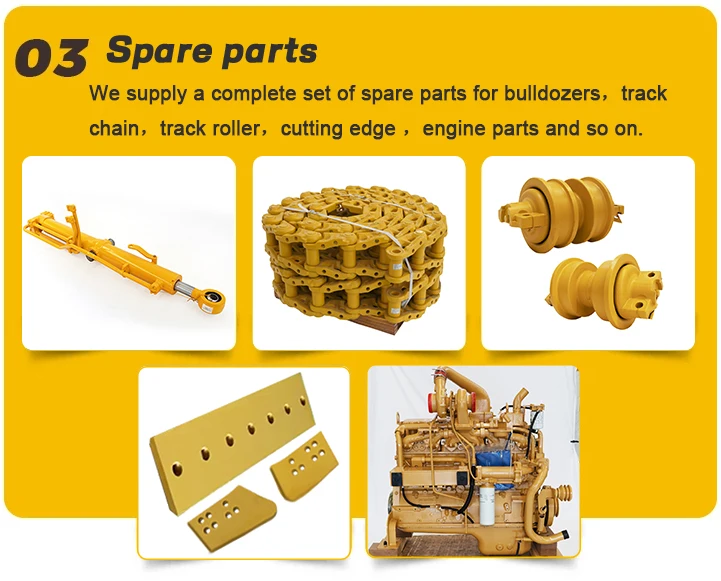

*Spare Parts
HENGWANG specializes in various famous brand parts for both domestic and international markets.Please submit your spare parts request to us, and list products name, model, equipment serial number, description of required parts. We guarantee that your request will be handled quickly and appropriately.
*Installation
HENGWANG's service scope covers complex machinery installation, operation and debugging, etc. Get you started operating your construction machinery correctly. We have a complete management system and are online 24 hours a day. We will help customers solve their problems as soon as possible. We can work remotely and can also send engineers to the customer's site to perform maintenance work.
*Training
HENGWANG has complete facilities and complete supporting facilities, can provide training services for different users. From basic product training, operation training, maintenance knowledge, etc., through professional management theoretical knowledge and rich enterprise implementation experience, we provide customers practical training services. The training plan can be in our at the factory site or customer site.
Dear friends, before the sale, we will fully understand your needs, according to your machine requirements and your budget, choose the right model for you, to ensure that you buy high-quality products at a lower price.
At the same time, you are welcome to visit our factory.
After-sale service
*Warranty
HENGWANG grants clients a twelve-month-period (1Year) or2000-hours warranty for any machine purchased from us. During the warranty period, products or parts that have quality problems due to non-human reasons will be repaired free of charge.Products or parts that are determined to be unusable will be replaced free of charge and maintenance fees will be waived , parts fee, door-to-door service fee, transportation fee.
*Spare Parts
HENGWANG specializes in various famous brand parts for both domestic and international markets.Please submit your spare parts request to us, and list products name, model, equipment serial number, description of required parts. We guarantee that your request will be handled quickly and appropriately.
*Installation
HENGWANG's service scope covers complex machinery installation, operation and debugging, etc. Get you started operating your construction machinery correctly. We have a complete management system and are online 24 hours a day. We will help customers solve their problems as soon as possible. We can work remotely and can also send engineers to the customer's site to perform maintenance work.
*Training
HENGWANG has complete facilities and complete supporting facilities, can provide training services for different users. From basic product training, operation training, maintenance knowledge, etc., through professional management theoretical knowledge and rich enterprise implementation experience, we provide customers practical training services. The training plan can be in our at the factory site or customer site.

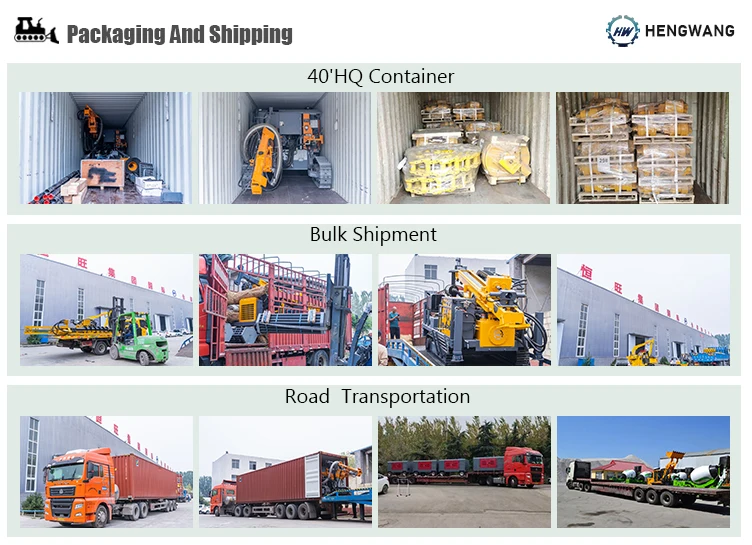

Support land transportation such as roads and railways, ocean transportation, and air transportation.
We supervise the process from the factory to the port designated by the customer to ensure that the customer's products arrive at the destination accurately and safely.
We supervise the process from the factory to the port designated by the customer to ensure that the customer's products arrive at the destination accurately and safely.

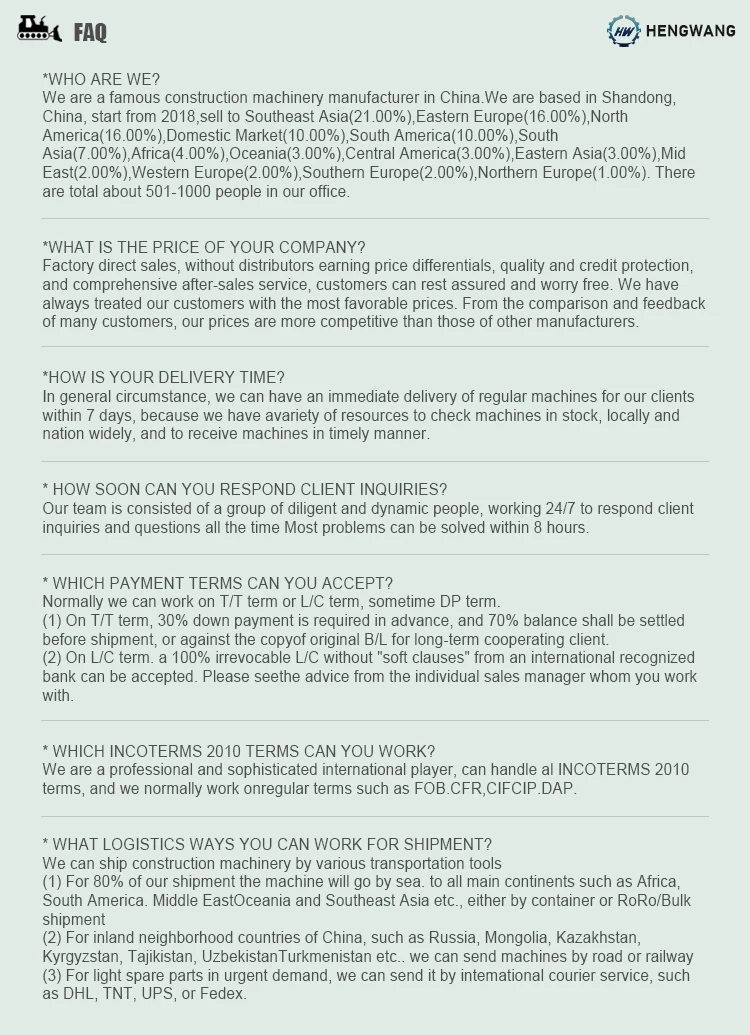

FAQ
Send your inquiry Details for factory price,contact me now！！!
We will guarantee that your request will be handled quickly and appropriately within 24 hrs.
