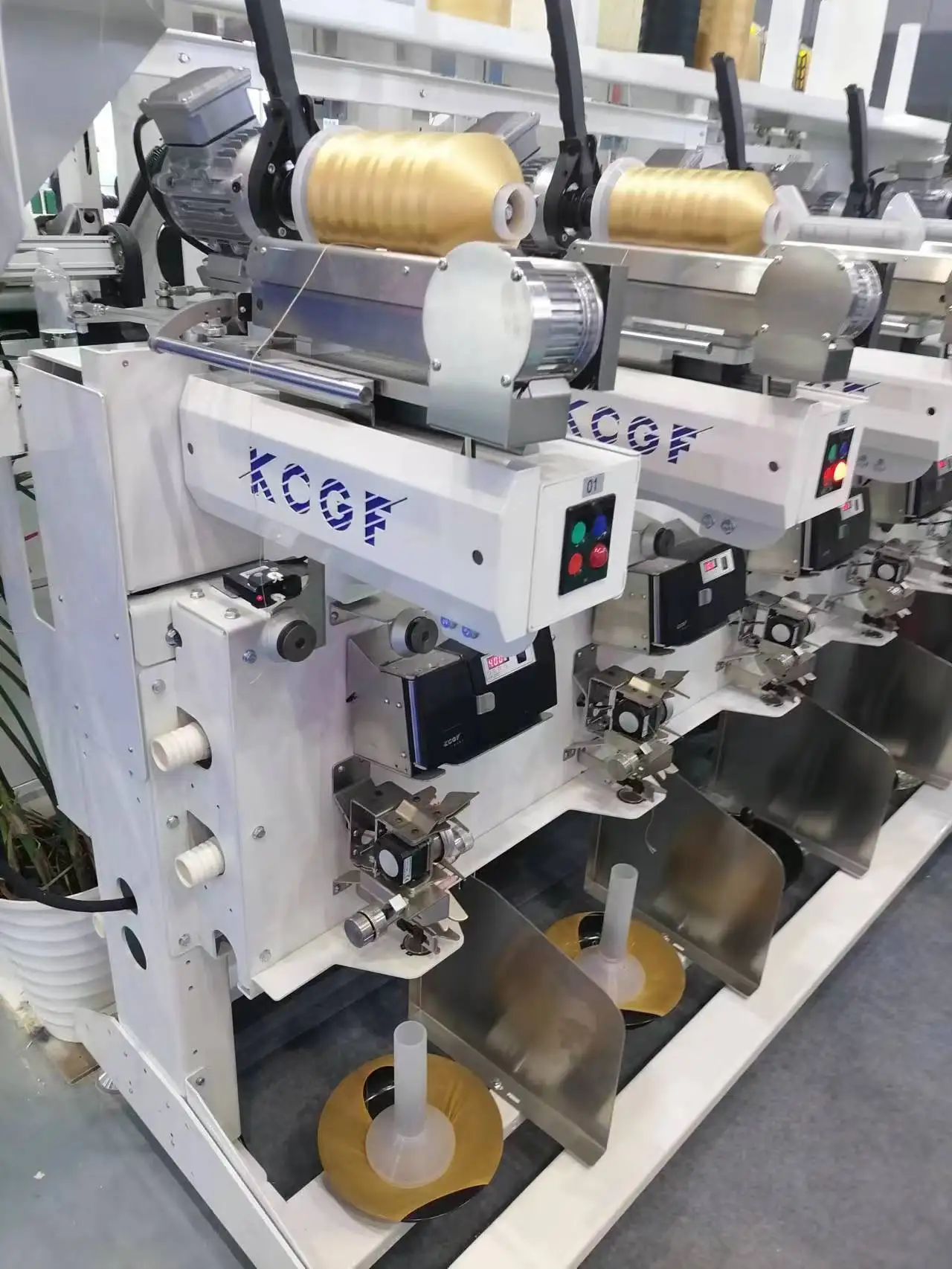

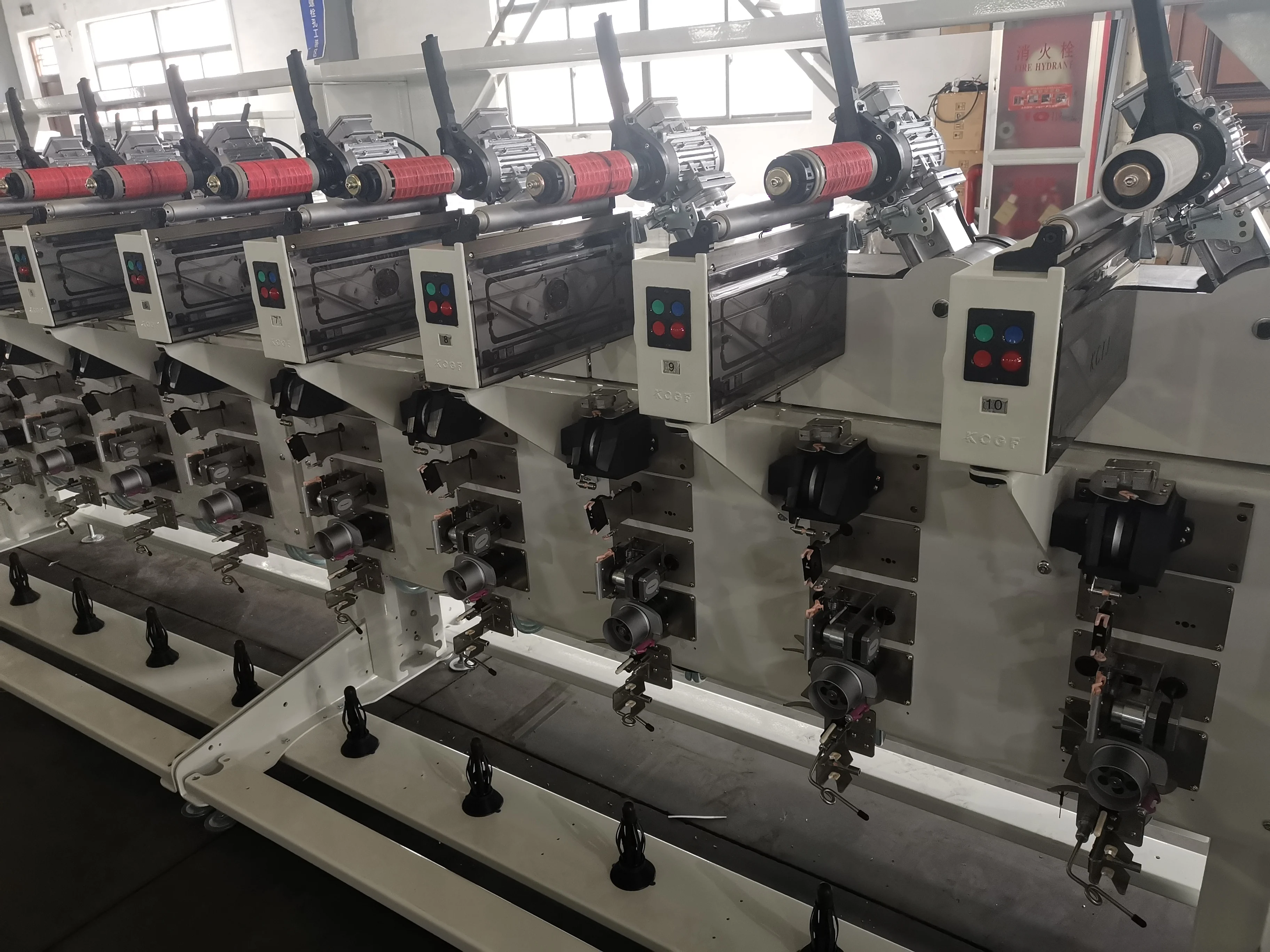

Высокоскоростная машина для намотки KC212D kingspool
- Категория товара: >>>
- Поставщик (Оптовый магазин): Zhejiang,Kaicheng,Intelligent,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Suitable for Winding large packaged embroidery thread & sewing thread on A tube, Y tube and cylinder tube.
Features

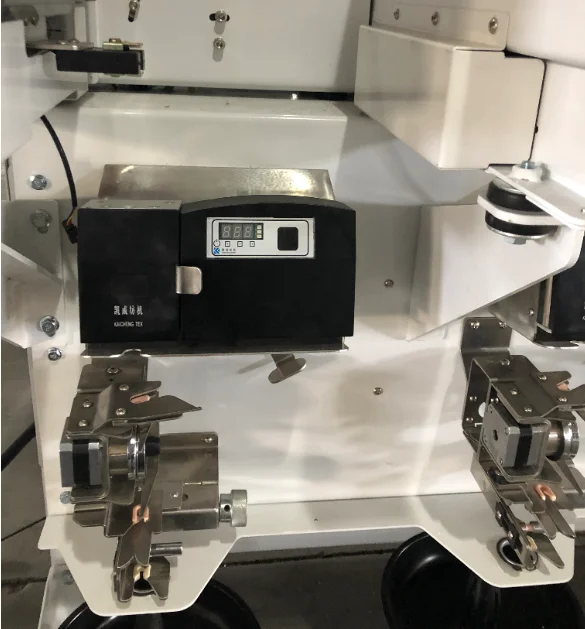

1. Electronic yarn guide system, can be arbitrarily adjusted 1 inch~ 10 inches molding length, winding density and edge Angle;
2. When product Y tube, yarn molding can be adjusted with the angle of horn tube intelligent and moved automatically;

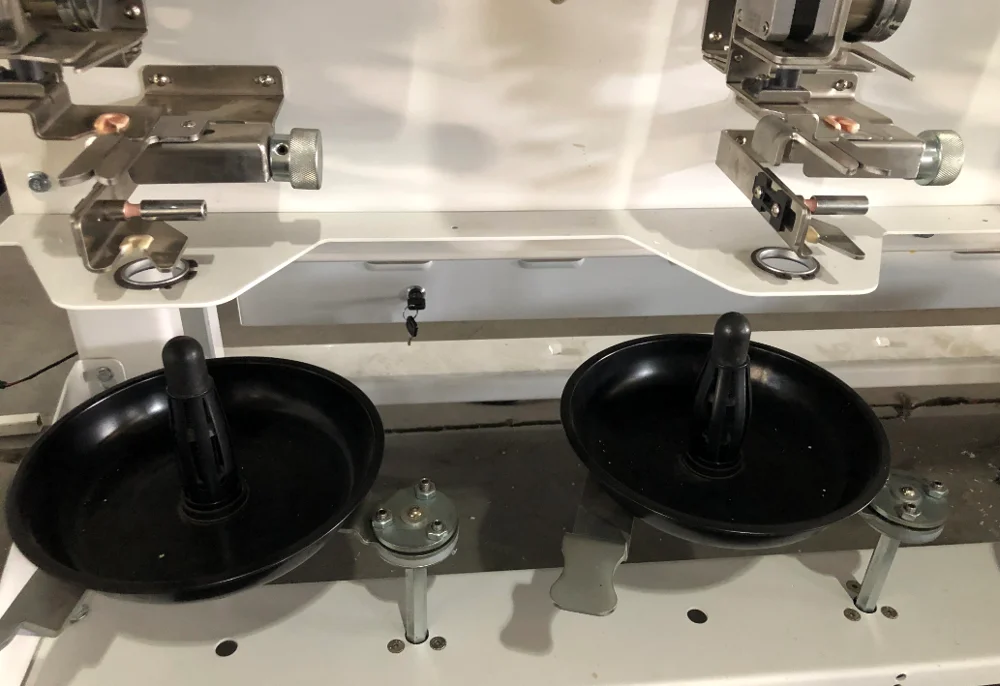

3. Creel can set automatic detection and roller pressure to increase and decrease intelligently, to ensure good molding;

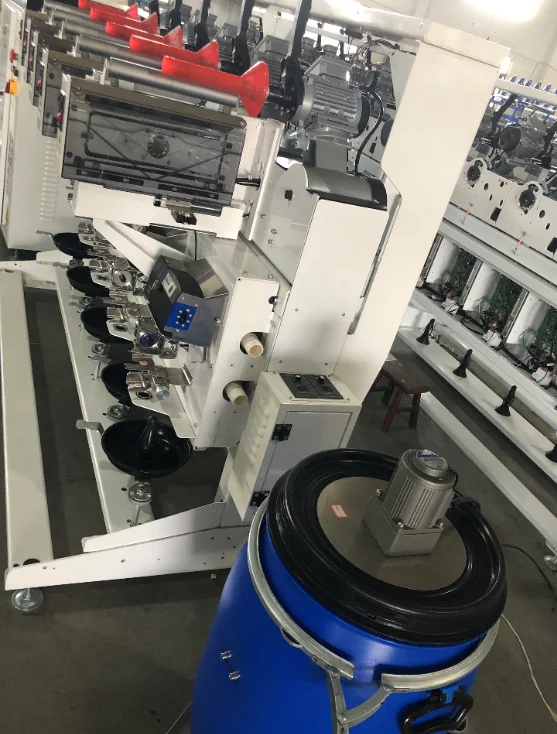

4. Intelligent oil control device, real-time accurate temperature control, oil break, oil shortage automatic shutdown, perfect
guarantee of yarn oil;
5. Intelligent weight, length, measurement functions.
1. Electronic yarn guide system, can be arbitrarily adjusted 1 inch~ 10 inches molding length, winding density and edge Angle;
2. When product Y tube, yarn molding can be adjusted with the angle of horn tube intelligent and moved automatically;
3. Creel can set automatic detection and roller pressure to increase and decrease intelligently, to ensure good molding;
4. Intelligent oil control device, real-time accurate temperature control, oil break, oil shortage automatic shutdown, perfect
guarantee of yarn oil;
5. Intelligent weight, length, measurement functions.

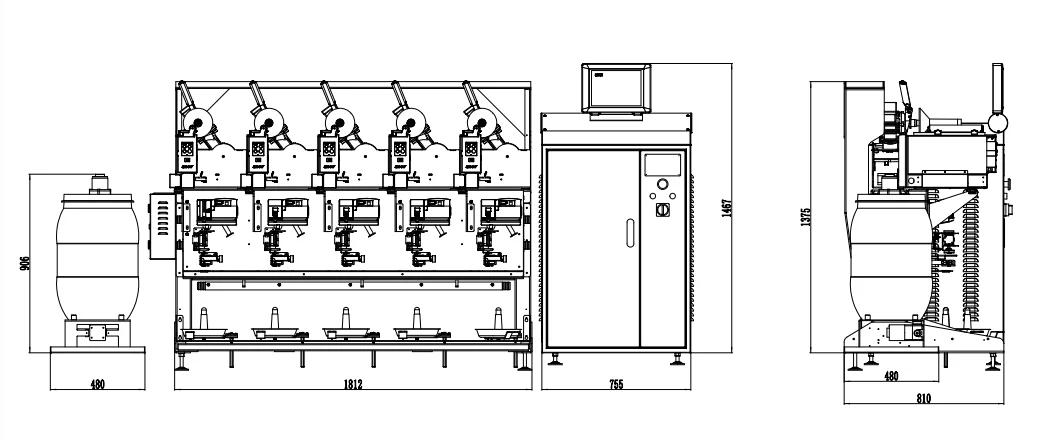

Machine structure | Single size, single layer, 5 spindles per section |
Spindle gauge | 360mm |
Winding form | Precision cross winding |

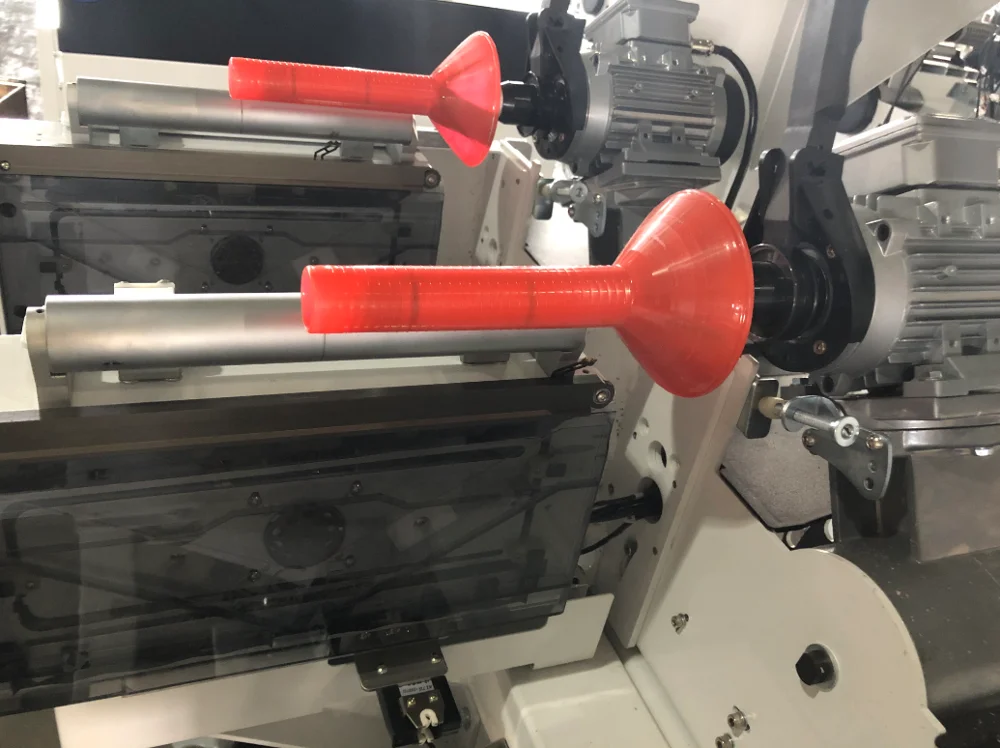

Take-up tube bobbin | King-tube, A-tube(tapered tube), Y-tube(horn tube) |
Linear speed | Up to 1200 m/min(depend on the process parameters) |
Traverse | 85mm~250mm (It can be changed according to actual needs) |
Yarn count | Up to 3300D |
Rated power | 300W/spindle |
