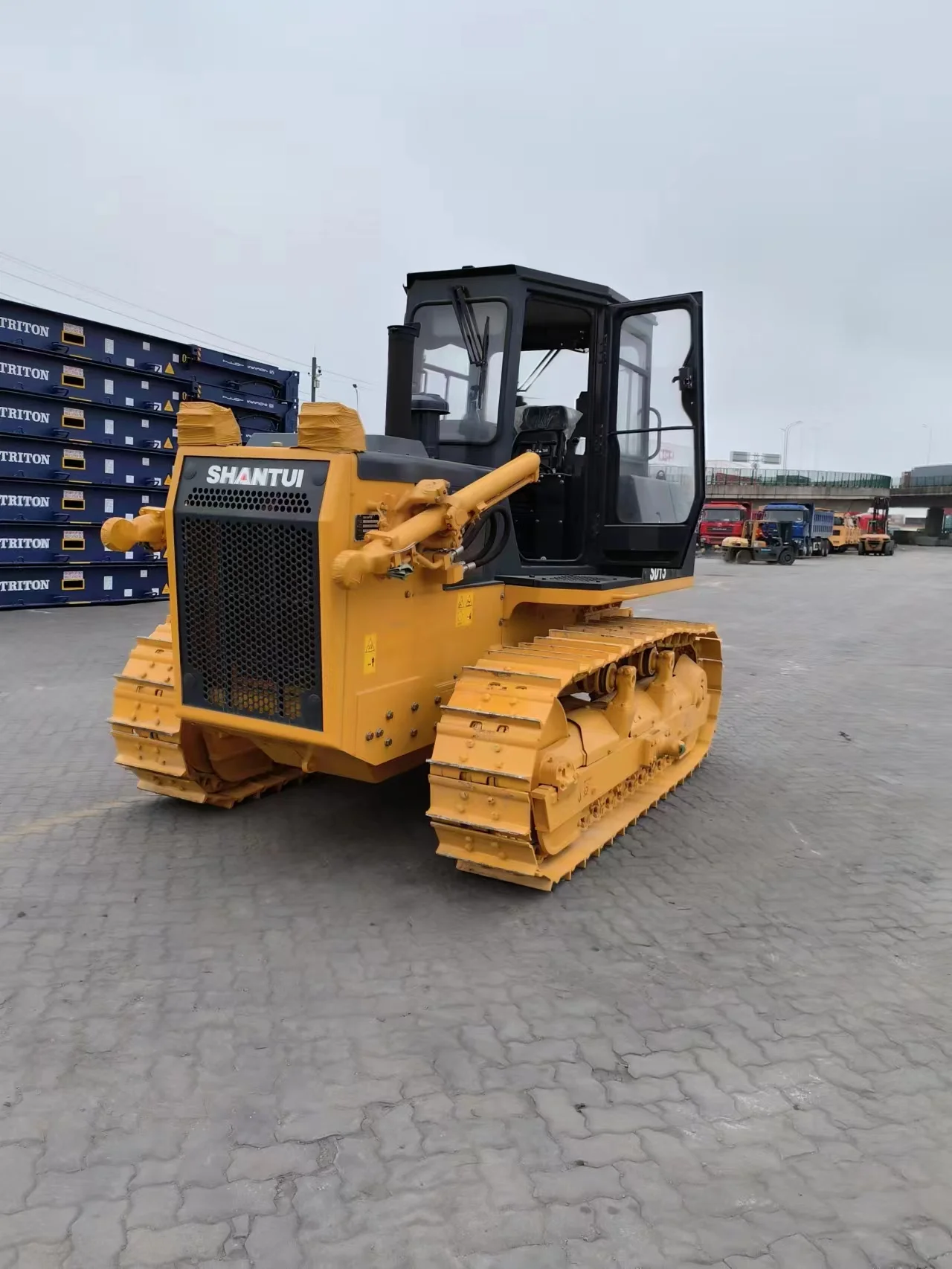

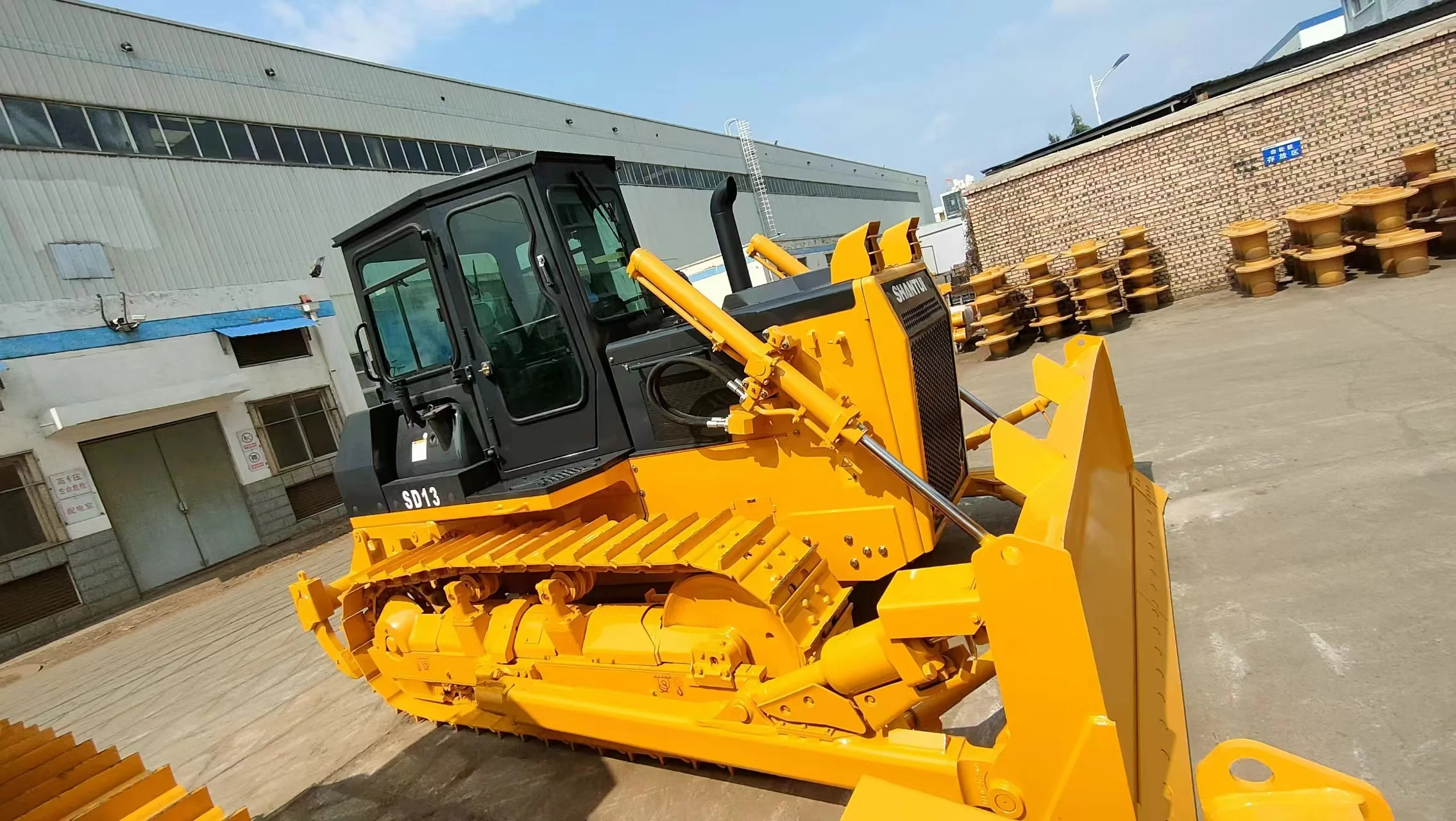

Оригинальный бульдозер SHANTUI SD13 гусеничный 140 л.с.
- Категория товара: >>>
- Поставщик (Оптовый магазин): Evangel,Industrial,(Shanghai),Co.,Ltd.Evangel,Ltd.
Поделиться:
Описание и отзывы
Характеристики
New Shantui Small Bulldozer SD13 with Good Price for Sale
Sales Representative: July Li
Email: july(@)evangelchina.com
Online Chat: WhatsApp /Wechat/ Mobile: +86 13122691510
Product Description
1.More Efficient
Equipped with an engine that provides a 12% increase in power for enhanced performance.
Improved operating efficiency with an 22% power increase in the economy mode.
Load sensing system combined with constant power control technology automatically. adjusts to changing loads, ensuring high operating efficiency while saving fuel consumption.
Cate modular cooling system designed with a high safety factor, capable of performing under extreme environmental temperatures up to 45°C.
Optimized blade design and adjustment of the overall center of gravity for enhanced stability and blade maneuverability.
Wide range of product and blade configurations available to meet various job requirements.
2. More Reliable
High-quality hydraulic components from renowned brands ensure reliability and durability of the static hydraulic transmission system.
Strengthened mainframe and integrated undercarriage structure capable of withstanding harsh working conditions.
Blade designed with a box-type structure and curved plates made of high-strength, wear-resistant materials conforming to Cate 1E standards, suitable for severe working environments with significant abrasion.
Equipped with a wet brake system for better braking performance and longer service life
Specifications
| Drive system | Manufactured by SHANTUI, with high working efficiency, low breakdown rate; torgflow transmission, 3 gears forward and 3 gears backward | |||
| Traveling speed | Forward | 0~3.2km/h, 0-5.9km/h,0~9.8km/h | ||
| Backward | 0~3.9km/h, 0~7.1km/h, 0~11.9km/h | |||
| Max, theoretical traction force | 205.5kN 223.5kN 228kN | |||
| Torque damper | Spring damping | |||
| Torque converter | 3-element, single stage, 1-phase | |||
| Transmission | Planetary gear and torgflow transmission hydraulically actuated, forced lubrication | |||
| Bevel gear shaft | Spiral bevel gear, single-stage speed reduction, splash lubrication | |||
| Steering clutch | Wet multiple disc, disc spring loaded, hydraulically actuated, hand operated, interconnected with steering brake. | |||
| Brake | Wet, contracting band, foot operated with hydraulic booster | |||
| Final drive | Spur gear, double reduction ,splash lubrication | |||
