Product Overview

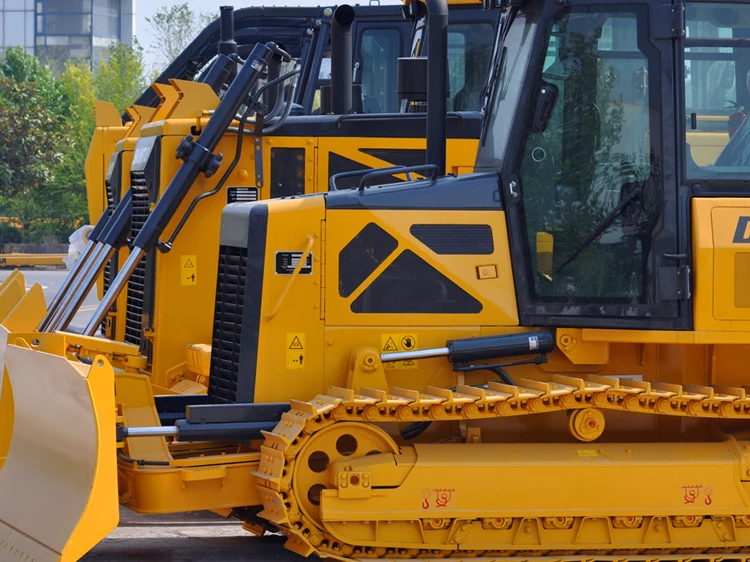

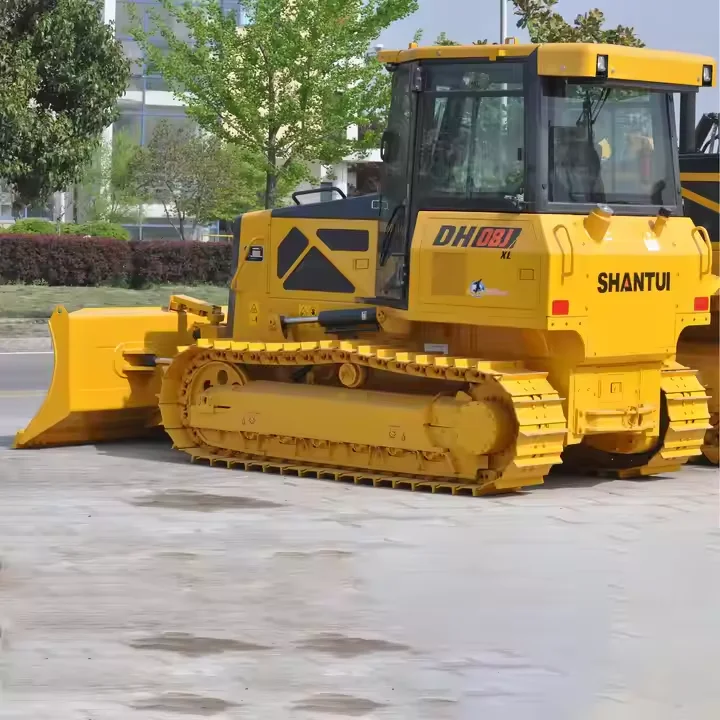

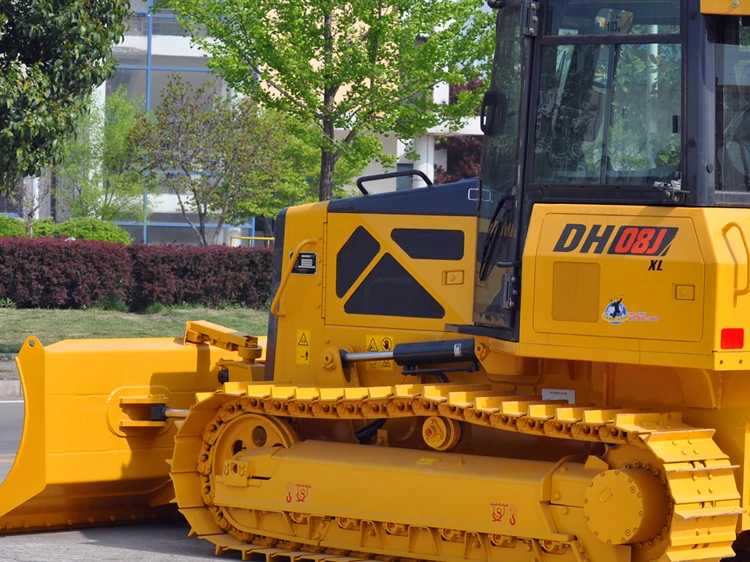

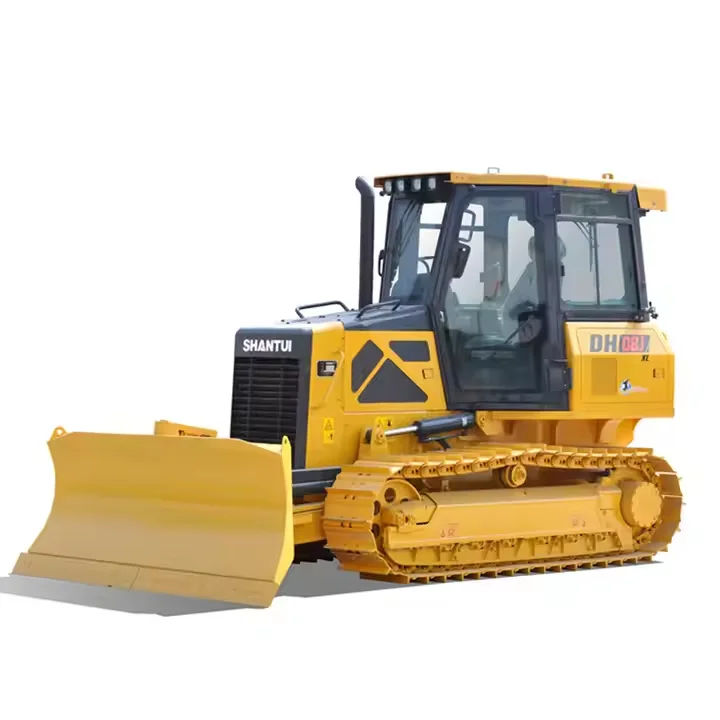

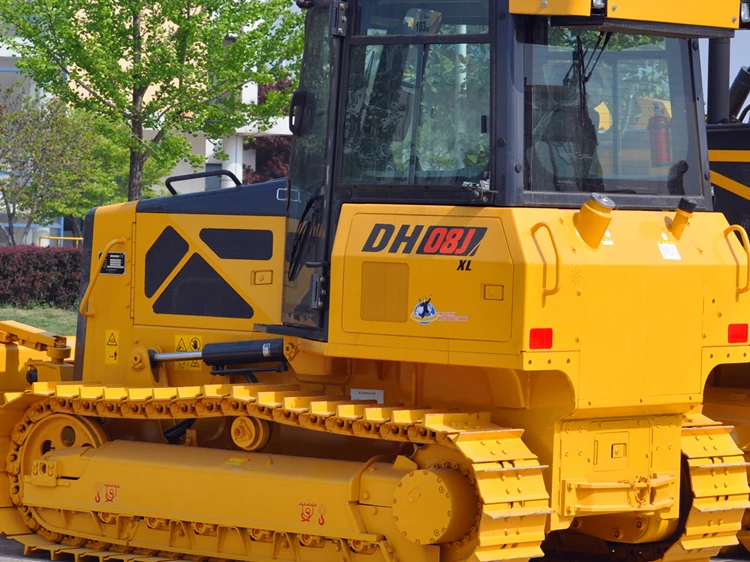

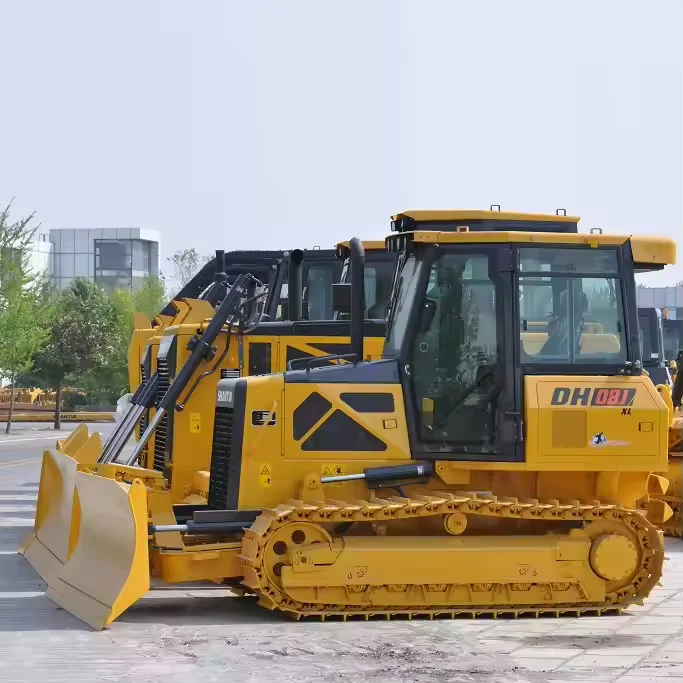

High-quality Shantui 80HP Crawler Bulldozer DH08J
Product Feature
● The suspended single accelerator pedal features small volume, large foot space, and high operation comfort.
● The extensively adjustable seat and armrests provide the driver with the most comfortable operation posture.
● The standard canopy and the optional standard cab + heating and A/C system are provided. The cab adopts integrally sealed shock-absorbing system and sound-absorbing sponge to lower the driver’s parotic noise to 85dB and realize low vibration and noise.
● The intelligent display and control terminal with integrated instruments, cigarette lighter, USB charging port, radio,
toolbox,sun shade, and fire extinguisher to provide more abundant personalized driving/riding experience and guarantee the comfortable and safe driving/riding environment.
● The safety passage system of the machine guarantees the driver’s safety.
soil holding capacity.
Environmental-friendliness
The double pump confluence system with unloading function can automatically or manually switch over the individual pump based on the working condition and unload the high pressure by auxiliary pump, featuring high intelligence and energy-saving.
The Factory's independently developed load-sensing system features smooth digging and loading combination motions, low motion changeover impact, and high efficiency and energy-saving.
During the digging and loading combination operations, the engine power to the drive system can be easily cut off so that all power is supplied to the hydraulic system to improve the digging and loading efficiency.
The machine automatically switches to two-wheel drive mode while traveling in gear IV to eliminate the parasitic power loss.
● The extensively adjustable seat and armrests provide the driver with the most comfortable operation posture.
● The standard canopy and the optional standard cab + heating and A/C system are provided. The cab adopts integrally sealed shock-absorbing system and sound-absorbing sponge to lower the driver’s parotic noise to 85dB and realize low vibration and noise.
● The intelligent display and control terminal with integrated instruments, cigarette lighter, USB charging port, radio,
toolbox,sun shade, and fire extinguisher to provide more abundant personalized driving/riding experience and guarantee the comfortable and safe driving/riding environment.
● The safety passage system of the machine guarantees the driver’s safety.
soil holding capacity.
Environmental-friendliness
The double pump confluence system with unloading function can automatically or manually switch over the individual pump based on the working condition and unload the high pressure by auxiliary pump, featuring high intelligence and energy-saving.
The Factory's independently developed load-sensing system features smooth digging and loading combination motions, low motion changeover impact, and high efficiency and energy-saving.
During the digging and loading combination operations, the engine power to the drive system can be easily cut off so that all power is supplied to the hydraulic system to improve the digging and loading efficiency.
The machine automatically switches to two-wheel drive mode while traveling in gear IV to eliminate the parasitic power loss.
Product Paramenters
Engine | Model 8 type | WP4, China II emission; mechanical pump engine |
Net power | 63kW/2200rpm | |
Engine size | 9150x6240x9440 mm | |
Piston displacement | 4.5L | |
Engine weight | 550 kg | |
Maximum torque | 380 N.m@ 1400-1600 rpm | |
Power transmission system | Type | Electronic control |
Traveling pump () | 2 | |
Traveling motor () | 2 | |
Traveling system pressure | 40 Mpa | |
Brake pressure | 2.5 Mpa | |
Travel speed | Forward | 0~9 km/h |
Reverse | 0~9 km/h | |
Undercarriage system | Carrier rollers | 1 each side |
Track rollers | 6 each side | |
Width of track shoes | 460 mm | |
Pitch | 154 mm | |
Hydraulic System | Type | 2 way hydraulic pilot control +1 way electric hydraulic hybrid control |
Maximum pressure | 21 MPa | |
Working pump | 1 | |
Main valve (Hydrocontrol) | 1 | |
Blade | Blade type | VPAT-blade |
Dozing capacity | 1.93 m3 | |
Blade width | 2680 mm | |
Blade height | 950 mm | |
Maximum drop below ground | 515mm | |
Maximum lifting height | 750 mm | |
Maximum drop below ground | 515 mm | |
Maximum tilt | 350mm | |
Turning angle | 25 |
