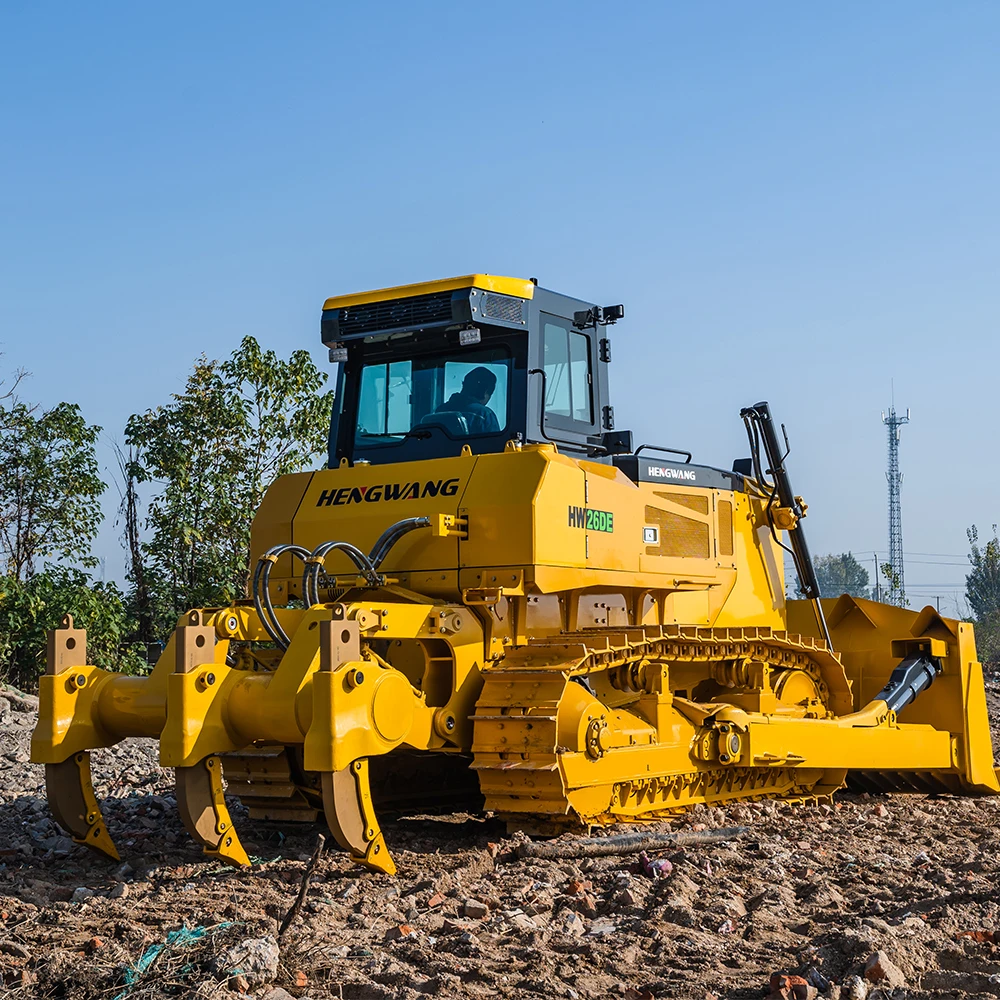

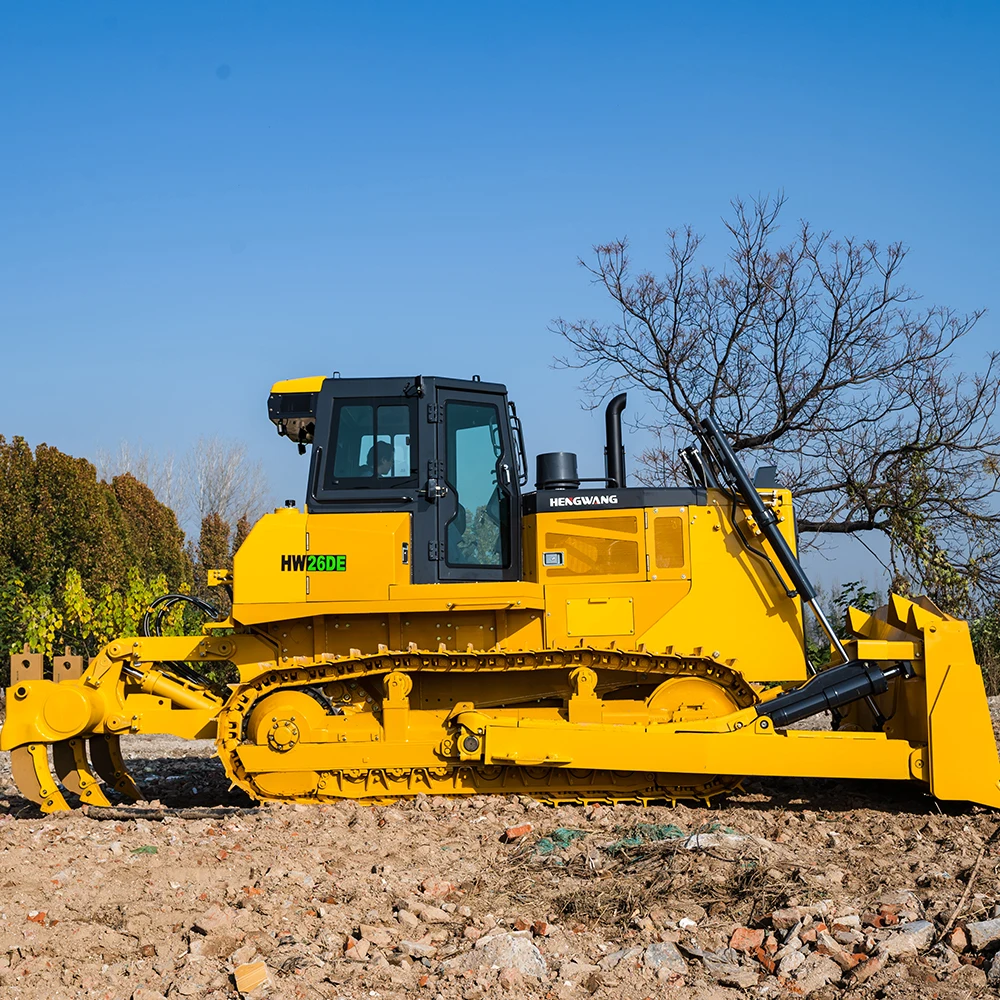

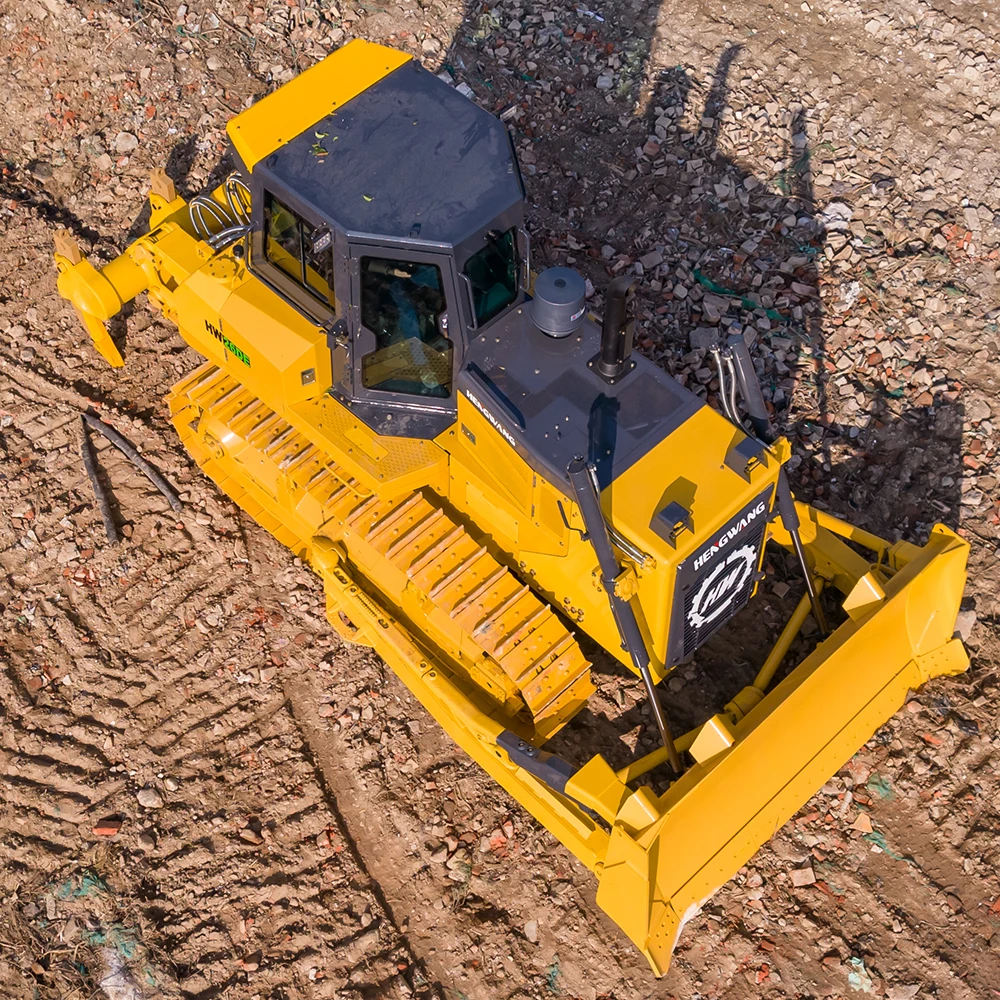

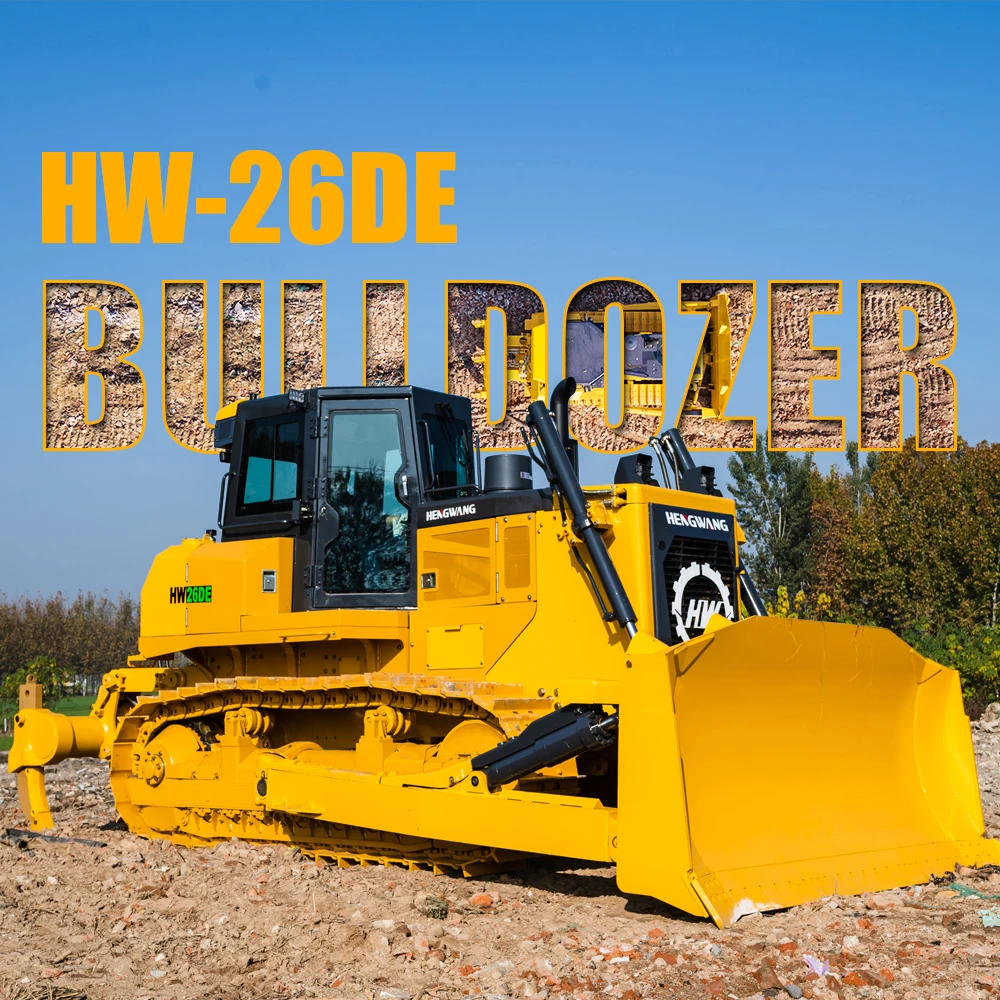

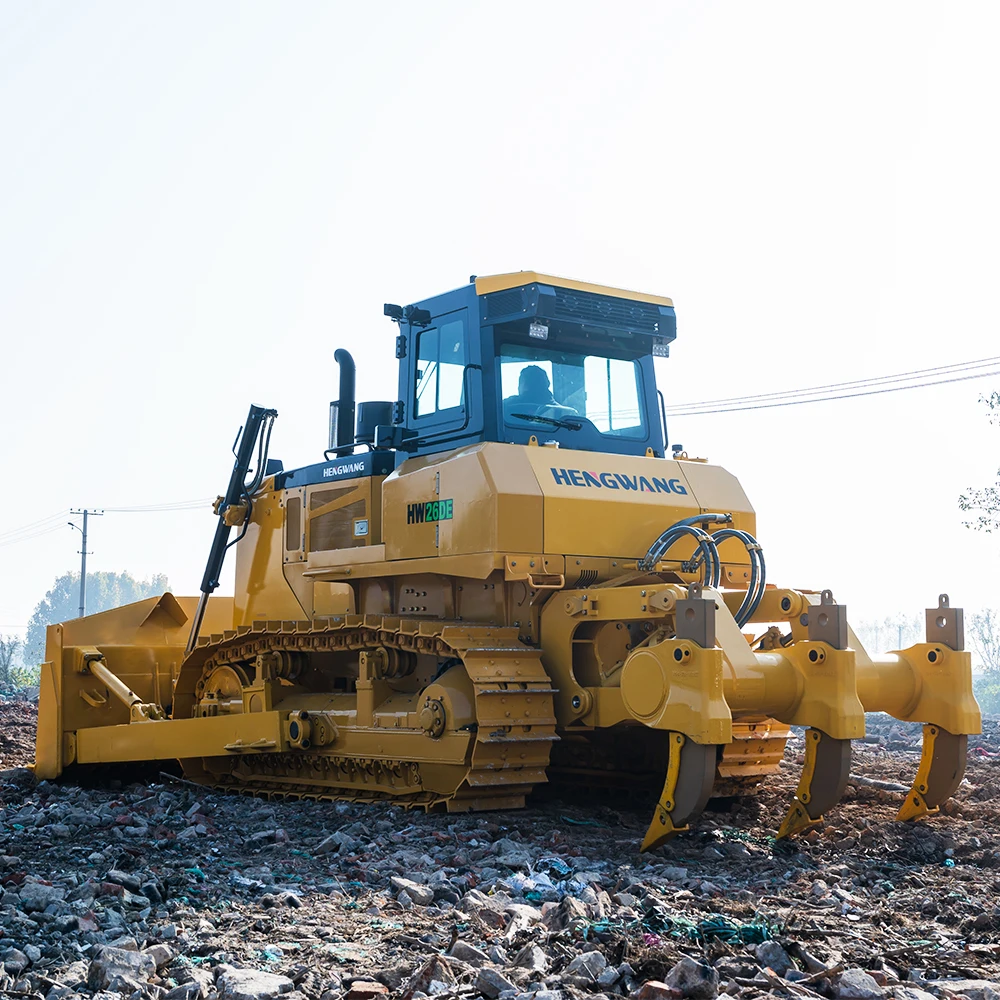

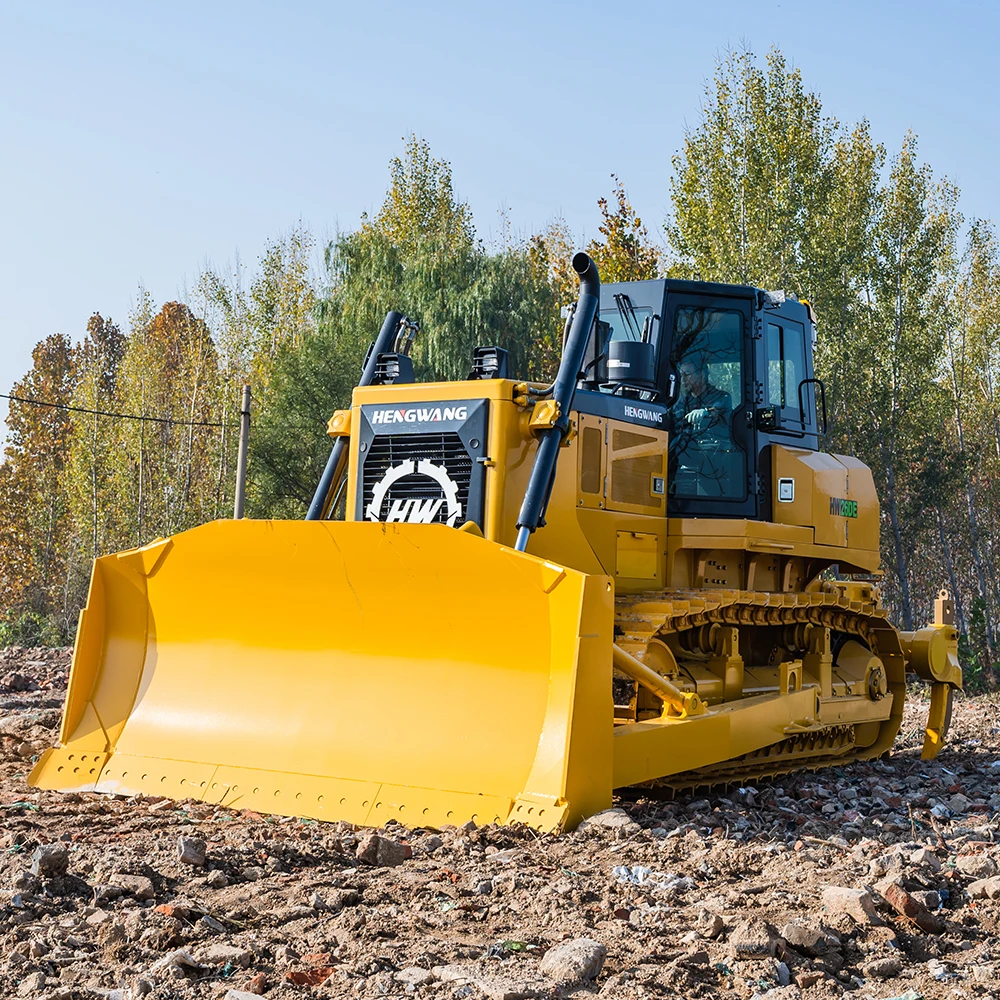

Гусеничный бульдозер HENGWANG HW26DE высококачественный Строительная техника заводская цена
- Категория товара: >>>
- Поставщик (Оптовый магазин): Jining,Fangze,Machinery,Co.,Ltd.Jining,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Factory introduction
Product Manual
Product Paramenters
HW26DE Performance parameter | ||||
Model | HW26DE | |||
Performance parameter | working weight (kg) | 24200 | ||
Minimum turning radius(mm) | 3300 | |||
Ground specific pressure(Mpal | 0.062 | |||
Engine mode | Weichai WP12G280E304 | |||
Rated power/Rated speed (kwrpm) | 2061900 | |||
Dimensions | Overall Dimensions(mmJ | 5920*3642-3460 | ||
Track centerdistance(mm | 2000 | |||
Trackshoe width(mm | 560/610/660 | |||
Number of track shoes(one slde/piece) | 41 | |||
Chaintrack pitch(mml | 216 | |||
Number of rollers (one side) | 2 | |||
Number of supporting wheels(one side) | 7 | |||
Ground dearance(mm | 405 | |||
Fueltank(L) | 450 | |||
Working hydraulic tank(L) | 110 | |||
Shoveltypc | Semi-U-shapedbucket | |||
Blade capacity(m) | 7 | |||
Blade qualty(kg) | 3239 | |||
Blade width(mm | 3642 | |||
Blade height(mmJ | 1580 | |||
Lifting height(mm) | 1210 | |||
Cutting depth(mm) | 540 | |||
Working adaptability
● Homemade stable and reliable chassis system is applicable to diversified severe working conditions.
● The product features long ground length, high ground clearance, stable driving, and good trafficability.

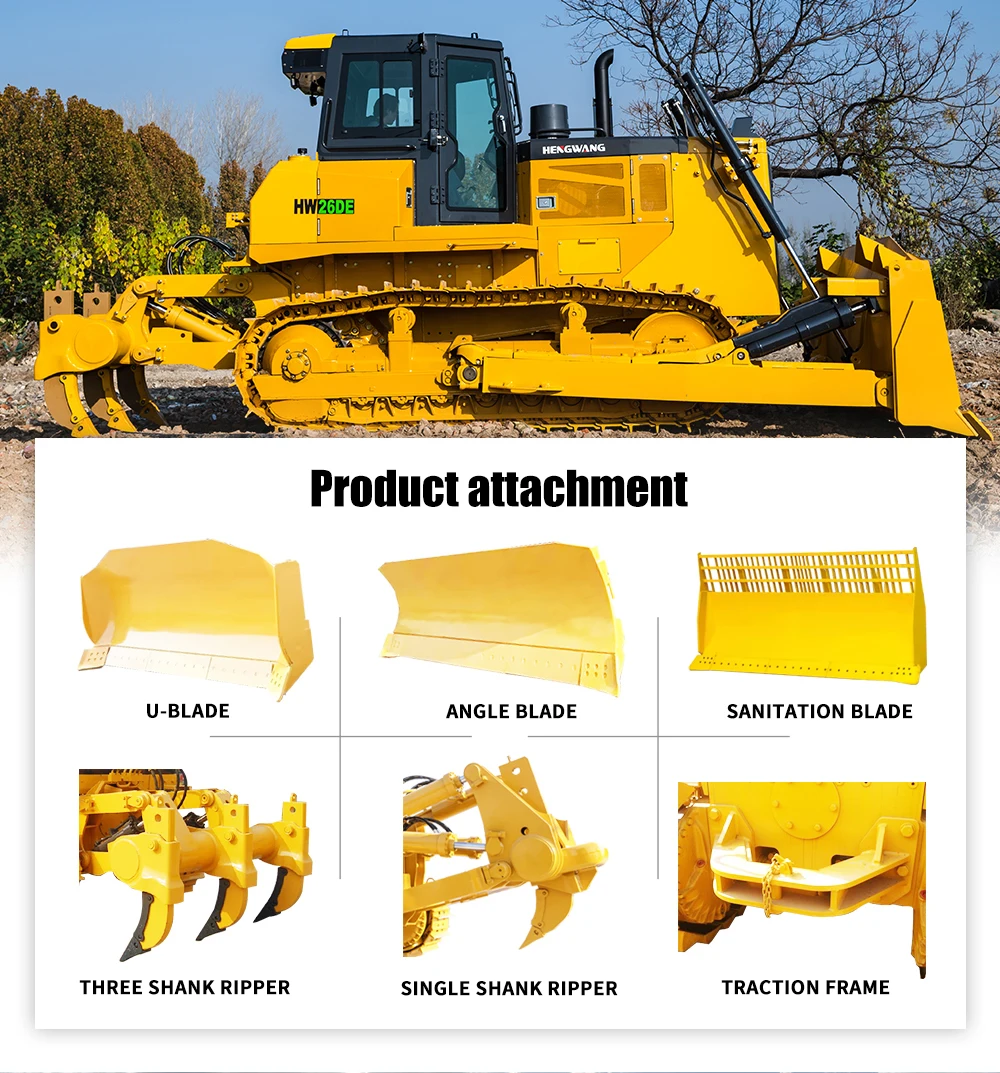

● The straight tilting blade, U-blade, angle blade, coal blade, rock blade, environmental sanitation blade, ripper, and traction
frame can be installed depending on specific working condition to achieve higher working adaptability. The optional LED working lamps improve the illumination capability during nighttime operations to achieve higher safety and reliability.
● The product features long ground length, high ground clearance, stable driving, and good trafficability.
● The straight tilting blade, U-blade, angle blade, coal blade, rock blade, environmental sanitation blade, ripper, and traction
frame can be installed depending on specific working condition to achieve higher working adaptability. The optional LED working lamps improve the illumination capability during nighttime operations to achieve higher safety and reliability.
