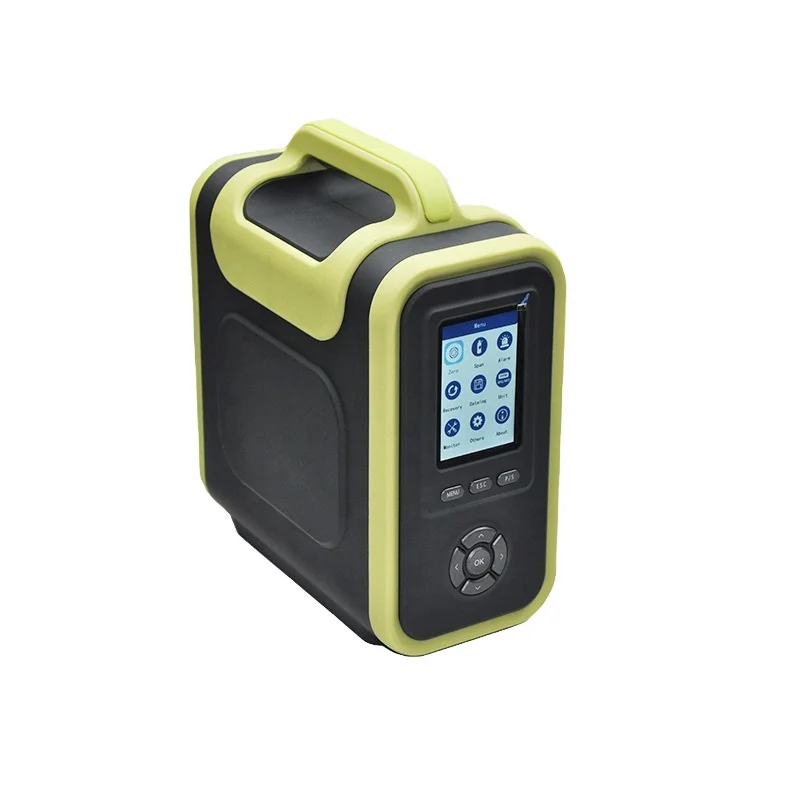

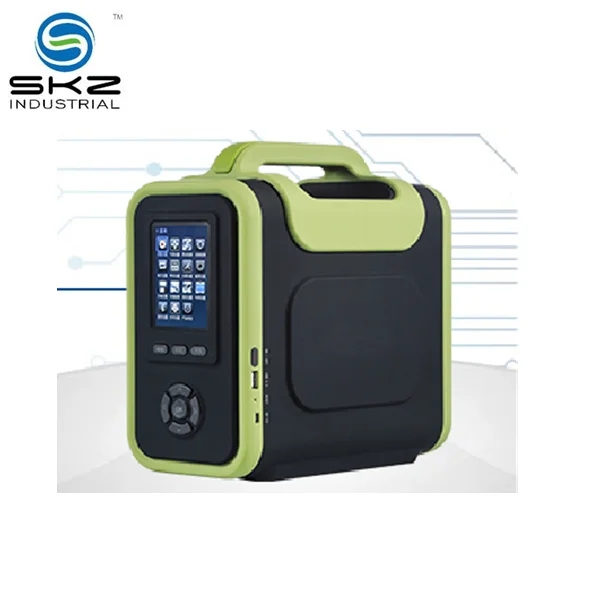

Высокоточный газоанализатор SKZ1050D для синтез-газа CH4 H2 CO CO2 O2 H2S с поддержкой настройки
- Категория товара: >>>
- Поставщик (Оптовый магазин): SKZ,International,Co.,LimitedSKZ,Limited
Поделиться:
Описание и отзывы
Характеристики
SKZ1050D High Precision Gas Analyzer for Syngas CH4 H2 CO CO2 O2 H2S Support Customization
Feature：

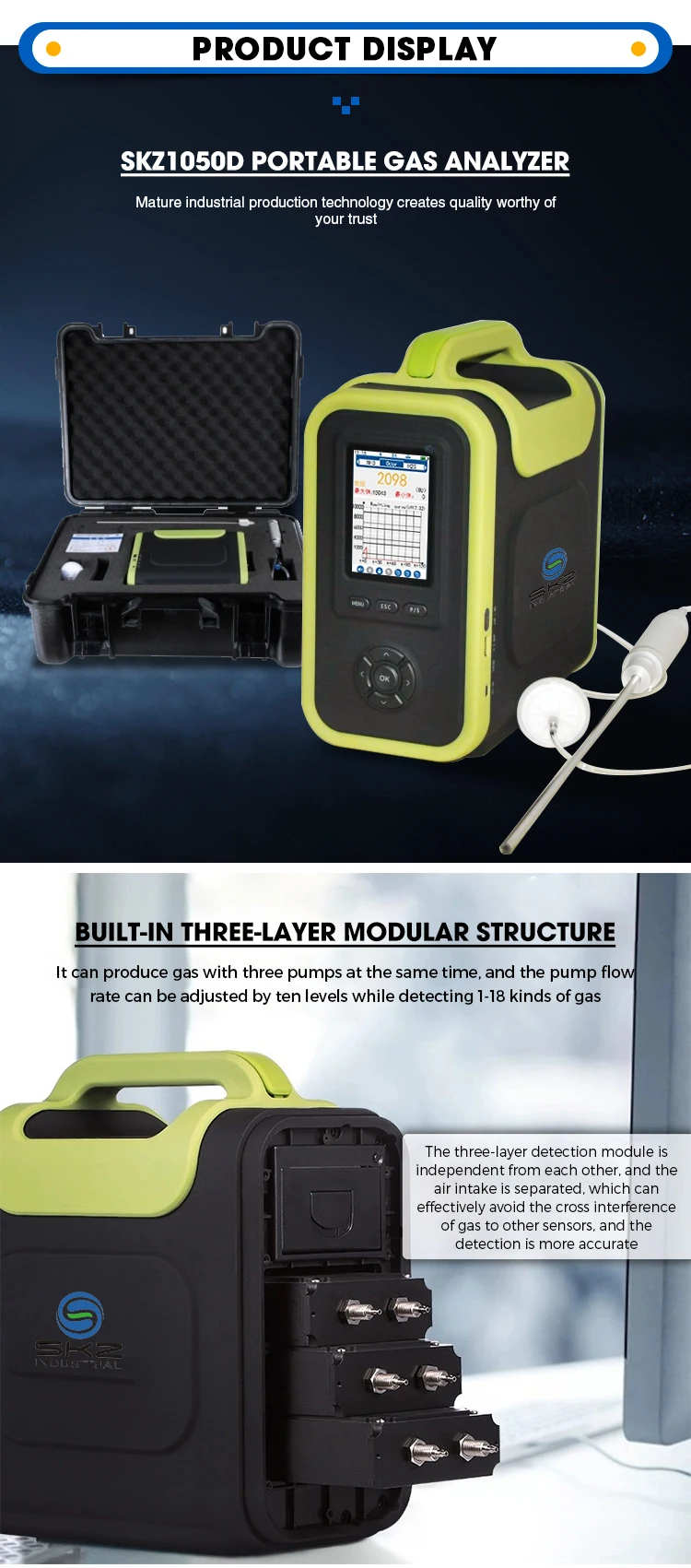

1. Adopting a modular internal structure and obtaining a structural design patent.
2. It is divided into 3 detection modules, each of which can detect up to 6 gases.
3. It can built-in maximum 18 gas detection.
4. The modules are independent of each other and separate the air intake, which can effectively avoid the cross interference of gas to other sensors, and the detection is more accurate.
5.The air supply system of up to three pumps can switch the pump arbitrarily, blocking the loss of the cross-gas to the relevant sensor and prolonging the service life of the sensor.
6.The outer casing is made of aviation wear-resistant material.
6.The outer casing is made of aviation wear-resistant material.
7.Adopt 3.5-inch high-definition color screen, high resolution,wide viewing angle.
8.The imported industrial grade sensor, large-size high-definition display, the control system performance is stronger, the
operation is more humanized.
9.Support gas concentration data display, gas concentration real-time curve display mode arbitrary switching.
8.The imported industrial grade sensor, large-size high-definition display, the control system performance is stronger, the
operation is more humanized.
9.Support gas concentration data display, gas concentration real-time curve display mode arbitrary switching.

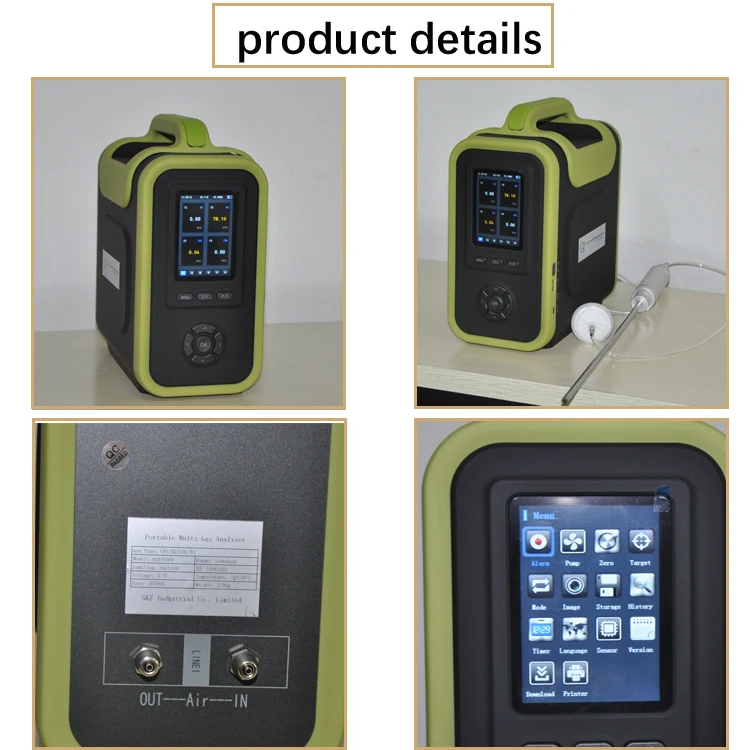

Products Description
Specification
Gas Detected | CH4 H2 CO CO2 O2 H2S | ||||
Detection principle | CH4,CO2: Infrared principles 10 Years sensor lifetime CO: Infrared principles 5Years sensor lifetime H2,O2,H2S: electrochemical principles 2-3years sensor lifetime | ||||
Measure Range | CH4 CO2:0-40%VOL CO:0-20%VOL H2:0-40000PPM O2:0-25%VOL H2S:0-5000PPM | ||||
Resolution | CH4 CO2 CO O2: 0.01%VOL H2 H2S: 1PPM | ||||
Sampling method | Built-in stable flow pump, each flow pump is equipped in each independent module, pump flow is adjustable in ten steps, flow range: 0-800 mL/Min | ||||
Modular structure | 3 detection modules, each module can be selected to detect up to 6 kinds of gases, and a total of 18 kinds of gases can be selected. The independence between the modules can solve the problem of mutual interference between gases to the greatest extent. | ||||
Concentration unit | ppm, mg/m3, %VOL, %LEL, can be switched by one button, and the concentration value is automatically converted by the internal system | ||||
Display | 3.5-inch color display, resolution 320*480 | ||||

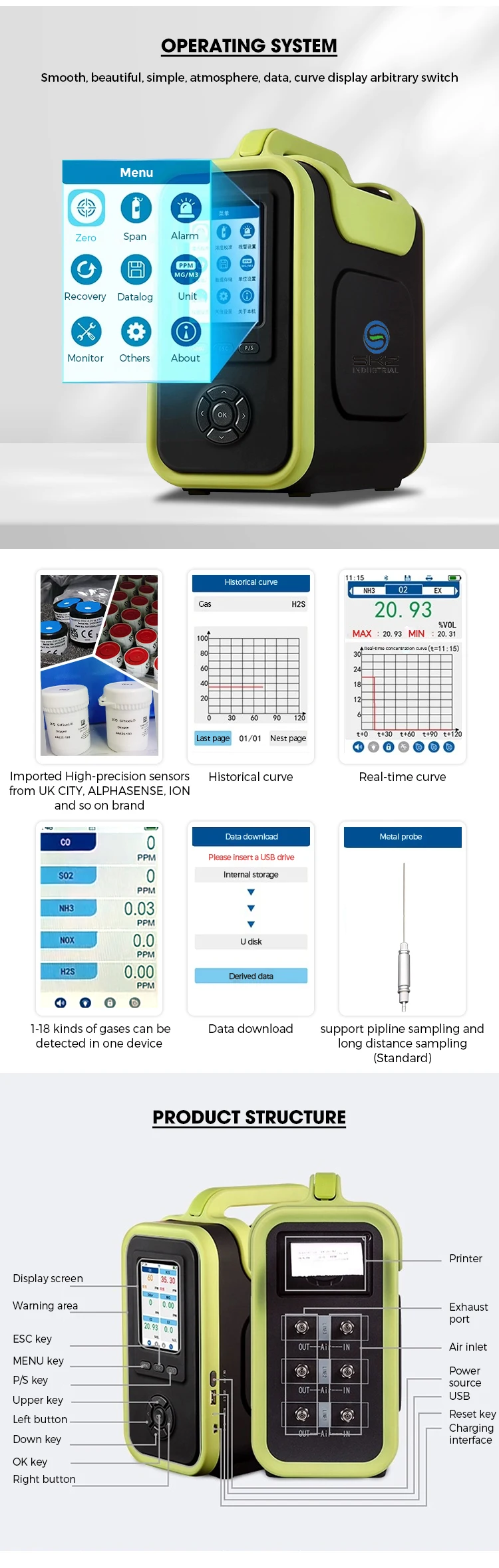

Display content | Gas formula, concentration data, unit of measure, gas curve trend, battery level, time, temperature, humidity, pressure (optional), pump status, wireless status, printer status, screen capture status | ||||
Display mode | Multiple display modes selectable, multi-channel data mode, multi-curve mode, multi-channel data + multi-curve mode, single channel + single curve mode | ||||
Temperature and humidity detection range | Temperature: -20 °C - 50 °C, resolution: 0.1 °C | ||||
humidity: 0-99% RH, resolution: 1% RH * (optional) | |||||
Data storage | Standard 8G SD card storage function (more capacity can be customized), storage interval can be set by itself, can achieve local storage, view, delete historical data and alarm records, can be directly connected to the computer through USB, quickly download stored data , TXT document; with PC software to download, store, analyze, print data | ||||
Communication and data download | Output RS232, RS485 signal; with PC software to download, store, analyze, print data (optional) | ||||
Wireless transmission | Bluetooth (with printer), ZigBee, built-in DTU wireless module (optional) | ||||
Print | Built-in printer or external Bluetooth printer (optional) | ||||
Print content | Text, graphics, 1D code, 2D code, curve | ||||
Screen capture settings | The content displayed by the current host can be saved in the form of a BMP picture, and then the picture is exported to the computer through the USB cable for the user to record and reference. | ||||
Operating language | Chinese and English | ||||
Battery capacity | 3.7VDC, 10000mA rechargeable polymer battery with overcharge, over discharge, over voltage, short circuit protection | ||||
Charging interface | Micro-USB charging interface is designed to be charged anytime, anywhere with common data lines and mobile power | ||||
Filter device | Each module is equipped with a multi-layer filter to efficiently filter oil, water and dust. | ||||
Precision | 1% FS | ||||
Response Time | ≤ 10S | ||||
Repeatability | ≤ ± 1% | ||||
Zero shift | ≤ ± 1% (F.S / Year) | ||||
Operating temperature | -40°C-70°C | ||||
(optional flue gas sampling probe, up to 1200°C smoke concentration) | |||||
Working humidity | 0-95% RH (no condensation) (high humidity can be selected with filter drying device) | ||||
Explosion-Proof | Exic II CT3 Gc | ||||
Alarm mode | Buzzer, red LED and alarm status prompt on the display, fault alarm, pump abnormal alarm, battery low battery alarm, shutdown alarm, fall alarm (optional) | ||||
Dimensions | 260x230x120mm | ||||
Recovery Time | ≤ 10S | ||||
Linearity error | ≤ ± 1% | ||||
Degree of protection | IP66 | ||||
Weight | 3700g | ||||

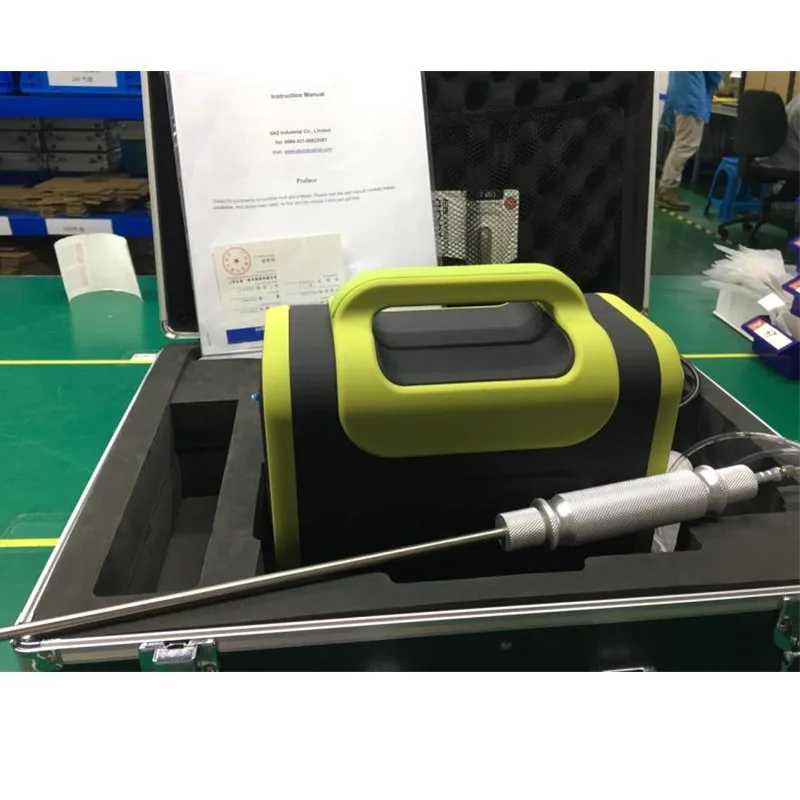

Standard accessories | Manual, certificate, warranty cards, charger, carrying case, the soot filter water vapor, air sampling rod, tube 600mm | ||||
Optional accessories | Printer, pressure sensor, high temperature probe, dry filter | ||||
