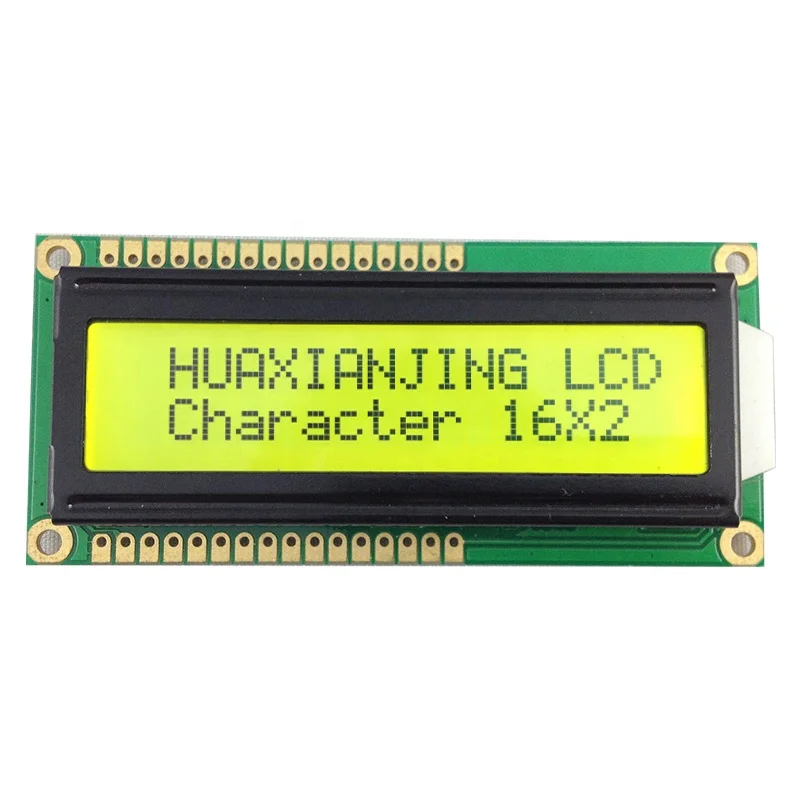

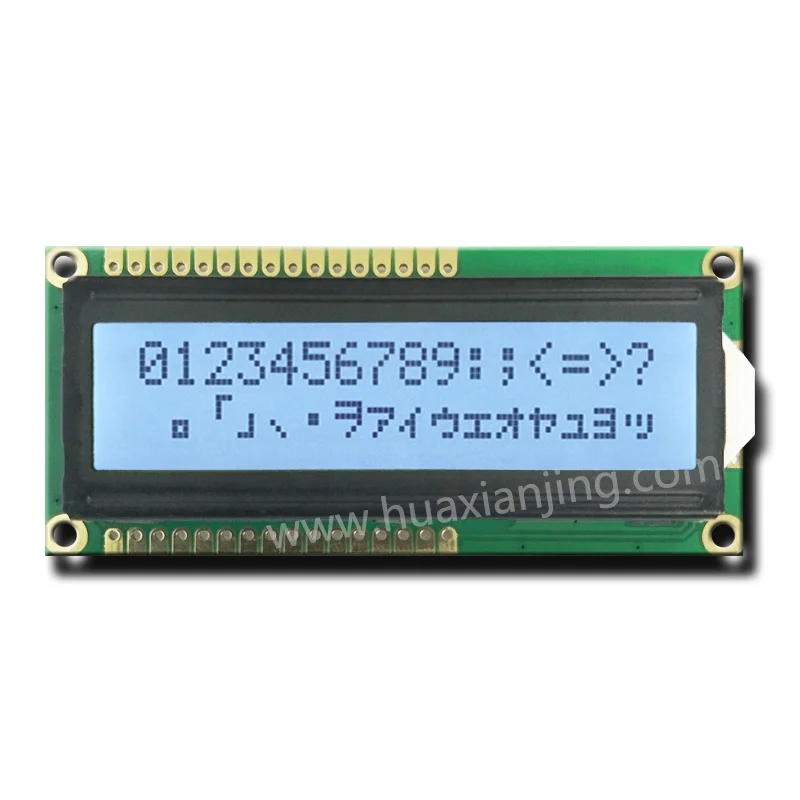

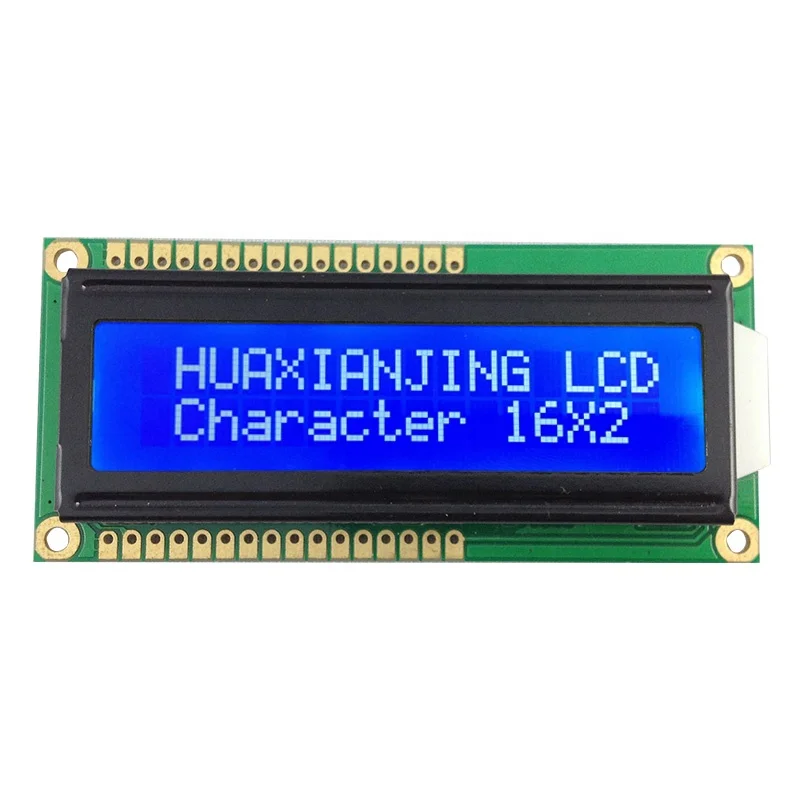

16x2 lcd module with top pin and bottom pin
Product Description
Product information:
Module No.: | HSM1602C-1 |
Display Type: | 16 Characters x 2 Lines |
Encapsulation: | COB |
Outline Size: | 80 x 36 x11.8 mm |
Viewing Area: | 64.3 x 16 mm |
Screen Color: | Yellow-Green/Blue/Gray |
Backlight Color: | Yellow-Green/Green/White/Blue/Orange/Red |
Backlight:: | Side LED |
Driver IC: | AIP31066 |
Connector: | Conductive Silicon Rubber |
Pin Number: | 16 |
Interface: | 8-bit MPU interface |
Driver Condition: | 1/16 Duty,1/5 Bias |
Viewing Direction: | 12 O’Clock |
Operating Voltage: | 5V/3.3V |
Operating Temperature: | -20~+70℃ |
Storage Temperature: | -30~+80℃ |
Character LCD 16x2 (5 x 8 dots)
STN-YG / STN-Blue / STN-Gray /FSTN-Gray
+3.3V / +5.0V power supply
Viewing Direction: 6H / 12H
Backlight (Side LED): Yellow-Green / Green / White / Blue / Orange / Red / Amber / RGB
Fonts: English-Japanese / English-European / English-Cyrillic (Russian)

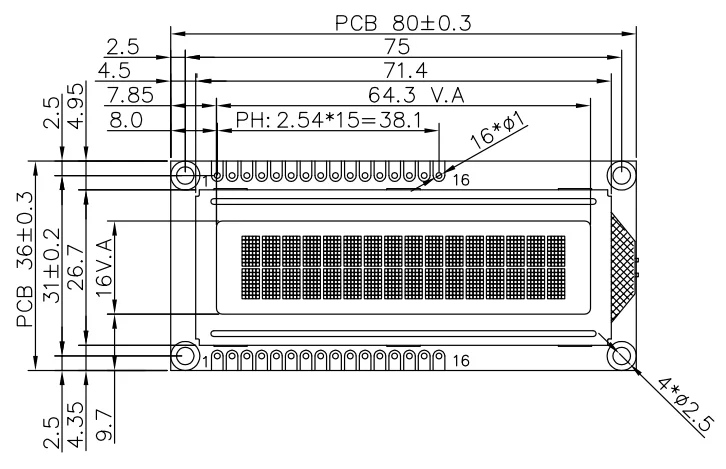

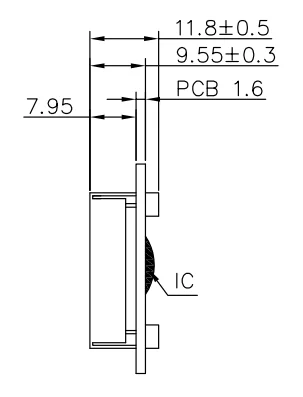

Mechanical Diagram:
Interface Pin Description:
No. | Symbol | Function |
1 | VSS | Ground (0V) |
2 | VDD | Supply Voltage for Logic (+5.0V ) |
3 | VO | Contrast Adjustment |
4 | RS | Data/Instruction Select |
5 | R/W | Read/Write Select |
6 | E | Enable Signal |
7 | DB0 | Data Bus |
8 | DB1 | Data Bus |
9 | DB2 | Data Bus |
10 | DB3 | Data Bus |
11 | DB4 | Data Bus |
12 | DB5 | Data Bus |
13 | DB6 | Data Bus |
14 | DB7 | Data Bus |
15 | LED_A | LED Power Supply + (5.0V) |
16 | LED_K | LED Power Supply - (0V) |
Company Information
VIDEO
EQUIPMENT
Application
Our Services
Providing Good products:
All products are 100% tested before shipment.We will do reliability tests,including high & low temperature tests,heat impact test and vibration test as per customer's special requirements.
Providing Excellent service:
We are not only manufacture products,but also provide display solution.We can realize your project from your product concept to real product,to help you save sourcing cost.In the mean time,we provide competitive price,on-time delivery and efficient work with customers.
Widely application:

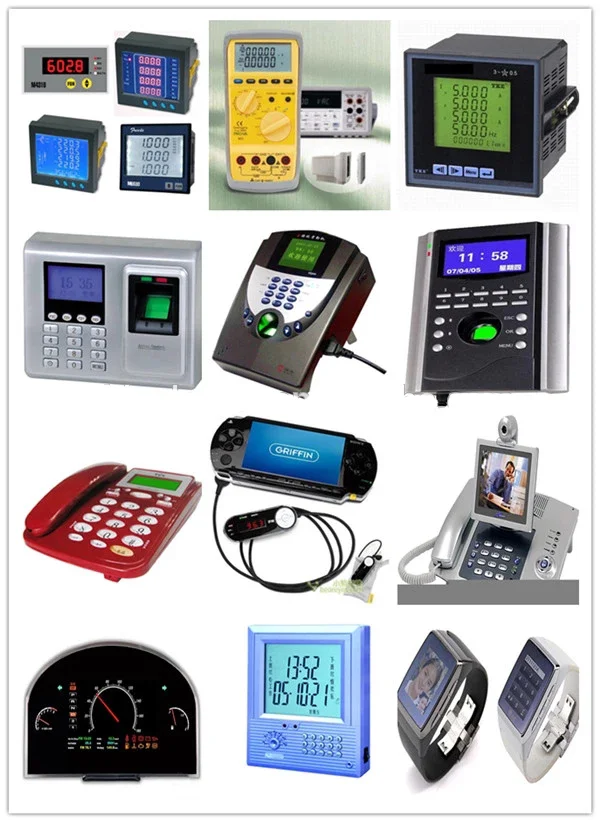

Our products have been widely used in consumer electronics and industrial meter filed,such as car audio,washing machine,medical instrument,coffee machine,POS terminals,cash register,remote controller,counter display,portable power charger and so on.
FAQ
Q.Are you manufacturer?
A:Yes, we are .
Q.How long is the warranty and after-sale service?
A:One-year warranty period for non-artificial damage/not men made defects.Customers are responsible for all charges for returning and reshipping . Pleases contact us before any returning and reshipping .
Q.Do you accept the OEM design?
A:Yes,we do.Samples sent in 10 ~ 15 working days , 30-35 working days for mass production after payment.
Q.How do you ensure quality?
A:All finished products sold out are strictly selected and tested by Huanxianjing's QC departments.
Q.Delivery time?
A:Regularly , for Standard products , samples sent in 1 ~ 2 business days after payment confirmed ; for quantities : 2-10 business days after payment confirmed.
For Customized products , samples sent in 10 ~ 15 working days , 30-35 working days for mass production after payment
Q.How to pay?
A:We accept T / T , L/C / , Western Union , PayPal and Cash . The best way is telegraphic / bank transfer ( T /T ) . For L / C
Q:Package?
A:Standard packing to protect from any damage . Goods are wrapped in air bubble film and covered by anti-static trays , and then packed in suitable cartons. The packing is able to withstand rough handling.
