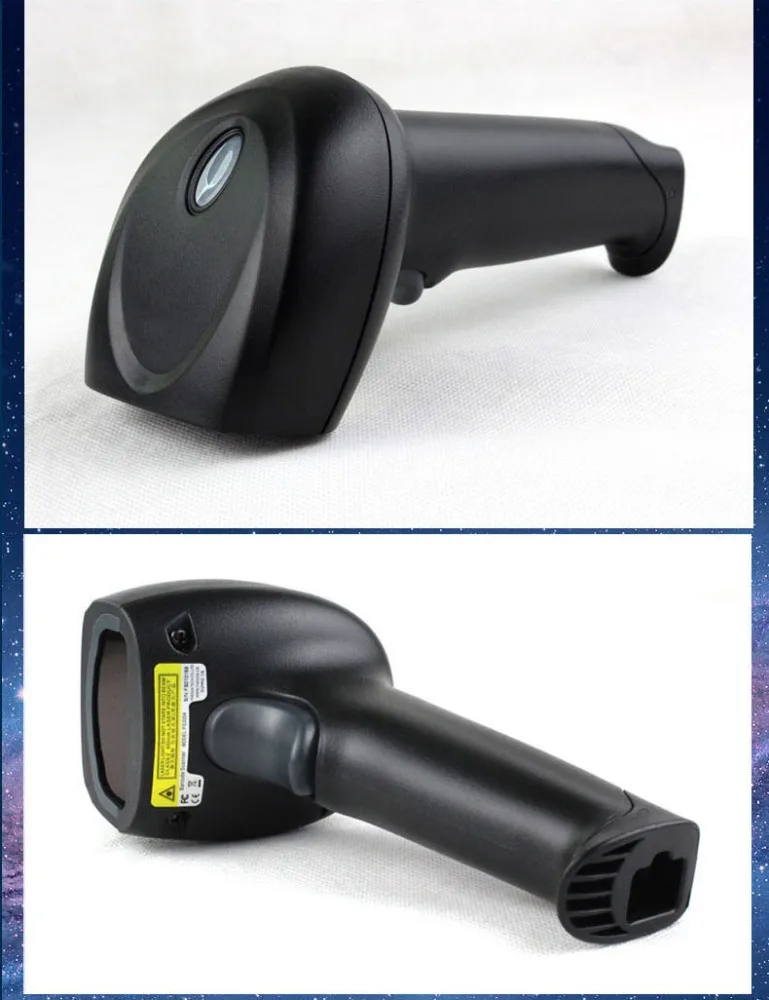

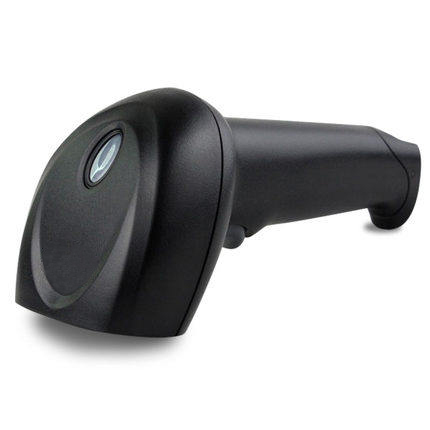

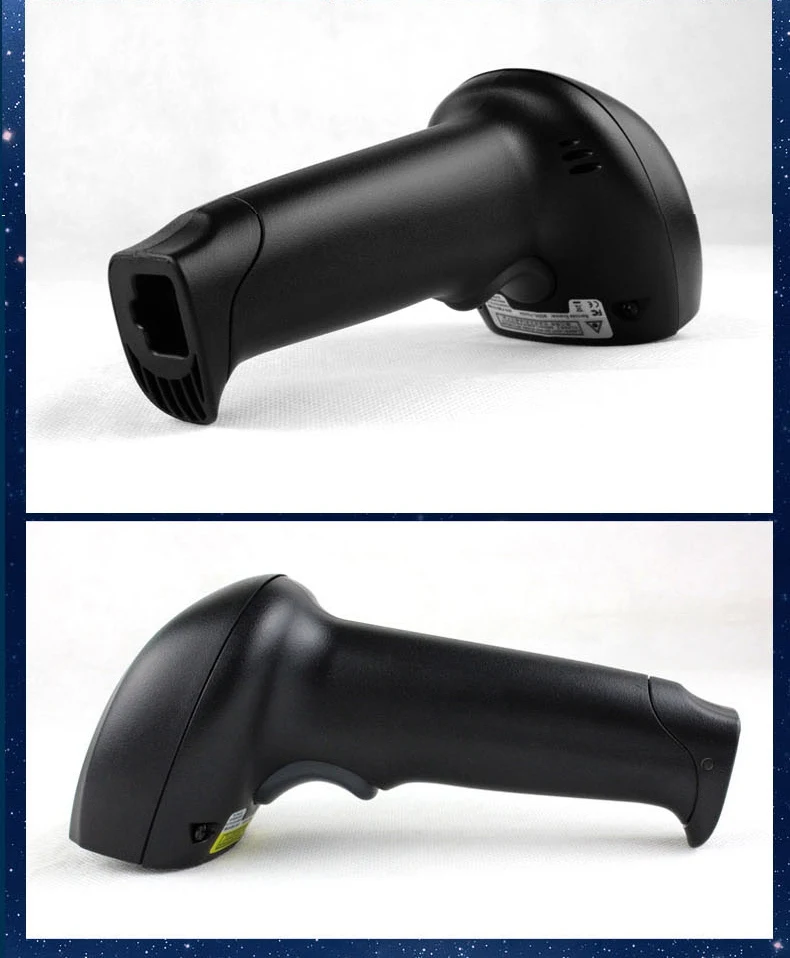

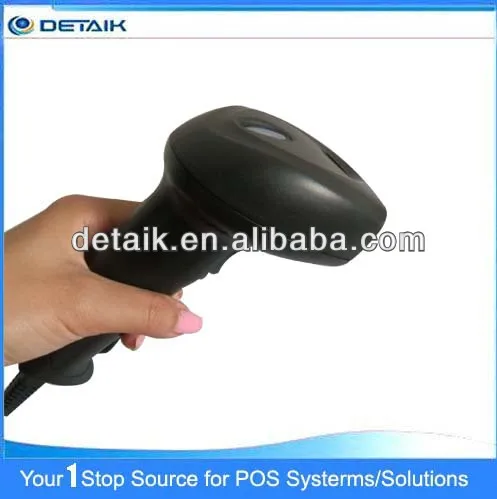

DTK3205A портативный лазерный сканер штрих-кодов USB

Optical

Scanner Type

Bi-directional

Light Source

650 - 670nm(visible)

Scan Rate

100 scans per second

Scan type

Hand-held

Resolution

0.10mm (4mil) PCS0.9

Reading Distance

2.5 - 600mm (100% UPC/EAN)

Print Contrast

30% minimum reflective difference

Dimensions

L172.mm × W77mm × H72mm

Weight

150g (without stand) 510g with stand and box

Decode Capability

Auto discriminates: UPC/EAN, UPC/EAN with Supplemental , UCC/EAN 128, Code 39, Code 39 Full ASCII, Trioptic Code 39, Code 128, Code 128 Full ASCII, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Code 93, MSI, Code 11, RSS variants, Chinese 2 of 5

Interfaces Supported

Keyboard Wedge, RS232, USB

Current Consumption

100mA (Idle Current < 40mA)

Power

Voltage Requirement

5VDC ± 5%

Operating Temperature

0°C- 50°C  / 32°F to 122°F

Environment

Storage Temperature

-40°C- 70°C / -40°F to 158°F

Relative Humidity

5% - 95% (non condensing)

Shock

1.5m drop on concrete surface

Ambient Light Immunity

Immune to direct exposure of normal office and factory lighting conditions, as well as direct exposure to sunlight

Electrostatic Discharge

Conforms to ±15KV air discharge and ±8KV of contact discharge

CORH class 2 laser product, FCC class B and CE
