Solar Tracking System

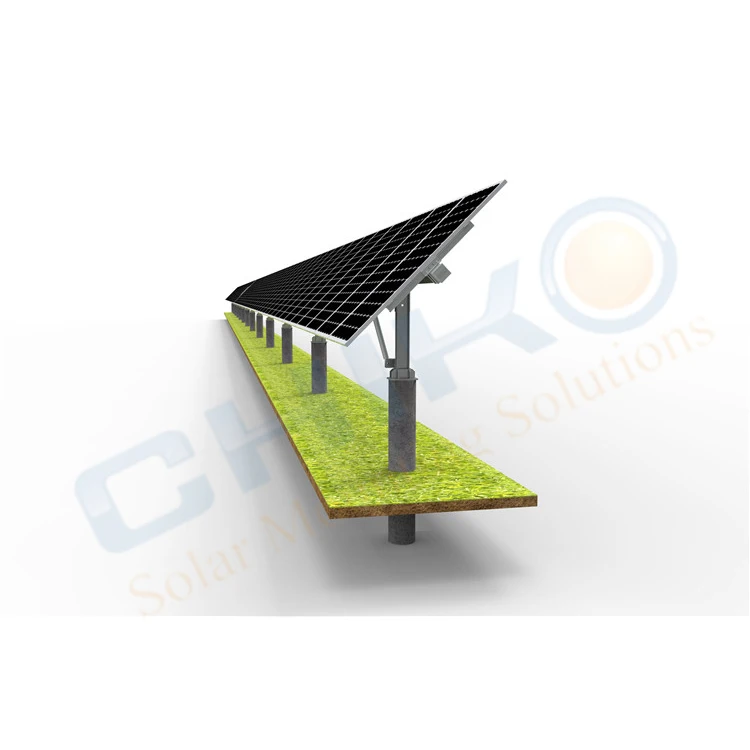

CHIKO Independent Horizontal Tracking System
（Increases investment about 5-8%，Power generation efficiency increased by 15%~20%）
1) The most promising product technology trends in solar today. which help users get more power generated.
2) It can respond to site features and changing weather conditions, and conditions to continuously optimizing the tracking algorithm of each individual row, to make boost solar power system production.
3) Simple structure ,easy in installation and debugger application.
TRACKER SPECIFICATIONS | ||
Product Name: | Independent horizontal single-axis tracker | |
Driving System | Slew drive, 24VDC motor | |
Layout | 1or 2 solar panels Portrait | |
Modules per Tracker | Up to 90 modules per tracker | |
Tracking Accuracy: | 0.5°-5° (Adjustable) | |
System Voltage | 1000V/1500V | |
Ground Coverage Ratio | Typical ≥25% | |
Angle adjustment range | -50°-+50° | |
Slope Tolerance | Up to 20% N-S slope | |
Standard Wind Design | 105mph (47m/s) per ASCE?-10, higher wind load available | |
Wind Protection | 18m/s | |
Structure Material | Hot dipped galvanized/Pre-galvanized steel | |
Power Supply | Powered by PV strings, back-up Li-ion battery | |
Daily Energy Consumption | Typical 0.08kWh | |
Working temperature: | -30℃ - +60℃ | |
Foundation Options | All foundation types | |
Module Supported | All commercially available modules | |
ELECTRONIC CONTROLLER SPECIFICATIONS | ||
Control System | 1/2/3 trackers per controller | |
Control Algorithm | Astronomical algorithms + Tilt sensor close loop | |
Tracking Accuracy | ≤±2° | |
Self-Powered | Yes | |
Backtracking | Yes | |
Communication Options | LoRa wireless /RS 485 cable | |
Night Position | Yes | |
Style 1. Tracking System Reduction Gear Series
Reducer series requires manual adjustment of the entire system.
Available in single row & double row types.
a. Drive device: 24V rotary reduction gear drive;
b. Easier to install, Square or regular octagonal steel pipe has better bending
and torsion resistance.
and torsion resistance.
c. Install dampers on both sides to reduce wind resonance and eliminate distortion.

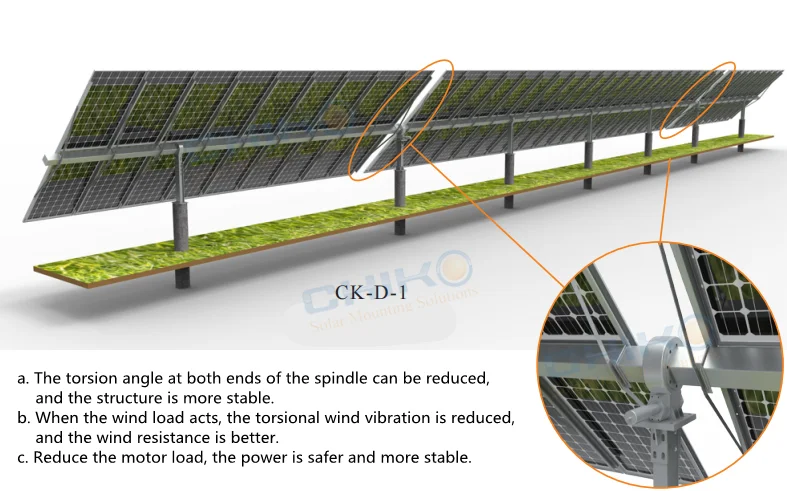

Double-row(CK-D-1)
1. Driving device: 24V rotary reduction gear double-point drive;
2. Install a reduction gear at both ends to reduce the torsional deformation of the spindle and make the structure more stable
3. When the wind load acts, the wind pressure resonance is reduced, and the wind resistance is better.
4. Reduce the motor load, the power is safer and more stable
Style 2. Tracking System Push Rod Series (CK-S-2)
1. Driving device: electric push rod drive
2. Compared with the rotary reduction gear, the cost of the electric push rod is better under the same driving force;
3. Single push rod drive, with dampers installed on both sides, better wind resistance;
3. Single push rod drive, with dampers installed on both sides, better wind resistance;
4.The double-point drive of push rods on both sides reduces the torsional deformation of the main shaft and the structure is more stable
5. The push rods on both sides are driven by double points to reduce the driving load and the system energy consumption is lower.
5. The push rods on both sides are driven by double points to reduce the driving load and the system energy consumption is lower.
Style 3. Tracking System Multi-Point Drive Series
CK-D-1 ： Double-point Slewing reduction gear
CK-D-2 ： Double-point electric push rod drive
