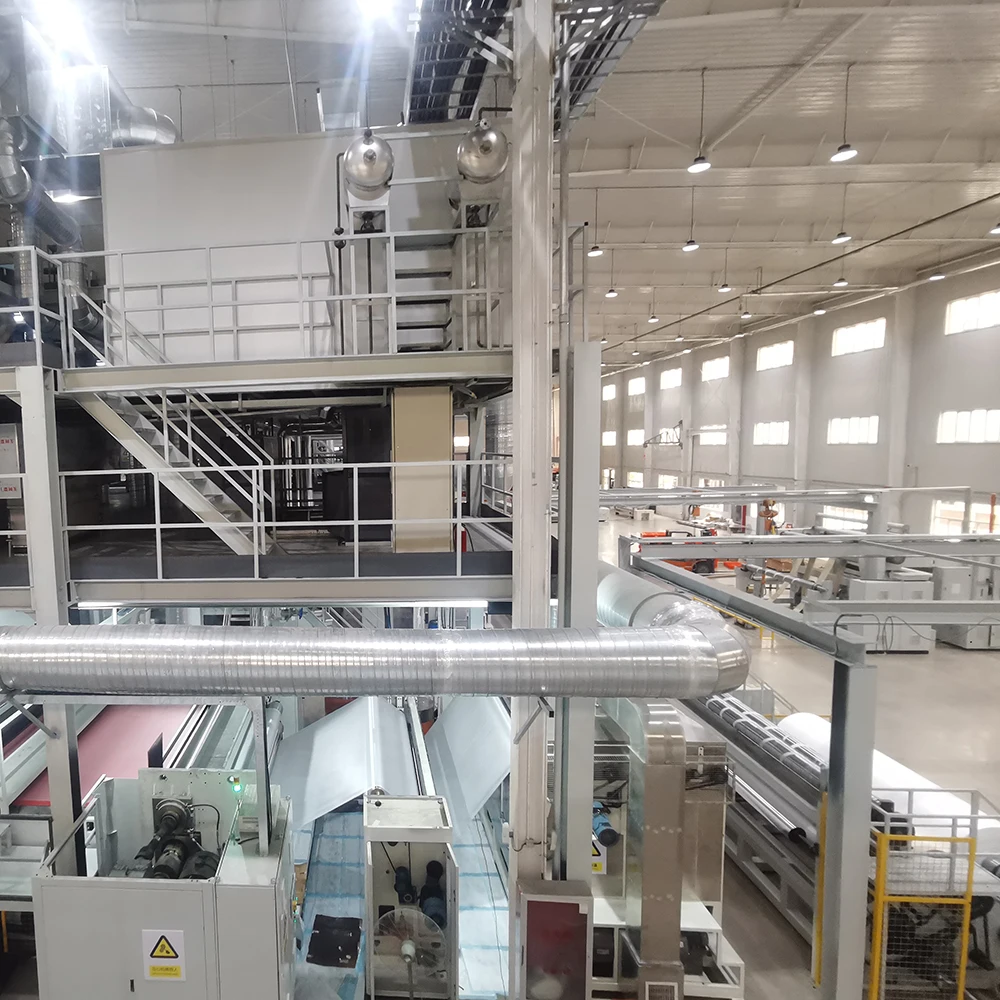

SS Гибкая Нетканая ткань спанбонд для домашнего текстиля производственная
- Категория товара: Nonwoven Machines >>>
- Поставщик (Оптовый магазин): GUANLONG,SPUNITECH,CO.,LTD
Поделиться:
Описание и отзывы
Характеристики

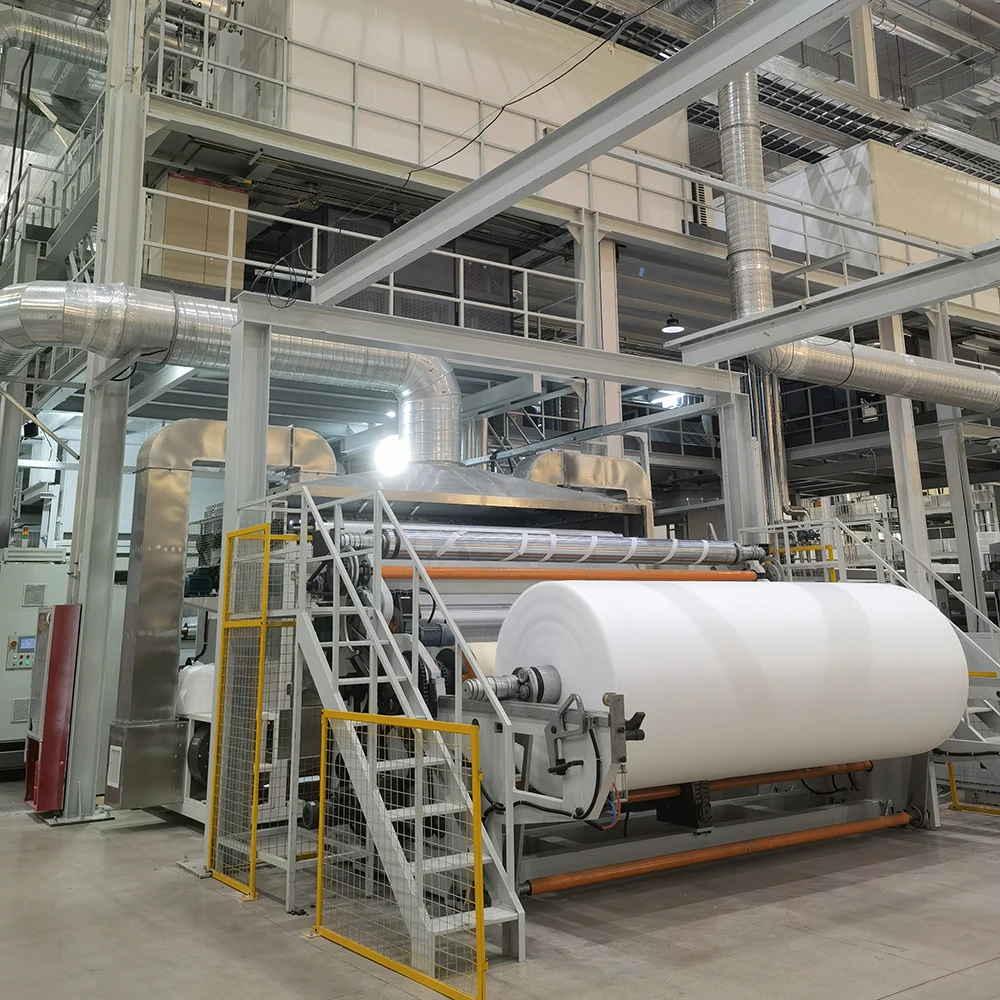

SS Flexible Non-woven Fabric Spunbond home textile Non woven cloth fabric production line
Specification
Model No. | GL-SS | ||||
SS(product width) | 1600 mm | 2400 mm | 3200 mm | ||
Equipment size | 29x13x11 m | 30x14x11 m | 30x15x11 m | ||
Speed | 350 m/min | 350 m/min | 350 m/min | ||
Gram Weight | 10-150 g/m2 | 10-150 g/m2 | 10-150 g/m2 | ||
Yield(Products according to 40 g/m2) | 9-10 T/DAY | 13-14 T/DAY | 18-19 T/DAY | ||
The main raw material is Poplypropylene.

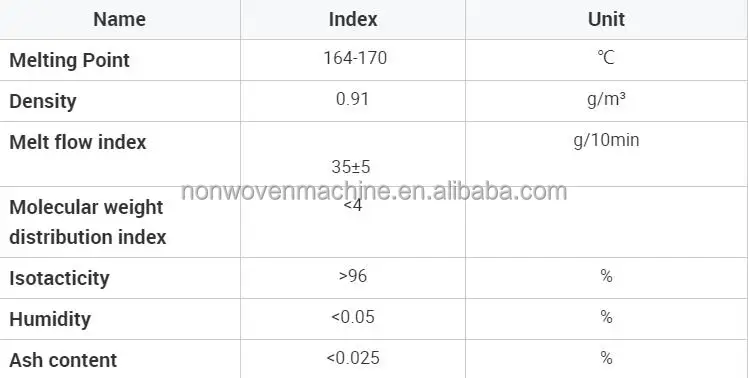

The technical indexes of Poplypropylene piece are as follows
According to the needs of production, we can add filler and color masterbatchAccording to the product performance, it can increase the processing of functional raw materials to produce hydrophilic non-woven fabrics, flame retardant non-woven fabrics,antibacterial non-woven fabrics, etc.
Product Description

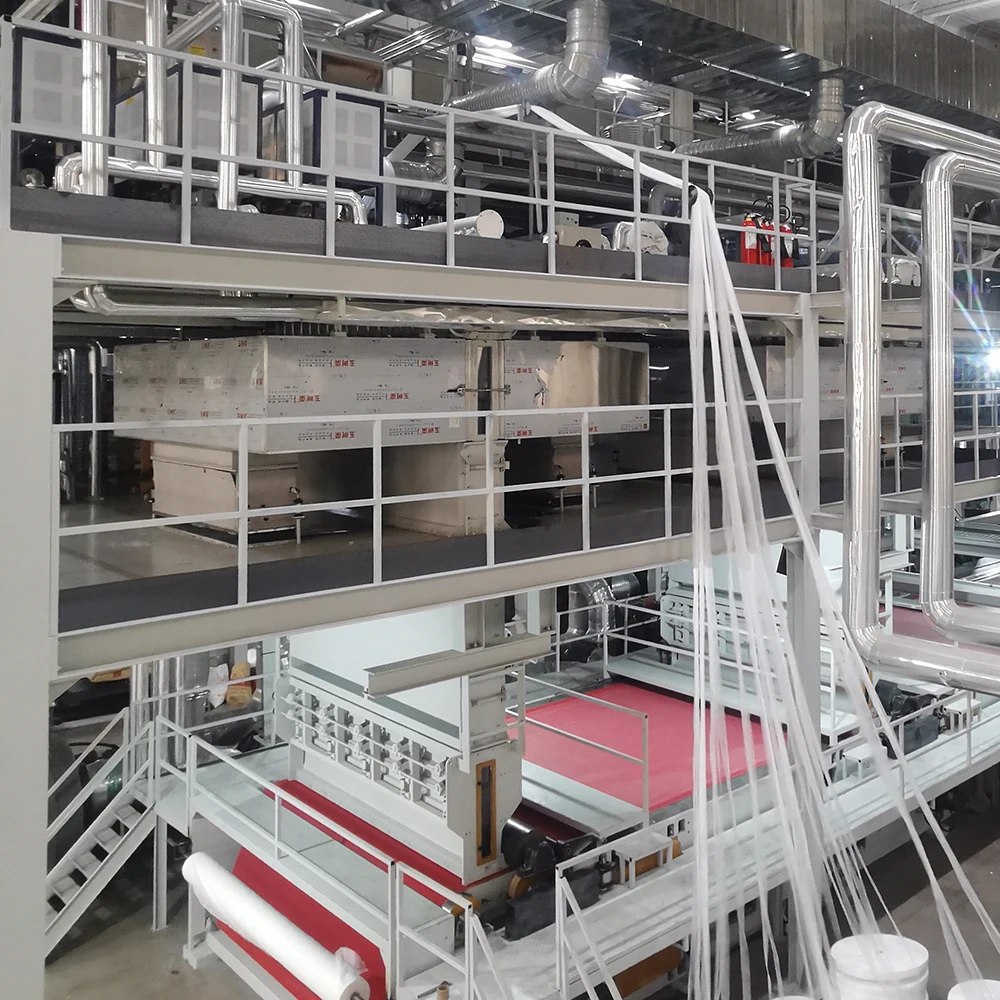

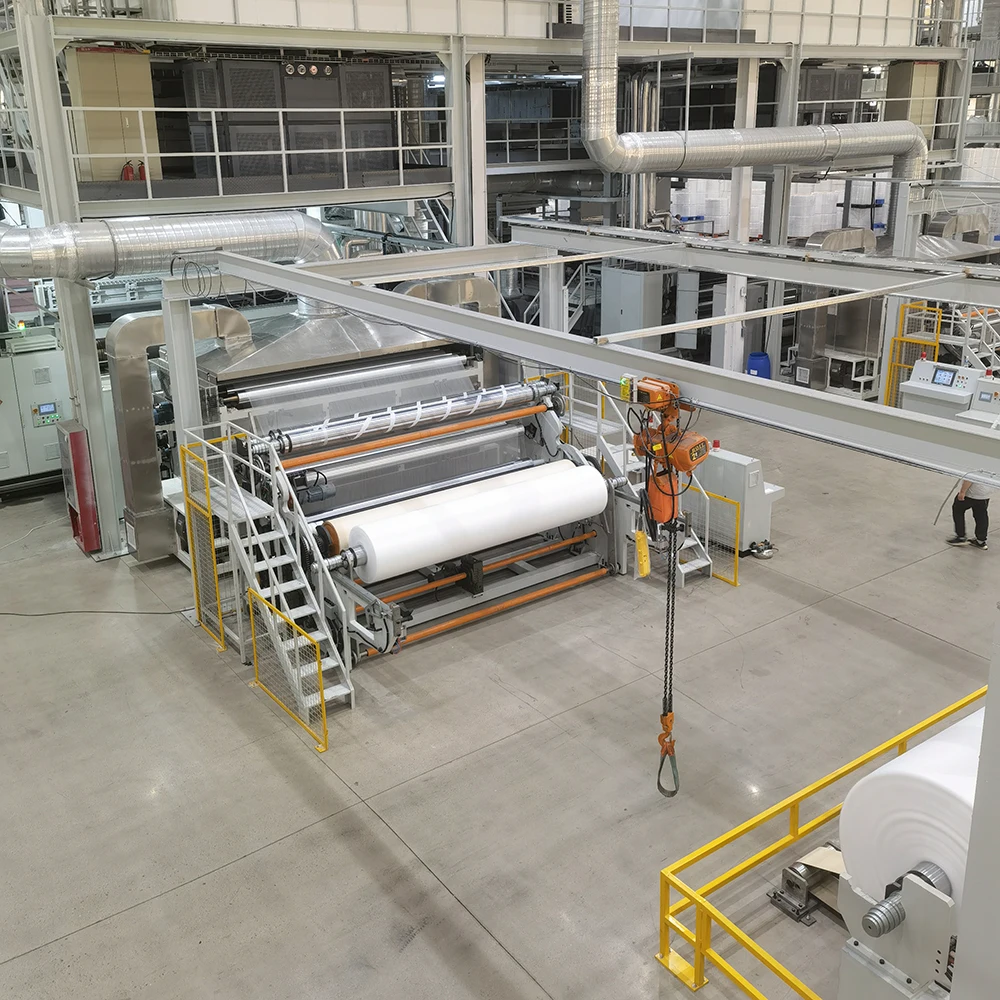

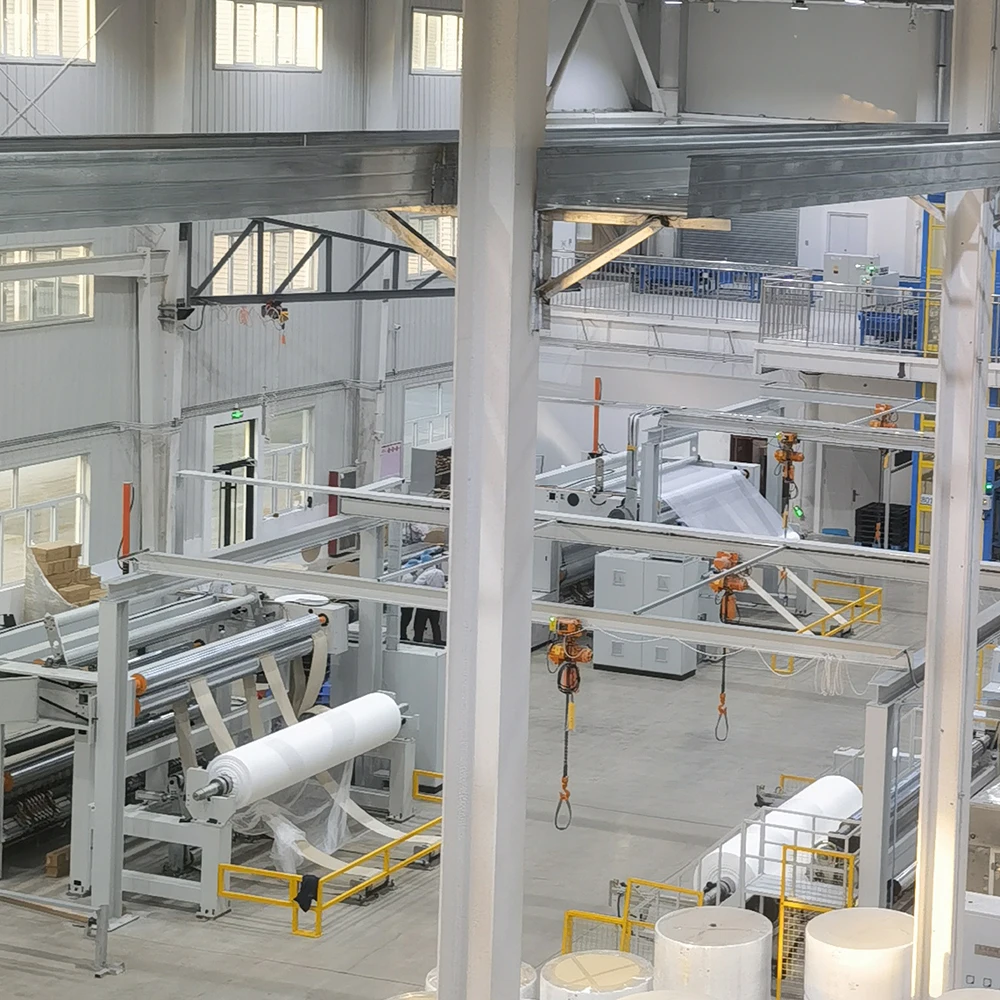

Double BEAM SPUNBONDLINE (SS)
1. SS Nonwoven Machine Adopts an intelligent electrical control cabinet and spinning drafting system. The system controlling mode features in advanced AC frequency-modulated speed, fully digital synchronized communications.
1. SS Nonwoven Machine Adopts an intelligent electrical control cabinet and spinning drafting system. The system controlling mode features in advanced AC frequency-modulated speed, fully digital synchronized communications.
2. SS Nonwoven Machine is double-beam,owns obvious higher quality as well as obvious larger quantity in production than S Nonwoven Machine.
3.SS Nonwoven Machine runs in high efficiency and low power consumption. Based on the features above, SS Nonwoven Machine can help customers to save labor and wide compatibility with different high requirements of productions.

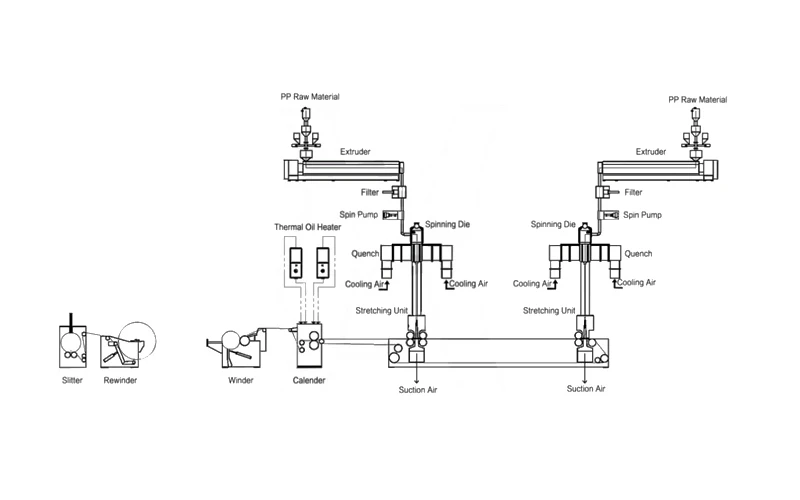

Production process

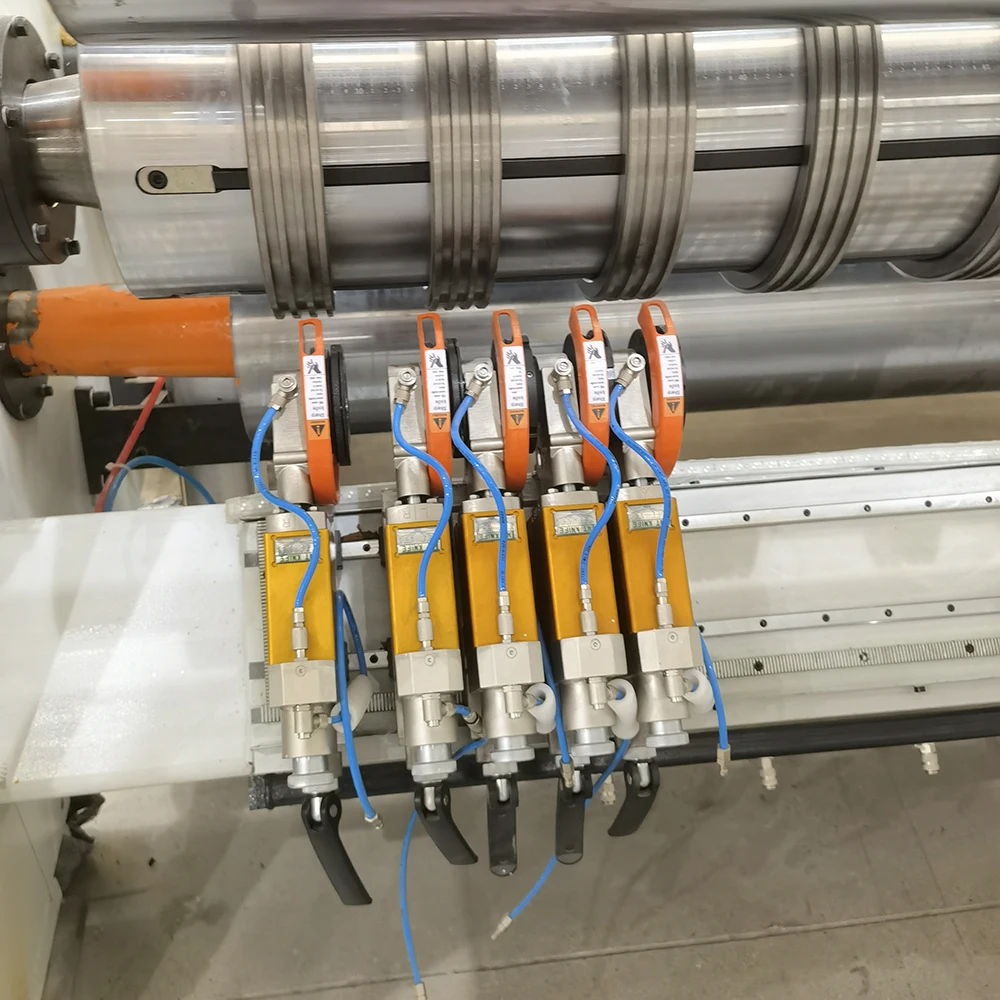

PP chips raw materil input → Melt extrusion → Spinning→ Quenching → Closure air stretching → web formation →Calendaring →winding→cutting

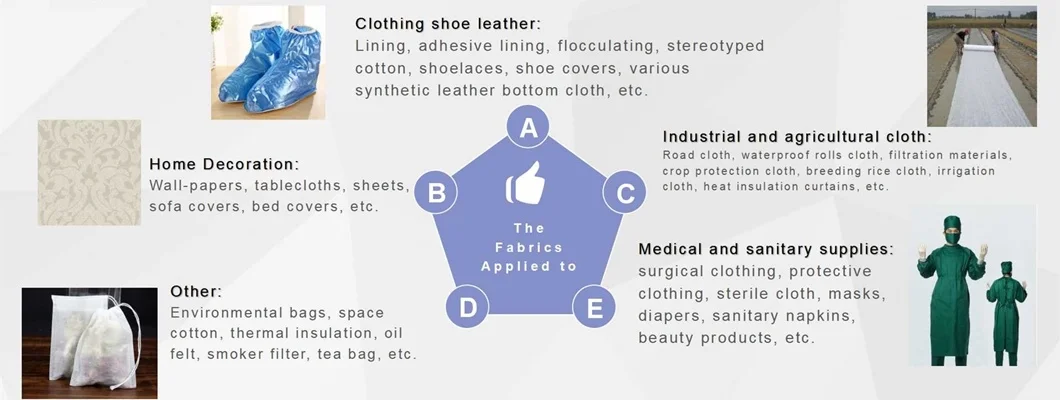

Application
The fabrics have greater intensity, better breath-ability, and better feeling, they are widely used for various fields such as medical and health, beauty care products, hygienic products, industrial and agricultural protective covers, parking linning and so on.
Utility requirements
1.Power consumption:the power of the whole machine is about 1816KW, and the working power is about 700KW
2.Buyer should prepared：
①Workshop requirements：length 32 m * width 20 m * high 12 m (only for production line space requirement, raw materials, finished products room, office need have extra)
①Workshop requirements：length 32 m * width 20 m * high 12 m (only for production line space requirement, raw materials, finished products room, office need have extra)
②Power supply：380V50Hz；
③Water supply(city water),cistern : 30m³(Apply to cooling water
circulation system)
circulation system)
④Provide workers, forklift, forklift, crane and other transportation tools
⑤Provide raw materials required
during installation and commissioning
during installation and commissioning
⑥All kinds of lubricating oil, grease and heat transfer oil
⑦Cable from the seller's electric box to the electric control
⑧Prepare foundation, embedded plate of foundation and anchor bolts welded on embedded plate of foundation
