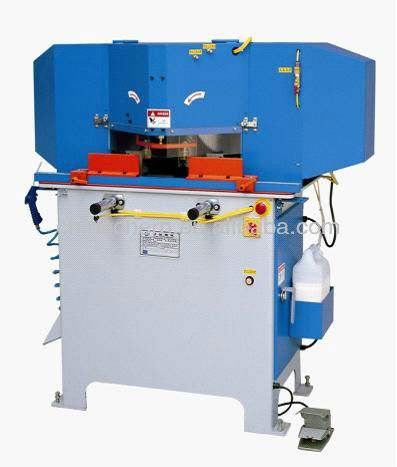

Высокоскоростной полуавтоматический угловой режущий станок с двойным лезвием

Поделиться:


Цена:
Стоимость в USD:Узнать цену

Количество:

Купить

Описание и отзывы


Характеристики


JC-455-2AS2-Semi-automatic Double Blade Angle Cutter

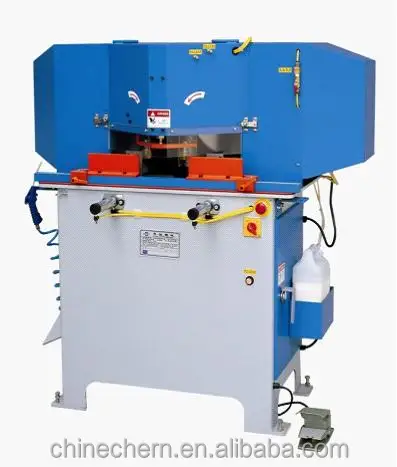

                   JC-350,405-2AS2(45)

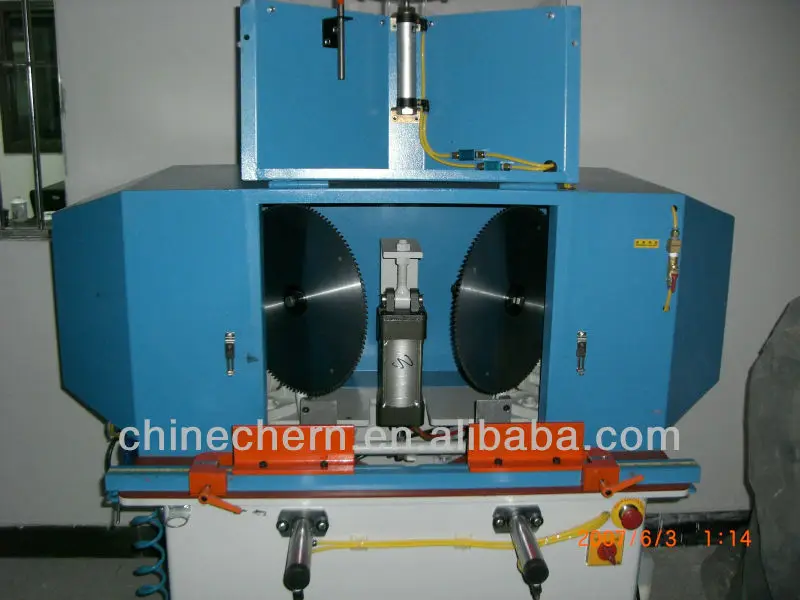

Double blades aluminum cutting machine

Feature



1.Just step on the foot pedal switch,the machine will pressure and cut the materials automatically,operation is safety and easy

2.Fast double blade sawing,save time and improve production efficiency

3.Any long or short material can be trimmed

4.Two sets of four oil sprayer provides proper lubrication to sawblade,spouting oil automatically when cutting,tangent plane is smooth,sawblade is long use life

5.Sawblade is driven by independent motor,powerful cutting

6.Apply upper and lateral pressure 2 group pressure material method,the materials become firmly established,pressure can be adjusted causes no deformation the hollow material

7.Install 2.4m feeding and discharging racks in the left and rght of the machine,discharging rack is equipped with positioning baffle makes set-inch cutting





Technial parameter



ModleJC-455-2AS2
Cutting angle45º
Maximum cutting width130mm
Maximum cutting height250mm
Spindle speed2700RPM
Size of sawbladeØ18´´×Ø1´´×3.4×120T
Height of working table800mm
Host motor3HP×2
Length of feeding rack2400mm
Length of discharging rack1500mm
Weight400KG







Company Information



company profile1



Certificate

 6



g



 Application instance



5

Package and Delivery



 IMG_1660
