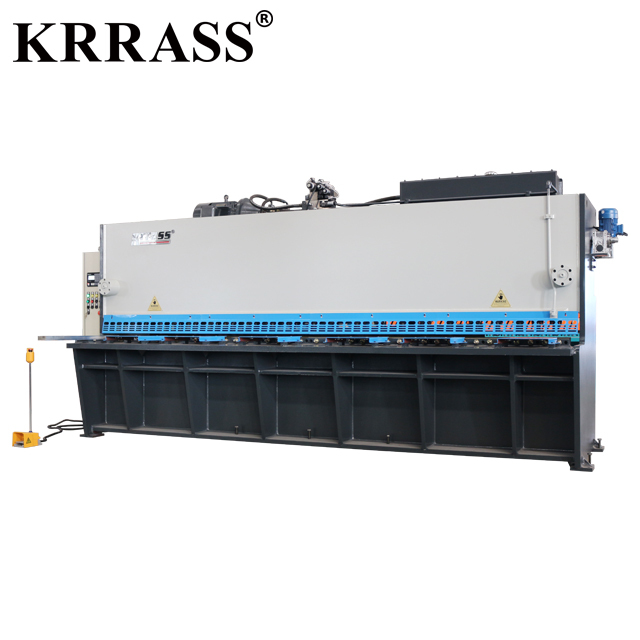

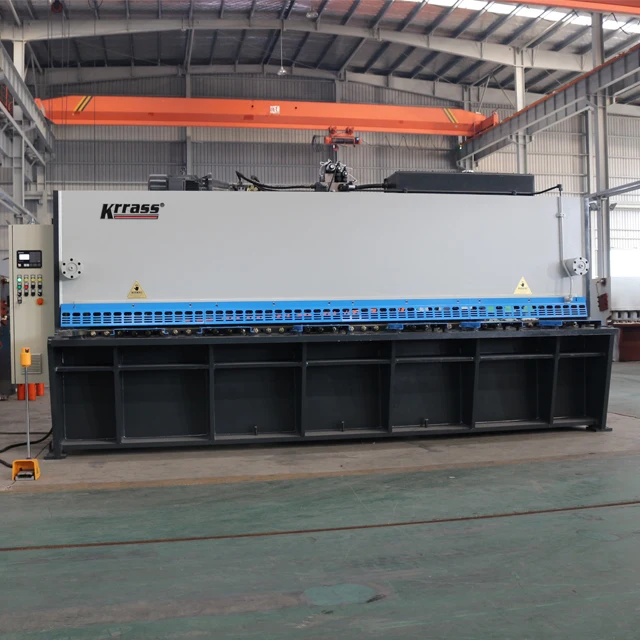

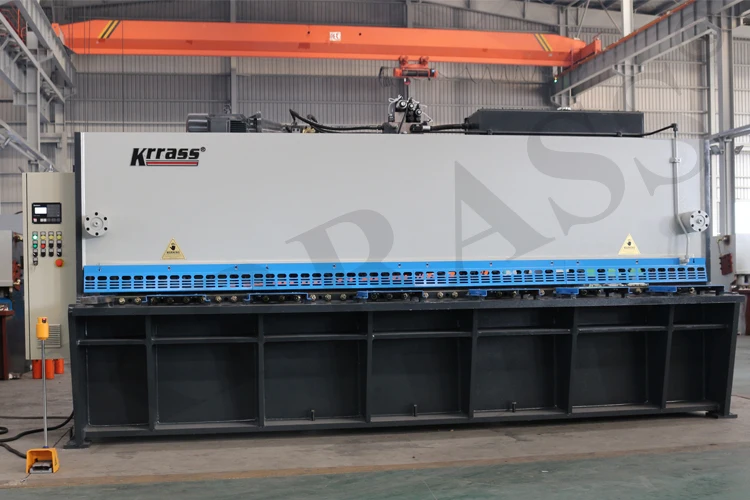

Гидравлическая гильотина с ЧПУ | RAS QC11K 10 12 16 мм 3200 4000 мм, металлические гильотинные ножницы, гильотинные ножницы с ЧПУ от KRRASS

Описание и отзывы

Характеристики

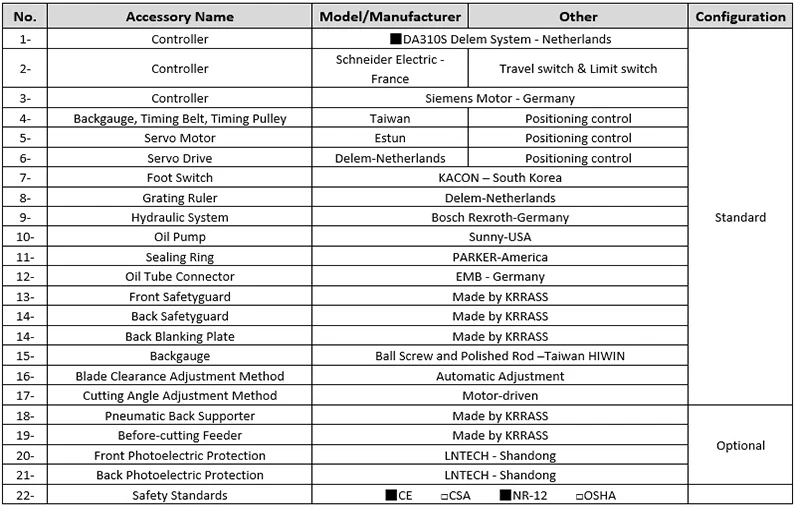

1. Standard Equipment:

   Netherlands DELEM DA310S CNC controller

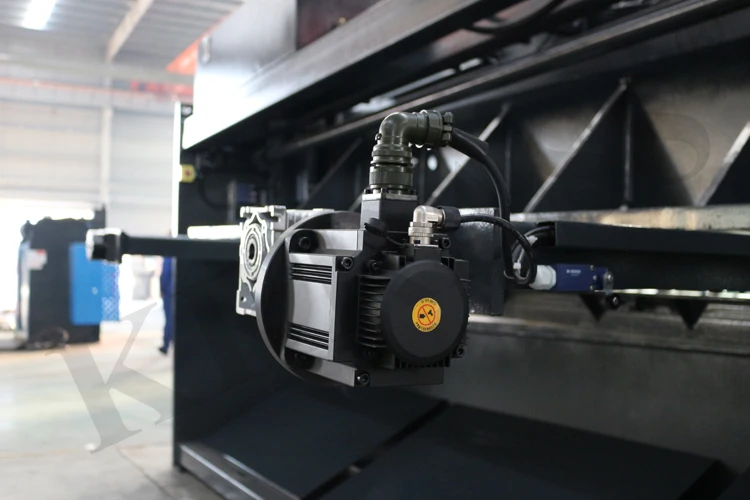

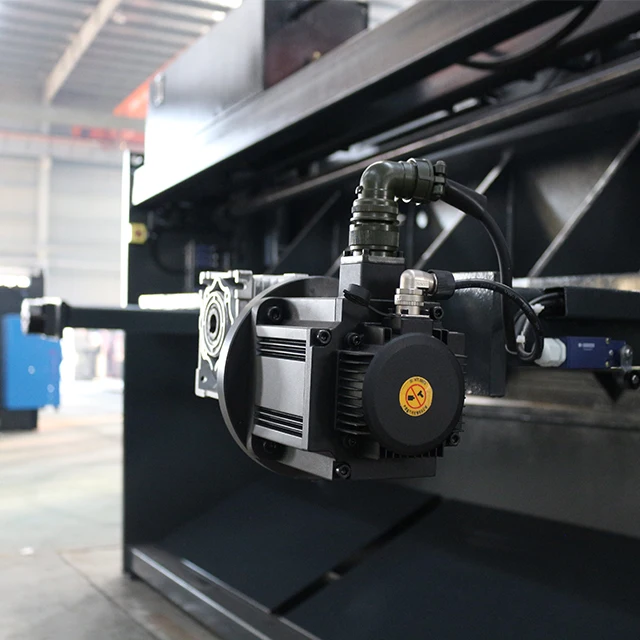

   Backgauge X-axis is driven by servo motor

   Servo motor drives controller

  HIWIN ball screw and linear guide rail, control precision 0.05mm

   Controller cantilever and front supporter

  Germany Bosch Rexroth integrated hydraulic valve

   Germany EMB oil tube connector

  Germany Siemens main motor

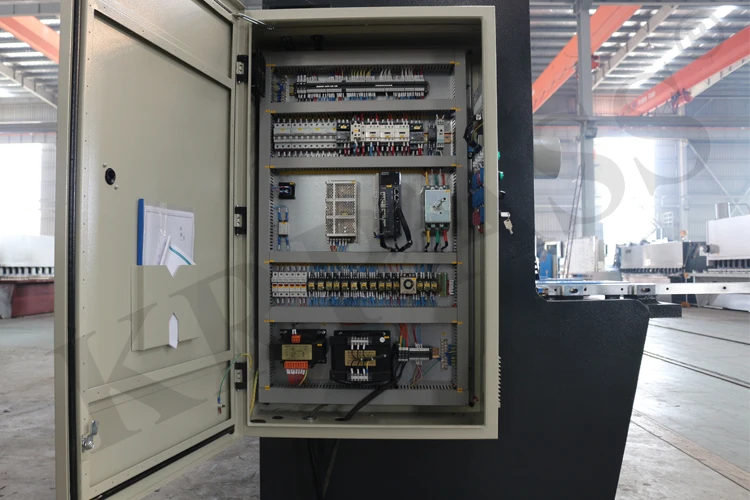

   Germany Schneider electrics

  Hydraulic and electrical overload protection

   Light aligning

   Blade materials ( Cr12MoV )

   South Korea KACON foot switch

  Blade clearance is adjusted automatically

2. Safety Equipment:

Safety standards(2006/42/EC)

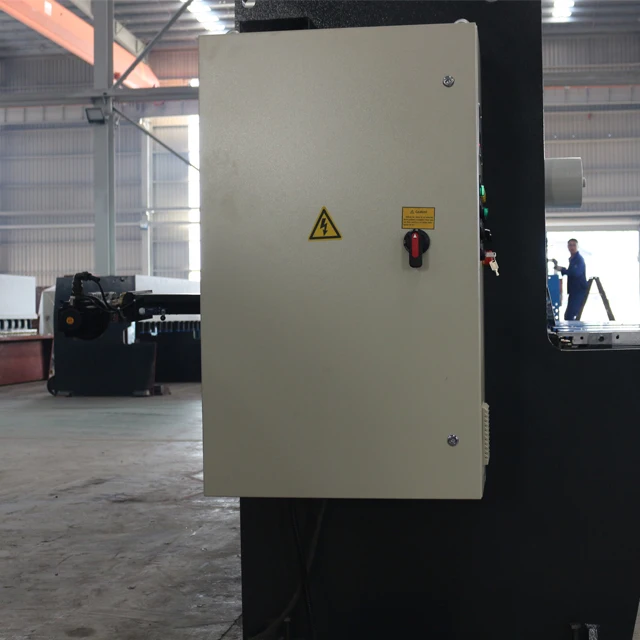

Opening electric cabinet and front safeguard door will cut off power

South Korea KACON foot switch (safety grade 4)

Rear metal safeguard, CE standard

Safety relay monitors foot switch, safety protection

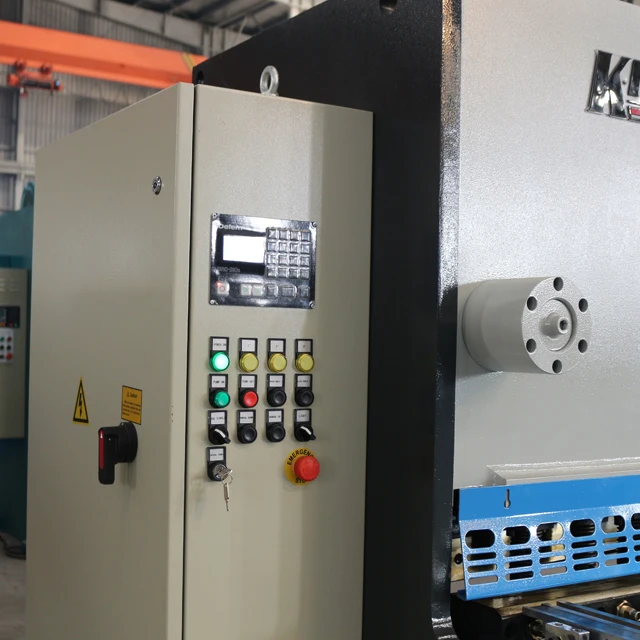

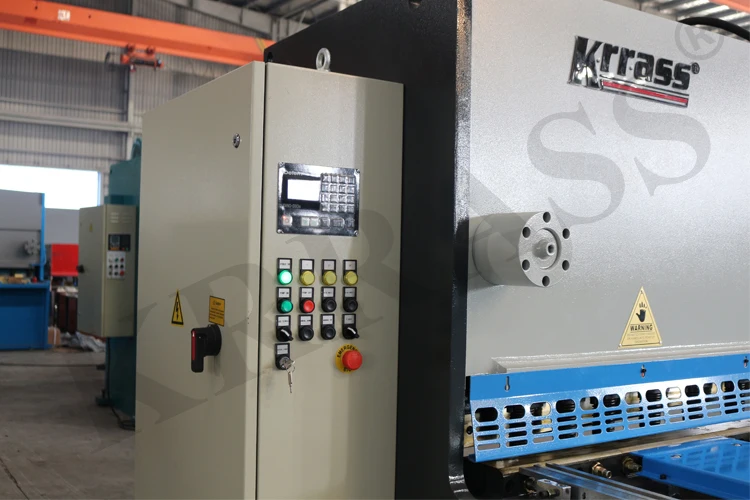

3.Netherlands DELEM DA310S NC Controller:

High-definition LCD display, 128X64 pi

Backgauge control

 Cutter clearance control

Cutting stroke control

 Synchronously display the actual position and programming

Cutting count

100 programs

Servo control

Watch Video on Youtube

https://youtu.be/HN8Riafc2l0

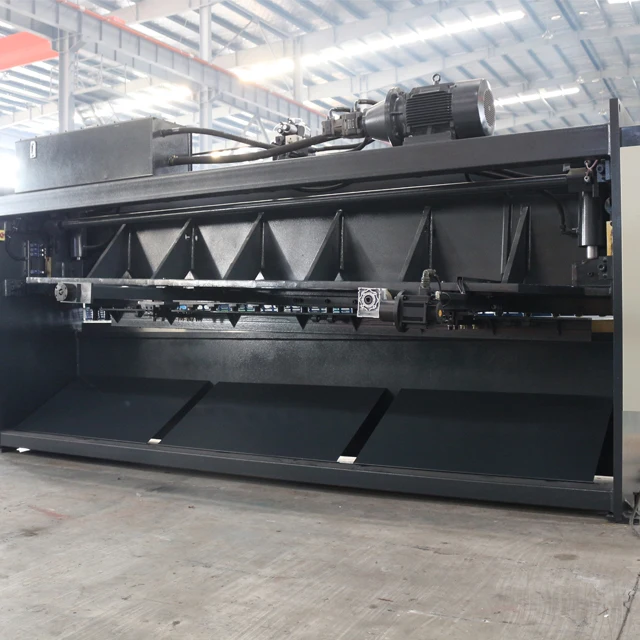

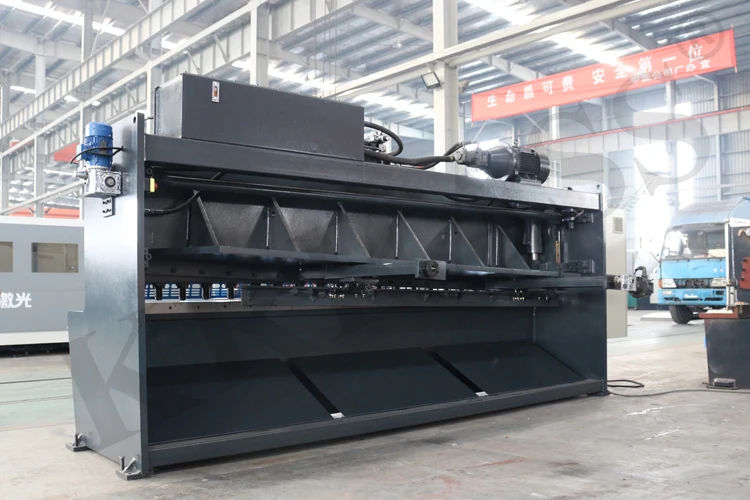

1. Streamlined design originated from EU, main structure consists of rack, cutter holder, oil cylinder, hydraulic controller, backgauge etc. Finite-element analysis of main parts, Welding parts uses tempering, vibration and other processing methods to eliminate internal stress ensuring structural strength and rigidity;

2. Cutter holder use three-point support rolling guide rail, reducing the friction to the greatest extent, and realizing seamless rolling during cutter holder moving;

3.Left-most front holder configured with verticality regulator and front positioning device, easy operation and high efficiency;

4.Simple and effective blade adjusting mechanism rearranges blade clearance through CNC controller and improves the cutting quality.

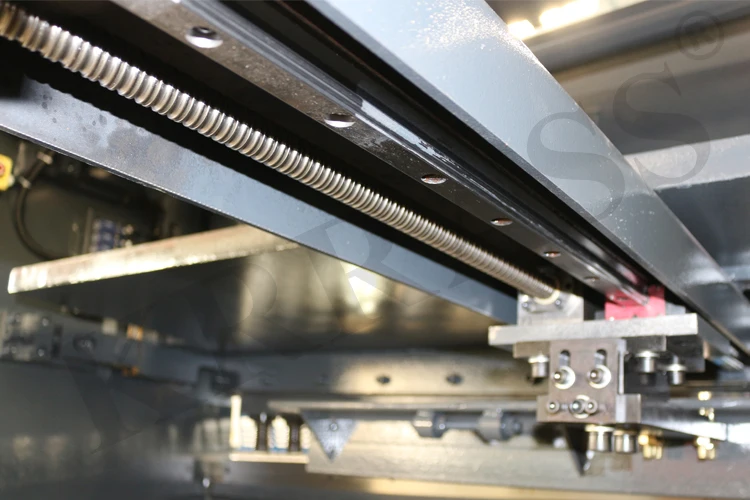

5.Through fine ball screw and polished rod structure, good-performance servo motor control X-axis to ensure the accuracy, and unique designed timing transmission mechanism to ensure operation stable and reliable;

6.Light and shadow line is conductive to manual scribing for cutting; stable and reliable hydraulic transmission; integrated hydraulic system is able to significantly reduce problems caused by hydraulic fluid leakage;

7.High-quality alloy tool steel is capable enough to against impact load and high wear resistance when cutting;

8.Referring to ergonomic design, user-friendly operation interface, improving the operation precision and comfortability; rolling ball workbench to reduce friction and prevent work piece surface from scratching; unique and practical safety guard, line with safety specifications, protect the personal safety; exquisite design, petty work piece can be done easily by hand.
