Заводская цена, Цилиндрический предохранитель, стеклянный предохранитель, тип переменного тока 1000 В, заводская цена
- Категория товара: Fuses >>>
- Поставщик (Оптовый магазин): Shanghai,Gasim,Industry,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Product introduction
barrel fuse
NH low voltage H.RC barrel fuse features light in weight,small in size,low in power loss and high in breaking capacity.This product has been widely used in overload and short circuit protection of electric installation.This product conforms to IEC 60269 and EN 60629 standards with all of the world advanced level.
Product parametert
| Type | NH00 | |
| Rated current | A | 6,10,16,20,25,32,35,40,50,63,80,100,125,160 |
| Rated voltage | V | 500 |
| Rated breaking capacity | kA | 120 |
| Rated power loss | W | 0.41,0.62,0.81,1.08,1.60,1.81,2.31,3.07,3.17,4.05,4.25,4.70,5.7,7 |
| Weight | kg | 0.15 |
| Standard specification | IEC 60269 EN 60269 | |
| Class | Gg-gl |
| Type | NH0 | |
| Rated current | A | 16,20,25,32,35,40,50,63,80,100,125,160 |
| Rated voltage | V | 500 |
| Rated breaking capacity | kA | 120 |
| Rated power loss | W | 0.67,0.89,1.14,1.65,1.94,2.50,3.32,3.56,4.30,4.5,4.6,6,7.3,7.6,9.6 |
| Weight | kg | 0.2 |
| Standard specification | IEC 60269 EN 60269 | |
| Class | Gg-gl |

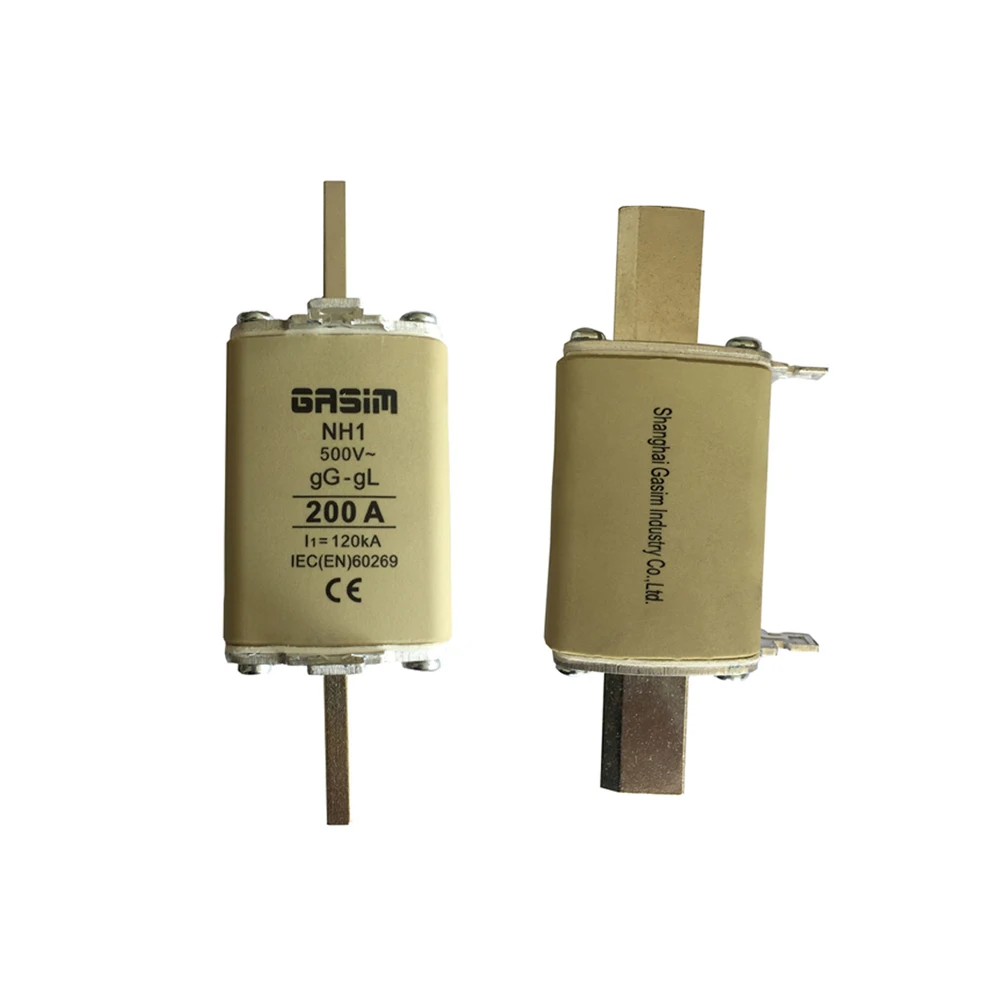

| Type | NH1 | |
| Rated current | A | 40,50,63,80,100,125,160,200,224,250, |
| Rated voltage | V | 500 |
| Rated breaking capacity | kA | 120 |
| Rated power loss | W | 6.2,7.5,10.2,13,15.2,16.8,18.3 |
| Weight | kg | 0.36 |
| Standard specification | IEC 60269 EN 60269 | |
| Class | Gg-gl |
| Type | NH2 | |
| Rated current | A | 125,200,224,250,315,355,400, |
| Rated voltage | V | 500 |
| Rated breaking capacity | kA | 120 |
| Rated power loss | W | 9,11.5,15,16.6,18.4,21,19.2,24.5,26 |
| Weight | kg | 0.65 |
| Standard specification | IEC 60269 EN 60269 | |
| Class | Gg-gl |
| Type | NH3 | |
| Rated current | A | 315,355,400,425,500,630 |
| Rated voltage | V | 500 |
| Rated breaking capacity | kA | 120 |
| Rated power loss | W | 21.7,22.7,26.8,28.9,32,40.3 |
| Weight | kg | 0.85 |
| Standard specification | IEC 60269 EN 60269 | |
| Class | Gg-gl |
| Type | NH4 | |
| Rated current | A | 630,800,1000,1250,1600 |
| Rated voltage | V | 500 |
| Rated breaking capacity | kA | 120 |
| Rated power loss | W | 62,75 |
| Weight | kg | 1.95 |
| Standard specification | IEC 60269 EN 60269 | |
| Class | Gg-gl |
Product show
Packaging & Shipping
standard export packing for barrel fuse
Our Services
(1)Warranty ( 24 months warranty )
1. The warranty starts from the delivery date from our factory;
2. During the warranty, any defective product will get repaired or replaced for free ;
3. It is beyond the warranty as the products breaked by the violence , the carelessness or repaired , altered without authorization.
(2)Lead Time
1. Sample orders will be delivered from our factory within 7 working days.
2. General orders will be delivered from our factory within 7-15 working days.
3. Bulk orders will be delivered from our factory within 25 working days at most
(3)Shippment
1. By EMS, DHL, FedEx, TNT, UPS or other express.
2. By our forwarding agent (by air or by sea).
3. By your own forwarding agent.
4. By domestic forwarding agents to any city in China
Company Information
we are a manufacturer & exporter , we are sure that we can best support our customers with high quality products and the most competitive products .
Factory picture
Our markets
| North America | No3 | Rated of buyer 12.5% |
| South America | No4 | Rated of buyer 7.5% |
| Europe | No2 | Rated of buyer 19.2% |
| Asia | No1 | Rated of buyer 35.5% |
| Africa | No5 | Rated of buyer 3.24% |
FAQ
Certification :
| Certified Picture | Certification Name | Certified By | Product Name & Model No. |
 | ISO9001:2000 | EACC, ANAB | Scope: Sales of Sales of electric appliances .For example: sensors, relays, voltage stabilizers, AC contactors circuit breakers, distribution boxes, industrial plugs & sockets,fuse and others . |
 | CE | EPRE | Mini Circuit Breake&GSB6-63 and NT Low Voltage Fuse |
 | ETL | ITS | Mini Circuit Breaker&GSL7-63 |
 | GS | TUV | PIR CEILING LAMP&GSL3002B |
 | SAA | SAA | Mini Circuit Breaker &N-7B |
 | CE | EPRE | STANDALOE SENSOR&GSA001 |
