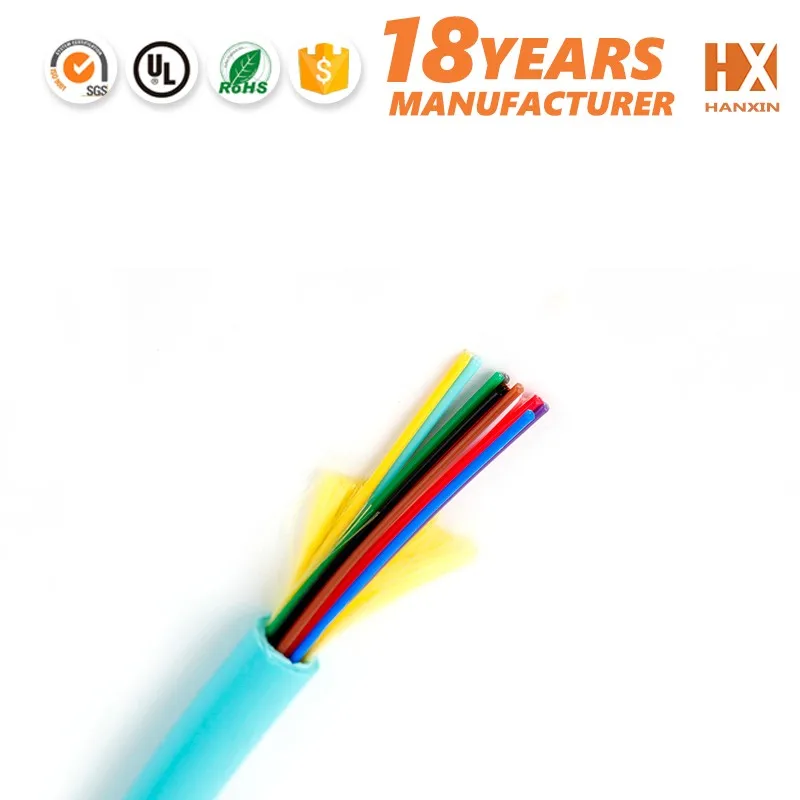

Factory Price 4 core EPFU 9032 2fu SM G652D indoor optical fiber cable
We are 19 years fiber optic cable manufactory!
Welcome to go to the factory tour!
We focus on the quality of the fiber optic cable!
Send message to us can get free samples.
Product Description
| 1. Features and Benefits |
| 2, 4, 6, 8 and 12 fibers options. |
| Stable structure |
| good mechanical and temperature performance |
| Designed with special grooves to advance blowing distance |
| Lightweight and proper stiffness, repeat installation |
| Designed with no gel,easy stripping and handling |
| Better costs advantage compared to traditional product |
| Complete accessories, less manpower, lower installation time |
2. Standards
Unless otherwise specified in this specification, all requirements shall be mainly in accordance with the following standard specifications. Optical Fibre …...ITU-T G.651,G.652,G.655,G.657 IEC 60793-2-10,IEC 60793-2-50 Optical Cable ……IEC 60794-1-2,IEC 60794-5
Enhanced Performance Fiber Unit (EPFU)
Basic data:
| Fiber Count | 2 Fibers | 4 Fibers | 6 Fibers | 8 Fibers | 12 Fibers |
| Outer Diameter (mm) | Max 1.8mm | max 1.8mm | max 1.8mm | max 1.8mm | max 1.8mm |
| Temperature | -30°C ~ +60°C | ||||
Optical characteristics
G.652 | G.655 | 50/125μm | 62.5/125μm | ||
Attenuation (+20°C) | @850nm | ≤3.0dB/km | ≤3.0dB/km | ||
@1300nm | ≤1.0 dB/km | ≤1.0dB/km | |||
@1310nm | ≤0.36dB/km | ≤0.4dB/km | |||
@1550nm | ≤0.22dB/km | ≤0.23dB/km | |||
Bandwidth (Class A) | @850nm | ≥500MHz/km | ≥200MHz/km | ||
@1300nm | ≥1000MHz/km | ≥600MHz/km | |||
Numerical Aperture | 0.2±0.015NA | 0.275±0.015NA | |||
Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm | |||
We Produce:
1.Outdoor Fiber Optic Cable(GYXTW,GYFTY,GYTA,GYTS,ADSS,GYXTC8Y,GYTA53 etc.)
2.Indoor Fiber Optic Cable(Simplex/Duplex indoor cable,distribution box,break-out cable,waterproof cable etc.)
3.FTTH(bow-type access cable,self-supporting bow-type cable)
4.Fiber Patch Cord(SC,SC,LC,FC,MTRJ,MU etc.)
5.Accessories:Fiber Patch Panel,Fiber Splice Closure,Fiber Media Converter,Fiber Adapter
Standard Fiber Colour Identification
| Fibre in tube | No. | 1 | 2 | 3 | 4 | 5 | 6 |
| Color | Blue | Orange | Green | Brown | Grey | White | |
| No. | 7 | 8 | 9 | 10 | 11 | 12 | |
| Color | Red | Black | Yellow | Violet | Pink | Aqua |
