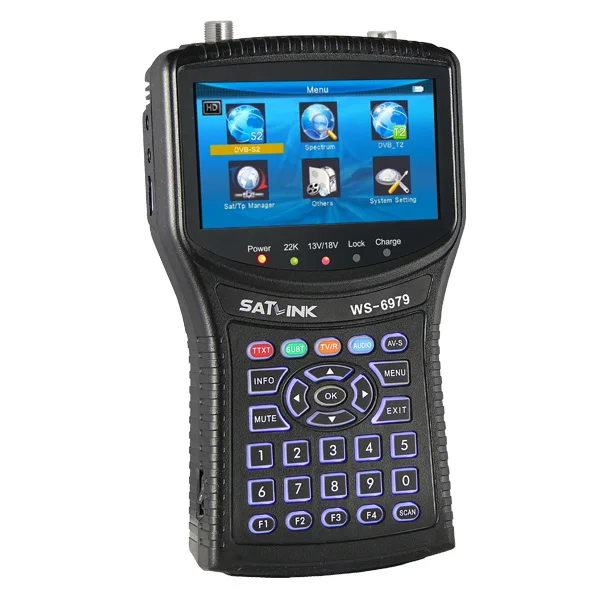

Satlink WS-6979 DVB-S2 + DVB-t2 спутниковый finder метр WS-6979

Поделиться:


Цена:179,00 $ - 186,00 $
Стоимость в USD:Узнать цену

Количество:

Купить

Описание и отзывы


Характеристики




Product Description

Contact2



Satlink WS-6979   DVB-S2 and DVB-T2 MPEG4 HD Satellite Finder Meter Original Model







Main Feature.jpg





1.DVB-S2  DVB-T2 HD Mpeg4   combo terrestrial signal meter finder

satellite meter finder meter
2. DVB-S2/S and DVB-T2/S spectrum  constellation
3.Meter for Signal   MER

4.multimedia

5.systme










 123456










TRANSMISSION STANDARDS

DVB-S2/S, DVB-T/T2

SATELLITE INPUT/DEMODULATION

Connector Type

F Type

Input Frequency

950 to 2150 MHz

Signal Input Level

- 65 to -25 dBm

Band Switch Control

22KHz

LNB Supply

13V/18V, IMax 400mA

Demodulation Type

QPSK,8PSK,16APSK

Symbol Rate

2<Rs<45Mband(SCPC/MCPC)

DVB-T/T2 INPUT/DEMODULATION

Connector Type

FEMALE Type

Input Frequency

48 to 862 MHz

Signal Input Level

-79.5dBm (MAX)

ANT Supply

5V, 12V/17V Imax 100mA

Demodulation Type

QPSK,16QAM.64QAM,256QAM

LCD FEATURES

LCD Type

TFT TRANSMISSIVE

Number of Dots

480(RGB) x272

Active area (WxH)

95.04x53.86 mm2

AV output interface

Connector Type

3.5 mm jack

Video Output

CVBS,

Audio output

Stereo Audio L/R output

 output connecter

Format

1.3a

AV input interface

Connector Type

3.5 mm jack

Video input

CVBS,

Audio input

Stereo Audio L/R input

AUDIO/VIDEO PROCESSING

Video decompression

MPEG-2 MP@HL, MPEG-1 Decoding,MPEG-4 ASP@L5 HD resolution,H.264 MP&HP@L4,HW JPEG decoding

Resolving rate

PAL-25 frame@720*576,NTSC-30 frame@720*480,

Signal compatibility

Support conversion for different video formats

Video Format

4:3,16:9,By Pan & Scan and Letter Box conversion

Audio decompression

MPEG-1 Layer I/II ,MPEG-2 Layer I/II,

Audio output mode

Stereo, Mono,R/L

DATA SERVICE PORT

Connector

USB

Data protocol

USB2.0 interface

File management system

NTFS,FAT32,FAT16

file format

wma,mp3,mp4,avi,jpg,jpeg,bmp,img

MICROPROCESSOR

Microprocessor

NOVATEK

Clock Frequency

500MHz

SDRAM Memory

1Gbit DDR3

Power SUPPLY

Li-Ion Battery

7.4V/3000mAh(The machine behind labeling shall prevail)

Adapter

OUTPUT :DC12V/1.5A, INTUPT :100-240VAC 50/60Hz(Will be subject to actual configuration)

Power consumption

Max. 10W

PHYSICAL CHARACERSTICS

Size (W x D x H)

9.5x15.5x4.5(cm3)

Net Weight

1kg












1 x HD Satellite Finder Meter WS6979 With Battery
1 x 12V Car charger cable
1 x 12V Power Charger
1 x Carrying case
1 x Neck Strap
1 x AV cable
1 x CD Manuel



Company Information

Company Proile.jpg

Packaging & Shipping

Packing and Shipping.jpg

FAQ

FAQ





Q1: What's your warranty policy?



A1: For all the products, we have one-year warranty. All of our goods are 100% tested working and perfect before sent to you. In case there are unexpected damages during delivery, please do check before you sign for the package.

If you have broken boxes,you can collect them together and send them back to us by post/mail,we will try to repair them for you firstly,if can not repair,we will send you the new motherboard to you to change it.



Q2: What's your minimum order quantity?



A2: Our MOQ is not the same based on different items. Small orders are also welcome, but the unit price is also difference from wholesale price.



Q3: What package do you use for the products?



A3: Usually we have professional retail package for the products. Customized package are also available based on certain MOQ.



Q4: Will your product work in my country?



A4: All of our products are compatible to the international standards, please be subject to the type of network in your country (the band).



Q5: Can I print my own brand logo on your product?



A5: OEM orders are highly welcome. Please write us the details of your logo color, logo position, user manual and box design (if you have) before you send us inquiry. In this way we can offer you most accurate answer at the first time.



Q6: What's your charger standard? Are they available in my country?



A6: Usually we have EU plug, US plug, UK plug and AU plug. Please wirte us your charger standard before you send the inquiry.





Q7: Do you have technical instructions if I buy your product?



A7: Please read the user manual carefully for your reference, we have detail instruction on it. If your problems still can not be solved, welcome to contact us for help. We will also send you update software regularly if you need.



Q8: What payment terms do you have?



A8: For small orders, we usually prefer Paypal and Western Union; for the item that are in stock,we accept 100% bank transfer,will send out the goods ASAP received your payment;

for items that are not in stock, we charge 30% deposit and will ship goods out before the 70% balance are received.



Q9:Can i watch all of the channel programs?



A9:This is the satellite receiver/android tv box/DVB-C TV BOX,only can watch the free air program,if you want to watch the not free programs,you must buy an account from your local service.



Q10: I am very satisfied after I read your FAQ, how can I start to purchase my order?



A10: Please click the "send" at the bottom of this page or contact our sales on Trade Manage online!
