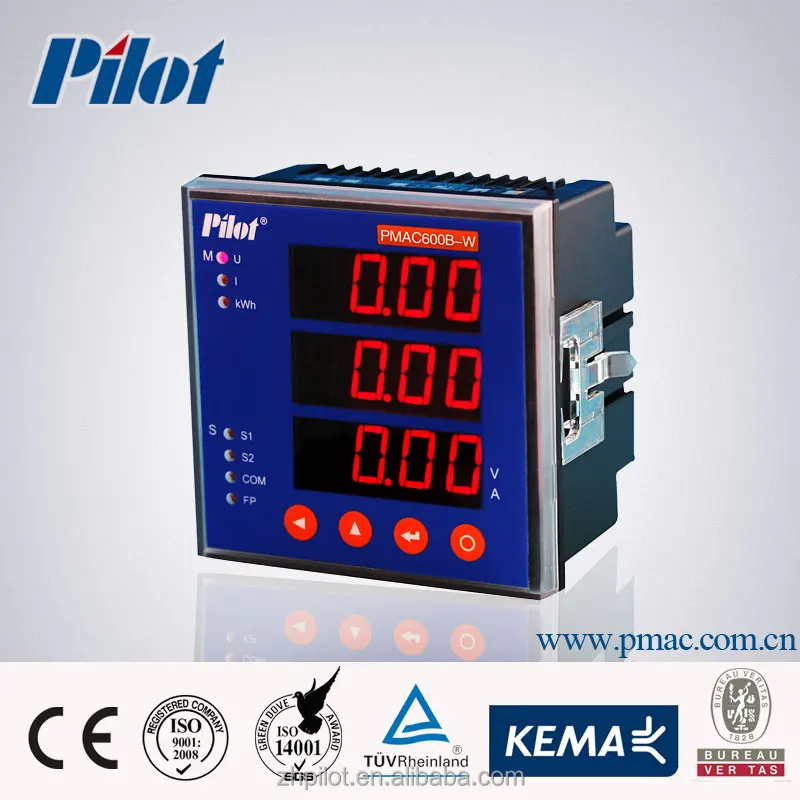

Трехфазный цифровой измеритель напряжения PMAC600B/амперметр

Name: Трехфазный цифровой измеритель напряжения PMAC600B/амперметр
Brand: Zhuhai,Pilot,Technology,Co.,Ltd.
Availability: InStock

Цена:

Стоимость в USD:Узнать цену

Количество:

Купить

PMAC600B 3-phase Digital Panel Meter / Voltage Mete / Ampere Meter with following features:

ØSuit for 220V, or 240V (ph-N) low voltage system

ØSimultaneous sampling of Volts and Amps

ØCompact design with all real-time measurement

Ø10 years back-up of integrated energy data

ØLED display, high brightness, auto-scrolling

ØCT primary is programmable

ØPluggable terminals, easy to install

ØPanel size: 96 x 96mm

ØPassword protect

ØStandard: IEC62053-21, CE

Basic Function

PMAC600 measures and display one or more parameters listed below:

ØVoltage—Ua, Ub, Uc, Uab, Ubc, Uca,

ØCurrent—Ia, Ib, Ic, In

ØActive power – Pa, Pb, Pc, ∑P

ØReactive power –Qa, Qb, Qc, ∑Q

ØPower factor—PFa, PFb, PFc, ∑PF

ØFrequency--F

ØActive energy—kWh

ØReactive energy-- kvarh

Optional Function

ØTwo status input ( wet contact)

ØTwo relay alarm output

ØOne RS485 communication

Parameter	Index
Accuracy Rate	0.5
Suitable Network	PMAC600B: 3-phase 4-wire
Displayed Data	Current	4 digits, display real value,Unit: Amp.
	Voltage	4 digits, display real value, phase voltage, Unit:V
	Active Power	4 digits, display real value,Unit: KW
	Reactive Power	4 digits, display real value,Unit: KVAR
	Power Factor	3 digits, display real value.
	Frequency	4 digits, display real value, Unit: Hz.
	Active Energy	Maximum 9 digits, display real value in 3 lines, Unit: Kwh
	Reactive Energy	Maximum 9 digits, display real value in 3 lines, Unit: Kvarh
Input	Rated Current	1A or 5A (secondary)
	Rated Voltage	380VAC
	Frequency	35Hz ~ 65Hz
	Status Input	220Vac±25%,220Vdc±25%
Relay Output	220VAC/5A,30VDC/5A
Analog Output	4~20mA,Maximum 400Ω
Power Supply	Wide	AC: 85V ~ 265V;DC: 80V ~ 300V
Insulation Strength	2KV(testing voltage is AC valid value)
Insulation Resistance	≥ 50MΩ
MTBF	≥ 50000h
Operating Environment	Operating Temperature:-20°C~+60°C Storage Temperature:-40°C~+85°C Humidity:5%~95%,non-condensing
Cut-out Dimension	89.5mm x 89.5mm (+0.5mm)
