Машина для намотки фольги трансформатора HV & LV медных и алюминиевых
- Категория товара: Станок для намотки фольги >>>
- Поставщик (Оптовый магазин): Shanghai,Trihope,International,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
PRODUCT INTRODUCTION

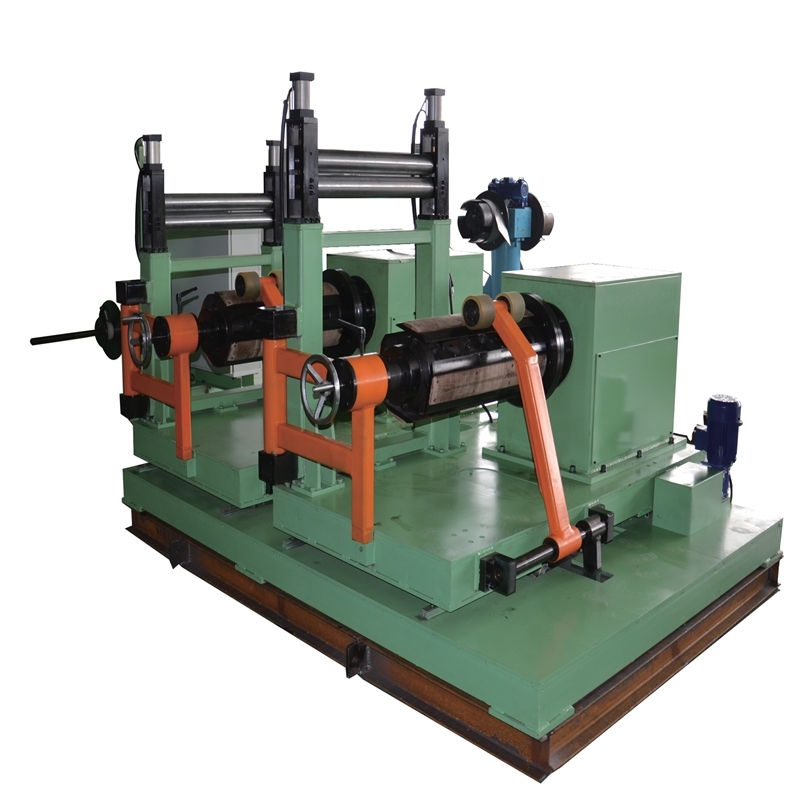

HV &LV transformer foil winding machine for copper and aluminum material
1. Summary
.It consists of winding main unit, layer insulation supply device, tension adjustable conduct coil stand, pneumatic system, PLC and touch screen.usually used for foil windings used for the reactor.

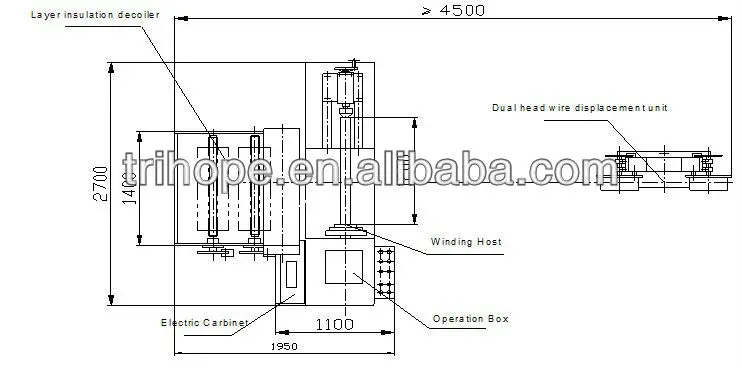

2.The composition of the equipment reference attached diagrams
3.Main parameters
| item | technical parameter | ||
1 | coil processing range | |||
1.1 | coil length | 50~600 mm | ||
1.2 | coil OD | 200~600mm(750mm,including Bar) | ||
1.3 | coil shape | Round, rectangle | ||
2 | coil material | |||
2.1 | foil width | 50~600 mm | ||
2.2 | thickness | copper :0.2~2.0mm ,Aluminum:0.2~2.5 mm | ||
2.3 | foil ID | f500 | ||
2.4 | foil OD ( Max ) | ≤1000mm | ||
3 | De-coiler (one set) | |||
3.1 | loading head effective length | 500 mm | ||
3.2 | loading head rose / shrink range | f460~f520 | ||
3.3 | loading capacity( Max) | 1500 KG | ||
3.4 | tension | 10000 N | ||
3.5 | tension working way | Electric, adjustable | ||
3.6 | rectify | Manually / automatically | ||
