Высококачественное стандартное скользящее кольцо moflon сквозное отверстие электрические скользящие кольца для электрических
- Категория товара: Electrical Contacts and Contact Materials >>>
- Поставщик (Оптовый магазин): Shenzhen,Moflon,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Why Choose Us
Welcome to Shenzhen Moflon Technology Co., Ltd.
An industry leading manufacturer supplying slip rings and rotary unions to companies, contractors, and other end-users.
Here at MOFLON, we have the privilege to work with and provide high perforamce slip ring solutions to some of the largest and most successful companies in the all kinds of Industry.
Let the team at Moflon prove their value in the successful launch of your next critical project.
About MOFLON
With over 30 years manufacturing and 15 exporting experience, our experienced engineers, production and QA QC team effectively ensure the advanced and practical products.
Products Description

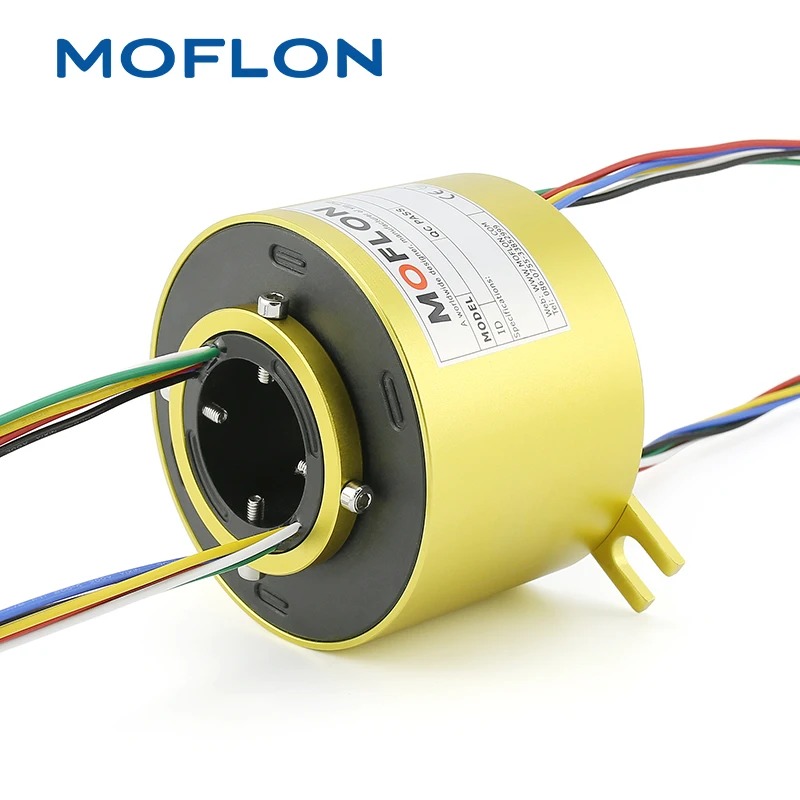

MT Series Through Hole slip Ring Main Features
Through hole slip ring also called hollow slip ring with centre hole. it mainly apply to the devices where requires to transmit precise signal, weak current, large current, high voltage.
The main features:
* Advanced precious multi-point contact brush technology ensures reliable contact with low friction* Metal housing for better protection
* Integrated structure design, easy installation
* Hole size from 3mm to 300mm optional
* Standard item in stock
* Golden ring+Alloy steel brush(Golden)
* Support combined power and signal transimtion
* Standard current: 0~20A,Standard voltage: 0~690VAC/VDC
* Circuits No.: 0~300 circuits optional;
* Customizations acceptable for circuits no. , current& voltage based on standard models;
* Standard current: 0~20A,Standard voltage: 0~690VAC/VDC
* Circuits No.: 0~300 circuits optional;
* Customizations acceptable for circuits no. , current& voltage based on standard models;

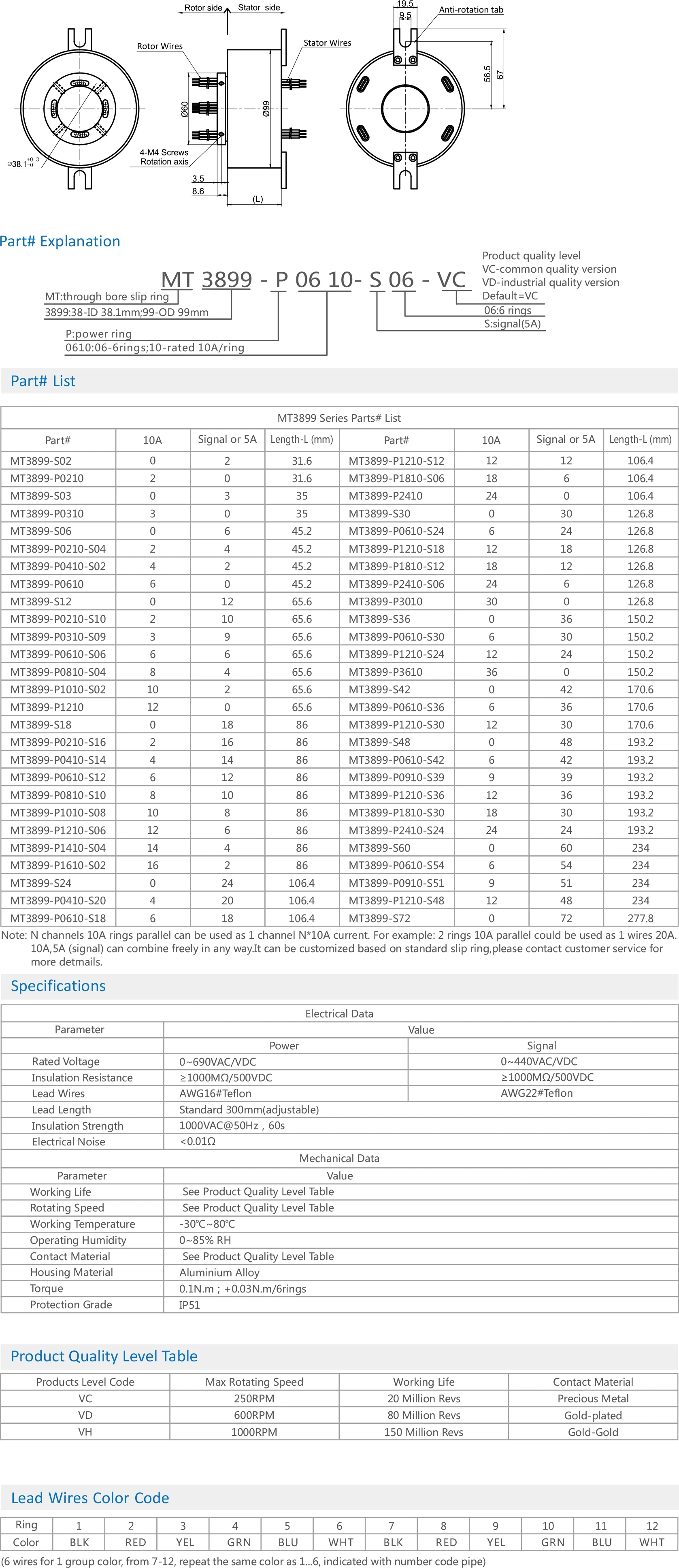

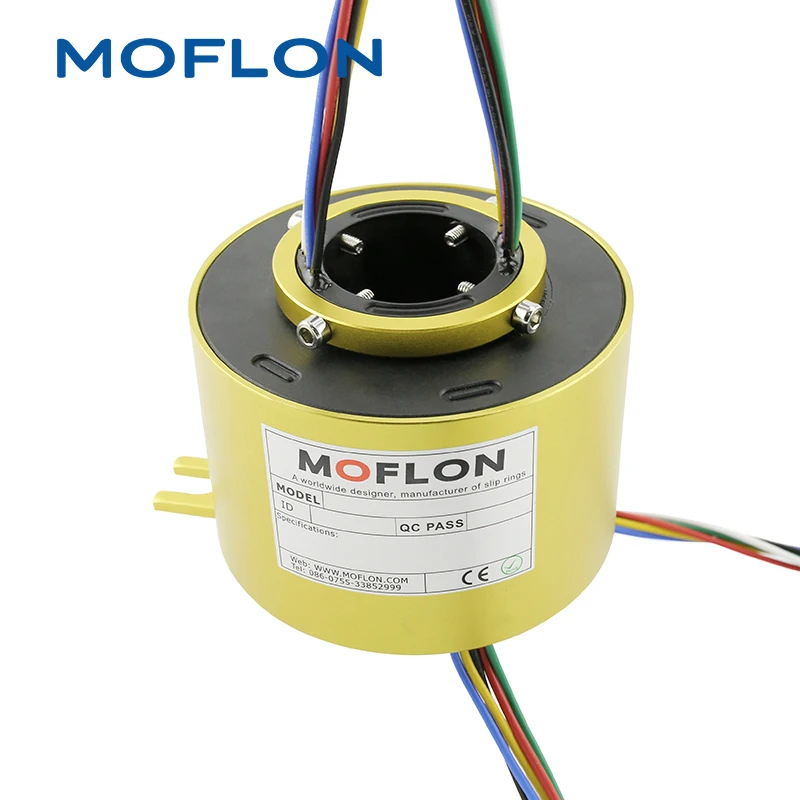

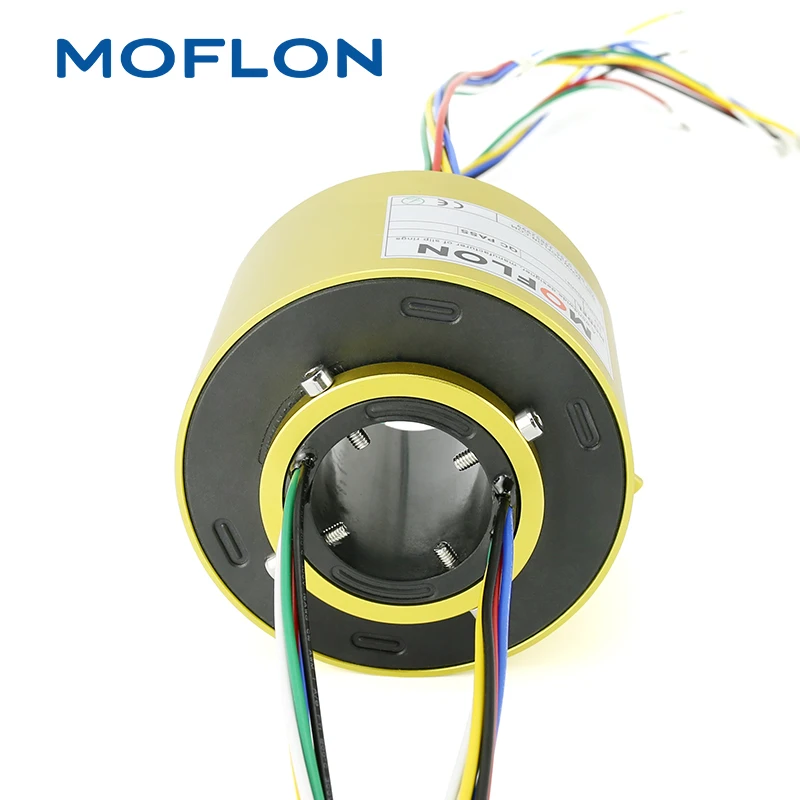

MT3899 Series Bore size 38.1mm, OD 99mm - Rotating Slip Rings
MT3899 series provides a 38.1mm through-bore for routing of hydraulic or pneumatic lines or
hydraulic or pneumatic rotating shaft installation, and a compact 99mm outside diameter, features long life, fiber brush contact technology for ultimate performance in many challenging applications.
MT3899 series are standard, off-the-shelf products, Color-coded lead wires are used on both the stator and rotor for simplified electrical connections. It can transmit signal(2A), 10A, multiple 10A current when 360° degree free rotating.Max rotating speed :250RPM, 600RPM,1000RPM(optional);
hydraulic or pneumatic rotating shaft installation, and a compact 99mm outside diameter, features long life, fiber brush contact technology for ultimate performance in many challenging applications.
MT3899 series are standard, off-the-shelf products, Color-coded lead wires are used on both the stator and rotor for simplified electrical connections. It can transmit signal(2A), 10A, multiple 10A current when 360° degree free rotating.Max rotating speed :250RPM, 600RPM,1000RPM(optional);
Standard product, stocks available
Customization available to combine power/signal transmitting
Integrated structure design, easy installation.
Tailor the Unique Slip Ring for Your Project
We can customize the following specification as per your special requirement.
The most critical thing is that the conventional parts used in our slip ring are standard and modular, which can save your cost and lead time. The extra customization cost is only increased by 30%-50%, and the extra lead time will be only 3-15 days.
1.Cable exit way and cable length for both rotor and stator.
2.Length/Height/OD can be limited customized due of the structure.
3.Support current or signal up to 200 rings.
4.Aviation plug terminal and heat-shrink tube are optional
5.Hybrid slip ring for Yaskawa/Panasonic/Siemens servo control signal, power line and encoder line
6.Support mixed high speed data transmit including Ethernet, USB, Rs232, RS485, Profibus,Canbus, CANOPEN, DeviceNet, CC-LINK, ProfiNet, EtherCAT, etc
7.Combination temperature control signal with thermocouple signal available
8.Special environment, such as quake-prof, high temperature,etc.
9.Hybrid Pneumatic hydraulic and electric slip ring can be mixed.
10.High temperature up to 50 degrees.
11.High pressure up to 110KV
12.Rotating speed up to 10000PM
13.Maximum current up to 1000amperes.
14.Military grade
15.Optional for underwater IP65,IP68.
16.Optional for stainless steel housing
The most critical thing is that the conventional parts used in our slip ring are standard and modular, which can save your cost and lead time. The extra customization cost is only increased by 30%-50%, and the extra lead time will be only 3-15 days.
1.Cable exit way and cable length for both rotor and stator.
2.Length/Height/OD can be limited customized due of the structure.
3.Support current or signal up to 200 rings.
4.Aviation plug terminal and heat-shrink tube are optional
5.Hybrid slip ring for Yaskawa/Panasonic/Siemens servo control signal, power line and encoder line
6.Support mixed high speed data transmit including Ethernet, USB, Rs232, RS485, Profibus,Canbus, CANOPEN, DeviceNet, CC-LINK, ProfiNet, EtherCAT, etc
7.Combination temperature control signal with thermocouple signal available
8.Special environment, such as quake-prof, high temperature,etc.
9.Hybrid Pneumatic hydraulic and electric slip ring can be mixed.
10.High temperature up to 50 degrees.
11.High pressure up to 110KV
12.Rotating speed up to 10000PM
13.Maximum current up to 1000amperes.
14.Military grade
15.Optional for underwater IP65,IP68.
16.Optional for stainless steel housing
MT Through Hole Slip Rings
MOFLON MT2586 series through hole slip ring,hole size 25.4mm(suitable for shaft≤25.4mm),OD 86mm,housing material can be use plastic, aluminum alloy or stainless,is ingergal precision slip ring。It can stably transmit 2~36 circuits power circle(0-10A) or 2~72 circuit Signal circle(0-5A)
Excellent Technology for 15 years
Moflon specializes in manufacturing 360°rotating slip rings for 15 years
Redefining Cost Performance
Using advanced precious metal cluster brush multi-point contact, the reliability of contact can be guaranteed even under extremely low friction
Imported Raw Materials
Hard and wear resistant pressure, high temperature resistance, corrosion resistance, anti-aging
International Standard Quality
Always adhere to the most demanding military quality requirements, and implement the essence of German industrial process
standards
standards
MOFLON Strength
How a high-quality lever slip ring supplied by Moflon
A well-known manufacturer incl. R&D/Production/Sales, with 7,000㎡ own factory and over 300 employees. Main staffs have over 10 years of related technical experiences
Since founded. We believe quality and innovation are the life of our enterprise. We pay high attention to R&D, Raw Materials, Production, QC and After Sales Service for providing good products and services.
R & D
Moflon has a strong R & D team with 20 engineers over 10 experiences in this industry, have successfully developed more than 10,000 projects .
Production Capability
We have our own plastic injection factory and machining center, all the critical components made in-house, there are more than assemlby lines in our factory , which guarantee raw material internal control and the fast supply for your desired silp ring.
QA & QC System
There are more 15 steps QC process for your each slip rings in here.
Moflon is the only chinese comapny with level-5 slip ring testing laboratary.
Application & Project
Service Process
Success in project using slip ring technology means overcoming challenges in every area of your business. Challenges in design, production, cost control, delivery—the list goes on.
Moflon has been helping customers face their most pressing slip ring challenges for over 30 years. And we’ve revolutionized virtually every aspect of how high perfomance slip rings are designed, developed, and produced.
We can help you achieve improved performance while reducing your overall costs
Moflon has been helping customers face their most pressing slip ring challenges for over 30 years. And we’ve revolutionized virtually every aspect of how high perfomance slip rings are designed, developed, and produced.
We can help you achieve improved performance while reducing your overall costs
Exhibition & Customer
Packaging & Shipment
FAQ
How to customize the slip rings?
1. What kind of media do you wanna to transmit?
A: Electricity, gas, Ethernet, fiber optic or hybrid slip rings.
2. For electricity, the details should be provided as below:
a. Total wires? The max current of each wire?
b. How many circuits for signal? The frequency and signal type?
c. Whether the signal is sensitive, if sensitive, does it need shielded?
3. For gas or liquid, the details should be provided as below:
a. What's gas do you need to transmit? Is air?
b. How much pressure?
c. What's size of each port? is G1/4"?
d. What is the maximum torque of slip ring that you can accept?
e. How to install? shaft mounting? flange mounting? end of shaft mounting?
4. For Ethernet, the details should be provided as below:
a. 1000M or 100M?
b. Total wires? The max current of each wire?
c. How many circuits for signal? The frequency and signal type?
d. Whether the signal is sensitive, if sensitive, does it need shielded?
5. For fiber optic, the details should be provided as below:
a. Total wires?
b. Connector type?
c. Type of fiber optic?
d. If need electricity or signals, please answer the Q1.
6. What's the rotating speed and how long does it work continuously per day?
7. May i know the application area(working environment)of the slip ring first?
A: Electricity, gas, Ethernet, fiber optic or hybrid slip rings.
2. For electricity, the details should be provided as below:
a. Total wires? The max current of each wire?
b. How many circuits for signal? The frequency and signal type?
c. Whether the signal is sensitive, if sensitive, does it need shielded?
3. For gas or liquid, the details should be provided as below:
a. What's gas do you need to transmit? Is air?
b. How much pressure?
c. What's size of each port? is G1/4"?
d. What is the maximum torque of slip ring that you can accept?
e. How to install? shaft mounting? flange mounting? end of shaft mounting?
4. For Ethernet, the details should be provided as below:
a. 1000M or 100M?
b. Total wires? The max current of each wire?
c. How many circuits for signal? The frequency and signal type?
d. Whether the signal is sensitive, if sensitive, does it need shielded?
5. For fiber optic, the details should be provided as below:
a. Total wires?
b. Connector type?
c. Type of fiber optic?
d. If need electricity or signals, please answer the Q1.
6. What's the rotating speed and how long does it work continuously per day?
7. May i know the application area(working environment)of the slip ring first?
