Products Description
I. Product Overview
SFT3228S Multi-Channel encoder is a professional HD/SD audio & video encoding device. It has 8/16/24 HD inputs for option. Every 8 HD ports share one encoder module with each module supporting 1MPTS and 8SPTS output.
Its high integration and cost effective design makes the device widely used in varieties of digital distribution systems such as cable TV digital head-end, digital TV broadcasting etc.
II. Features
* 8 HDMI inputs with 8 SPTS and 1 MPTS output (each encoder module), max 24HDMI inputs
* MPEG4 AVC/H.264 video encodingformat
* MPEG1 Layer II, LC-AAC，HE-AAC audio encoding format and AC3 Pass Through,and audio gain adjustment
* IPoutput over UDP and RTP/RTSP protocol; 1 ASI out as mirror of MPTS (Optional)
* SupportQR code, LOGO, caption insertion (Language Supported: 中文, English, ية عرب ال,ไทย, , руская, اردو for more languages please consult us…)
* Support “Null PKT Filter”function
* Control via web management, and easy updates via web
* MPEG4 AVC/H.264 video encodingformat
* MPEG1 Layer II, LC-AAC，HE-AAC audio encoding format and AC3 Pass Through,and audio gain adjustment
* IPoutput over UDP and RTP/RTSP protocol; 1 ASI out as mirror of MPTS (Optional)
* SupportQR code, LOGO, caption insertion (Language Supported: 中文, English, ية عرب ال,ไทย, , руская, اردو for more languages please consult us…)
* Support “Null PKT Filter”function
* Control via web management, and easy updates via web

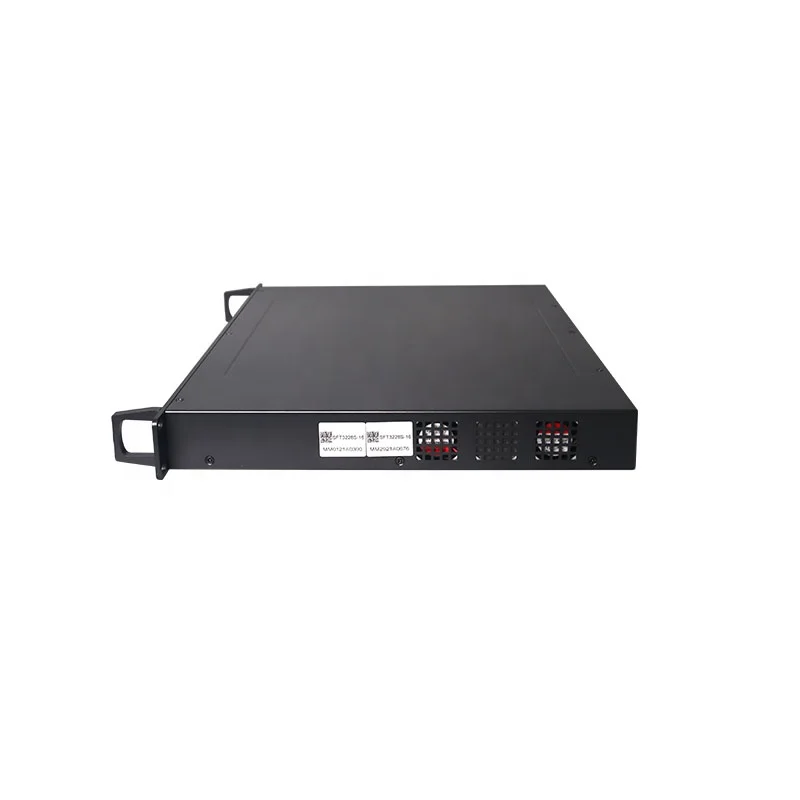

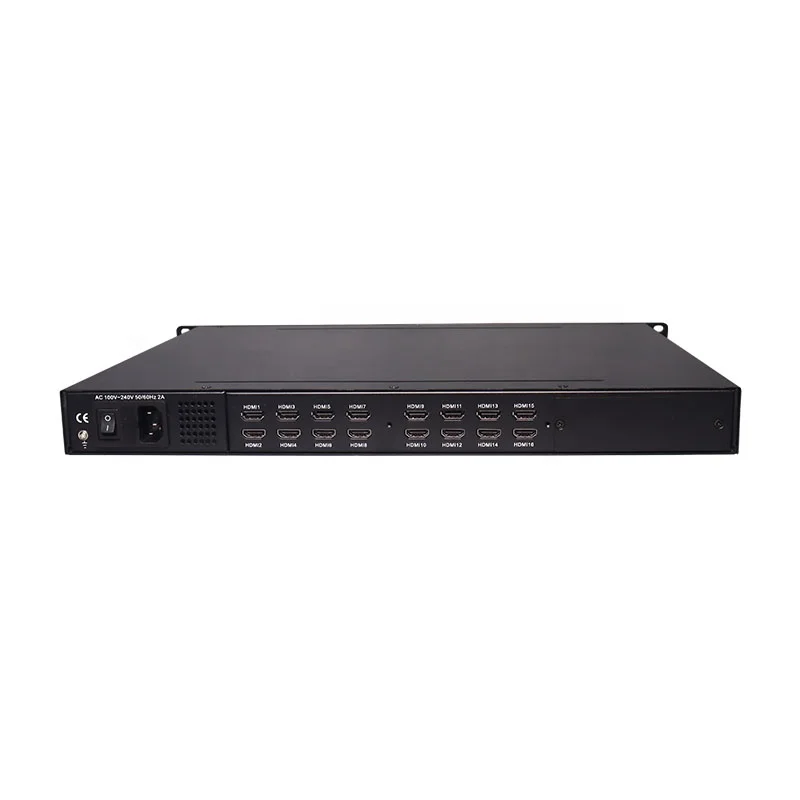

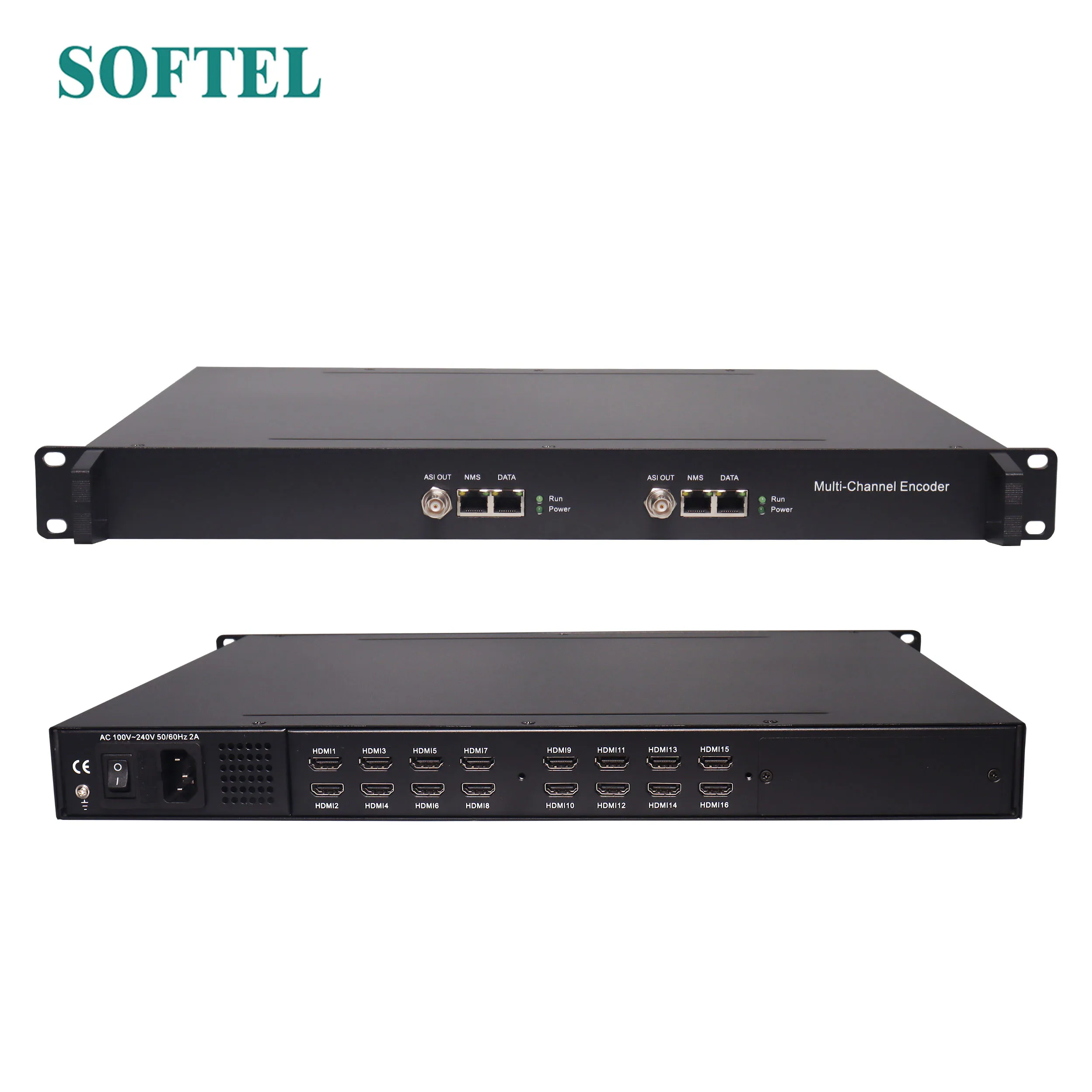

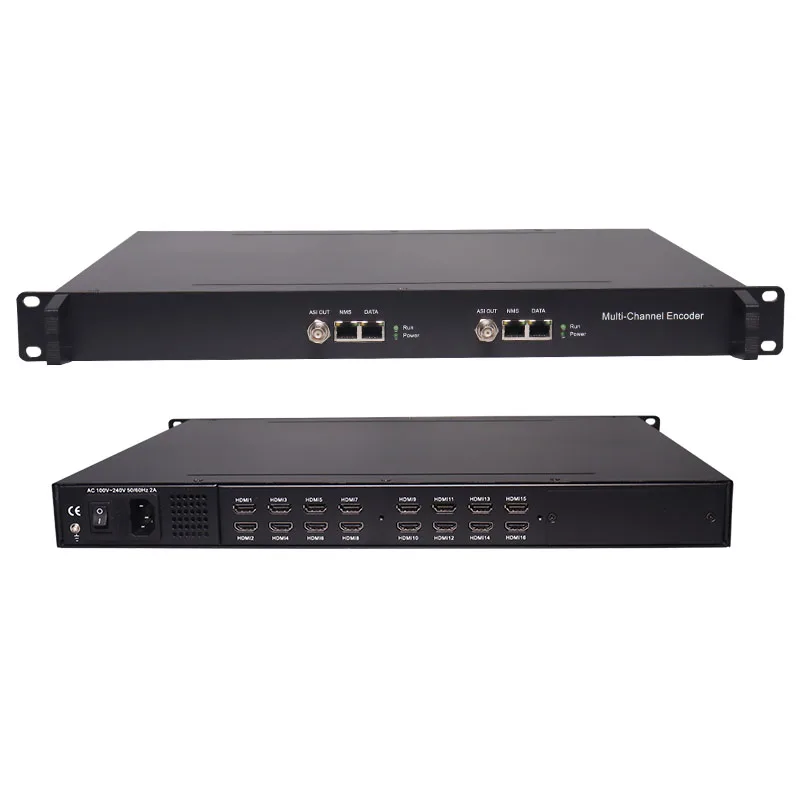

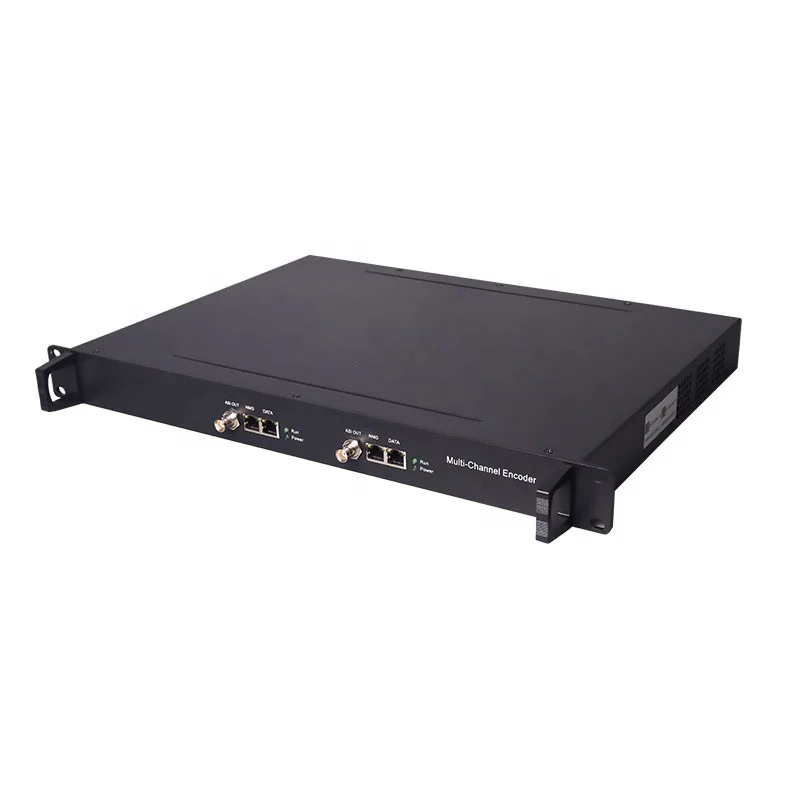

Details Images
Specification
Input | 8/16/24 HD inputs | ||||||
Video | Resolution | input | 1920×1080_60P, 1920×1080_60i, 1920×1080_50P, 1920×1080_50i, 1280×720_60P, 1280×720_50P, 720 x 576_50i,720 x 480_60i | ||||
Output | 1920×1080_30P, 1920×1080_25P, 1280×720_30P, 1280×720_25P, 720 x 576_25P, 720 x 480_30P | ||||||
Encoding | MPEG-4 AVC/H.264 | ||||||
Bit-rate | 1~13Mbps each channel | ||||||
Rate Control | CBR/VBR | ||||||
GOP Structure | IP…P (P Frame adjustment, without B Frame ) | ||||||
Audio | Encoding | MPEG-1 Layer 2, LC-AAC, HE-AAC and AC3 Pass through | |||||
Sampling rate | 48KHz | ||||||
Resolution | 24-bit | ||||||
Audio Gain | 0-255 Adjustable | ||||||
MPEG-1 Layer 2 Bit-rate | 48/56/64/80/96/112/128/160/192/224/256/320/384 kbps | ||||||
LC-AAC Bit-rate | 48/56/64/80/96/112/128/160/192/224/256/320/384 kbps | ||||||
HE-AAC Bit-rate | 48/56/64/80/96/112/128 kbps | ||||||
Stream output | IP output through DATA (GE) over UDP and RTP/RTSP protocol (8 HDMI inputs with 8 SPTS and 1MPTS output for each encoder board) 1 ASI out as mirror of MPTS (Optional as order) | ||||||
System function | Network management(WEB) | ||||||
Chinese and English language | |||||||
Ethernet software upgrade | |||||||
Miscellaneous | Dimension (W×L×H) | 482mm×328mm×44mm | |||||
Environment | 0~45℃(work)；-20~80℃（Storage） | ||||||
Power requirements | AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz | ||||||
