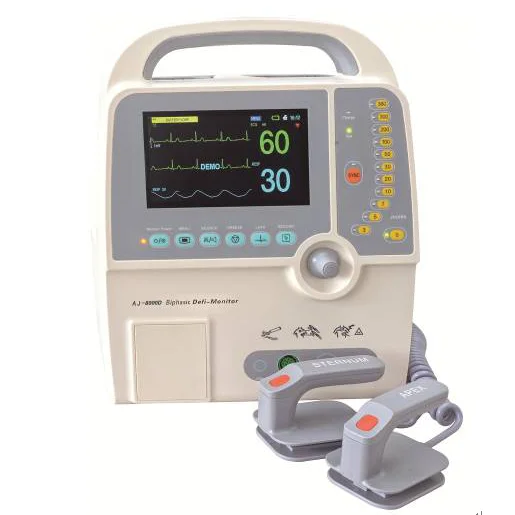

updated Portable Manual cardiac Defibrillator medical equipment (Biphasic Technology)defibrilator unit

Technical Specifications

Defibrillator

(1) Defibrillator type Manual, Synchronized, Asynchronized,

(2) Out put waveform Biphasic technology

(3) Energy accuracy ∠+1%

    (4)  Energy selection 0,3,5,7,10,20,30,50,100,200,300,360 joule(nominal at a resistance of 50)

(5) Charging time     Maximum 8 seconds to 360 Joules

(6)  Standard Adult/Pediatric Paddles   Reusable external adult paddles (pediatric paddles integrated)

Power requirements

(a) AC Power supply 110V, 60 Hz /220V,50 Hz

    (b) Vehicle Voltage             DC 12V

Internal Battery Backup

 (1) Battery type     Rechargeable lead-acid battery

(2) Charging time     Time-Minimum of 4 hours for full charging

(3) Battery charging      During AC Power Supply operation of the device.

(4) Charging /Low Battery Indication      Red LED

(5) Battery Capacity        100% of the battery will provide 120 mins of monitoring; and 30 discharges at 360 joules.

Display

LED Dimensions 7’diagonal {155mm*88mm}

Type High resolution true-color graphic LED

Resolution 480X234

ECG

ECG lead: Ⅰ, Ⅱ, Ⅲ, AVR, AVL, AVF, V1~V6, GND
S-T segment analysis: -2.0~2.0mv
Arrhythmia analysis: yes
Protection: With stand 4000vAc/50Hz voltage in isolation and work against electrosurgical knife and defibrillation

Respiration

Measurement method: Thoracic impedance

Standard Configuration

 ECG/ RESP/DEFIBRILLATOR

Optional Parameter

Built-in Printer

Physical Characteristics

Main unit: Portable

Dimensions: L320xW205xH410 mm

Weight: 9.5kg
