Экспорт в Германию низкочастотное Индукционное Кованое оборудование печь для заготовки нагрева установленная

Экспорт в Германию низкочастотное Индукционное Кованое оборудование печь для заготовки нагрева установленная

Категория товара: Metal Forging Machinery >>>
Поставщик (Оптовый магазин): Chengdu,Duolin,Electric,Co.,Ltd.

Цена:28 000,00 $ - 30 000,00 $

Стоимость в USD:Узнать цену

Количество:

Купить

В избранное

Описание и отзывы

Характеристики

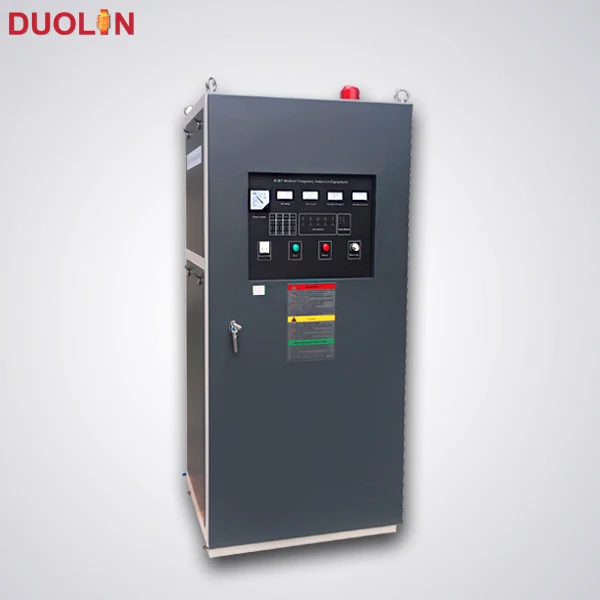

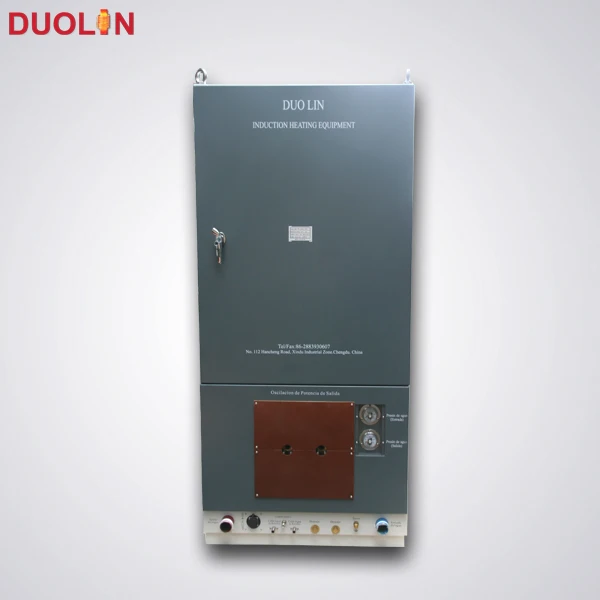

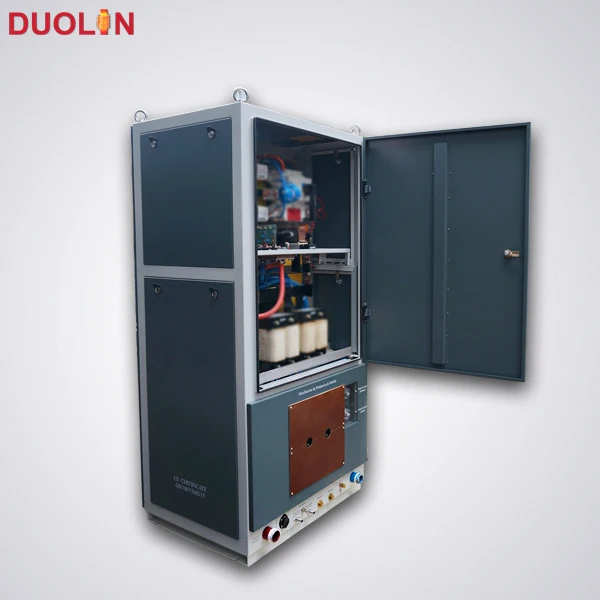

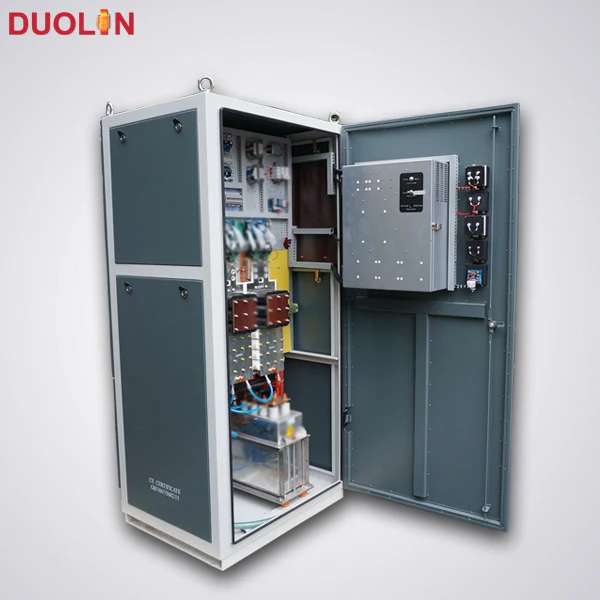

induction heating machine

CE certificated medium frequency induction forging equipment

Application

1. Material Heating:(magnetizer) mainly Carbon Steel,Stainless Steel,Alloy,Brass,Aluminum etc.

2. Position Forging: Whole and Partial induction forging

3. Work-piece hot forging and forming: Standard parts, fasteners, master pieces, small hardware, round bar and billet etc.

4. Specific application cases: bolts and nuts forging and hot upsetting, pipe induction forging and forming, auto parts (connecting rod, crank shaft etc.),cast iron beam heating and continuous heating, oxygen bottle forging, rivet heating, long round,square and angle bar and billet heating etc.

Feature

Induction heating technology is increasingly being used for industrial forging applications because it offers an unbeatable combination of speed, consistency, control and efficiency.

DUOLIN offers induction forging machine used for heating a wide range of bar and billet diameters. DUOLIN induction power supply is the latest generation; help you benefiting from the forging industry.

No combustible gases

Heating rapidlyreduce oxide skin on billet

Improve the working environment

Uniform heating temperature increases die life

Continuously working, 24 hours non-stop

Be Started up 100% at any load

Less interference to others equipment in workshop (Proved by CE)

IGBT inversion technology &LC series circuit design achieve energy saving up to 15%-30% compared with SCR technology

Easy to operate and maintain

Technique Parameters

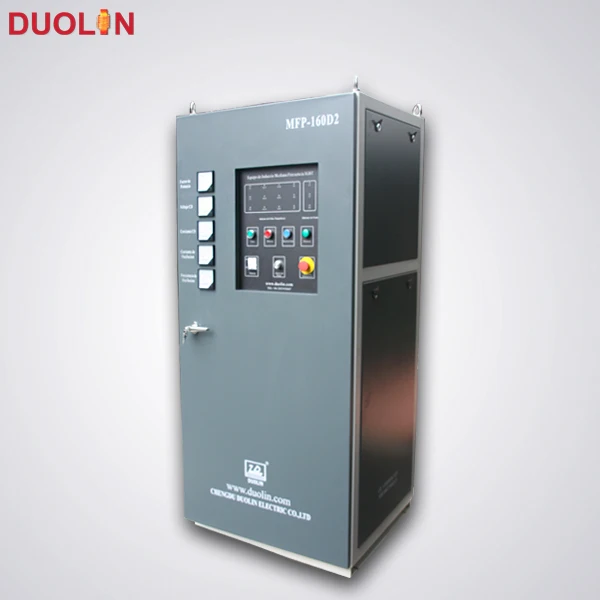

MFP	100D2	160D2	250D2	350D2	500D2	600D2	750D2
Rod diameter (mm)	25-50	25-70	30-100	40-140	40-140	50-160	60-200
Rates (T/h)	0.2-0.25	0.3-0.37	0.7-0.75	0.9-1	1.4-1.5	1.9-2	2.9-3
Rated output power	100 KW	160 KW	250 KW	350 KW	500 KW	600 KW	750 KW
Power Capacity	140KVA	230KVA	340KVA	450KVA	610KVA	750KVA	930KVA
Input current	150A	240A	375A	525A	750A	1000A	1125A
Frequency Range	0.5-10 KHz			0.5-8 KHz		0.5-6 KHz
Input Power	380V/50Hz 3phases 4lines (1 neutral line)
Duty Cycle	24houts non-stop
