GRP Composites Polymer Resin Manhole Cover

Product Description

Description of manhole cover weight/bmc manhole cover

characteristic
Brand Name	SINTA
Model Number	ST-M02
Application	Green Belt, Sidewalk, ETC,Highway,Farm
Surface Treatment	Anti-Slip, anti-UV
Technique	mould pressing
Dimensions	450mm-900mm dia as well as square manhole from 500mm-900mm
Material	SMC/ BMC
Shape	round and square
Size	customized
Color	black, grey, green,yellow, orange and etc
Weight	half weight of cast iron manhole cover
Working Temperature	-40°C-200°C
Service Life	more than 30 years
Working Condition	Anti Corrosion
Conduction	Non-electricity conduction and non-heat conduction
Noise	Less noise and lower vibration
Packaging Details	wooden pallet, carton,wooden case and we can also as per customer's request
Packaging Details		Delivery Detail	within 20 days after receiving the advanced payment
Specifications	1. SMC/BMC material
	2. round and square shape
	3.A15,B125,C250,D400,class
	4. long use life

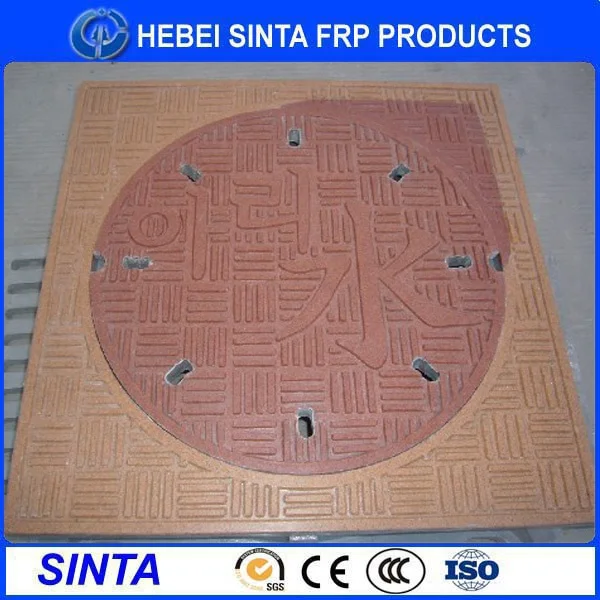

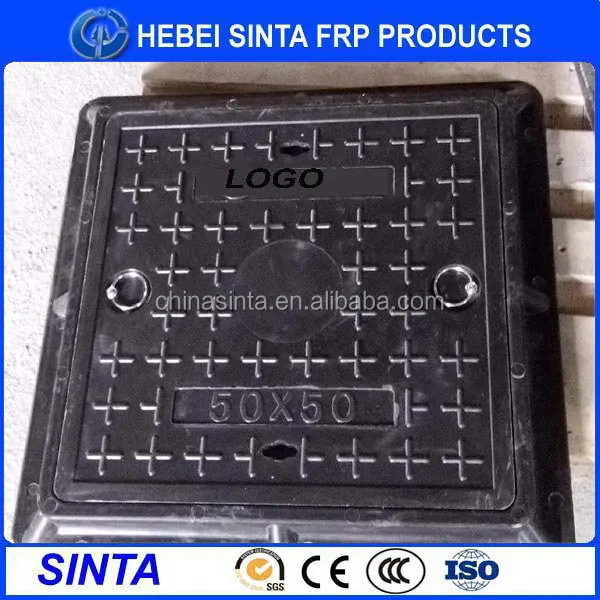

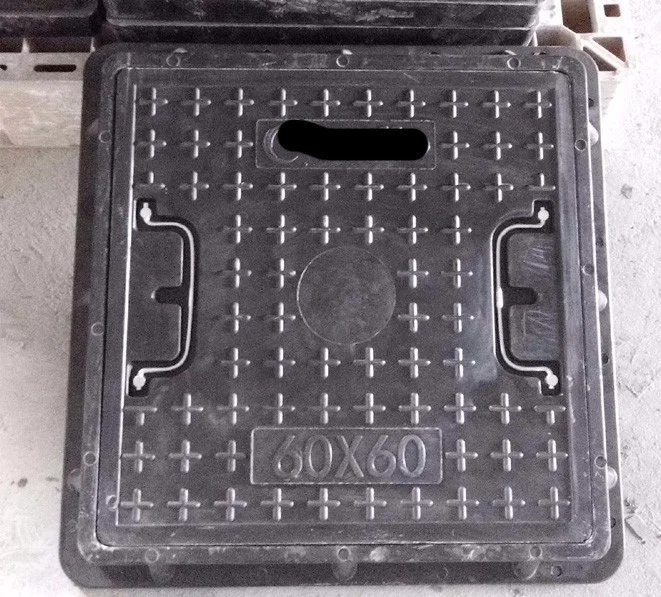

Picture of manhole cover weight/bmc manhole cover

Application

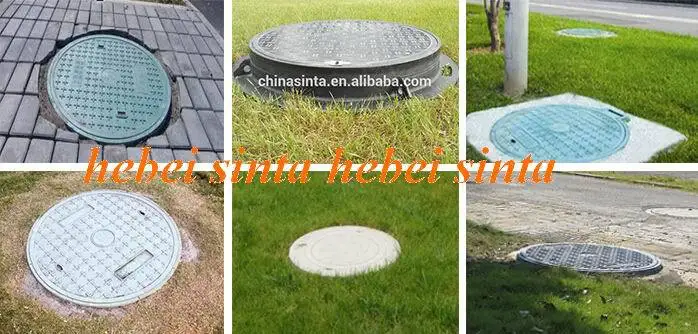

Application of GRP Composites Polymer Resin Manhole Cover

a. Underground Electrical Installations: Draw pits, Traffic lights, Street lighting, Fiber optic cable ducts;
b. Telecommunications: Connection chambers, Water, Gas, Petrol-chemical installations.
c. Urban Building Solutions: Pedestrians and comparable areas, Car parking decks, Gully tops.
d. Road Construction: Road cover and the load is suit for all the road vehicles.

Specification of GRP Composites Polymer Resin Manhole Cover

All the sizes of manhole covers are available in the following load bearings:
1. 5 tons (A 15) / 2.5 tons / 5 tons / 10 tons / 12.5 tons (B 125) / 20 tons / 25 tons (C 250) / 40 tons (D 400)

Place of Manhole Cover Installation:

The appropriate class of manhole covers or gully gratings to be used depends on the place of installation.The various places of installtion have been dvided into groups numbered 1 to 6, as listed below.Figure 9a and figure 9b show the location of some of these groups in a highway envionment.

Group 1(min.class A15)

Areas which can only be used by pedestrians and pedal cyclists.

Group 2(min.Class B 125)

Footways,pedestrian areas and comparable areas,car parks,or car parking decks.

Group 3(min.Class C 250)

For gully tops installed in the area of kerbside channels of roads(Figure 9a) which when measured from kerb edge,extend a maximum of 0.5m into the carriageway and a maximum of 0.2m into the footway.

Group 4(min Class D400)

Carriageways of roads(including pedestrian streets),hard shoulders(Figure 9b) and parking areas, for all types of road vehicles.

Group 5(min. class E600)

Areas imposing high wheel loads,e.g. docks,aircraft pavements.

Group 6(min. class F900)

Areas imposing particularly high wheel loads,e.g. aircraft pavements.

Circular	Rectangular	Square
300 mm	300 mm x 270 mm	300 mm x 300 mm
400 mm	600 mm x 450 mm	400 mm x 400 mm
500 mm	700 mm x 500 mm	450 mm x 450 mm
600 mm	800 mm x 450 mm	500 mm x 500 mm
690 mm	900 mm x 450 mm	600 mm x 600 mm
900 mm	900 mm x 600 mm	675 mm x 675 mm
1000 mm	990 mm x 1220 mm	750 mm x 750 mm
1100 mm	950mm x 750mm & 600mm x 750mm	800 mm x 800 mm
1100 mm	(2 covers with single frame)	800 mm x 800 mm
	675 mm x 2210 mm	900 mm x 900 mm
	(3 covers with single frame)	900 mm x 900 mm
	675 mm x 1440 mm	900 mm x 900 mm
	(2 covers with single frame)	(2 covers with single frame)
	800 mm x 1600 mm	1000mm x 1000mm
	(2 covers with single frame)	1000mm x 1000mm
		1200mm x 1200mm
		1500mm x 1500mm

Advantages

Advantages of GRP Composites Polymer Resin Manhole Cover

Reasons for choosing FRP Manhole Covers over other ordinary covers are :

100% waterproof, corrosion free material with zero scalp value
Light in weight & easy to handle
Available in different granite finishes
Can withstand heavy loads of traffic

Our advantages for GRP Composites Polymer Resin Manhole Cover

(1) 4years' experience in fiberglass product trading, have good knowledge on process, quality control, request on different products, ready to offer international service for you.

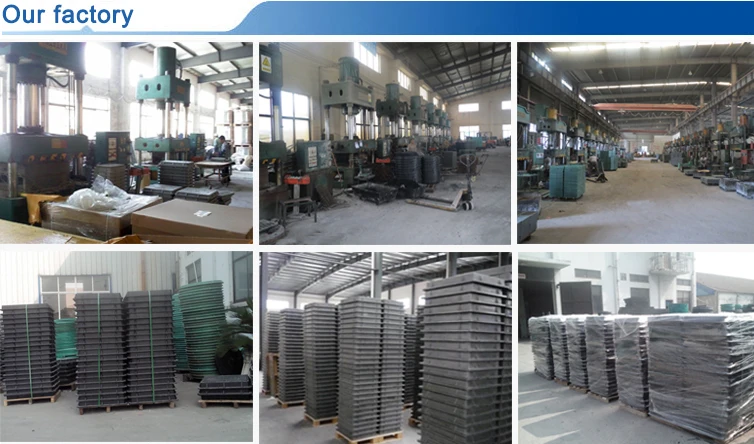

(2) Complete production line from fiberglass sheet to mould and finished products,which keeps a better quality control and will also save cost for you.
(3) Hydraulic Press Machines with capacity from 60 to 2000 tons, which enable us to make products with maximum projected area of 4 square meters, so that we can meet your different size requirements.
(4) 150km away from Shanghai Port, which will shorten the delivery time and save freight cost for you.

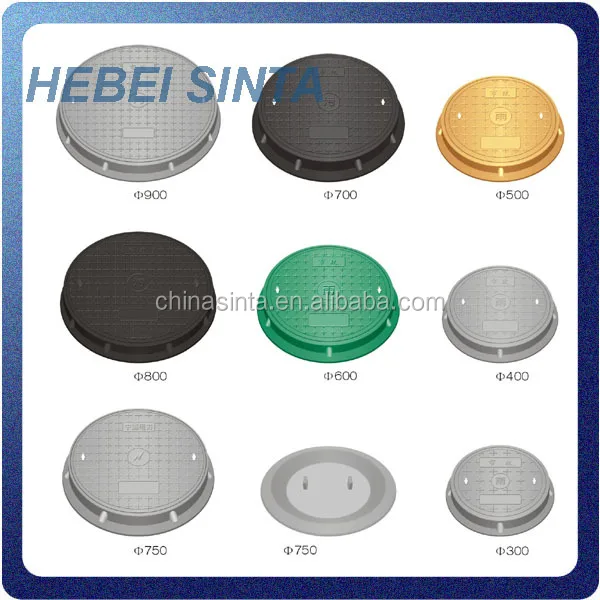

More products

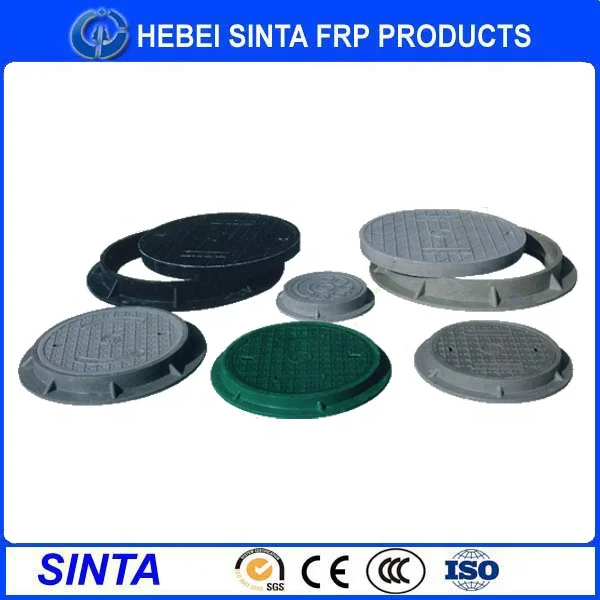

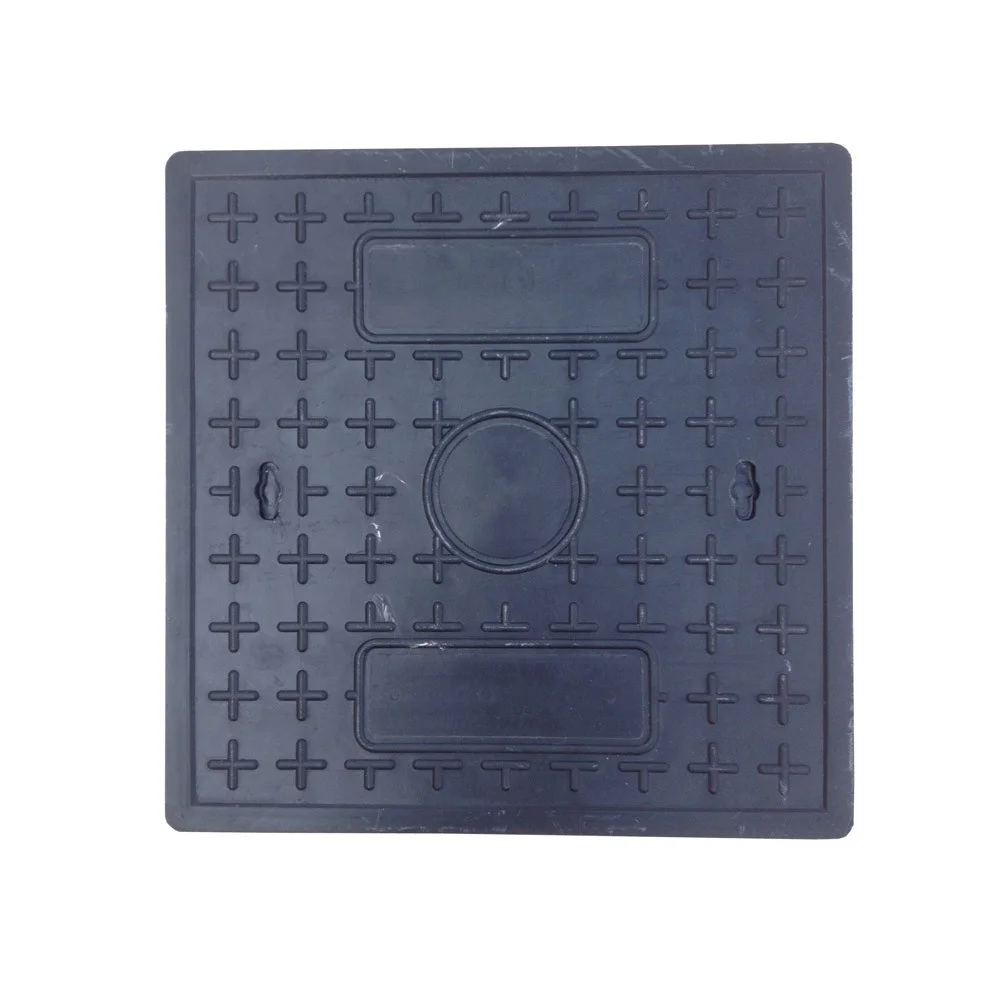

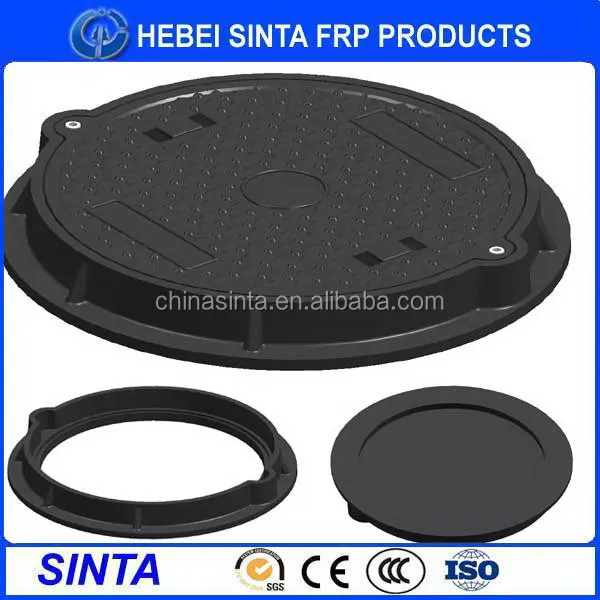

More FRP manhole covers for reference, color can be black,grey,green,etc.

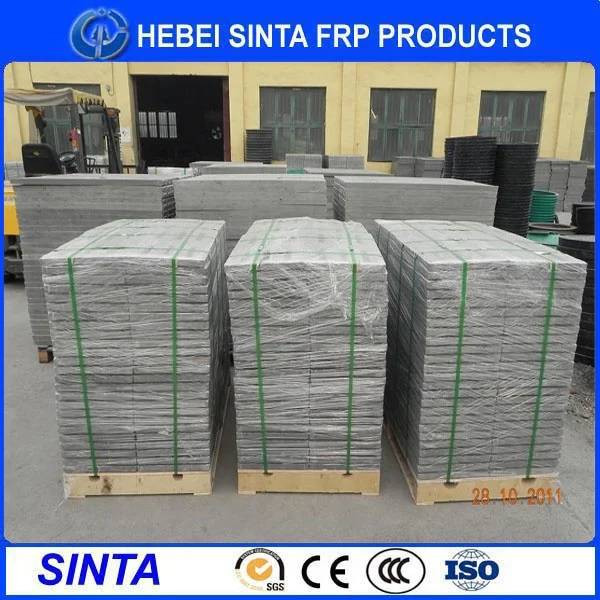

Packaging & Shipping

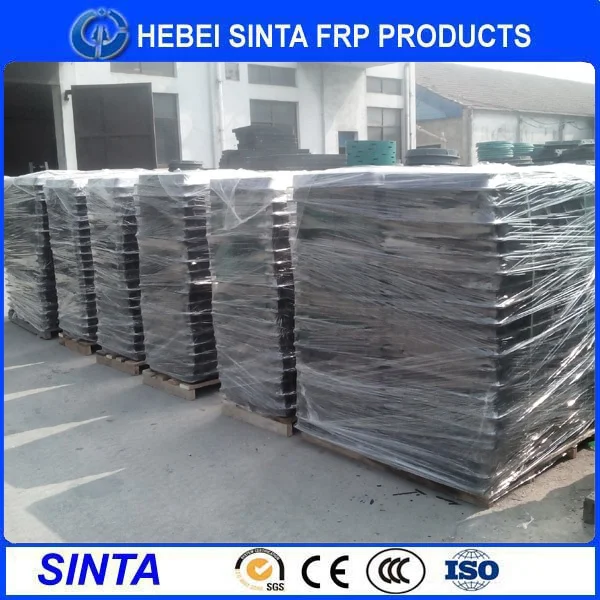

Packaging Detai of composite manhole cover:

Product packaging by the standards of each country.

From plastic packaging,to a high standard and packed into wooden trays vary in size,depending on the quantity purchased custom space-saving purposes.

Delivery Detail:leadtime within 30days

Our staff will supply you good quality with excellent service.

FAQ

1.What color can you produce?

Black, blue, brick red, green, grey etc. If you need special color, please provide sample.
2.How about the delivery time?
Lead time since receipt of 30% T/T deposit payment: 15days
Samples will be prepared within 5days.
3.What's the MOQ and payment you support?
Generally speaking the MOQ is 1tonne,but we also can provide you samples for quality inspection.
T/T,L/C,Cash are accpeted
4.Does you charge for the samples?
According to our company policy, we just sent free samples to customers while the customers bear the freight fees.
5. Can you produce according to customers'design?
Sure, we are professional manufacturer,OEM are welcome . But the beginning you need pay the mould open fees,after certain quantity, the open mould fees will be returned as product.
