Машина для резки и зачистки проводов

Описание и отзывы

Характеристики

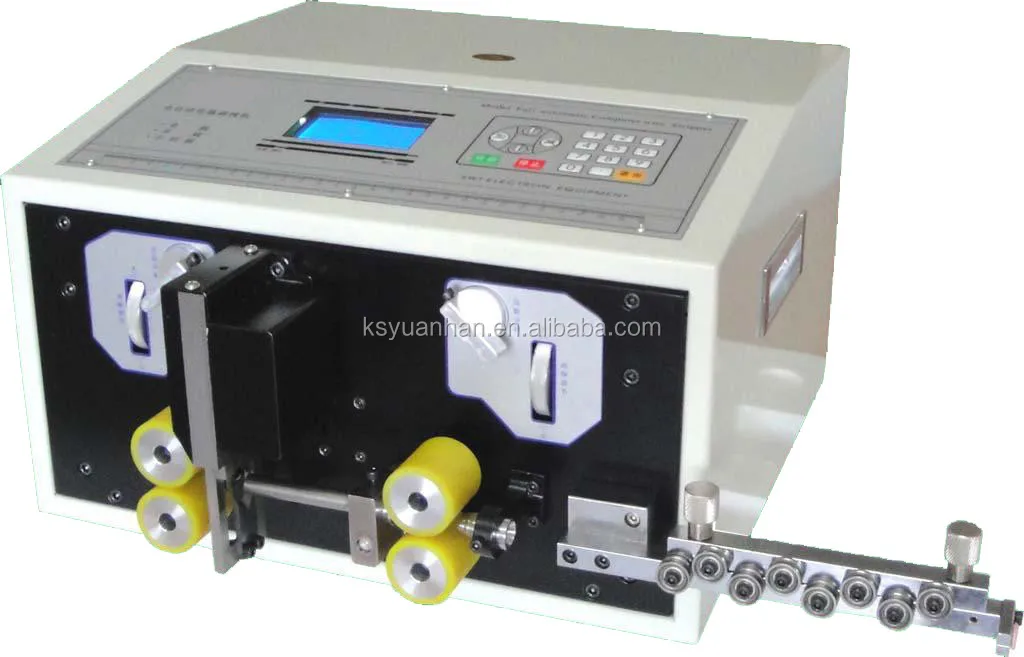

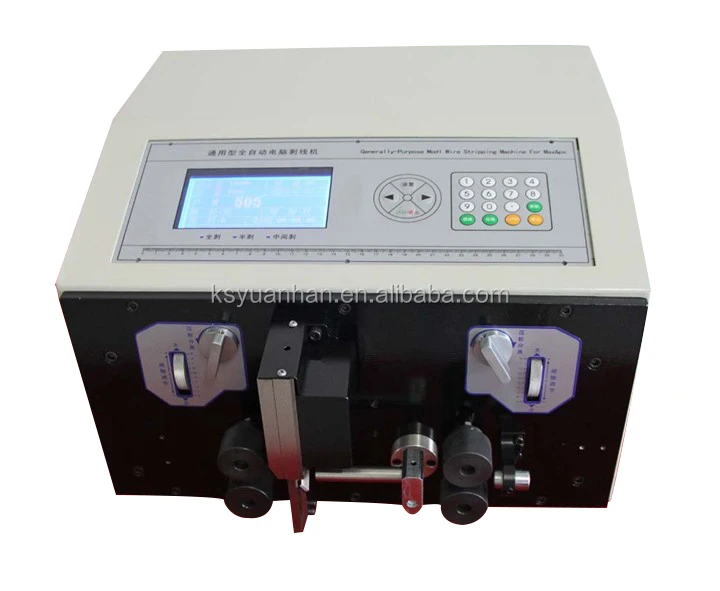

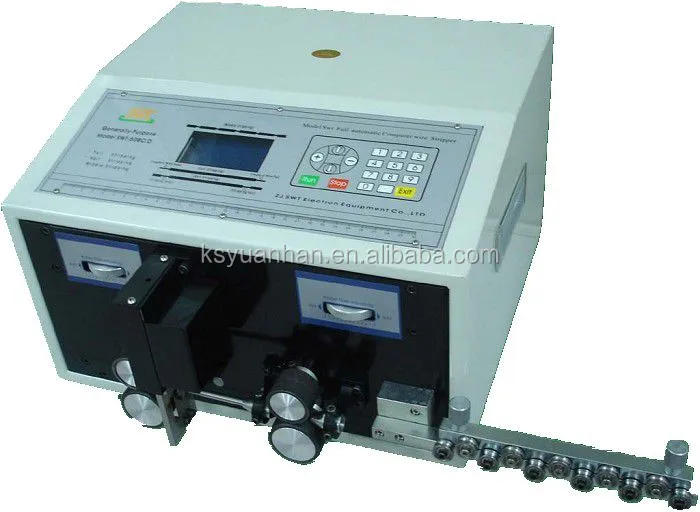

wire and cable cutting and stripping machine

Mechanical and electrical. Microcomputer for the integration of the fully automatic computer wire stripping machine is a kind of the introduction of Japan, Taiwan and other advanced technology of automatic numerical control equipment. Widely used in electronic industry, automobile industry, electrical appliances, motors, lamps, toys and other kinds of wiring harness processing products. Optimum strip wire line with PVC/silicone /. Glass fiber, etc. This product USES LCD screen people dialogue mode, has a beautiful appearance, simple operation, convenient maintenance, stable performance, fast speed, high precision characteristics. Wire length can be set freely, according to the customer request to modify, can strip wire of different thickness, also have to row lines, sheathed cable, power cable and casing shear and other functions.

Parameters:

Specifications:
Available Wire Size: 0.2 - 2.5mm²

Conduit Diameter: Φ6mm
Cutting Length: 1 - 9999mm
Stripping Length: Head 0 - 35mm, Tail 0 - 15mm
Memory Function: Can store Max. 99 group programs
Max. Middle Stripping Section: 11
Cutting Tolerance: ±(0.002×L) (L = Cutting Length)
Peel linear velocity (per hour) : L = 100 mm, 3000-8000 PCS/h (high yield)

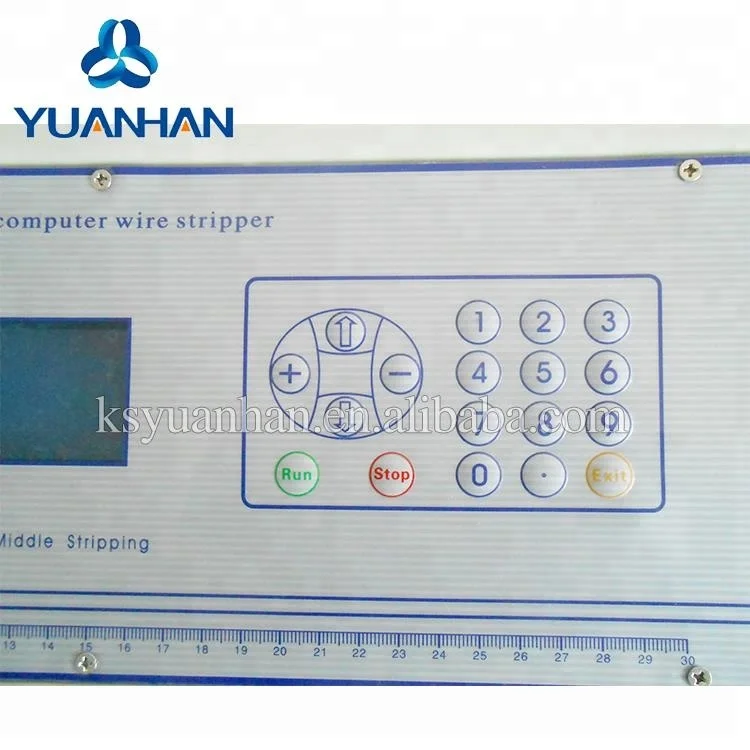

Display: LCD display with english menu
Drive Mode: two wheels drive
Blade Material: Hard tungsten steel
Appropriate Wire: Suitable for kinds of wires, such as PVC, glass wires etc.
Power Supply: 220V/50Hz 110V/60Hz
Power Rating: 160W

Size: 390X350X255mm

Weight: 31kg.

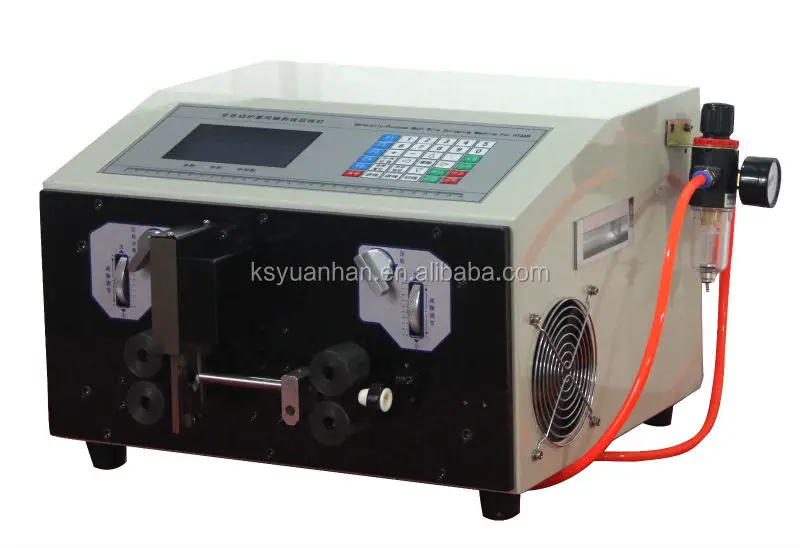

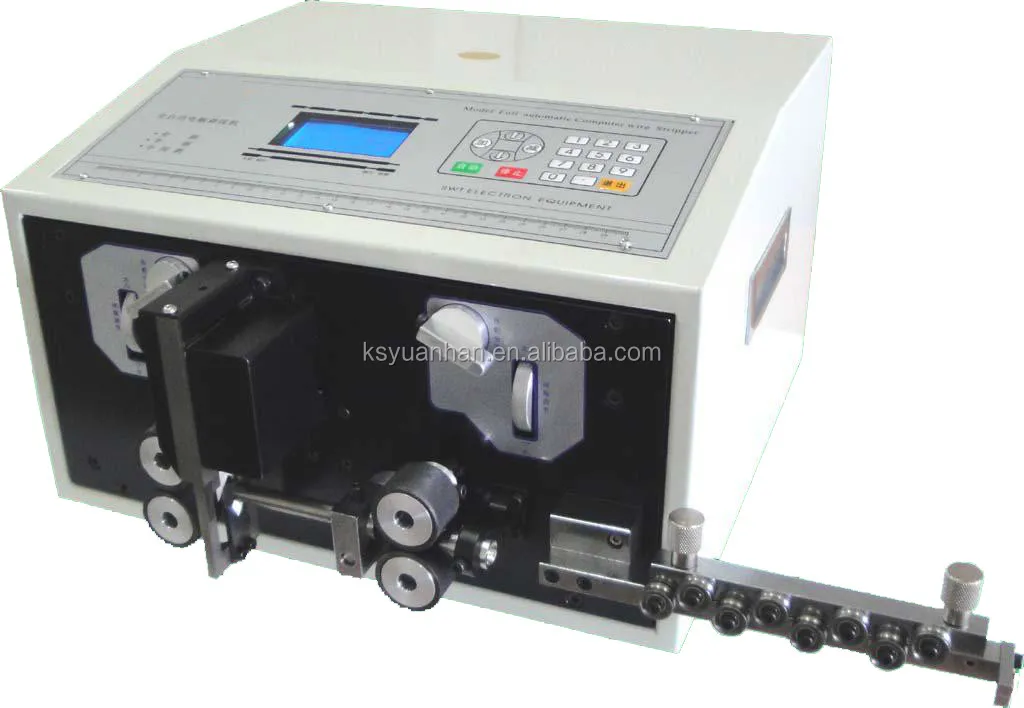

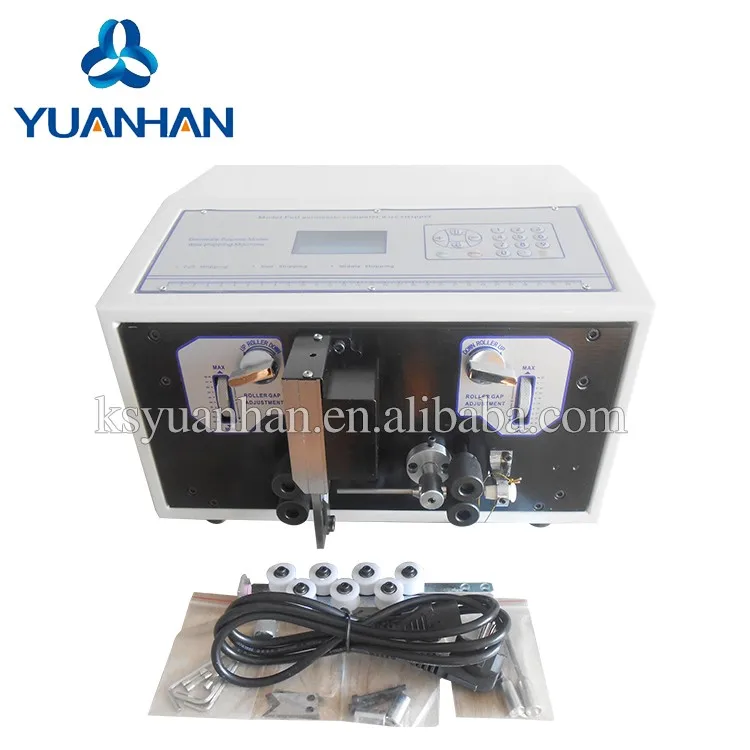

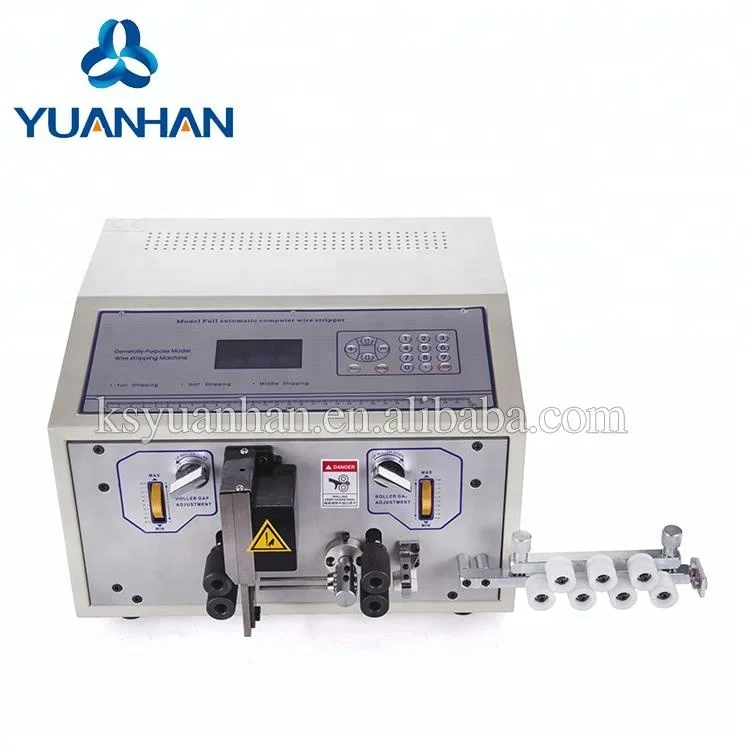

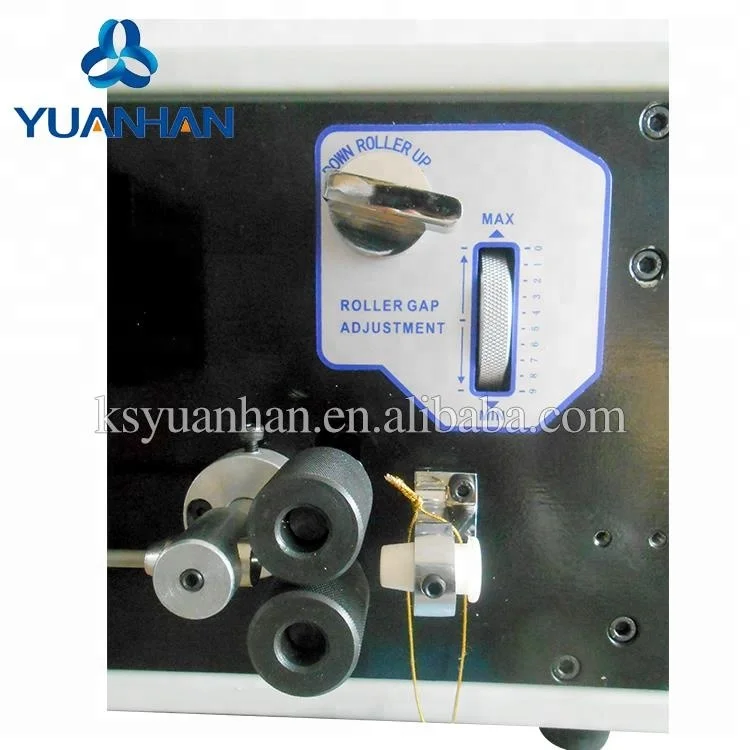

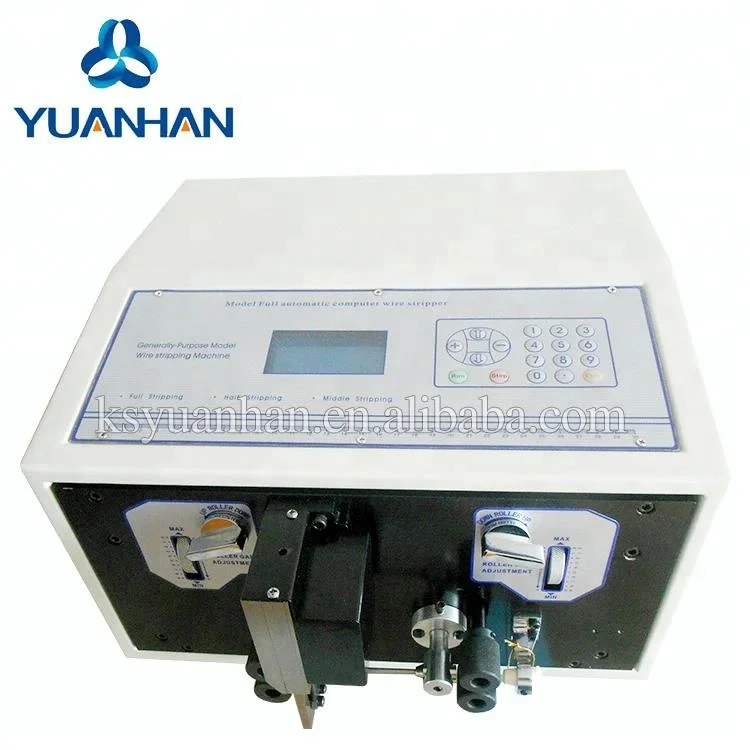

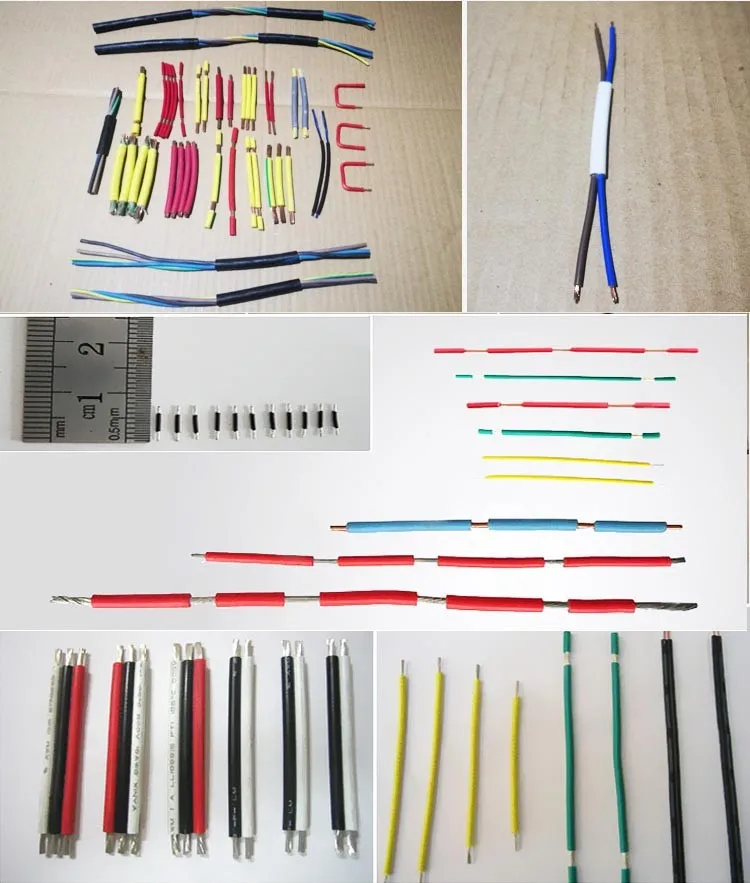

SHOW PICTURES FOR YOU !

Certificate

We Provide

We are one of the most professional Chinese machine' manufacturers and leaders.

· Best products and factory price.

· On-time delivery and the shortest delivery time.

· 1year warranty. If our products cannot function properly within 12 months, we’ll offer spare parts for free; and you need to pay for the delivery.

· OEM and customized service.

· User manuals will go with relative machines.

Service

· QC: All products will be checked before delivery.

· Compensation: If any unqualified product is found, we’ll pay the compensation or send new qualified products to customers.

· Maintenance & Repair: In case of any maintenance or repair need, we’ll help to find out the problem and offer relative guidance.

· Operation Guidance: If you have any problem with operation, please feel free to contact us.
