SAFM-800B Двусторонняя термоусадочная пленка полностью автоматическая машина для производства бумажных ламинатов
- Категория товара: Оборудование для пресса >>>
- Поставщик (Оптовый магазин): Wenzhou,Kingsun,Machinery,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

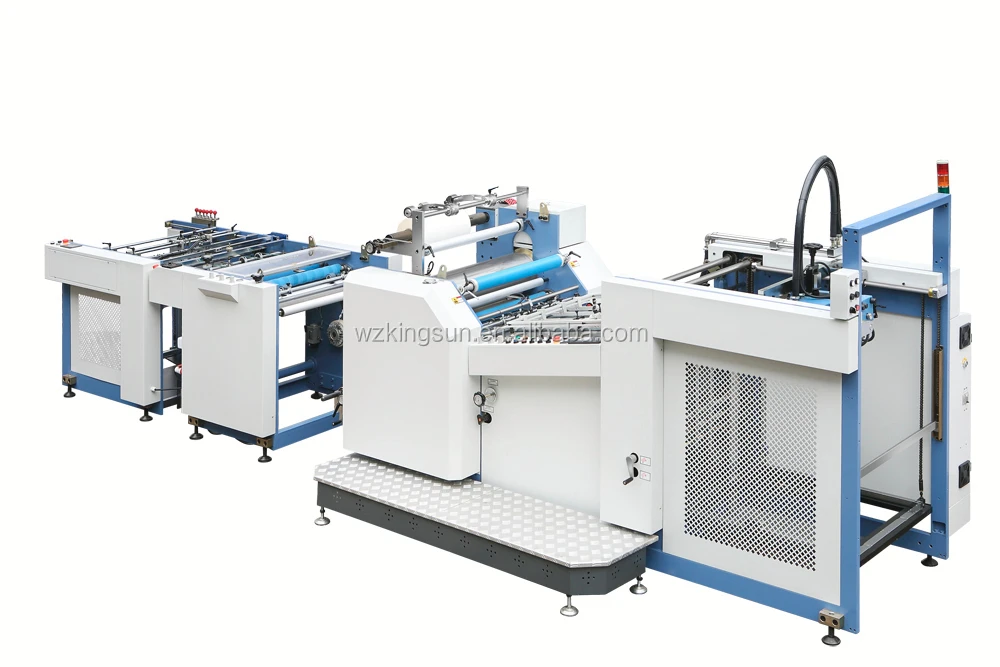

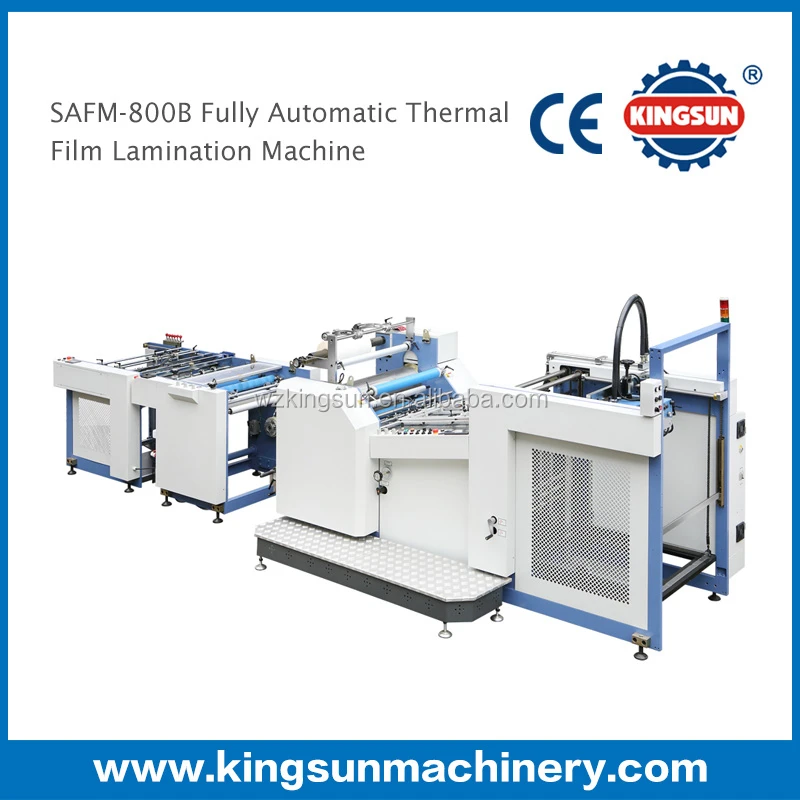

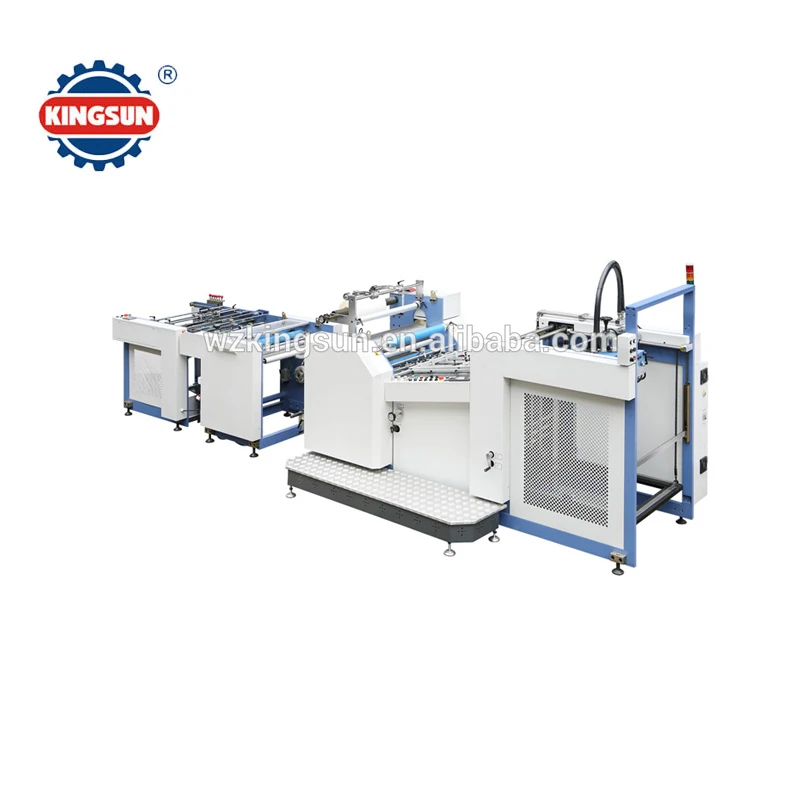

SAFM-800B double side thermal film fully automatic laminating machine
This series film laminating machine specially designed for two side thermal film fully automatic laminating at one time, so the printed materials can double side heat press laminating at one process. This model with cutting-edge technology and world top brand components to make sure the first class quality. It has been exported to more than 30 countries for high quality required post printing converting.
Features of laminating machine:
1.Able to single or double lamination for glueless film and thermal film.
2.Automatic paper feeder with oil-free vacuum pump to ensure the automatic paper feeding.
3.Man- machine interface system: color touch screen, easy for operation; it realizes automatic operation after directly data input for paper size, overlap length and working speed, working status can be tracked via the screen.
4.Automatic paper feeding system equipped with photocell detector and machine automatic stops to self- protection while short of paper, dual paper or paper breaks.
5.The upper heating roller is hot oil circularly heated, the lower heating roller is with casted aluminum heater, independent temperature control, which ensures the temperature constantly and makes it precise for the double lamination.
6.Automatic hydraulic system ensures the stable pressure and the lamination quality.
7.Air shaft convenient for film loading & unloading, the lower film loading device equipped with air brake both for film loading & film rewinding while for single side lamination.
8.Pneumatic sheet cutting system able to have sheet laminated paper.
9.The receiving table equipped for the sheet laminated paper
Technical specifications:
Model | SAFM-800B |
Max. paper size | 800 x 1040mm |
Min. paper size | 300 x 300mm |
Working speed | 50m/min (single); 40m/min (double) |
Paper thickness | 100-500g/m2 |
Total power | 37kw |
Dimensions | 6200 x 1600 x 1900mm |
Machine weight | 3000kgs |
FAQ
1.How to place an order with Kingsun Machinery
It is quite easy for the procedures of placing an order with Kingsun machinery. 1) Firstly our sales team (together with engineers) will discuss with you about the technical requirement, 2) After finalized the specification, we will issue you a proforma invoice or contract, then you make deposit and we start the production. 3) When we finish the production, we will send you video or photos for check, if everything is fine, we test run the equipment again before shipment and then prepare the shipment for you. 4) You make the payment, we ship the goods to the address you given. 5) You receive the machines, we start after sale service. For example, we send technician to visit your factory for installation etc.
2.What are the customers more care about?
Kingsun machinery has established good relationship with thousands of buyers from all around the world since 12 year ago. Good service and quality of equipment is most important for the buyers, we are focus on providing first class service for the buyers.
3.How does Kingsun company help you ?
We help you to choose suitable models, fit for your production. We are trust worthy company so you no need to worry about the safe of payment, no worry about machine quality and after sale services etc.
4.Why choose Kingsun company as your partner in China?
Professional service, honesty and reliable is our philosophy, win-win cooperation, we take much care of you and in view of long term relationship!
