Станция для автоматической сварки труб
- Категория товара: Other Welding Equipment >>>
- Поставщик (Оптовый магазин): Shanghai,Qianshan,Piping,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
n Piping Automatic Welding Work Station(C- type)
u Model: PAWWS-24C
u Performance features

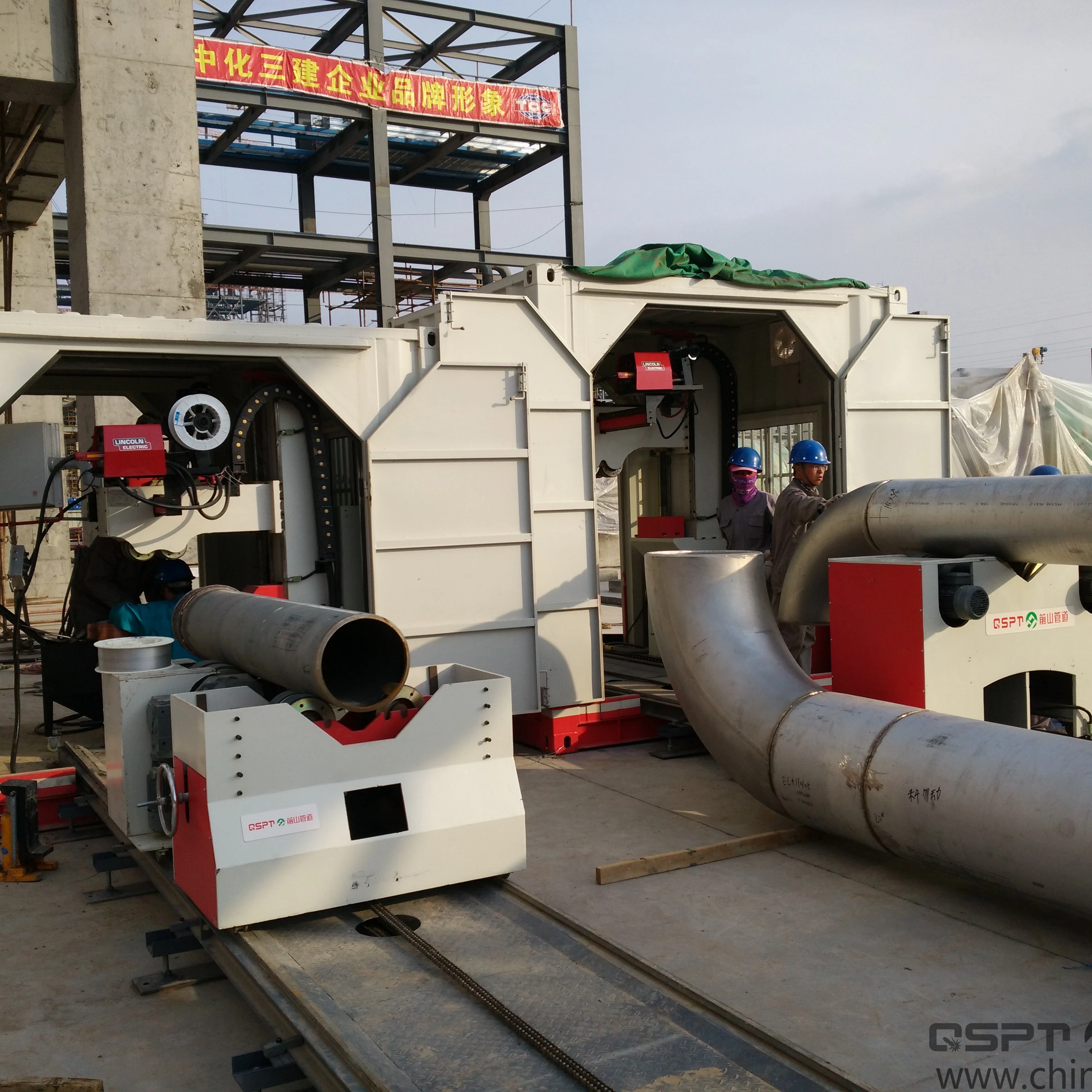

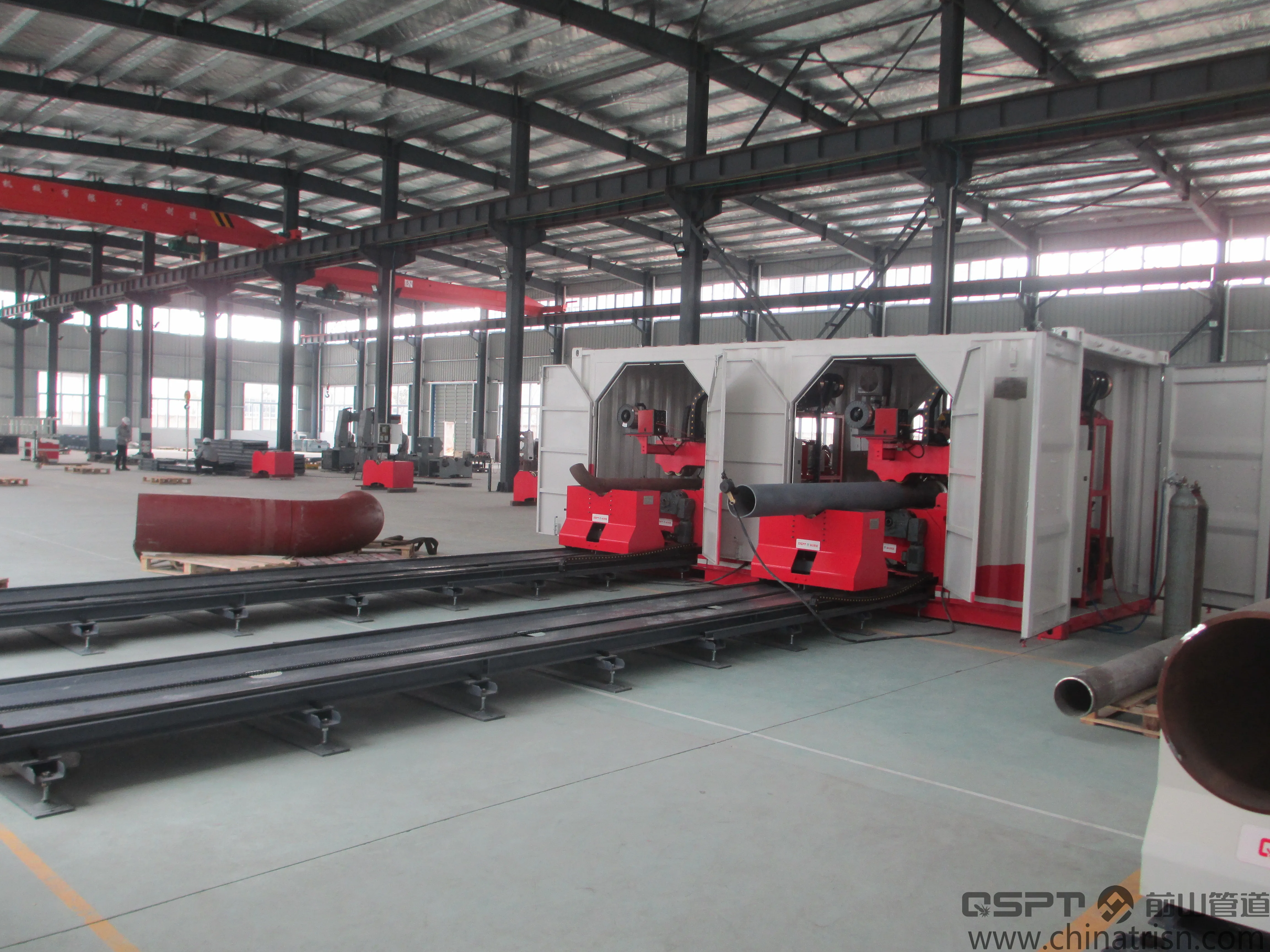

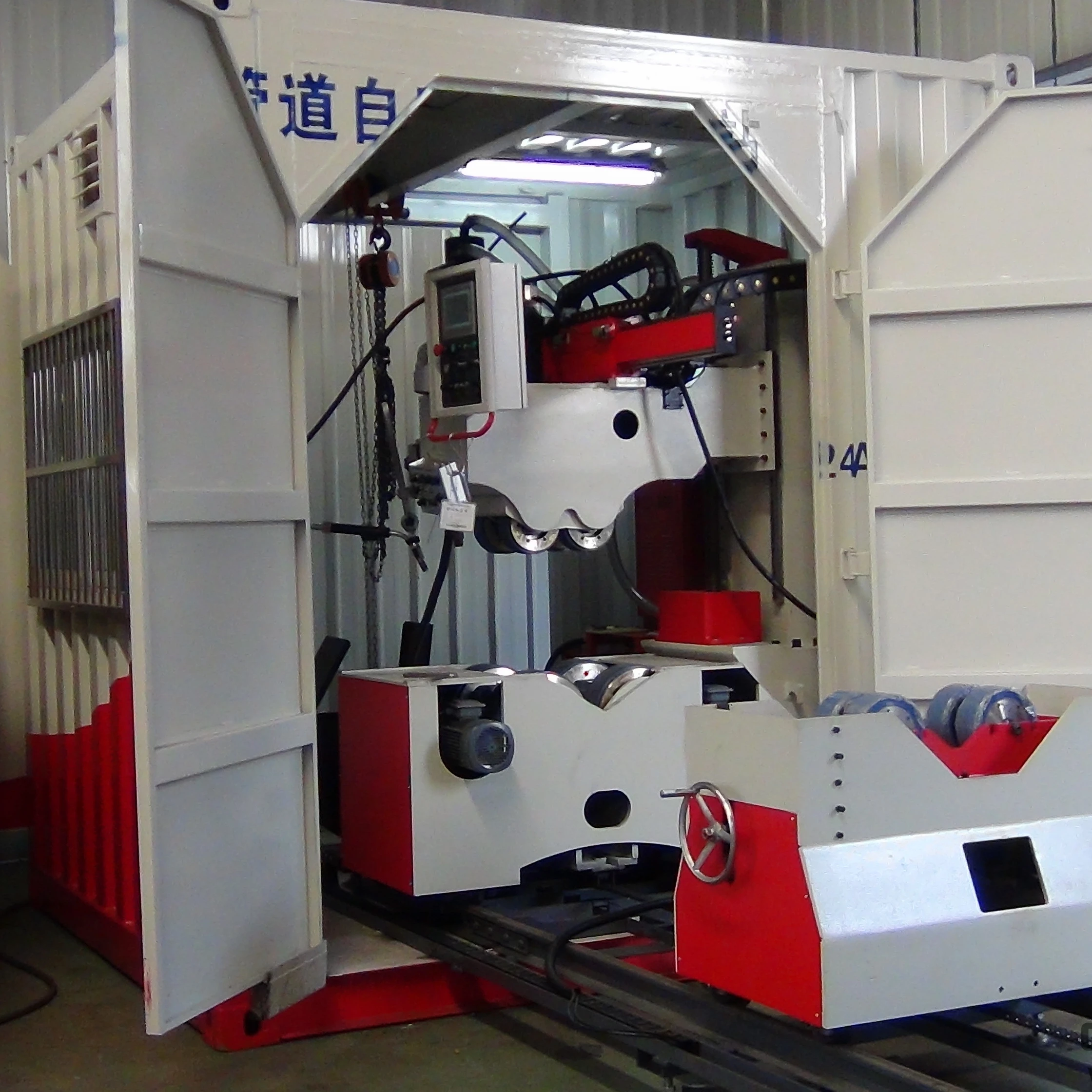

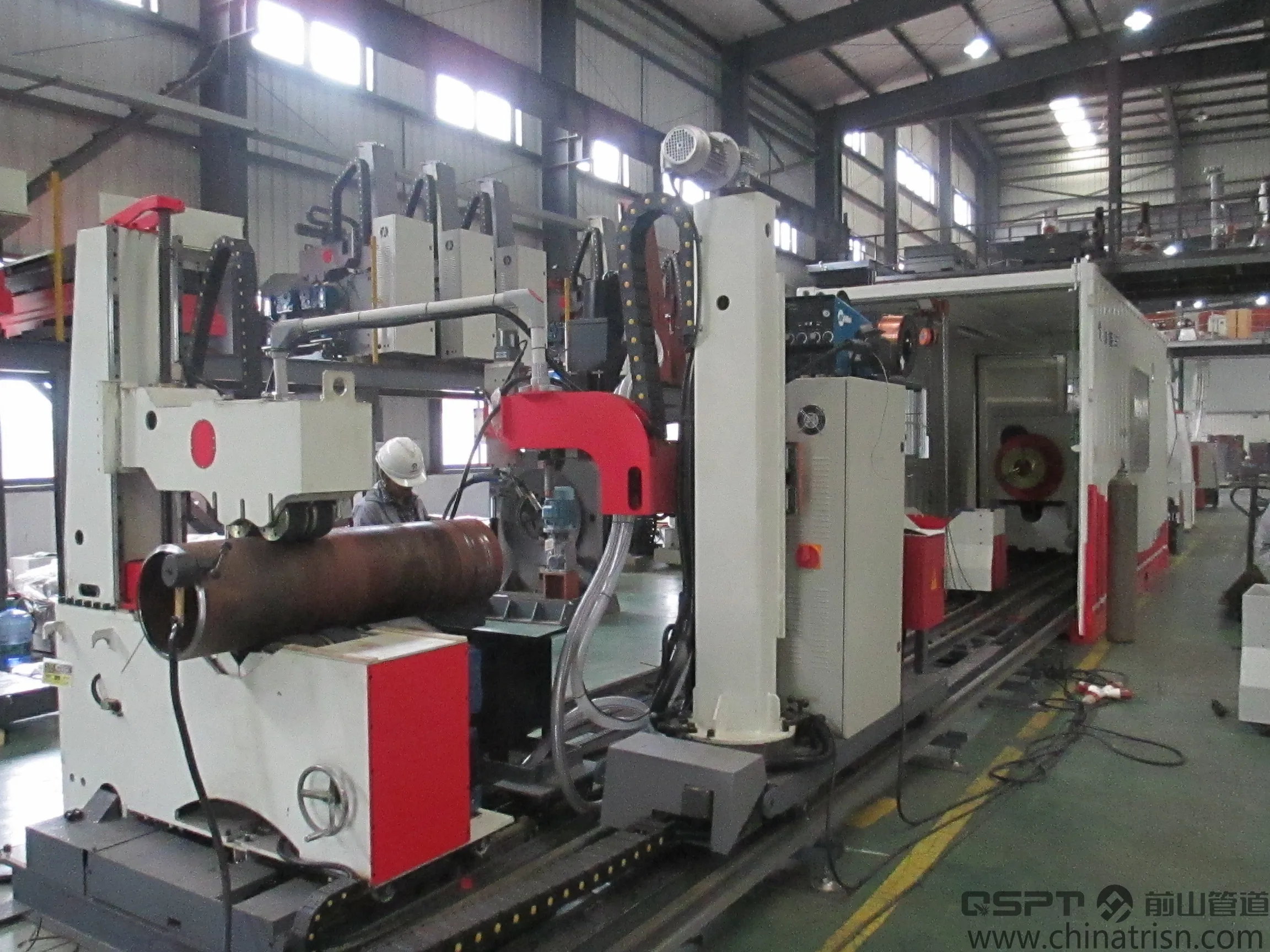

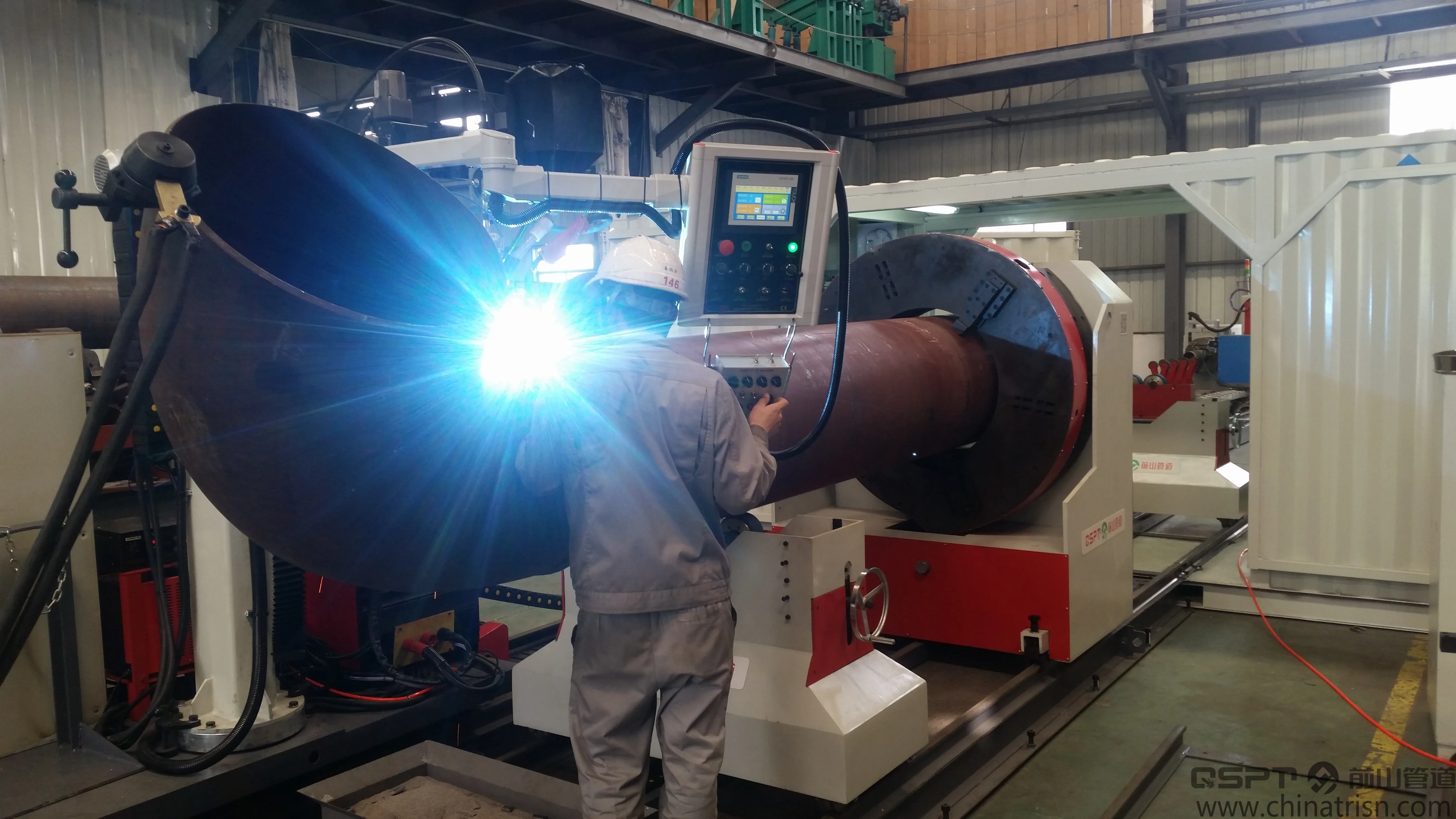

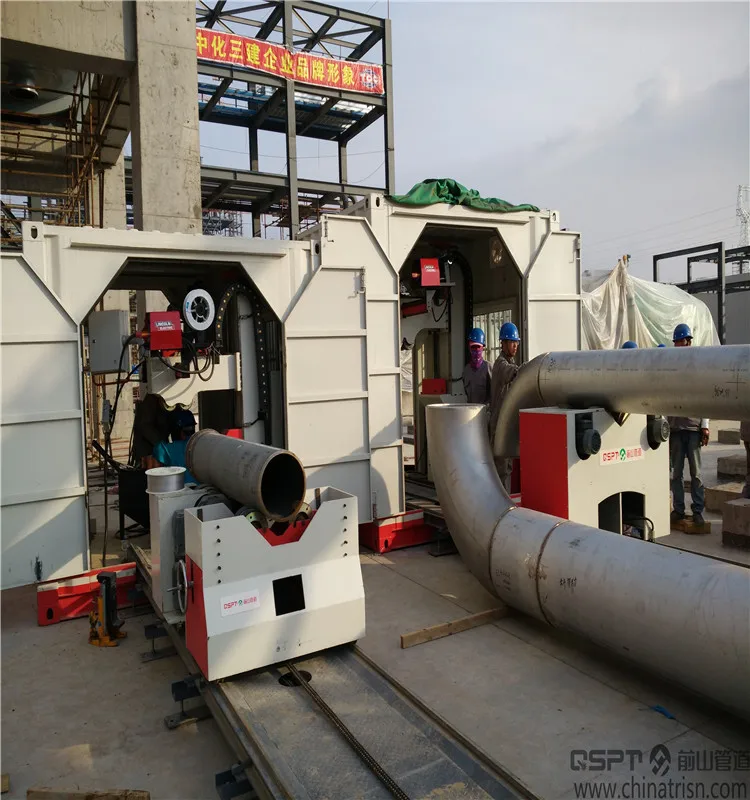

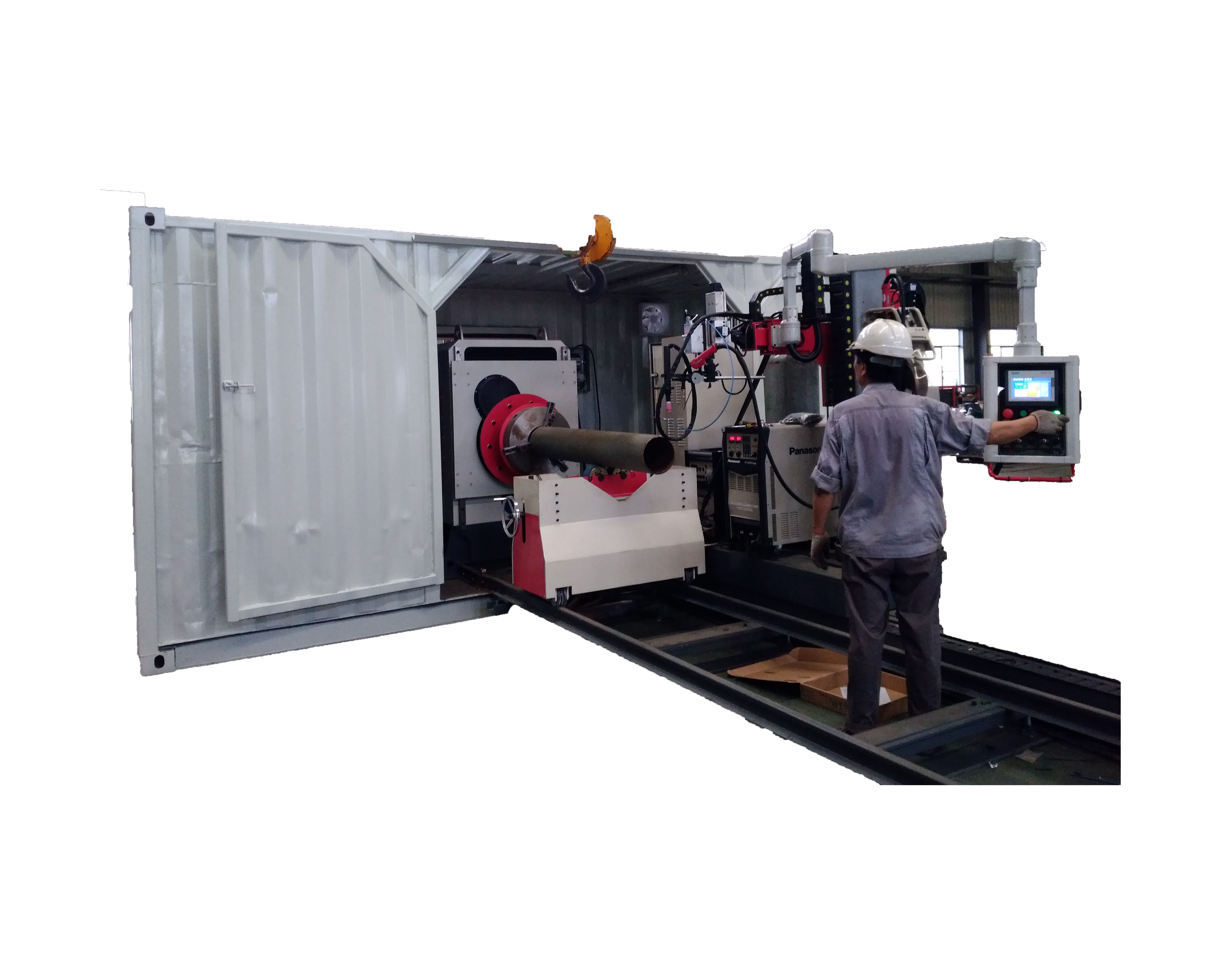

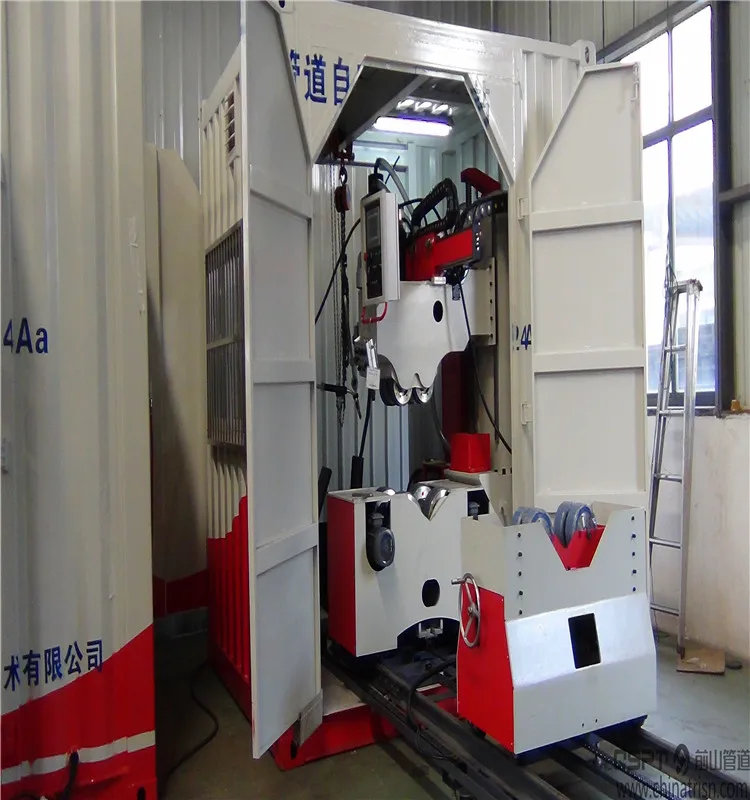

l Basic structures: one 6m container made with special technology, one Piping Prefabrication Automatic Welding Machine , one Piping Automatic Cantilever Welding Machine,2 Auxiliary Trolleys for Automatic Welding Machine, 2 Piping Cantilever CranesOption and 2 FCAW/GMAW Welding Machines.
l Production Efficiency: 400~600 Diameter-inch per day (DN200 SCH40)
l Mobility: Excellent (without limitation of radiation radius when using container as carrier)
l Applications: where the number of the thick wall pipelines and common ones are almost equal.
u Technical parameters
l Pipe diameter applicable: DN100~600(φ114~610)
l Pipe wall thickness applicable: 3~60MM
l Materials applicable: carbon steel, alloy steel, stainless steel and cryogenic steel,etc.
l Welding line applicable: various welding lines of tubesections such as tubetube, tubeelbow, tubeflange, flangeflange and flangeelbow, etc.
l Auto-welding covering rate: ≥60%
l Pipe prefabrication depth: 50%~80%
l Design of the detailed fabrication drawing: with PDSOFT 3DPiping, a software product specially used for designing pipe prefabrication.
l Management of the prefabrication process: with PDSOFT PSFMS, management system software for pipe prefabrication and installation.
