AHC-450A Автоматический чехол-книжка в твердой обложке

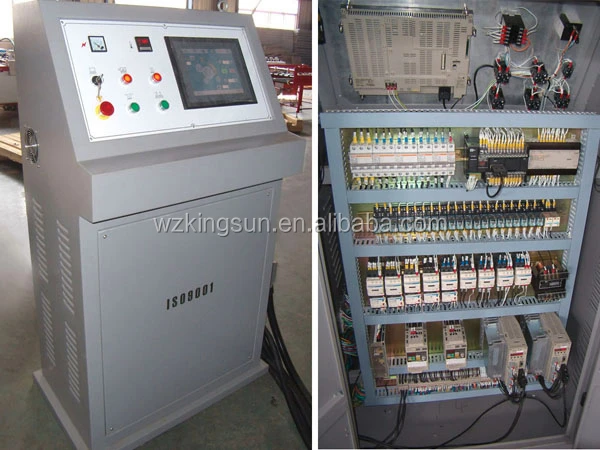

This automatic hardcover book case maker machine  or automatic case maker,adopts automatic feeding system for paper, automatic positioning device for cardboard, There are features of accurate, quick positioning, beautiful finished products. it is used to make perfect book covers, calendars, hanging calendars,files etc. The whole machine with computer controlling system.

Main specifications:

Paper width                   90-450mm
Paper thickness            100-200g
Cardboard thickness      1-3mm

Finished products size:  L100 X W200mm(Min)

                                       L450 X W800mm(Max)

Work speed                   25-28sheets/min.(Max. Speed)
 Heater required             6kw
 Motor required              5kw/380v

Machine dimension        L7800 X W2100 X H1400mm
 Machine weight            3000kg

Features of case maker:

1.The feeder in this machine adopts back-push feeding system, which is controlled pneumatically, and its structure is simple and reasonable.
2.The width between stacker and feeding table is adjusted concentrically in the centre. The operation is very easy without tolerance.

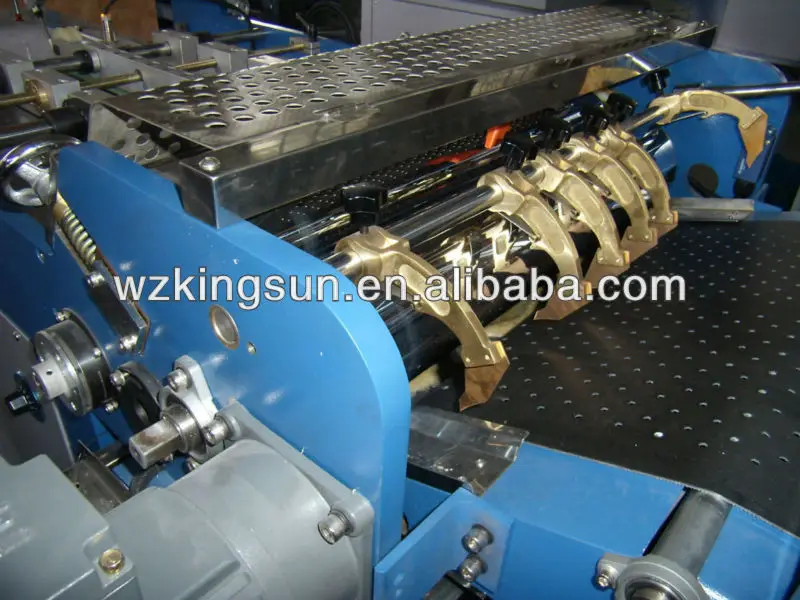

3.On glue roller, there is an automatic machine-stop device when paper winds. This is better to remove the winded paper in time and keep the machine running normally.

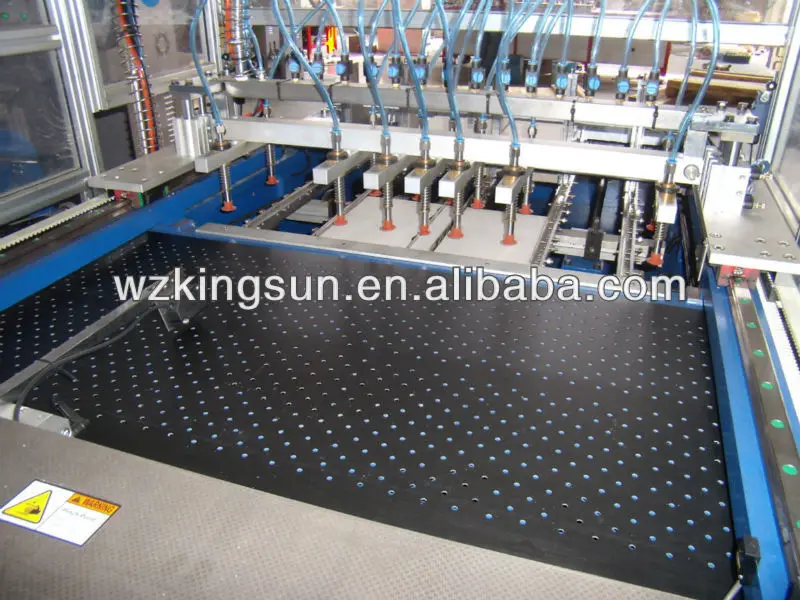

4.The cardboard feeding table is controlled by linear guide line and stepping motor, its location is correct and quick.
5.In the cardboard feeding table, the machine can automatically stop when lack of paper to reduce the paper waste.

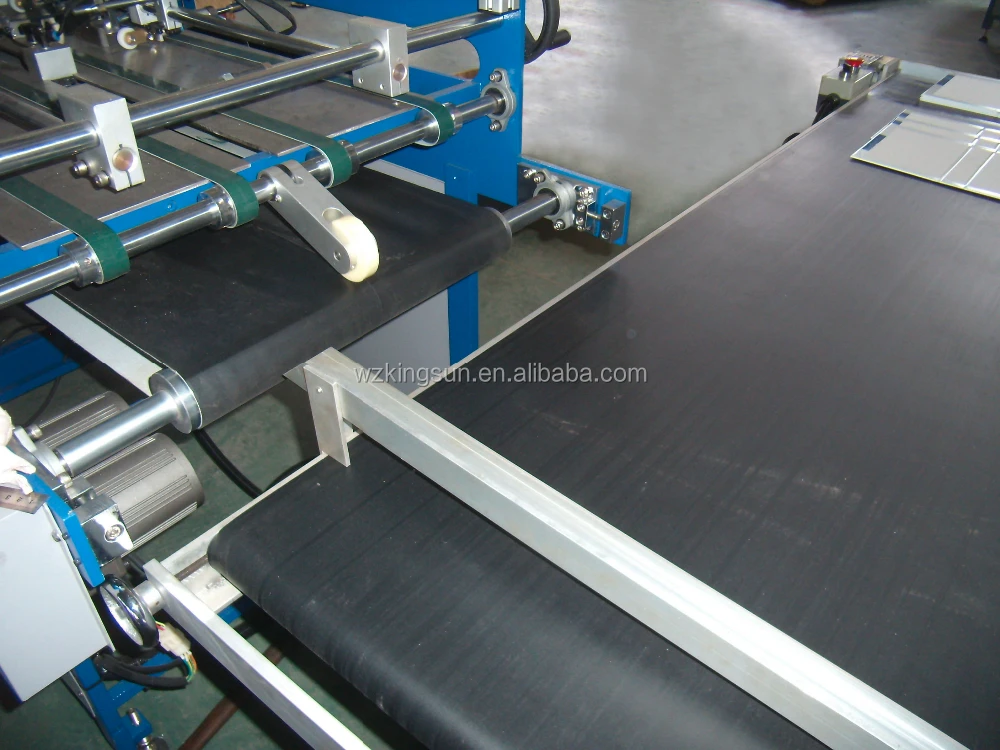

6.Big-power air sucker is adopted for conveyor belt to feed the paper more stably and accurately.
7.Paper feeding and positioning system adopt imported high-precise photoelectric control device to make the paper and cardboard location more accurate and stable.

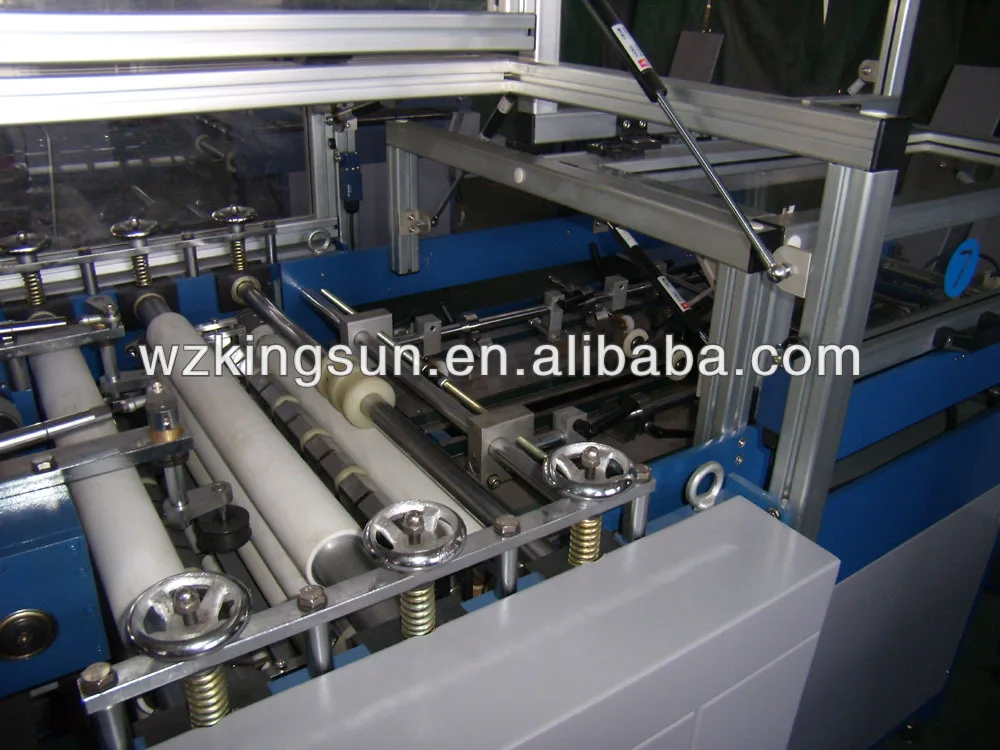

8.The automatic four-edge folding machine adopts special automatic angle-repair, edge-repair to ensure the qualification of finished products.

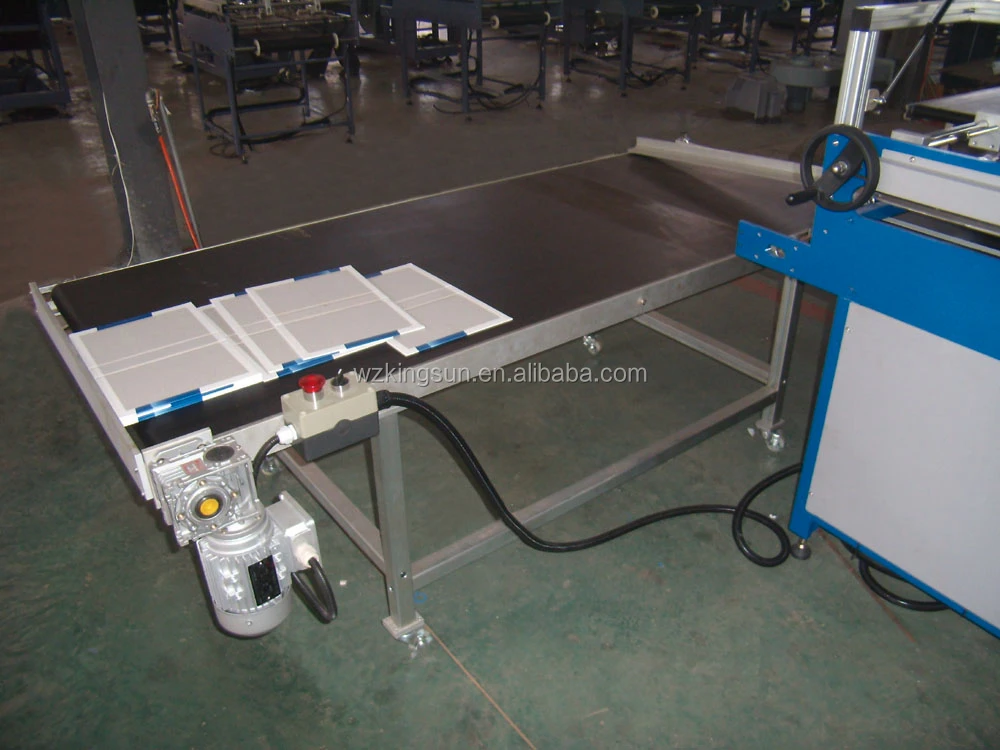

9.The delivery table is a lifting table of automatic control, smooth delivery.
