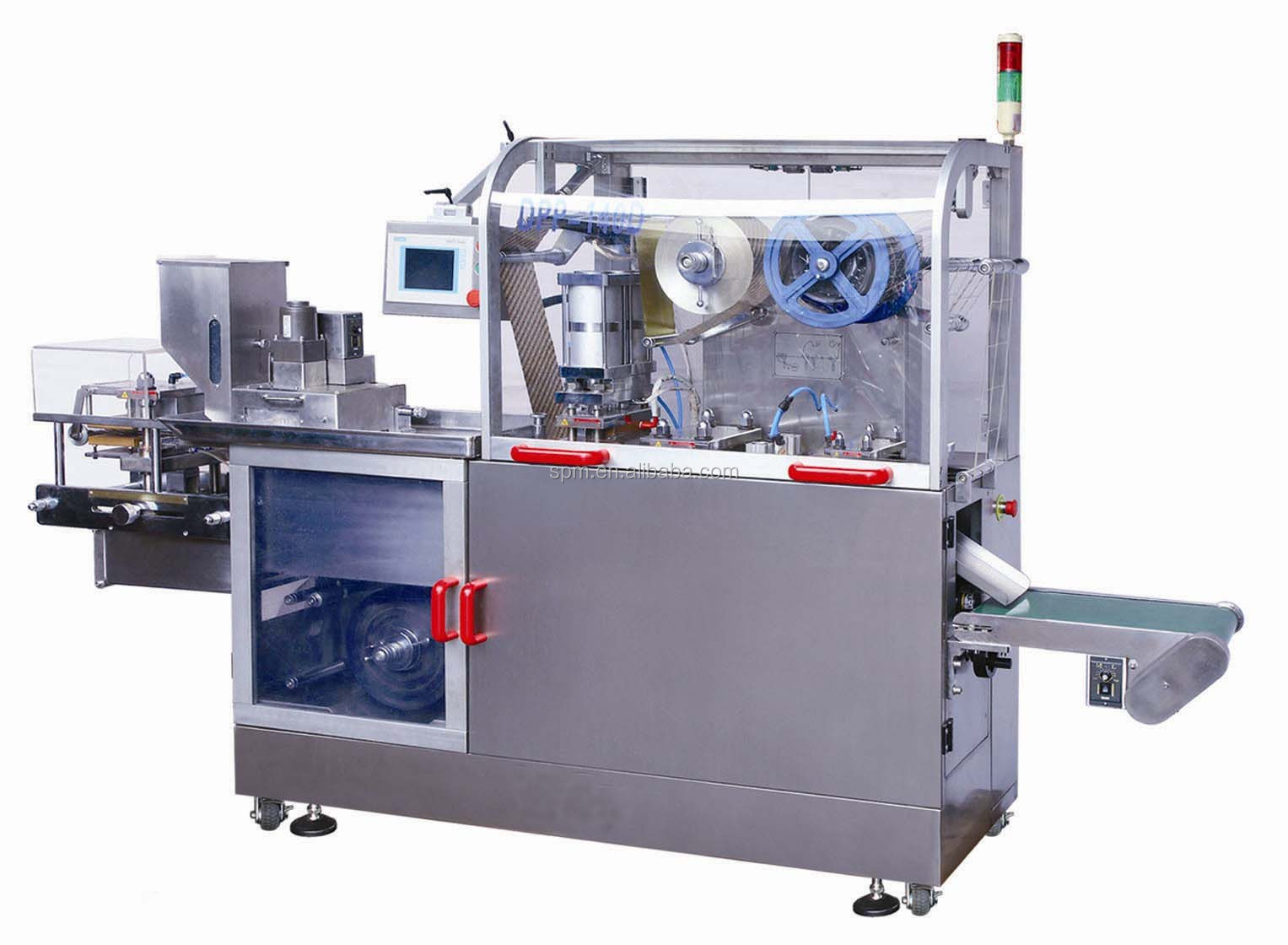

DPB-250B Series Automatic Aluminium-Plastic Blister Packing Machine:
It is the latest new product specially designed for dosage room of hospital, medium-sized and small sized pharmaceutical plant, health care product plant, with small sized body, ease of operation, full purpose, adjustable stroke, long durability etc with well popularity. It has passed the provincial science and technology appraisal, and obtained the second prize of Science and Technology Progress by Rear-service of PLA.
Feature:
l Main transmission is adopted with imported gear reducer with long life and lower noise.
l Adjustable stroke, plate dimensions can be changed freely, suitable for multiple kinds of specifications.
l Flat-plate structure, any shape of the product can be packed. Such as: ellipse, square, triangle etc.
Note: cursor fixed to track with sealing
Technical Parameter
| Cutting Frequency (times/min) | 6-45 |
| Capacity( 10thous pics/h ) | 2-11 |
| Max shaping areas and depth (mm) | 130X110X26 |
| Stroke (mm) | 40-120(can be manufactured as user's requirements) |
| Standard Plate (mm) | 80X57(can be manufactured as user's requirements) |
| Air Pressure (kw) | 0.4-0.6 |
| Total power | 380V/220V 50Hz 3.2kw |
| Pressure (kw) | 1.1 |
| PVC hard pieces (mm) | 0.15-0.5X140 |
| PTP Aluminum Foil (mm) | 0.02-0.035X140 |
| Dialysis Paper (mm) | 50-100gX140 |
| Mould Cooling | Tap water or recycle water |
| Overall Dimensions (mm) | 2300X560X1410(LXWXH) |
| Weight | 700 |
