Полиимидная гибкая печатная плата, гибкая печатная плата с материалом PI, FPC для телефона с жесткостью PI
- Категория товара: Multilayer PCB >>>
- Поставщик (Оптовый магазин): Shenzhen,Akeson,Circuit,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

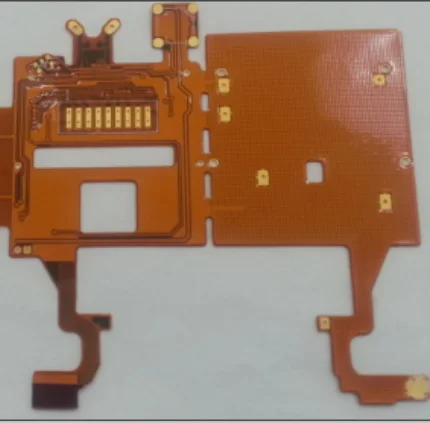

Polyimide Flexible PCBs, Flex PCB with PI material,phone FPC with PI stiffener
Item | M |
Layer count | 1-30 layers |
Material | FR4(High TG, Halogen Free, high frequency), CEM1, CEM3,BT,Al base mateiral,and so on. Supplier: SY,KB,ITEQ,Isola,Nelco,Rogers,Grance,Mitsui |
Maxpanel size | 32±20(800mm±508mm) |
Min width/space(min) | 4mil/4mil |
Max copper weight | 140um(4oz) for inner layer 175um(5oz) for outer layer |
Min machine drill size | 0.2mm(8mil) |
Via hole tpye | Blind/Burried/plugged |
Thickness of finished board | 0.20-6.0mm |
Tolerance | Registration of innerlayer to of innerlayer:±3mil Accuracy of hole position:±2mil Tolerance of dilled slot:±3mil Tolerance of PTH diameter:±3mil Tolerance of NPTH diameter:±2mil PTH hole copper thichness: 0.4-2mil Image to image tolerance:±3mil Tolerance of etching:±1mil Solder mask registration tolerance: ±2mil Finished board : Thickness<=1.0mm: +/-0.1mm Thickness>0.1mm:+/-10% Outline router: +/-0.1mm Outline Score: +/-0.2mm |
Color of solder mask | Green, Black, Blue,Red, White and so on |
Surface freatment | HASL,HASL Lead Free,OSP ,Immersion Gold, Immersion Ti, Immersion Sliver, Flash gold, Selective Gold plating(gold thicness up to 120u),Gold figers ,Carbon print, Peelabe Mask |
Hardness of solder solder | >=6H |
Outline finished | CNC, V-CUT, Punching |
Peel strength of line | ≥61B/in |
Warp and twist | ≤0.7% |
Our Services
Base Material:Polyimide
Copper Thickness:1/2 Oz
Board Thickness:0.11mm-0.5mm
Min. Hole Size:0.2mm/0.3mm
Min. Line Width:0.05mm
Surface Finishing: Immersion Gold
Min. Line Spacing:0.1mm
Soldermask:white/yellow/green
Customized:ODM/OEM/Customized/Design
Sample Time: 24/48/96hours
pcb size:As per your request.

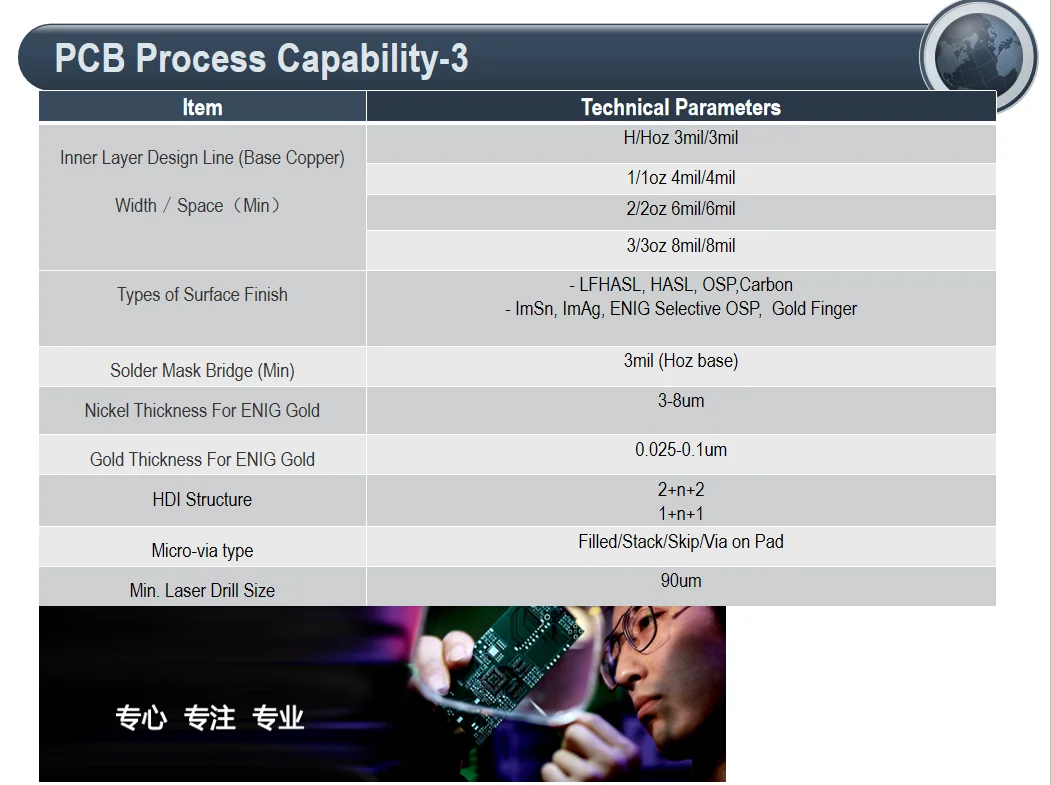

Reference - Our Production Capability for Multilayer PCB/Rigid borad
