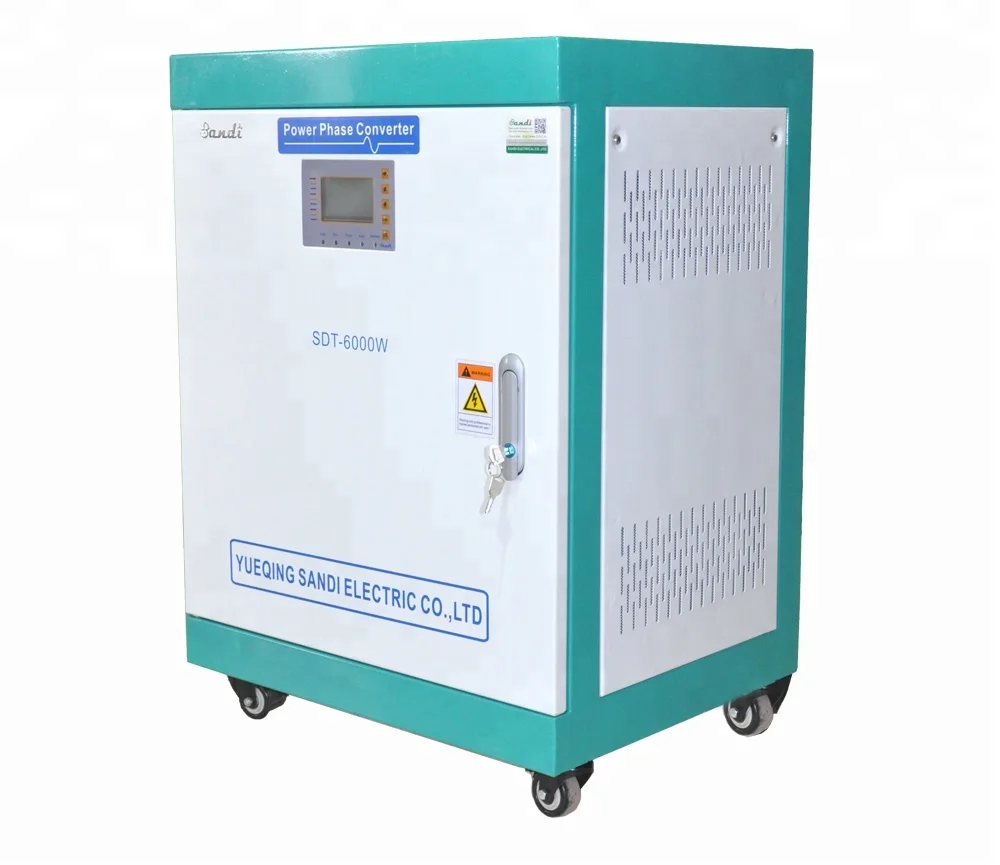

Single phase to three phase converter 6kw

SDP-6KW

The Sandi SDT series three-phase to single-phase converter, adopted AC-DC-AC circuit structure and using SPWM modulation control technology, which can convert ordinary single-phase power to industrial three-phase power. After through SDT series single-phase to three phase converter power conversion, the three-phase power output is standard pure sine wave, the harmonic distortion rate (THD) is less than 2%, totally meet the national standards of three-phase power quality, applicable to all types of load.
The SDT series single-phase to three-phase converter can solve production inconvenience because of some areas with the three-phase electric power restrictions, also solved some user requirements that can’t apply for the three-phase electric because of space limitation.

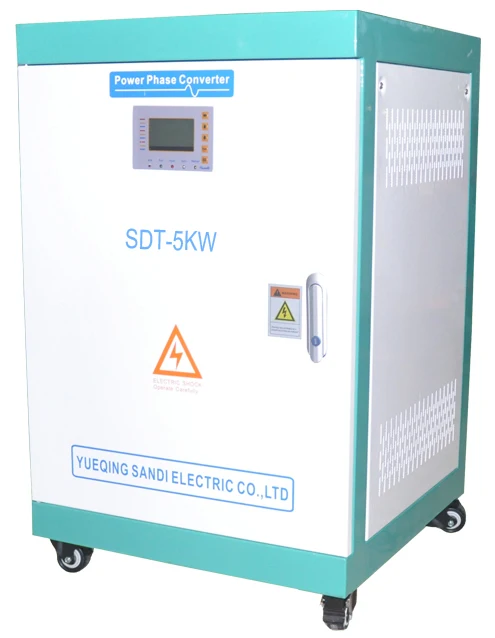

SDT-5KW

Technical Features

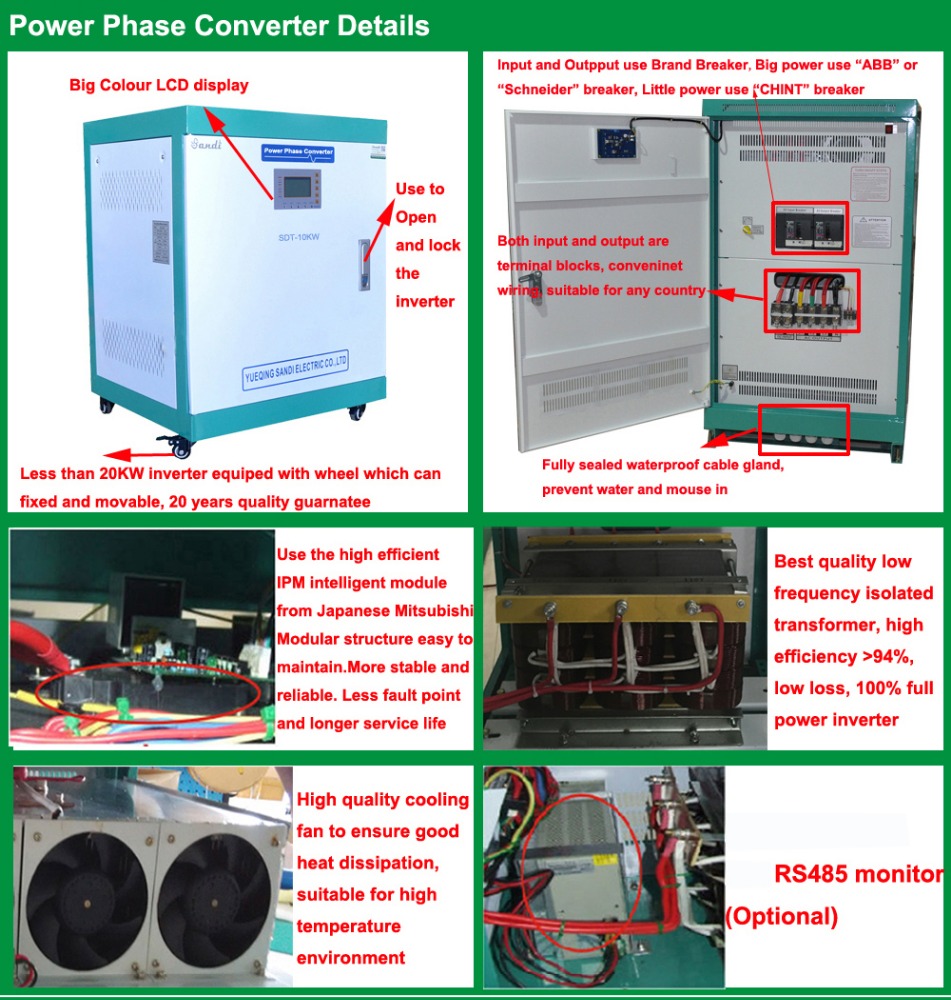

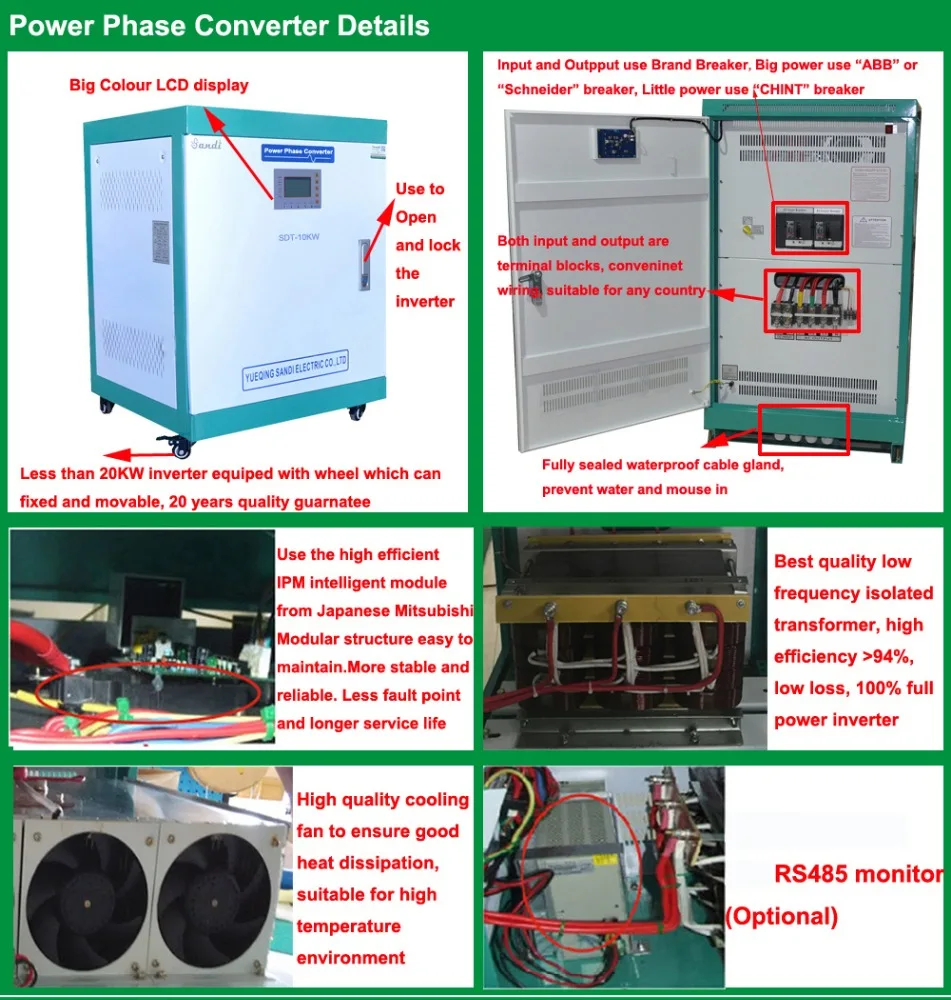

1 Using the sixth generation efficient IPM intelligent module from Japanese Mitsubishi, high efficiency and stable performance. It with powerful protection function, the protection for short circuit, over load, over temperature is more safe and reliable. It’s service life can up to 15 years or more.

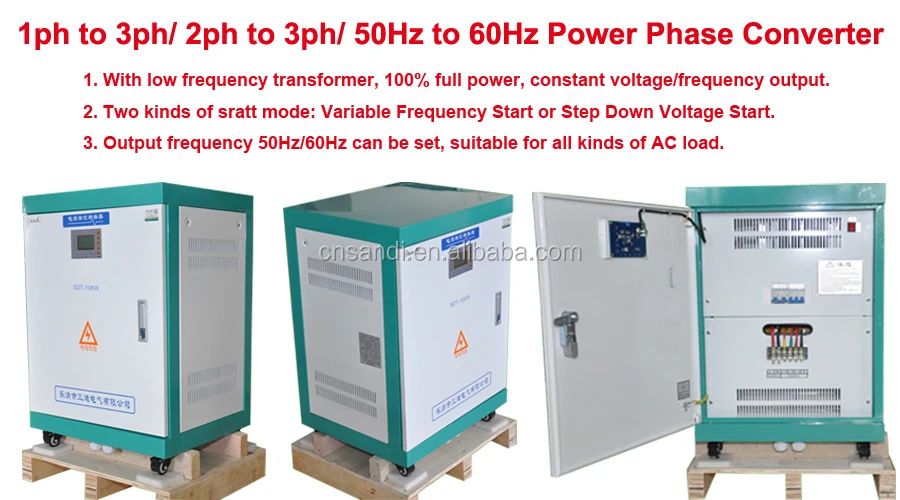

2 Two kinds of start mode: Reduction Voltage Start and Variable Frequency Start. Customers can set start mode according to the type of their load. This function is very convenient for users and also reduce frequency converter’s usage, which reduced the cost of equipment investment, easy to connect wires and control.
3 Intelligentized, modularized, simple structure design easy to maintenance.
4 Pure sine wave output with good transient response, little harmonic distortion, higher conversion efficiency and stable output voltage features.
5 Using SVPWM space vector algorithms, high conversion efficiency, high instantaneous power and low losses conversion efficiency up to 94%.
6 Output AC Power is suitable for all types of three phase appliances, electric tools, electric motors etc. It has higher efficiency and higher capability of driving load.
7 Converter has the function of filtering the grid disturbance and interference at the same time, which is a good performance of stabilized voltage and frequency power, to provide a more stable and pure power supply environment for the backend devices.
8 Low frequency transformer which ensure the safety and reliable, the input and output electric are complete electrical isolated to avoid interference between input and output.
9 Output perfect protection function, with under-voltage and over-voltage, overload, short circuit, over temperature, self-diagnosis protection and other protection.
10 Powerful data display function. LCD can display the DC input voltage, output frequency, phase voltage, phase current, AC bypass input voltage, output power KWH, time and date, temperature, fault code display.
11 There are lightning protection device inside the converter.
12 The input voltage, output voltage, frequency and phase can be custom made.

Technical data

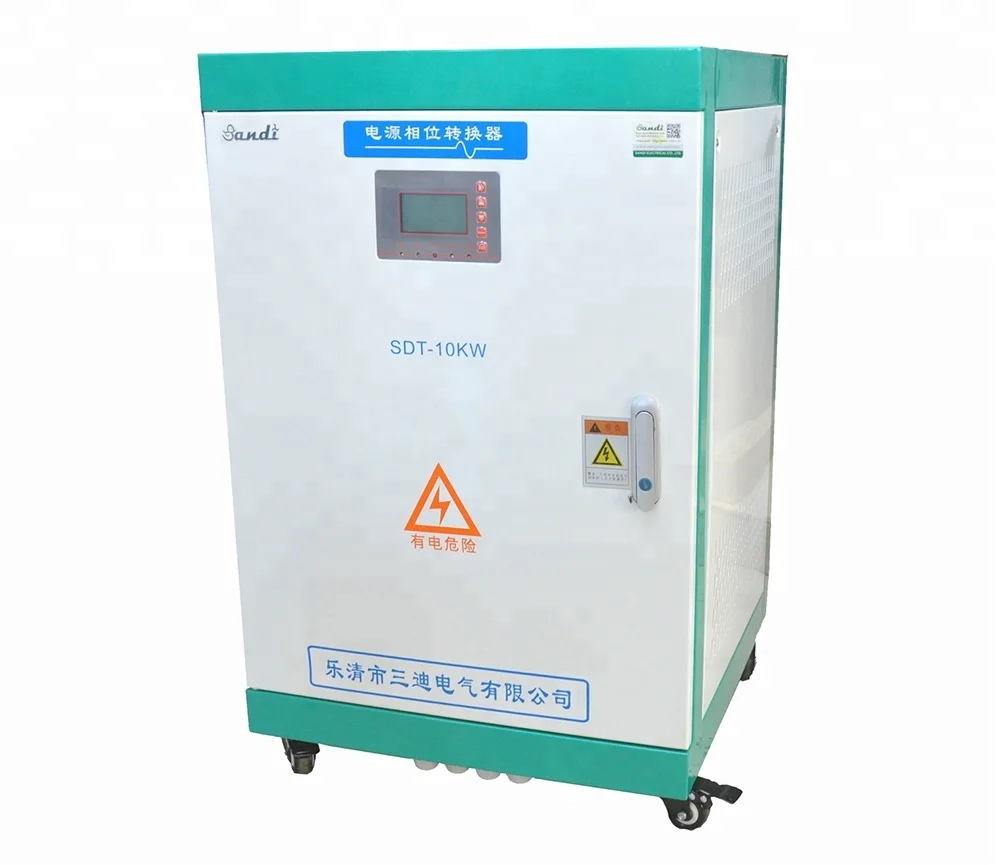

Model		SDT-10KW
Isolation		Low Frequency Transformer
AC Input	Input rated voltage(VAC)	Single phase 220V/50HZ
AC Input	Input rated current(A)	45.5A
AC Output	Rated AC output power	10KW
	AC output waveform	Pure sine wave
	Phases	Three phase, 4 wires
	Output rated voltage	380VAC ±3%
	Output Frequency	50Hz±0.05Hz
	Output rated current(A)	15A (per phase)
	Power Factor(PF)	0.99
	Overload Ability	150%, 10s
	Efficiency	>93%
	Waveform distortion rate (THD)	<3%(Linear load)
	Crest Factor (CF)	3:1
	Display	LCD
	Electrical insulation properties	2500Vac, 1 Minute
	Ambient temperature	-15~+55°C
	Using environment humidity	0~90%,No condensation
	Protection	Input under voltage, overvoltage, output over-current, short circuit, overheating etc.
Structure	Cooling method	Fan-cooled
	Noise	<40dB
	Degree of protection	IP20(indoor)
	Using altitude(m)	≤3000
	Dimensions (mm)	540x540x760mm
	Weight (Kg)	106Kg
CE Standard	EN60950-1:2006+A11:2009, EN61000-6-4:2007+A1:2001, EN61000-6-2:2005, EN61000-3-12:2005, EN61000-3-11:2000
