Product Description

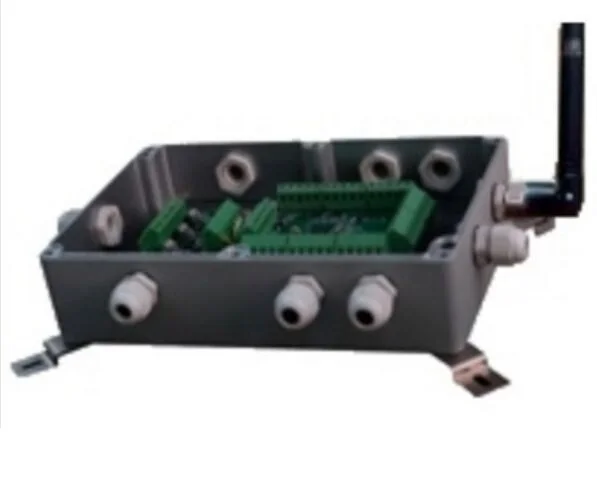

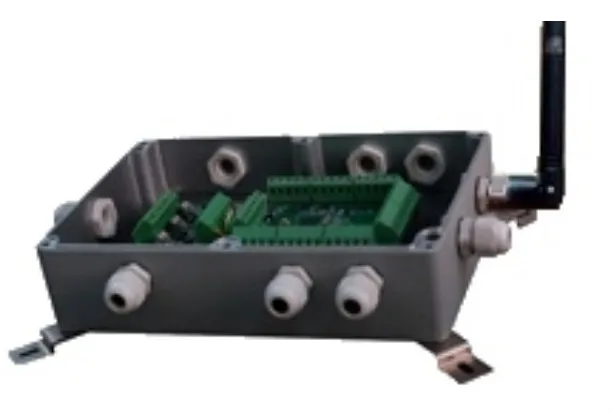

Digital wireless weighing system junction box
Features:
Apply to wireless weighing system, wireless force measure, wireless weight transmitter, wireless platform scale, wireless floor scale, wireless weighbridge, wireless truck scale.Support multi-channel high-precision crystal warming options (8/16/32 channel) multi-user Interface.
(provided RS232/RS485/UART interface, communications and other support 1200/2400/4800/9600/19200/38400bps rate, support 8N1, 8E1,such as communication format), automatic rapid completion of receive/send mode switching, user-friendly low-power , Sleep current <10uA, small size, light weight application areas: water, electricity, gas, heating system, automatic meter reading charges banks and the Government wireless Hanging queue management system, wireless transmission of electronic data collection scale production lines, such as traffic and industrial remote control crane medical and electronic instrumentation and automatic control coal mine.
Alarming staff attendance and location of wireless POS machine shop car alarm, tire pressure monitoring and four-wheel
positioning.
Technology Specification
Below spec is only for customer design reference. we can provide ODM product.
1. working power supply: 6.5V12VDC | ||
2. Digital filtering wave; | ||
3. Digital calibration and calibration; | ||
4. Characteristic parameters of non-lose memory; | ||
5. Measurement rate optional; | ||
6. All of the settings through the serial port to complete the work; | ||
7. Zero tracking range of ± 2%; | ||
8. Open automatically zero range of ± 2% ... ± 20%; | ||
9. Linear amend points optional (4-8 points); | ||
10. Automatic temperature correction, amendment time interval adjustable; | ||
11. Output measurements faster convergence and stability; | ||
12. it can set the features of anti- shake intensity (0% ... 100%); | ||
13. Application software can be upgraded through the serial port | ||
14. 4-10 Road A / D conversion module | ||
15.Max signal range: | ±10mV ~±5V | |
16.Each A / D measurement of the highest resolution: | 100000 / mV (12.5Hz) | |
17.Measurement speed (depending on the output format and baud rate): | 1100Hz, 50Hz, 25Hz, 12.5Hz, 6.25Hz, 3.125Hz, 2Hz, 1Hz (optional) | |
18.Filtering methods: | the standard low-pass filter and FIR filter | |
19.Non-linear: | ± 0.001% F S | |
20.Temperature characteristics: | <± 5ppm / | |
21.Transfer method: | full-duplex RS-485 | |
22.Baud Rate: | 1200bps, 2400 bps, 4800 bps, 9600 bps, 19200 bps, 38400 bps (optional) | |
23.Operating voltage: | 6.5V ... 12V DC | |
24.Each A / D operating current (AD-S module only): | <38 mA (typical) <40mA (maximum); | |
25.Use temperature range: | -40 ~ +70 ; | |
26.Stock temperature range: | -60ºC+90ºC | |
27.Junction Box Dimensions (mm): | 223 × 147 × 60 (L × W × H); | |
28.Weight: | about 478g | |
29.Wireless transmitting module | ||
30.Working frequency scope: | 402 ~ 470MHz | |
31.Micro-transmitting power: maximum transmitting power 10mW transparent data transfer, automatic filtering of the air information transmission long distance, anti-interference ability stronger | ||
Product Assembly Structure
Blow force structure is for reference.
Product Process
for the load cell product process, include total 26 word step, take about 20days.

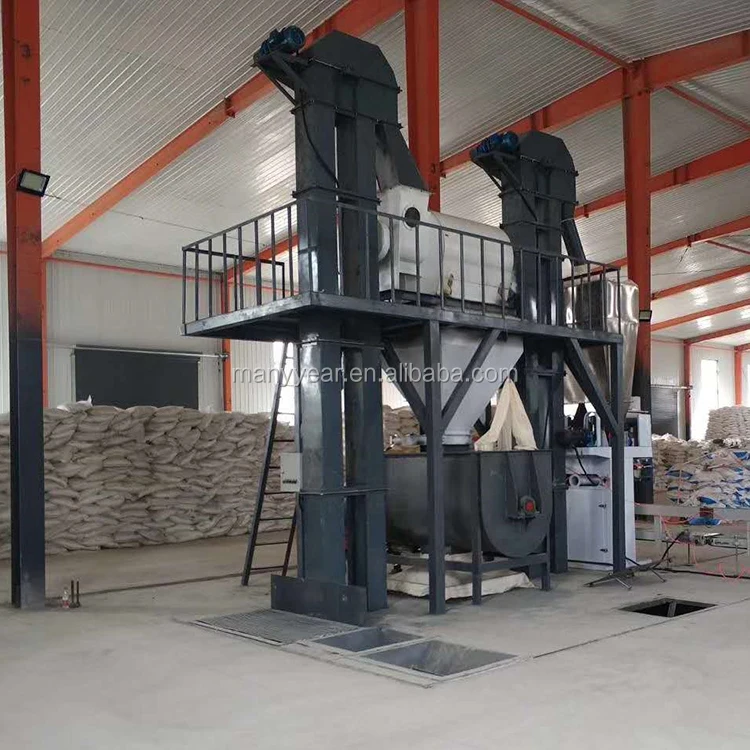

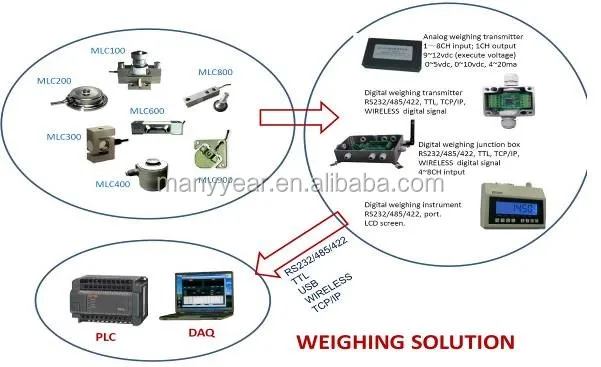

Product Application
this load cell can apply to pricing scale, packing scale, platform scale.
Delivery and Shipment
this load cell can apply to pricing scale, packing scale, platform scale.
