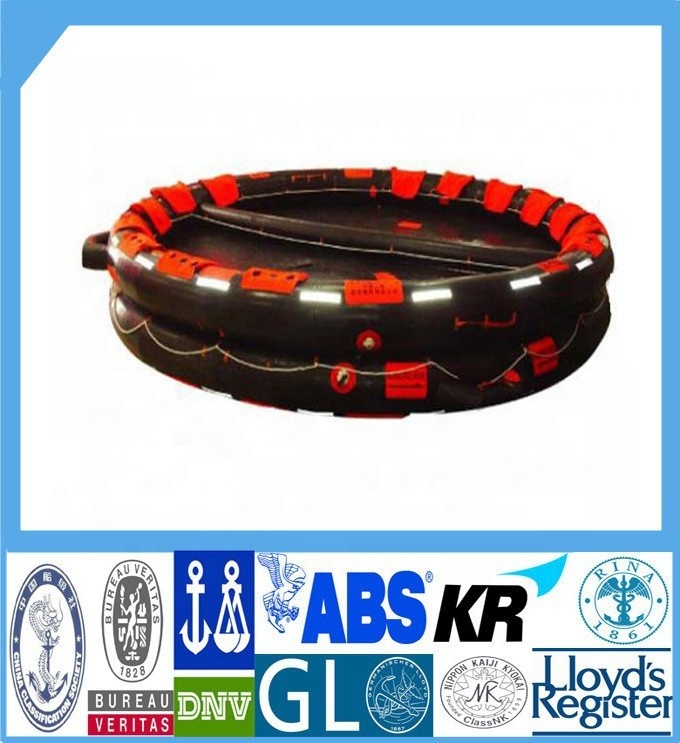

Marine 20 to 65 Persons Open Reversible Inflatable Life Raft

Описание и отзывы

Характеристики

Open Reversible Inflatable Life Raft:

The open reversible inflatable life raft is designed to be both two sides are workable,suitable for short international voyages vessels especially international high-speed boat.It has a feature that alternative or supplemental evacuation method directly from embarkation deck.



Product Standard:

It meets the requirements of"Technical Regulations for the Statutory Surveys of Sea-going Ships Engaged on International Voyages(1999)" of P.R.C. And SOLAS 74/96 Amendment,LSA and MSC.218(82).



The main features of the liferaft:

1.Capacity:20,30,50,65

2.Max storage height:The installation height is 18m from water surface

3.Equipment outfit:HSC emergency package

4.Temperature inflating range:-18 to 65 degree

5.Gas composition:CO2 and N2

6.The open reversible inflatable life raft is stored in containers on deck, can be inflated in water when the painter line is pulled

7.Certificate:CCS,EC,GL,ABS,etc.



Open Reversible Inflatable Life Raft specifications:

Type	Capacity	Length	Width	Height	Weight	Container size
HSE-O-20	20	3840	3840	740	≤110	1150×690
HSE-O-30	30	4540	4540	780	≤130	1200×710
HSE-O-50	50	5720	5720	860	≤190	1460×750
HSE-O-65	65	6530	6530	910	≤225	1460×750

All the measures are indicative and can be tailored according to your requests.

The plan views of  open reversible inflatable life raft and its package:

The factory of  open reversible inflatable life raft:



  If you have inquiry or any questions of our products,please send email to us.We would like to serve you.
