W11s 40*4000 3 рулона гидравлическая удивительная большая пластинчатая гибочная машина Экстремальная быстрая машина для рулонной пластины

Cone bending device contributes to make conical bend easily.

Abundant shape bend like shape O,U,R etc.

Specific bending process includes special bending craft,high-accuracy pre-bending of the edge,simple digital control.

It’s easy and convenient to move the workplace when equipped with simple ground foundation and whole solid chassis.

Customers can choose economic digital display type or TNC digital control type which’s totally dependent on their needs.

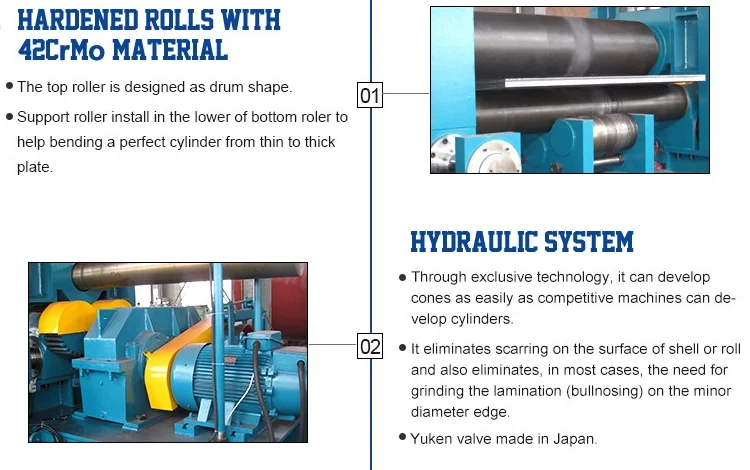

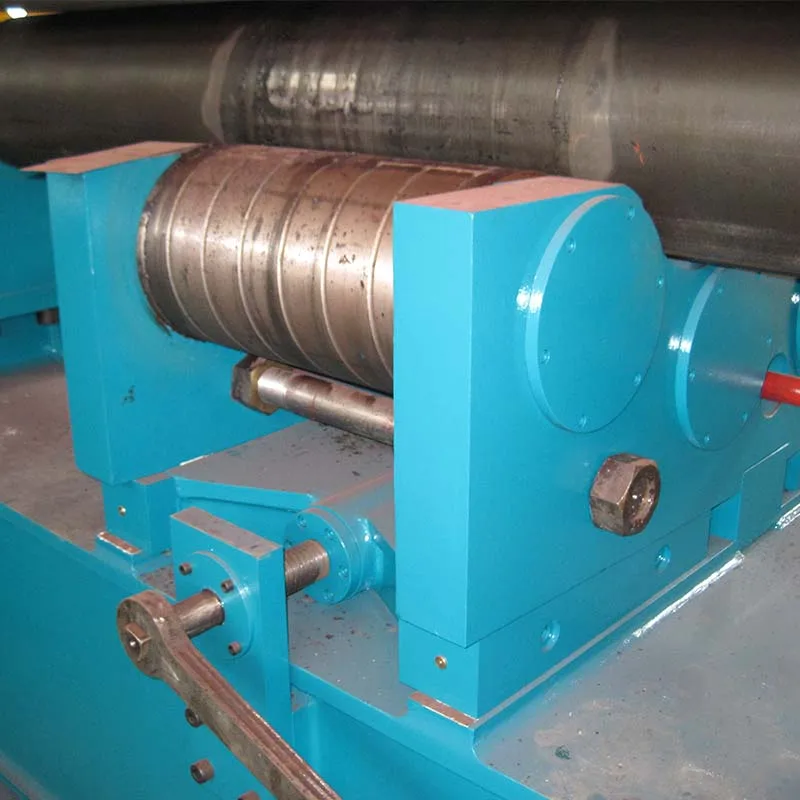

The top roller is designed as drum shape.In order to make a perfect cylinder from thin plate to thick plate,support roller is always installed at the lower part of bottom roller.

CE certificate

Please click here>>>>Contact us for more factory prices,shipping and discounts.

Item

Spec

Bearing

Type

Double row aligning bearing

Manufacture

Wafangdian,China

Working roller

Material

42CrMo

Hardened

Quenching HB240-280  hardened HRC45-52

Manufacture

Suzhou,China

Basement and frame

Material

Q235A

Process style

Welding structure,NC boring machine process

Manufacture

Yeshun,China

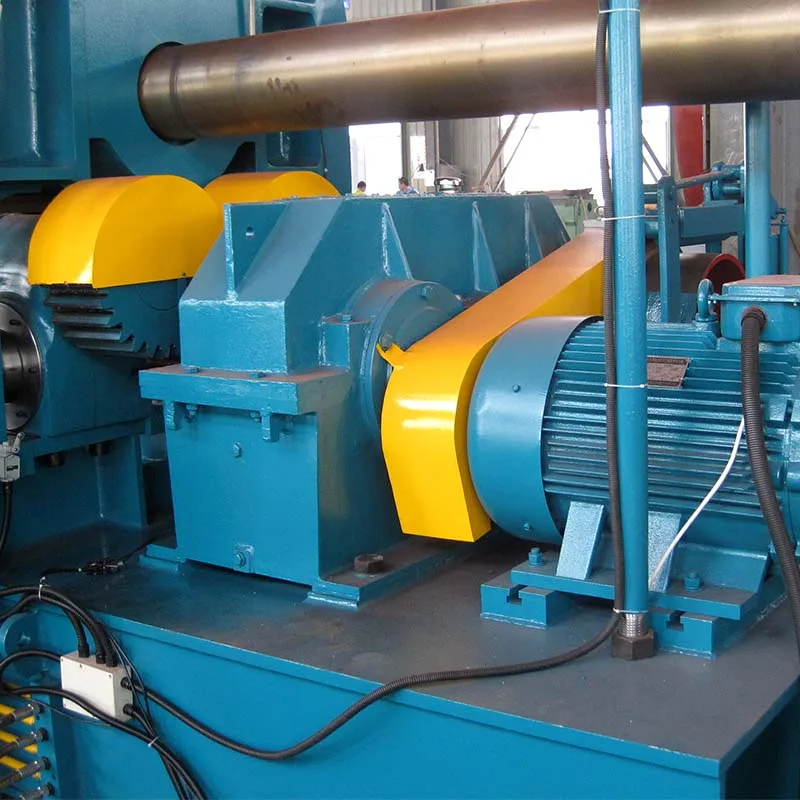

Gearbox

Type

ZSY hardened reducer(whole welded machine cover)

Manufacture

Weilisi,China

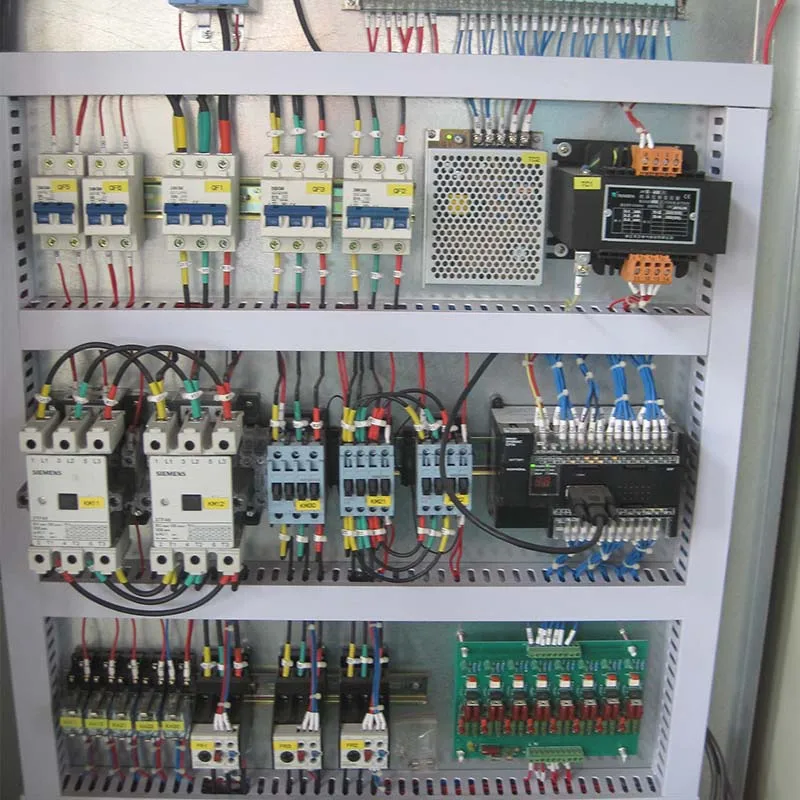

Main electric parts

Siemens

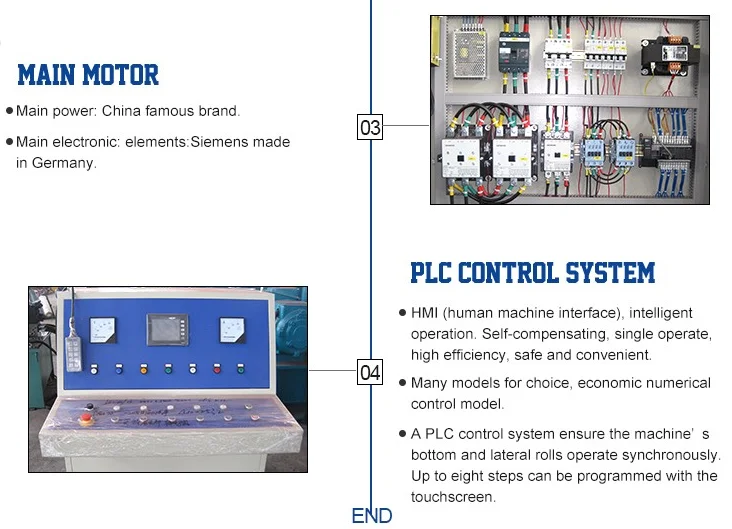

NC system

Programmable display

Touchwin,China

PLC

OMRON,Japan

Encoder

Keruite,China

Main motor

Lichao,Shanghai(China good brand)

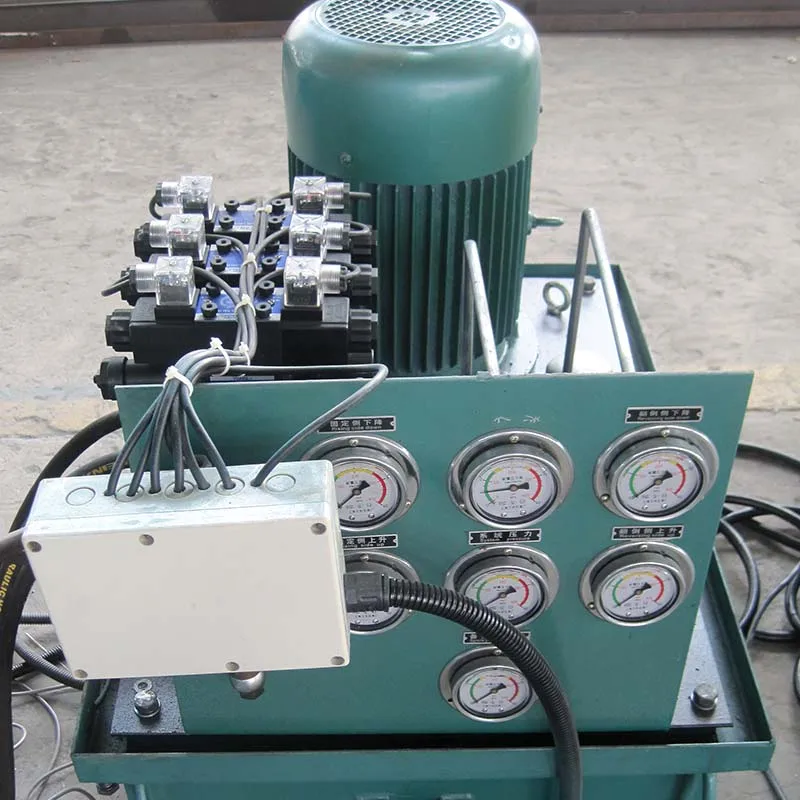

Hydraulic system

Pump

type

Gear pump

Manufacture

Chuangyuan,China

Valve

Manufacture

Yuken,Japan

Oil tank

Cylinder and piston

Steel 45,quenching HB217-255

Manufacture

Yeshun,China

Seal ring

YX type

Manufacture

NOK,Japan

1.How do I examine the product after delivery?

1)Check to determine if there is any collision damage on the surface paint and if the roll surface is rusty.If the above situations occur,please contact us immediately.

2)Connect the power supply,and ensure the machine operate correctly.

2.Transportation information of products

Customers can track the shipping progress of the products with information from the B/L.We will also keep track of shipping until customers have received the product.

Warranty period and replacing spare parts

1) Within the warranty period,we will offer spare parts for damaged parts that have not been damaged due to incorrect operation.The warranty period is 12 months from the date of the B/L.

2) Outside of the warranty period,replacement parts for electrical components are available in your local area as they are all sourced from international known brands.Customers can also contact us and we will offer spare parts at cost.We will also assist you in purchasing options in your local area in order to solve problem as quickly as possible.

3) If you need us to perform on site service,we will send a technician,and you will be in charge of the costs of transportation,accommodations and salaries.

3.Condition for returns and refunds

If the machine does not match your requirements as set according to the contract,and still doesn’t meet your requirement even after improvements,you can choose a sales return and refund.
