Product Description

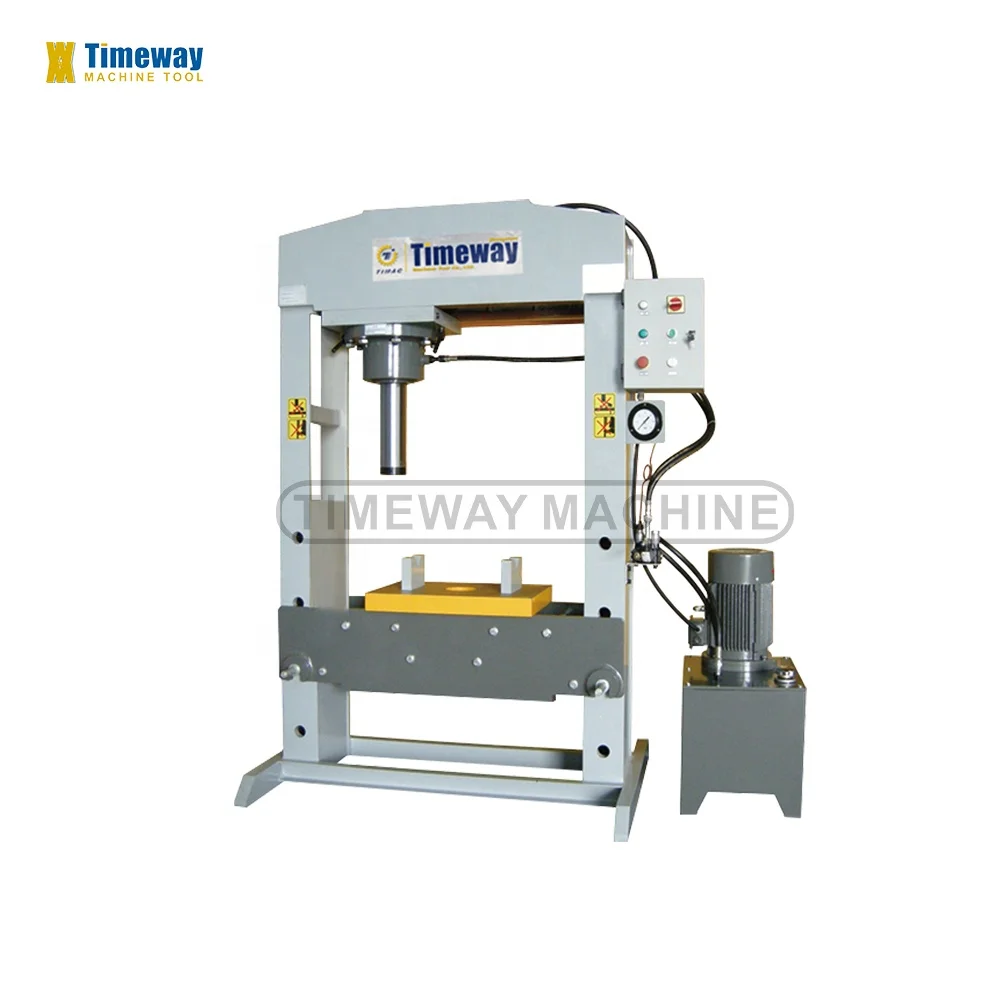

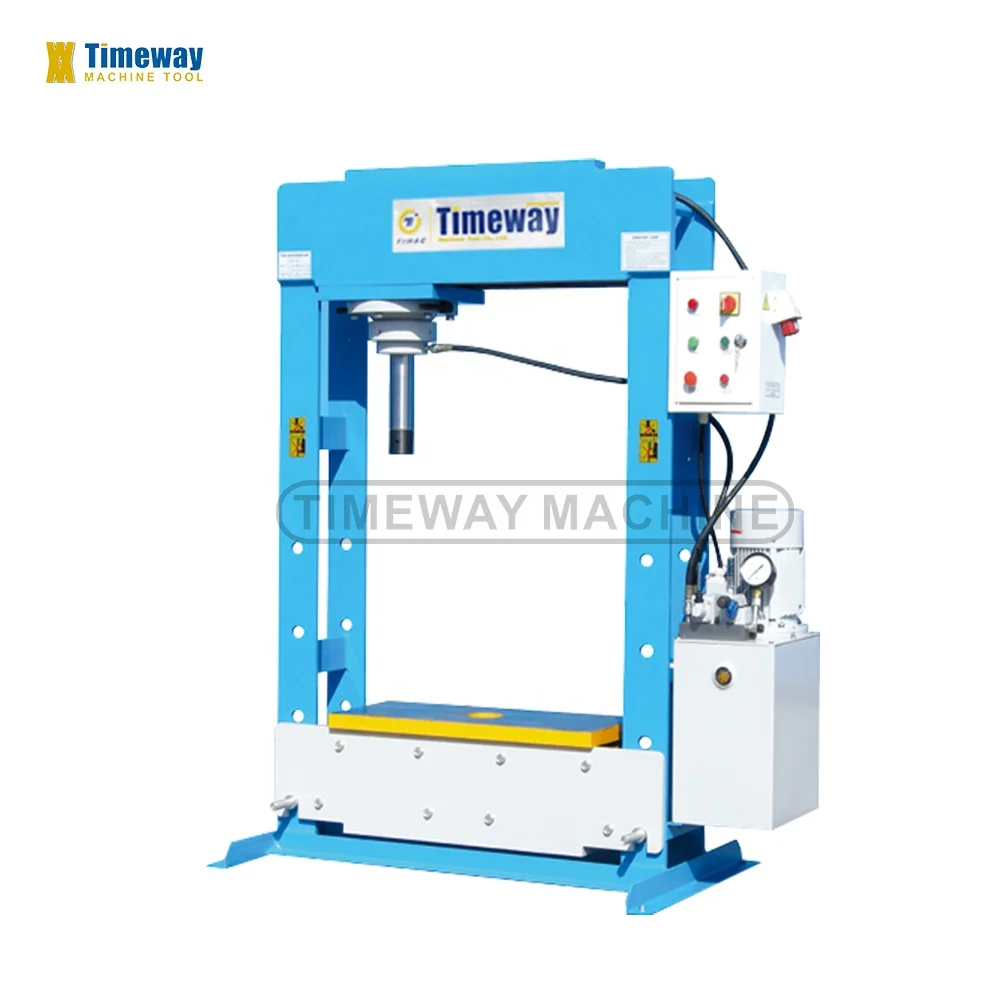

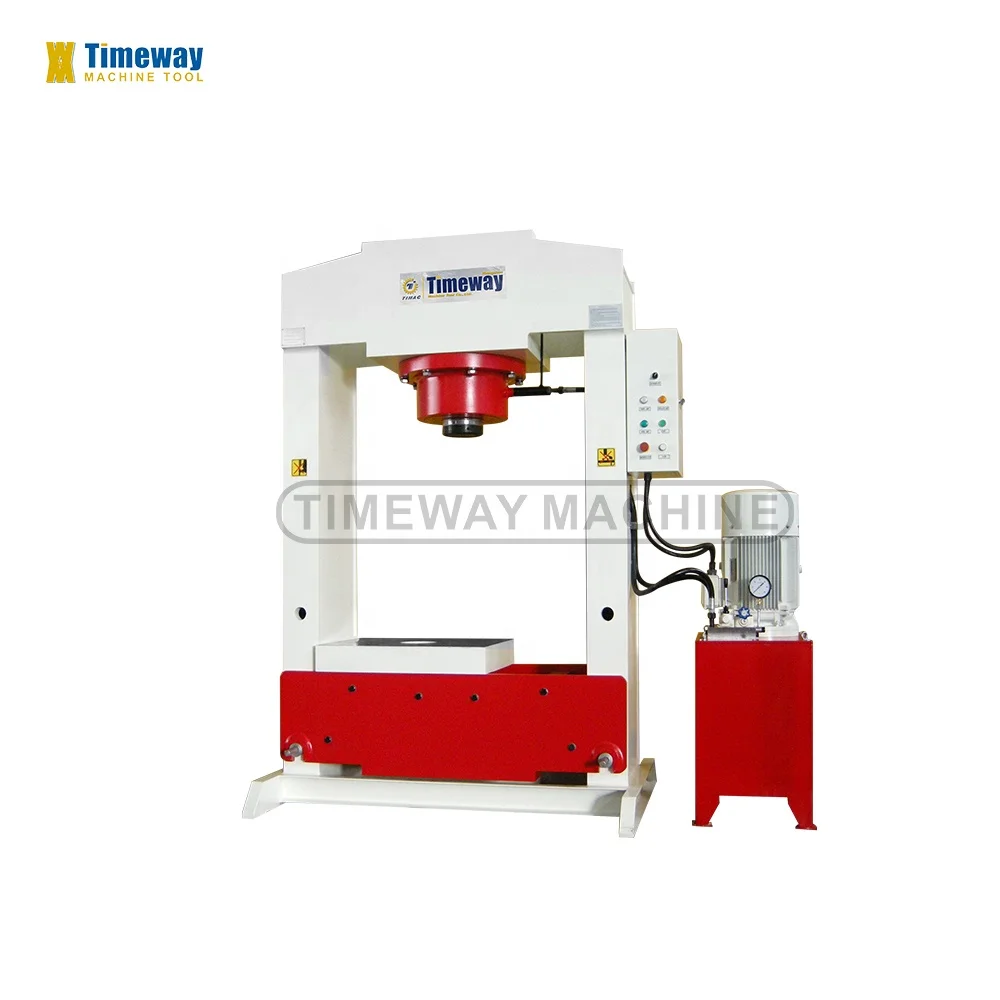

HYDRAULIC PRESS
Features:
1. It adopts elaborated steel-frame structure, a column with work bench beam, a sliding rail and a rear protective net.
2. The good quality of the products is based on exquisite manufacturing process and durable parts and components.
3. Its double-action cylinder, which is the original component of some sound hydraulic systems, can stand war and tear.
4. It is equipped with an electrical starter and a manual controlled piston rod moving upward and downward.
5. The lower workbench beam is equipped with a set of specialized sling and sliding rail, which is labor saving, safe and convenient.
6. The oil cylinder can be moved by manual power and its head can be positioned arbitrarily, which is very convenient and efficient.
MODEL | Unit | MDY30 | MDY63 | MDYY80 | MDY100 | MDY150 | MDY200 | MDYY00 |
| Max. pressure | KN | 300 | 630 | 800 | 1000 | 1500 | 2000 | 3000 |
| Hydraulic pressure | Mpa | 25 | 30 | 30 | 30 | 30 | 30 | 28.5 |
| Stroke of cylinder rod | mm | 250 | 300 | 300 | 350 | 350 | 350 | 350 |
| Working speed | mm/s | 5/h6 | 5.8/h7.7 | 4.6/h10.5 | 7.6/h10.5 | 4.9/h6.7 | 3.9/h6.7 | 5.9/h8.5 |
| Size of worktable | mm | 500x320 | 890x400 | 890x415 | 850x447 | 1000x530 | 1000x550 | 1000x660 |
| Inner hole of worktable | mm | Φ100 | Φ120 | Φ120 | Φ120 | Φ180 | Φ180 | Φ180 |
| Adjustment distance of worktable | mm | 200x4 | 250x3 | 250x3 | 250x3 | 300x2 | 300x2 | 300x2 |
| Distance between two columns | mm | 700 | 1050 | 1050 | 1050 | 1250 | 1250 | 1250 |
| Max. distance from cylinder to worktable | mm | 1020 | 967 | 962 | 994 | 839 | 737 | 832 |
| Min. distance from worktable to ground | mm | 305 | 444 | 469 | 514 | 590 | 631 | 801 |
| Cylinder moving distance | mm | 338 | 635 | 580 | 600 | 730 | 690 | 600 |
| Motor power | kw | 1.5 | 4 | 4 | 7.5 | 7.5 | 7.5 | 22 |
| Machine weight | kg | 445 | 1050 | 1325 | 1580 | 2410 | 3105 | 4200 |
| Machine size | cm | 99x68x183 | 148x90x203 | 149x95x207 | 145x100x220 | 172x105x220 | 180x110x220 | 195x120x257 |
