 Manufacturer WebiT 19 Inch Server Case Enclosure Network Data Center Rack

Features

WB-9F6627M5B cabinet is a standardized enclosure for mounting data and telecommunication devices and their distribution systems.

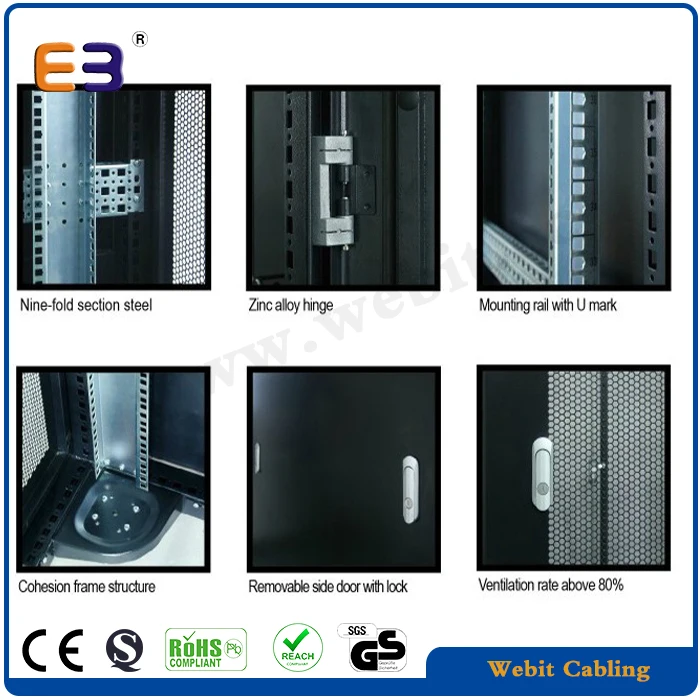

19" rack mountable, 9 folds profile structure - possible of extending the load capacity up to 1000KG.

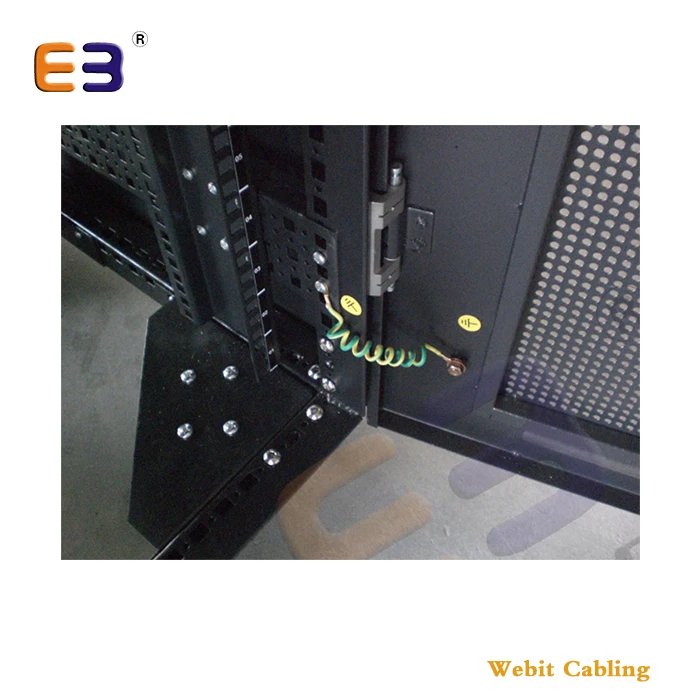

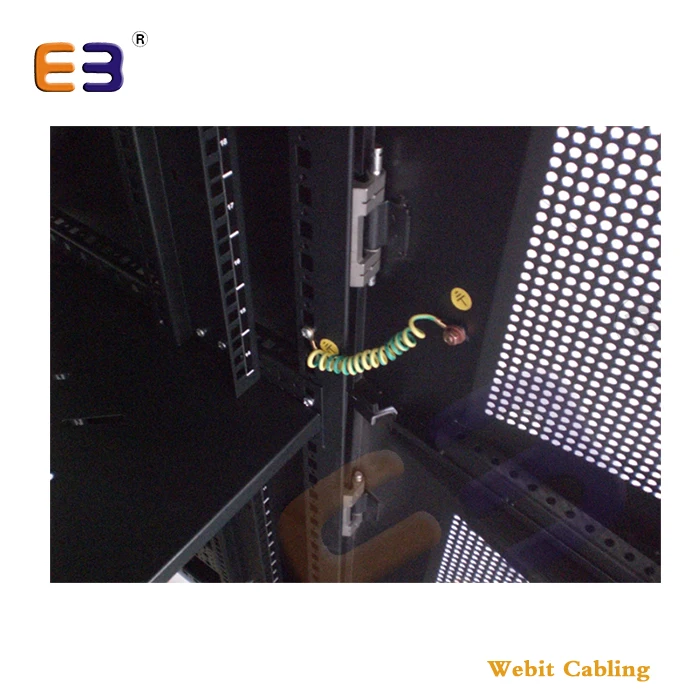

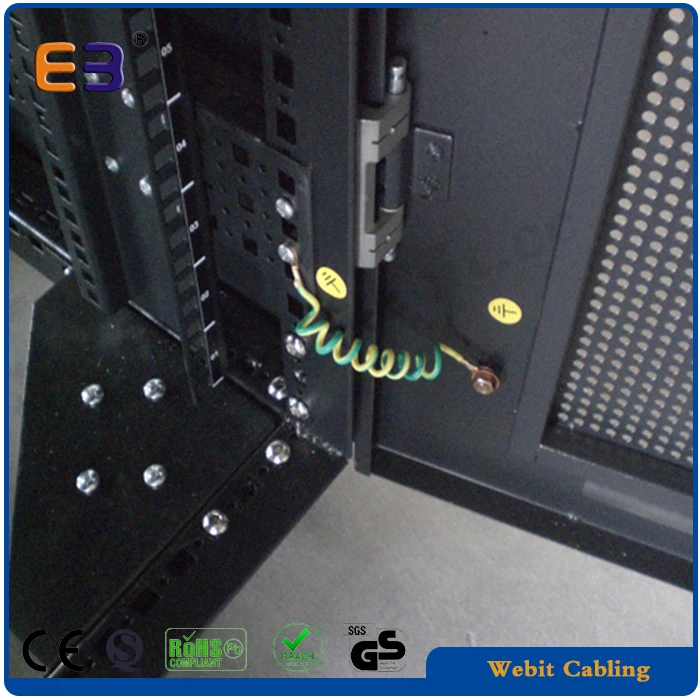

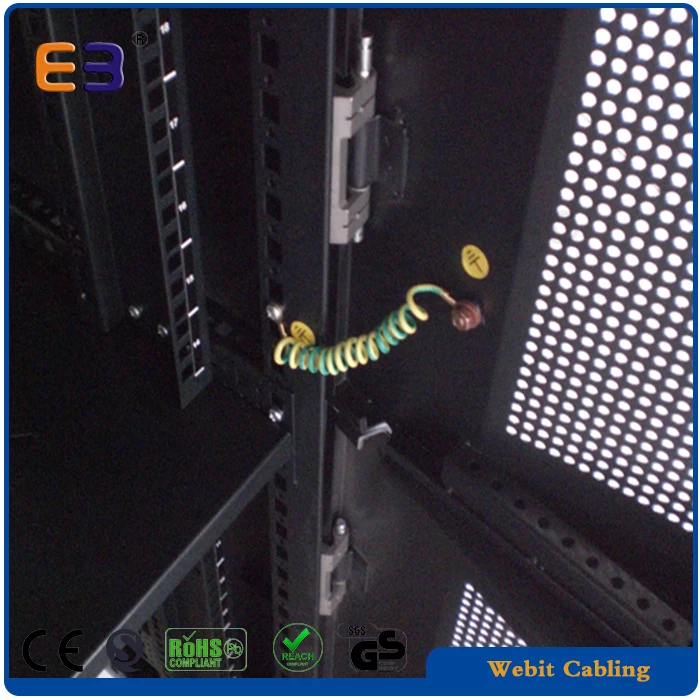

Front & back door earthing.

60% effective ventilation rate.

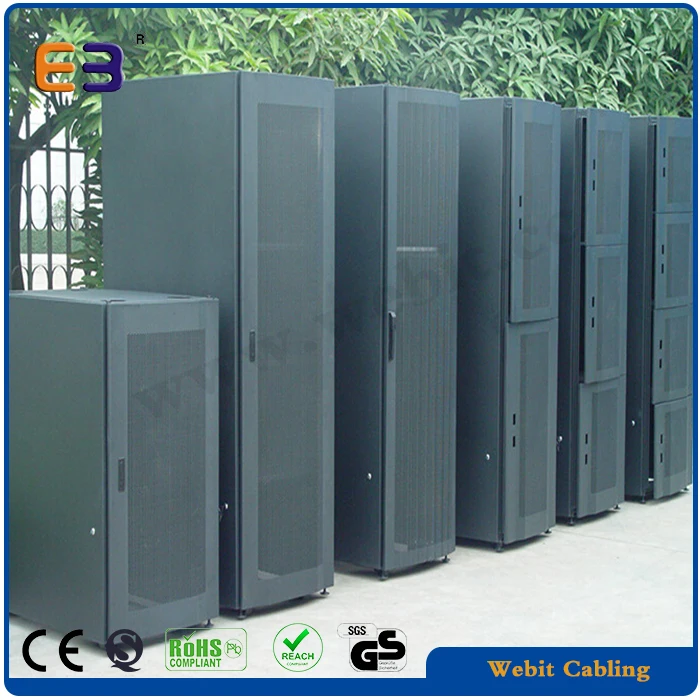

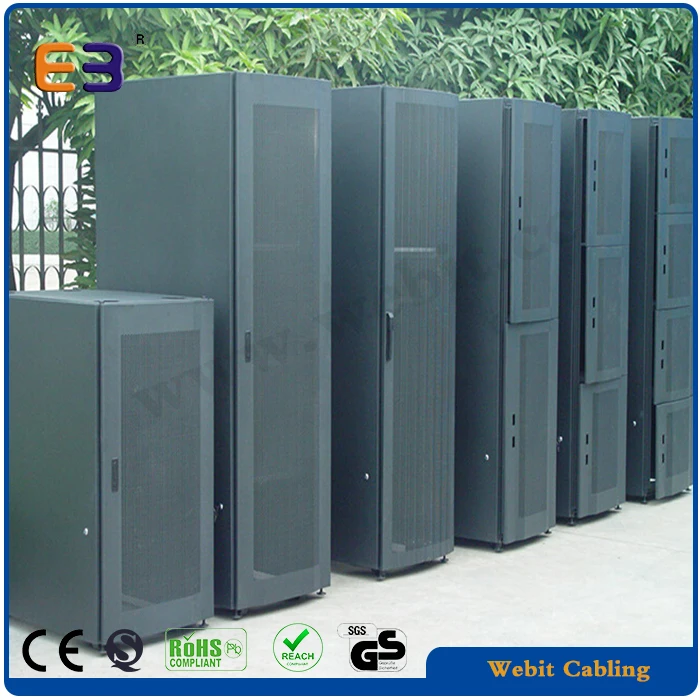

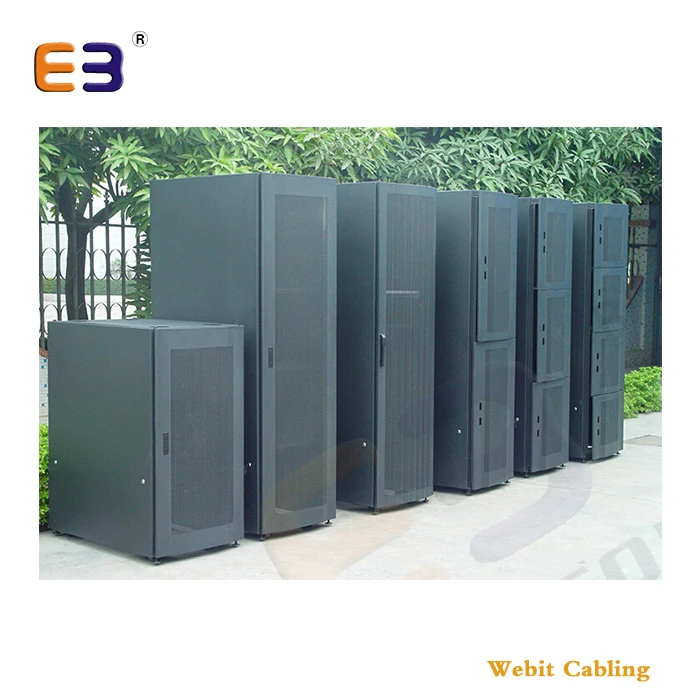

Widely used for Data Center rack group.

Doors

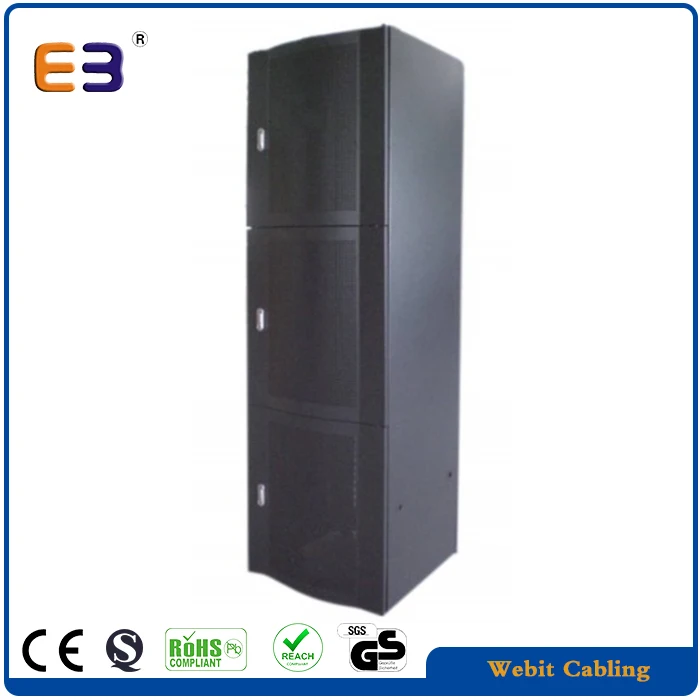

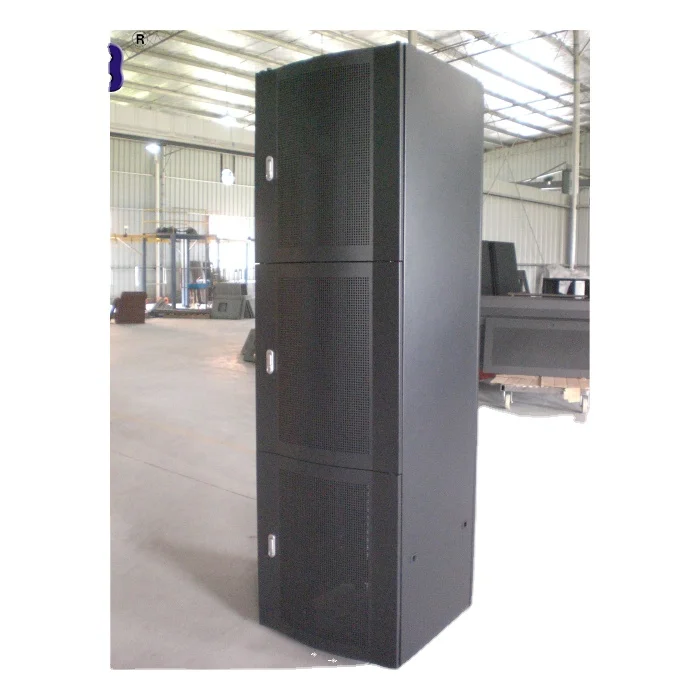

Front 2-3 sections perforated doors- moon lock.

Back double perforated door with 2-point handle lock.

Removable side panel , optional lock

Accessories

AC Fan-tray (2 ~6 fans) - as per depth

4× position-adjustable 19 " mounting r.ail.

Heavy duty wheels and adjustable feet.

20 sets of extra M6 caged screws.

Cable entrance

Top  - 2 * 300×50mm rectangle cable entrance , 4 x 60 mm diameter rounded cable entrance

Bottom - without bottom panel

Can ask for more...

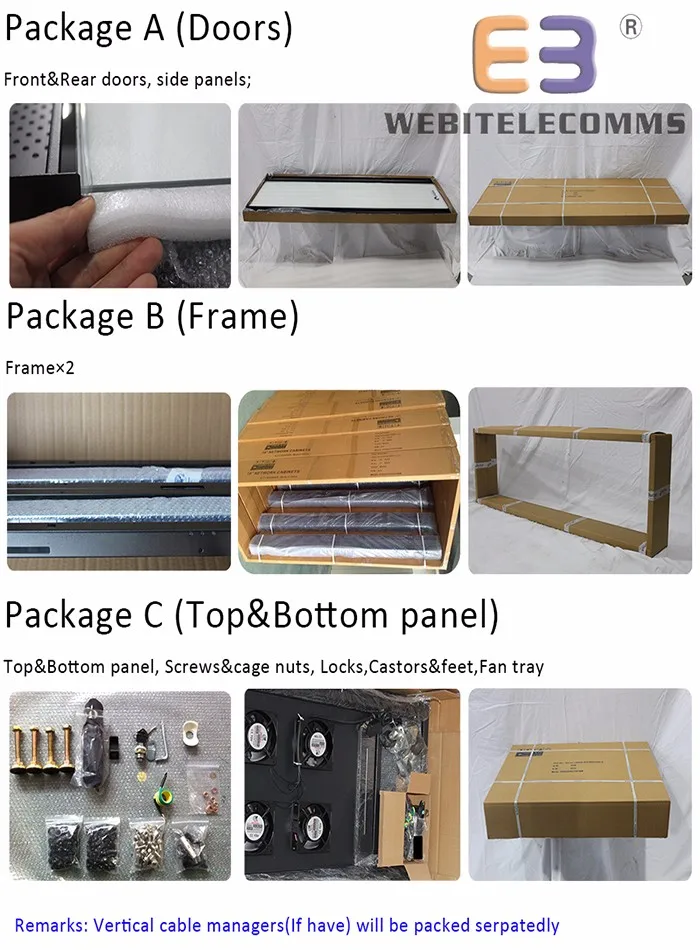

Package

Disassembled packing save 60% volume , allows for convenient stocking.

Webitelecomms neutral carton box packed

Plywood pallet for options

= Varies specification upon customers' special requirements=

Size suggestions

Width: 600,800 mm

Depth: 600,800,1000,1200 mm

Height: 12U, 17U, 22U, 27U, 32U, 37U, 42U, 47U

Customized size is available

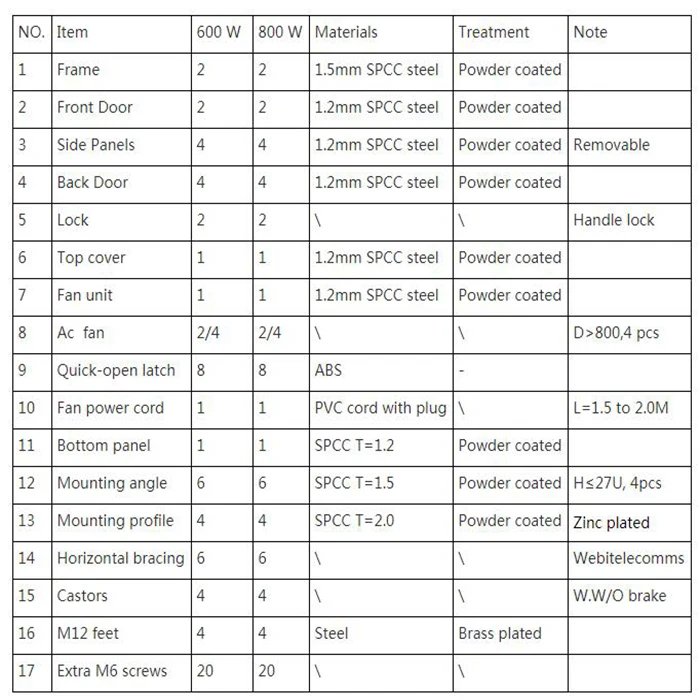

Standard and Materials:

Comply with

ANSI/EIA,RS-310-D;IEC297-2;DIN41491:PART1;DIN41494:PART7;GB/T3047.2-92 standard and ETSI standard.

Surface Finish:Degrease, acid pickling, rust prevention and parkerizing,pure water cleaning, static electricity powder coating

Materials:SPCC cold rolled steel or EG steel

Thickness:Mounting profile:2.0mm,others: 1.20mm to 1.50mm

Cabinet Bearing capacity:1000KG

IP degree: IP-20

Body color:RAL9004(black);RAL7035(grey),etc

standard export carton packing

Wooden Pallet+Case

WEBIT not only takes pride in the quality of our products, but also in the security we give our customers by standing behind them with a complete warranty. We put our products through rigorous performance tests throughout their production cycle before they reach our customers. Knowing to expect the unexpected, we ensure our customer’s satisfaction with a standard and extended warranty.

Standard Warranty

One year limited warranty on WebiT Products(Except man-made,natural disaster,special environmental corrosion).

Extended Warranty

3-Year limited warranty on WebiT Products, upon registration for extended warranty.

Standard and Extended Warranty Terms/Conditions

WebiT guarantees that all Products are free of production defects and will honor warranty claims except where:
1 Product has been altered in such way as to affect the Product.
2 Product has been subject to negligence by Buyer.
3 Product has not been used in accordance with normal practices and/or the recommendations.
4 Product has been destroyed by natural disaster,special environmental corrosion

NOTIFICATION OF DEFECTS. Buyer shall notify WebiT in writing within 30 days of discovering a defect. Failure to do so, will disqualify the Product from its warranty.

WARRANTY LIMITATIONS. Upon receiving notice of defective Product, WebiT will negotiate with buyer how to handle the defects,compensation,replacement or refund the purchanse price in new business.

Both WebiT & the Buyer agree that this warranty and all legal action between each other shall be construed under and governed by the rules of the China Busines Council in the buyer's country.

Who is WebiT?

Since 2003 XEBIT (WebiT's HQ) was built, WebiT has grown considerably to become a leading supplier of integrated cabling products in China. We owe our success to vast and diversified range of indoor/outdoor 19’'cabinets,PDU and other cabling products,professional
production technology,expert knowledge of the markets and a reputation for superior customer satisfaction.

With the unique location advantage of Ningbo port,WebiT has exported to over 30 countries.Though under the increasing competitive pressure in the global market,we keep looking for new opportunities and challenges.

Why Choose WebiT Co.,Ltd?

1.Innovative and complete solution provider
2.Professional and timely technical support
3.Comprehensive certificate authentication
4.Strict testing and packing section
5.Stocks available
6.OEM/ODM production service
7.Perfect after-sales service
8.1 year warranty period after sales(except man-made,natural disaster,special environmental corrosion)

1)    What is your Payment term?

---TT, LC, Western Union could be accepted.

2)    What is your Trade term?

---EXW, FOB, CNF, CIF is also ok.

3)    What is the Loading Port?

--- Ningbo,Shanghai.

4)    What is your MOQ?

MOQ of most our products is 5pcs, different items will be different. We have indicated the MOQ for each item in the price list.

5)    What is your Product Warranty?

---As Europe market, we have CE RoHS and other international safety standard for our products.

---As other market,international safety standard certificate also could be provided.
