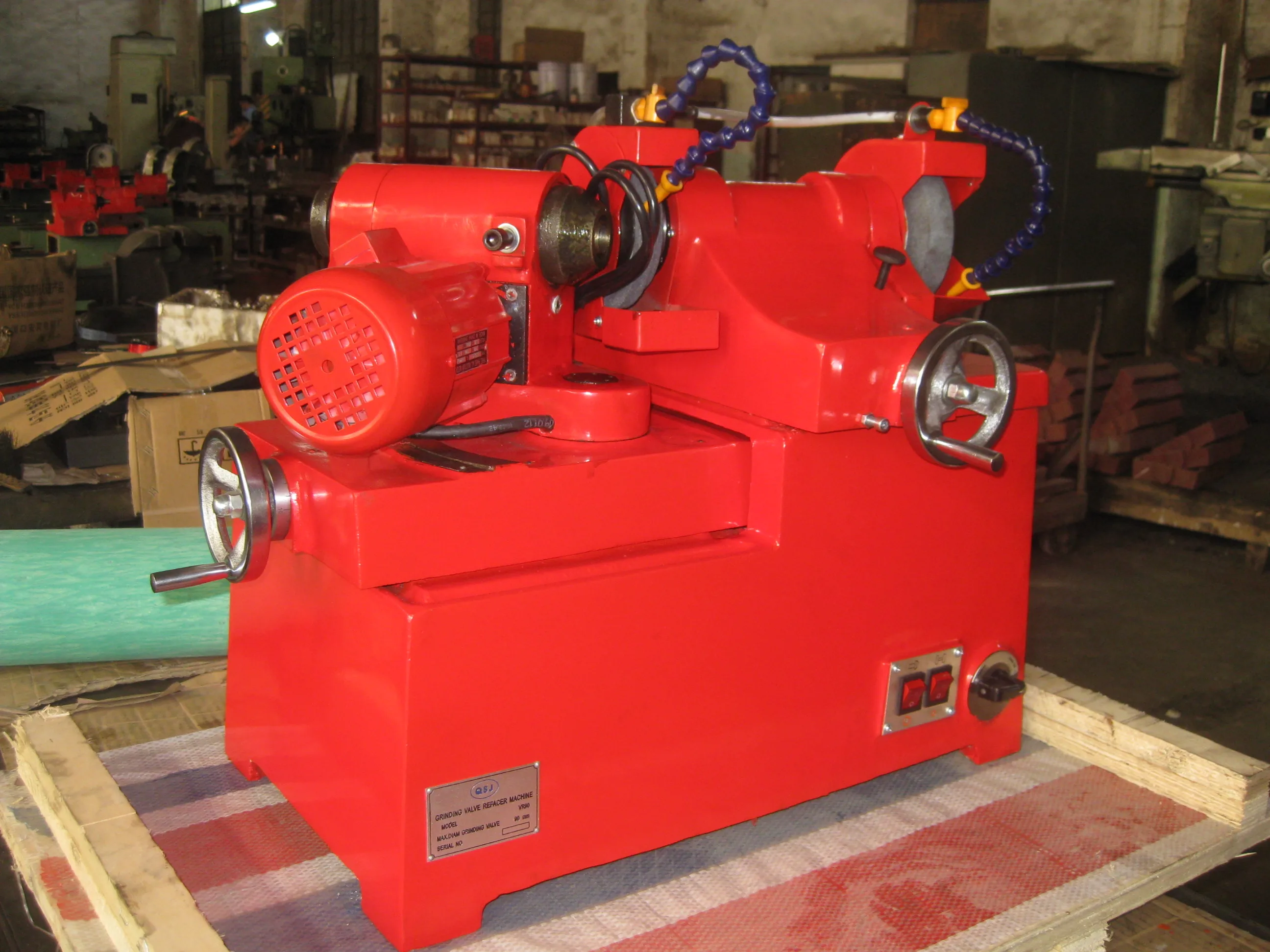

VR90 VALVE GRNDER MACHINE
Application and features:
This machine is special for grinding the valves in internal combusion engines(the valves in engines on automobiles and tractors)
featuring small size, flexible operation and easy use. The parts are ground with high surface finish and accuracy
No. | Items | Unit | Specifications |
1 | Max. dia. of valves to be ground | mm | 90 |
2 | Dia. of valve stems to be gripped (standard) | mm | 6 ~ 16 |
| Dia. of valve stems to be gripped (special) | mm | 4 ~ 7 |
| Dia. of valve stems to be gripped (special) | mm | 14~ 18 |
3 | Angles of valves to be ground | ° | 25 ~ 60 |
4 | Longitudinal movement of geared head | mm | 120 |
5 | Transverse movement of grinding wheel head | mm | 95 |
6 | Max. cutting depth of ground valve | mm | 0.025 |
7 | Grinding wheel spindle speed | rpm | 4500 |
8 | Geared head spindle speed | rpm | 125 |
9 | Motor for grinding wheel head |
|
|
| Model |
| YC-Y7122 |
| Power | kw | 0.37 |
| Voltage | v | 220 |
| Frequency | Hz | 50/60 |
| Speed | rpm | 2800 |
10 | Motor for geared head |
|
|
| Model |
| JZ5622 |
| Power | kw | 0.09 |
| Voltage | v | 220 |
| Frequency | Hz | 50/60 |
11 | Weight | kg | 120 |
12 | External dimensions (L * W * H) | cm | 68 * 60 * 60 |
