Aquaculture ozone purification filter protein separator
The protein skimmer can be used to reduce the physical and chemical gels. It used the role of adsorption of surface tension of the bubble to enrichment and separation organic, removal the colloidal suspension, cellulose, protein, bait and faeces and other organics in the wastewater. Meanwhile, the protein separator can be used as an ozone mixing tower, which can separate protein and use ozone to do the disinfections.

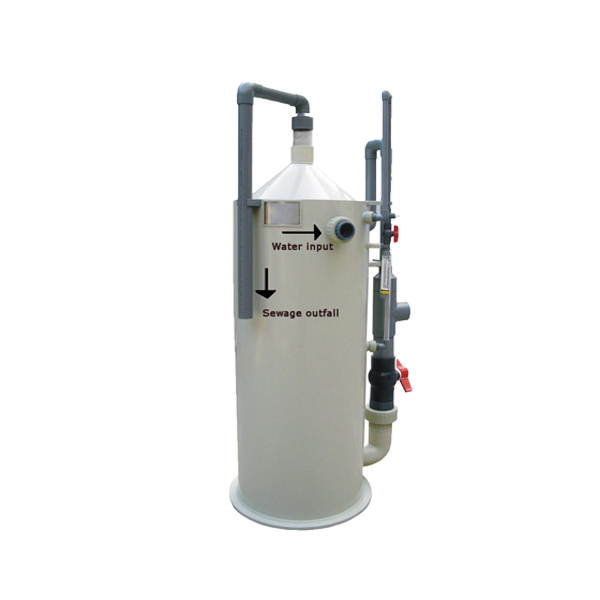

Component parts
Water input, PDO air intake device, mixing chamber, collecting pipe, sewage disposal, ozone adding device, water output etc.
Working system
First, water enter from the bottom of Protein Skimmer, “S” shape water stream, water moving up and then roll down to the water outlet;
Second, using the PDO device for producing bubble, and it enters into the mixing chamber with water together, liquid and air fully mixing in water when the water is rolling then reaches to the water outlet, water goes out from the bottom, but the not dissolved & suspended particles are gather in the surface of micro-bubble, then enter into the collecting pipe, coming out from the sewage disposal;
Third, treated water coming out from the main water outlet, water outlet valve can adjust the liquid level of Protein skimmer.
Features
1. Instead the using of Venturi, Booster pump, low power for saving energy.
2. Using the collecting pipe, no need to clean, for saving water.
3. PDO air intake device produces abundance air bubble, for high separate efficiency.
4. Using two ways water stream design, for high air-liquid mixing result, high separate efficiency.
5. Trouble-free design, long service life but free maintenance.
Component parts
Water input, PDO air intake device, mixing chamber, collecting pipe, sewage disposal, ozone adding device, water output etc.
Working system
First, water enter from the bottom of Protein Skimmer, “S” shape water stream, water moving up and then roll down to the water outlet;
Second, using the PDO device for producing bubble, and it enters into the mixing chamber with water together, liquid and air fully mixing in water when the water is rolling then reaches to the water outlet, water goes out from the bottom, but the not dissolved & suspended particles are gather in the surface of micro-bubble, then enter into the collecting pipe, coming out from the sewage disposal;
Third, treated water coming out from the main water outlet, water outlet valve can adjust the liquid level of Protein skimmer.
Features
1. Instead the using of Venturi, Booster pump, low power for saving energy.
2. Using the collecting pipe, no need to clean, for saving water.
3. PDO air intake device produces abundance air bubble, for high separate efficiency.
4. Using two ways water stream design, for high air-liquid mixing result, high separate efficiency.
5. Trouble-free design, long service life but free maintenance.
Functions
1. Removing organism such as night soil colloid etc.,for reducing the load of biological treatment and ensuring the water quality
2. Increasing dissolved oxygen in water, for improving the biological treatment efficiency.
3. Removing the harmful air in water, stabilize the PH in water.
4. Mixing ozone in water also has the function of sterilization, disinfect ion and remove algae in water.
1. Removing organism such as night soil colloid etc.,for reducing the load of biological treatment and ensuring the water quality
2. Increasing dissolved oxygen in water, for improving the biological treatment efficiency.
3. Removing the harmful air in water, stabilize the PH in water.
4. Mixing ozone in water also has the function of sterilization, disinfect ion and remove algae in water.
Model No. | Water flow | Voltage | Power | Size | Water Input /Output Size | ||
(M3/Hr) | (V) | (KW) | (HP) | (mm) | (mm) | ||
CH-FPS-10 | 10 | 220 | 0.35 | 0.47 | Ф600*2000 | Φ50(1.5”) / Φ90(3”) | |
CH-FPS-20 | 20 | 220 | 0.55 | 0.74 | Ф750*2000 | Φ50(1.5”) / Φ110(4”) | |
CH-FPS-30 | 30 | 220 | 0.75 | 1.01 | Ф750*2300 | Φ63(2”) / Φ110(4”) | |
CH-FPS-40 | 40 | 220 | 0.9 | 1.21 | Ф1000*2500 | Φ63(2”) / Φ140(5”) | |
CH-FPS-50 | 50 | 220 | 1.1 | 1.47 | Ф1000*2800 | Φ75(2.5”) / Φ140(5”) | |
CH-FPS-60 | 60 | 220 | 1.5 | 2.01 | Ф1000*3000 | Φ75(2.5”) / Φ160(6”) | |
CH-FPS-80 | 80 | 380 | 1.85 | 2.48 | Ф1250*3200 | Φ90(3”) / Φ160(6”) | |
CH-FPS-100 | 100 | 380 | 2.2 | 2.95 | Ф1250*3350 | Φ110(4”) / Φ200(8”) | |
CH-FPS-120 | 120 | 380 | 3.0 | 4.02 | Ф1250*3500 | Φ110(4”) / Φ200(8”) | |
CH-FPS-140 | 140 | 380 | 3.0 | 4.02 | Ф1500*3600 | Φ160(6”) / Φ250(10”) | |
CH-FPS-160 | 160 | 380 | 3.7 | 4.96 | Ф1500*4100 | Φ160(6”) / Φ250(10”) | |
CH-FPS-180 | 180 | 380 | 4.4 | 5.90 | Ф1650*4200 | Φ200(8”) / Φ315(12”) | |
CH-FPS-200 | 200 | 380 | 6.0 | 8.04 | Ф1650*4600 | Φ200(8”) / Φ315(12”) | |
Guangzhou Chuanghuan Ozone Electric Appliance Co., Ltd. which was established in 2006, It focuses on Ozone generator, Oxygen machine , Ozone tube, accessories production, development and application of products.
With the development for several years, the company has been in 16 aspects of the ozone generator.
Most products have had CE certification. We are the key suppliers for components of ozone generators in domestic and foreign manufacturers. Our products include the 100mg-10kg / h of ozone and ozone accessories. The core types of ozone generators are quartz tube, ceramic and enamel, widely used in water and air treatment. Products are exported to Europe,North and South America, Southeast Asia, Middle East, Africa and dozens of countries.
Our Services & Strength
1,We are a company integrating industry and trade. If you want to visit the factory, we can arrange it at any time.
1,We are a company integrating industry and trade. If you want to visit the factory, we can arrange it at any time.
2,Our company with rich experience about ozone generator and oxygen machine use for air purification and water treatment, gets ISO certification every year.
3,We have our own R & D team and technical team.
4,From material ,such as ceramic tube: ozone tube is imported material of high pure ceramic, SS 316L of internal electrode, which are best anti-oxidation material，the ozone machine life reach 20,000 hours,ect.
5,The quality of our products is guaranteed, the one-year warranty ect.
3,We have our own R & D team and technical team.
4,From material ,such as ceramic tube: ozone tube is imported material of high pure ceramic, SS 316L of internal electrode, which are best anti-oxidation material，the ozone machine life reach 20,000 hours,ect.
5,The quality of our products is guaranteed, the one-year warranty ect.
Packaging:
We insist on making the best package. This package is solid which contacts foam inside. We have professional in packing and avoid any troubles during shipping.
Delivery:
1) 3~7 days for portable ozone generator order.
2) 10~30 days for industrial/middle size ozone generator order.
3) Shipping could be courier, airline or sea.
We insist on making the best package. This package is solid which contacts foam inside. We have professional in packing and avoid any troubles during shipping.
Delivery:
1) 3~7 days for portable ozone generator order.
2) 10~30 days for industrial/middle size ozone generator order.
3) Shipping could be courier, airline or sea.
Q1: Are you trading company or manufacturer ?
Re:We are a company integrating factory and trade
Q2: How long is your delivery time?
Re:Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q3: What is your terms of payment ?
Re: We support T/T, Western union, Alipay , Paypal, L/C
Q4: Are you provide the after-sales service ?
Re: Yes,we offer one year warranty, and we have a dedicated after-sales service team to provide you with the whole process.
Q2: How long is your delivery time?
Re:Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q3: What is your terms of payment ?
Re: We support T/T, Western union, Alipay , Paypal, L/C
Q4: Are you provide the after-sales service ?
Re: Yes,we offer one year warranty, and we have a dedicated after-sales service team to provide you with the whole process.
