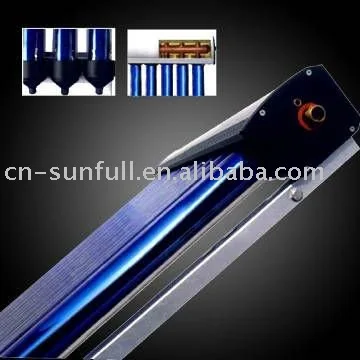

Pressurized Solar Collector with Heat Pipe
pressuried solar collector features
1. Temperature conservation layer in chest
2. Economical and practical
3. Environmental conservation and energy saving
4. According to the required configuration, it can be divided into two types, one is vertical and the other is horizontal
pressure solar collector application
1. Hotels, resorts, hospitals and hostels
2. Process industry, boiler feed, laundry and canteens
3. Agricultural sector, hatcheries and dairies
4. Process industry, Boiler feed, Laundry and canteens
5. Agricultural sector, hatcheries, and dairies
6. Swimming pool heating
7. In-process heating
8. Health clubs (Steam / Sauna)
Solar collectors for water material specification
Descripition | pressurized solar collector |
Material of out manifold | Aluminium Alloy |
Material of inner tank | Copper Header Pipe |
Inlet and outlet hole | Male G3/4 |
Max pressure | 0.6 Mpa |
Solar collector tube | 3.3 Borosilicate glass with N/Al coating |
Thickness of glass tube | 1.6mm |
Vacuum tube tightness | P≤0.005 Pa |
Absorption | as=0.93-0.96(AM1.5) |
Emission ratio | εh=0.04-0.06(80C±5C) |
Idle sunning property parameters | Y=220~260m2.C/KW |
Average heat loss coefficient | ULT=0.6~0.7W/(m2.C) |
Bracket: | Aluminium Alloy/ Galvanized Steel |
Welding: | Argon arc welding |
Fastening pieces: | Made of stainless steel screw |
Specification of vacuum tube
Item No. | Specification | ||||
Qty. of solar tubes | Diameter of solar tube | Length of solar tube | Absorber area | Dimension | |
SP125-1800/58-15 | 15pcs | Ø 58mm | 1.8M | 1.2 | 1060*2000 |
SP125-1800/58-20 | 20pcs | Ø 58mm | 1.8M | 1.6 | 1410*2000 |
SP125-1800/58-30 | 30pcs | Ø 58mm | 1.8M | 2.4 | 2110*2000 |
