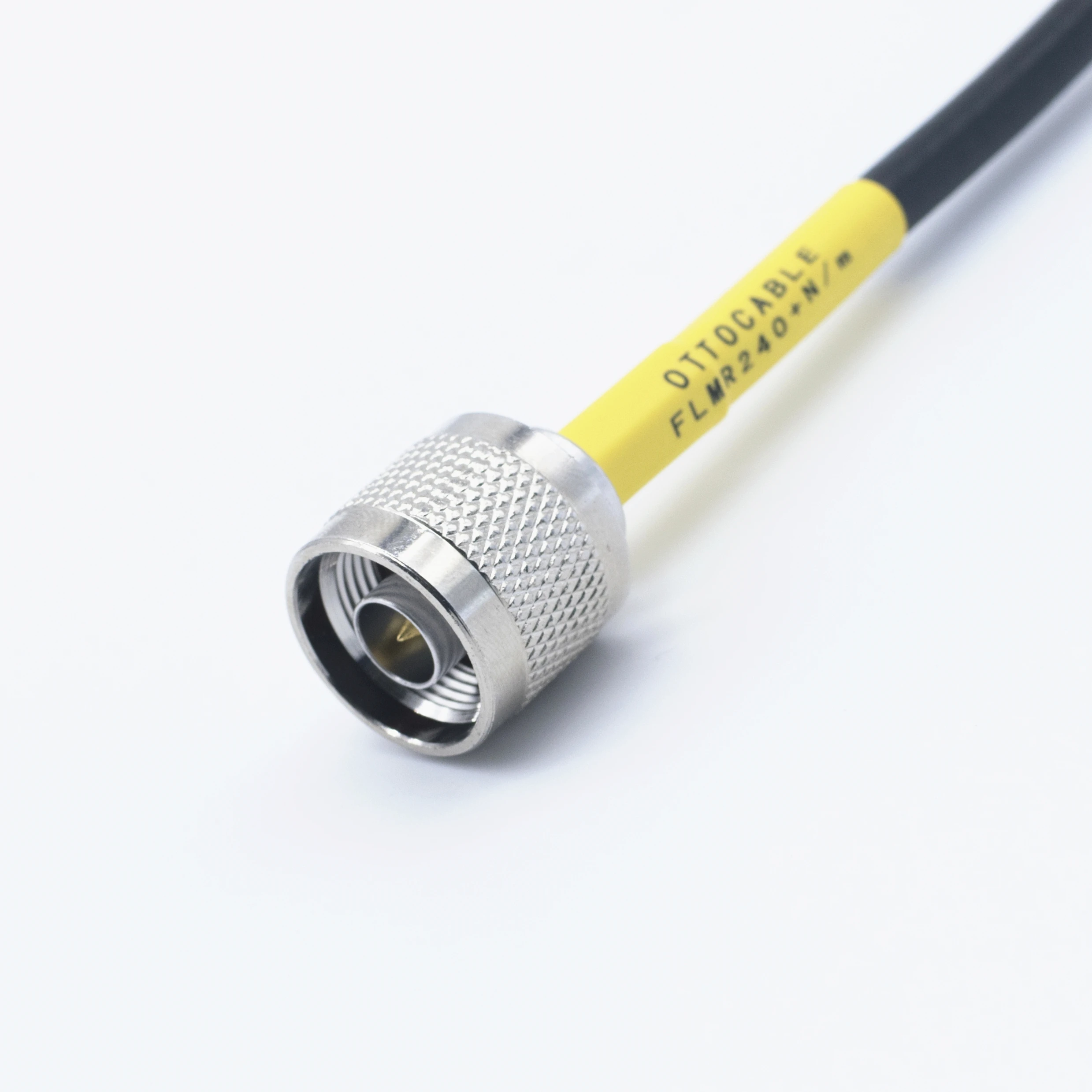

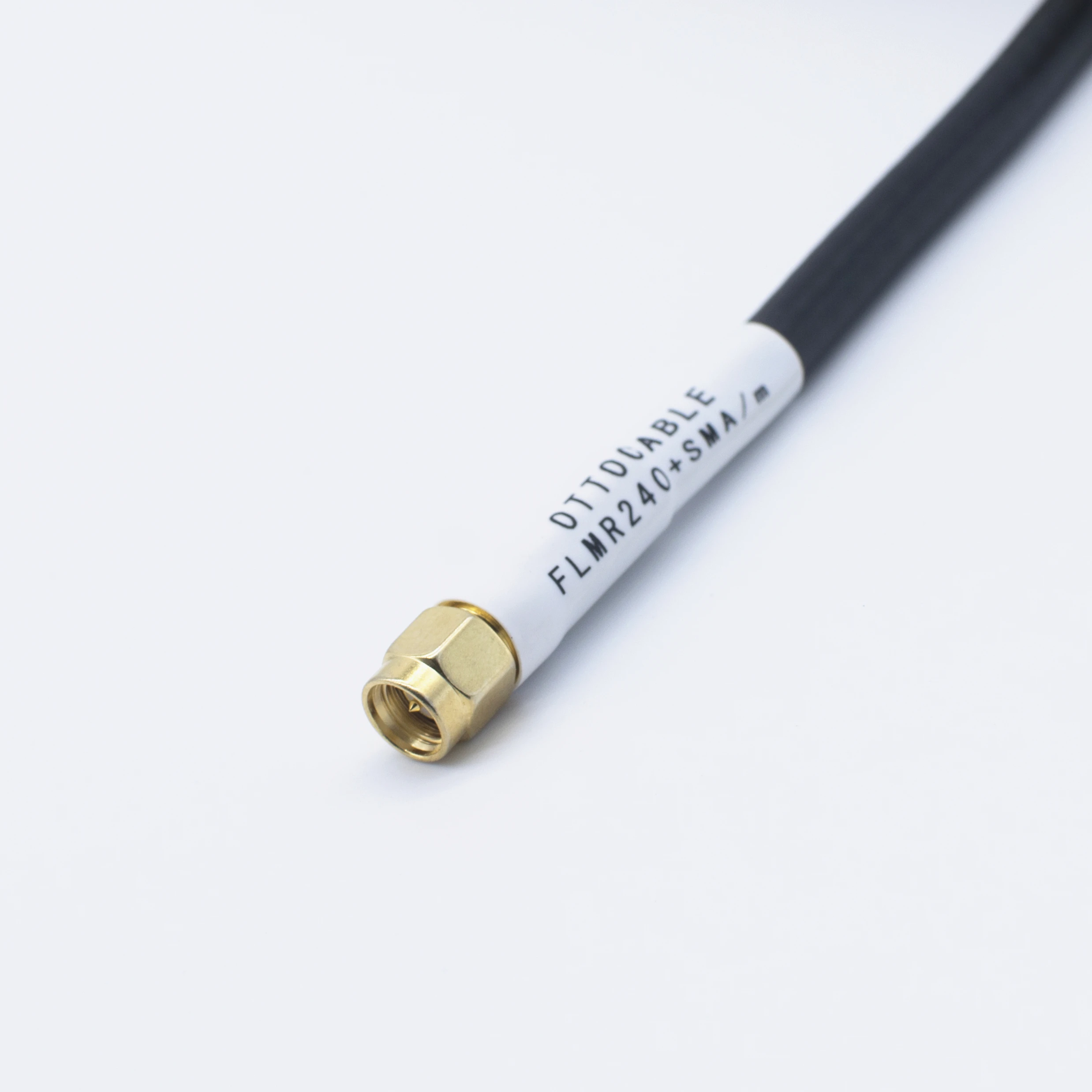

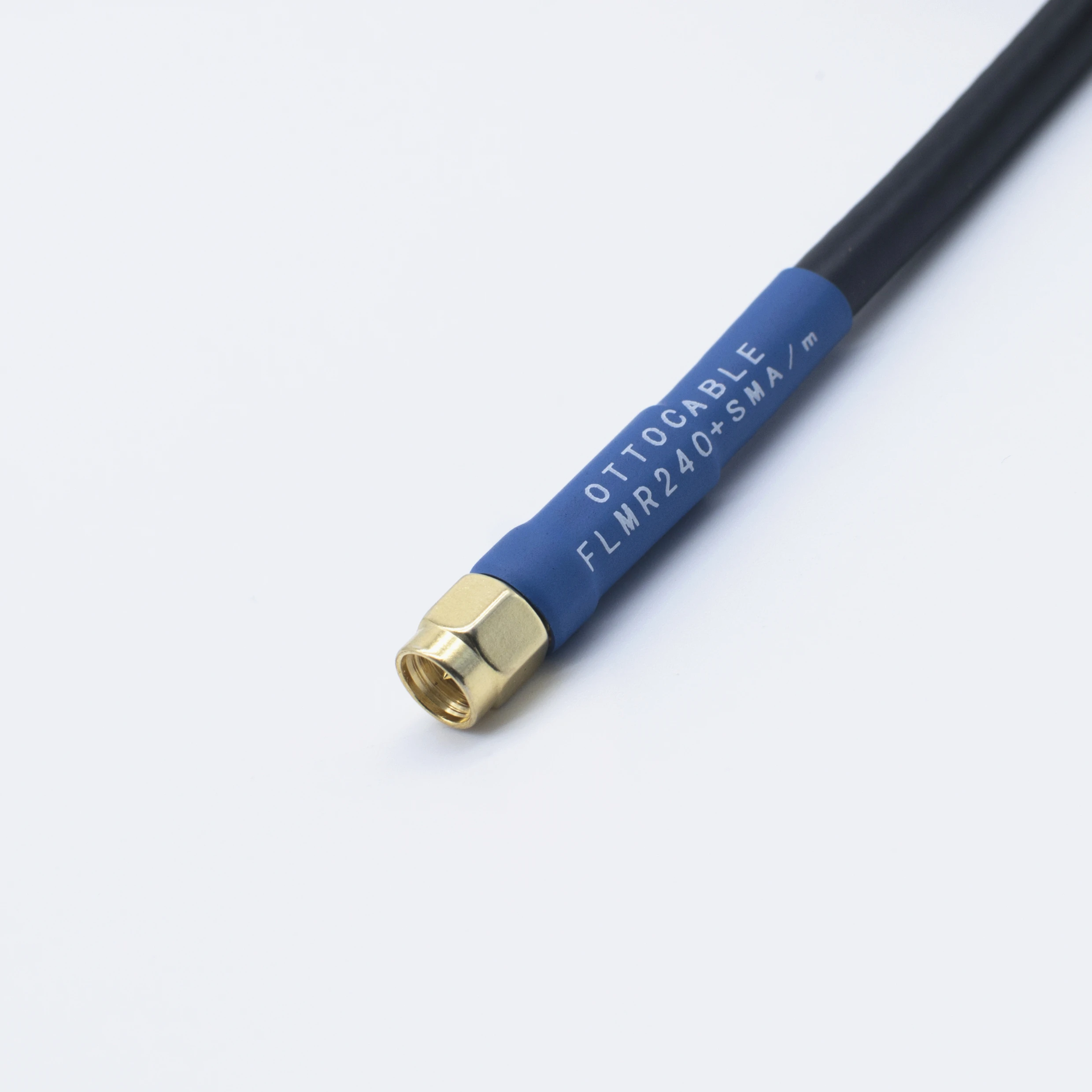

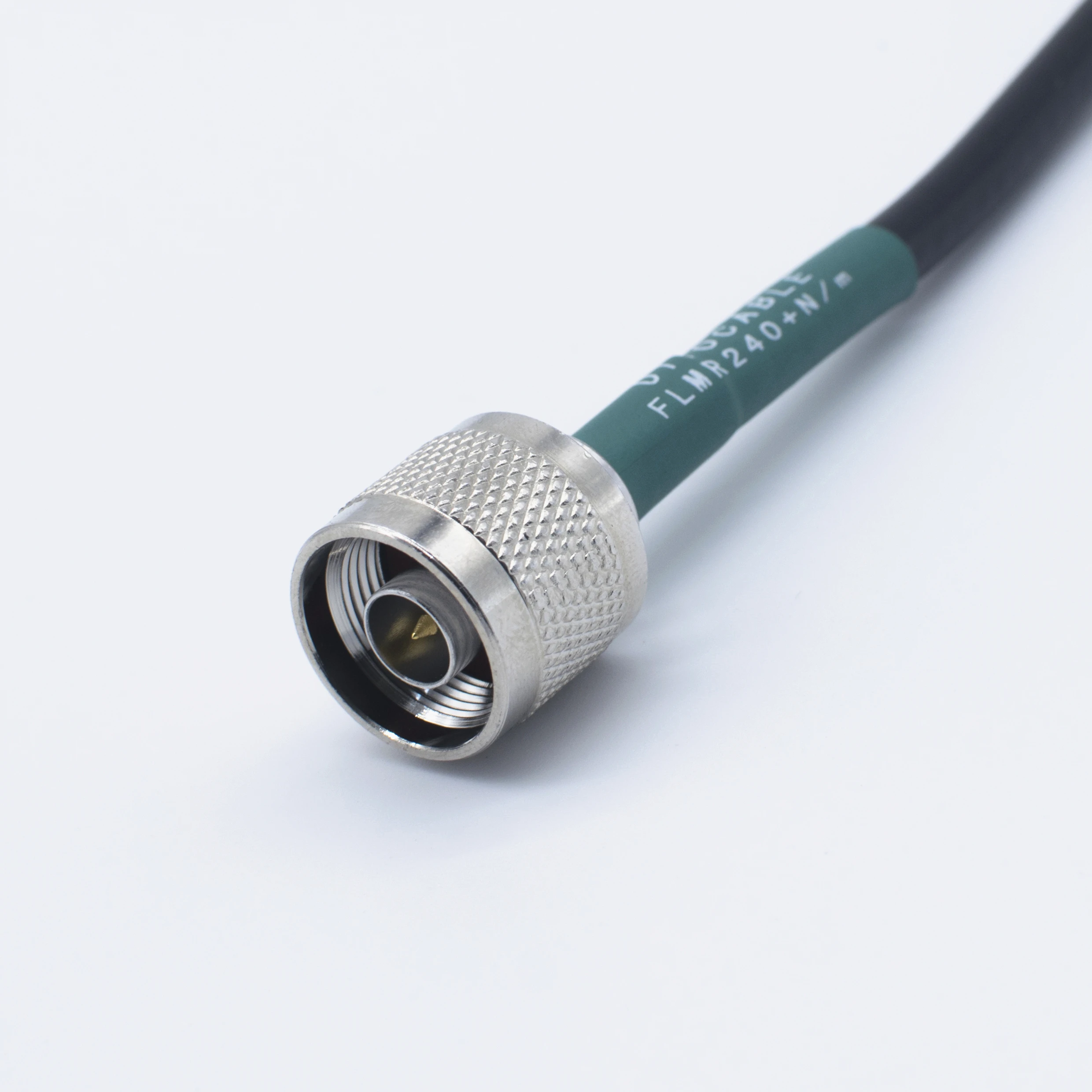

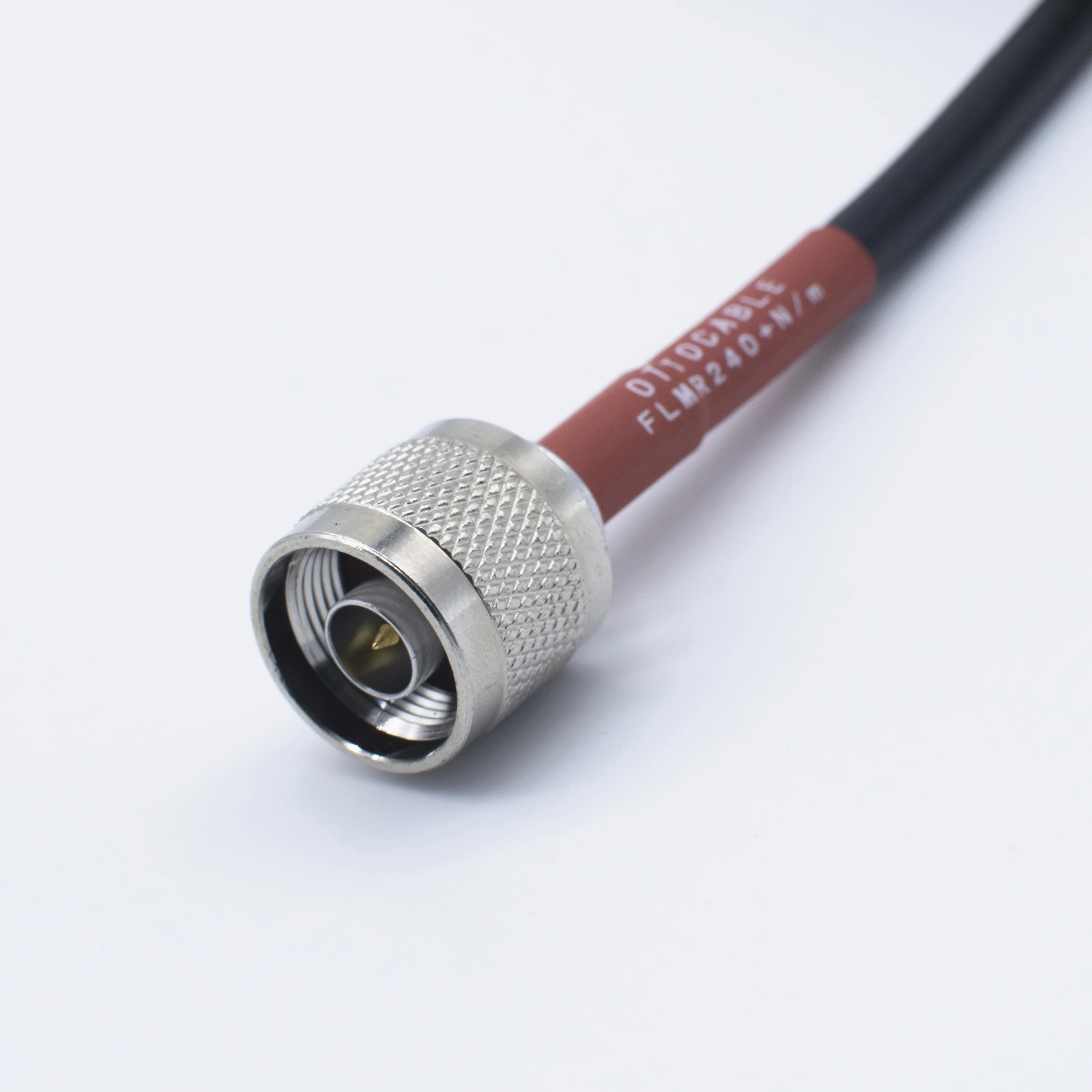

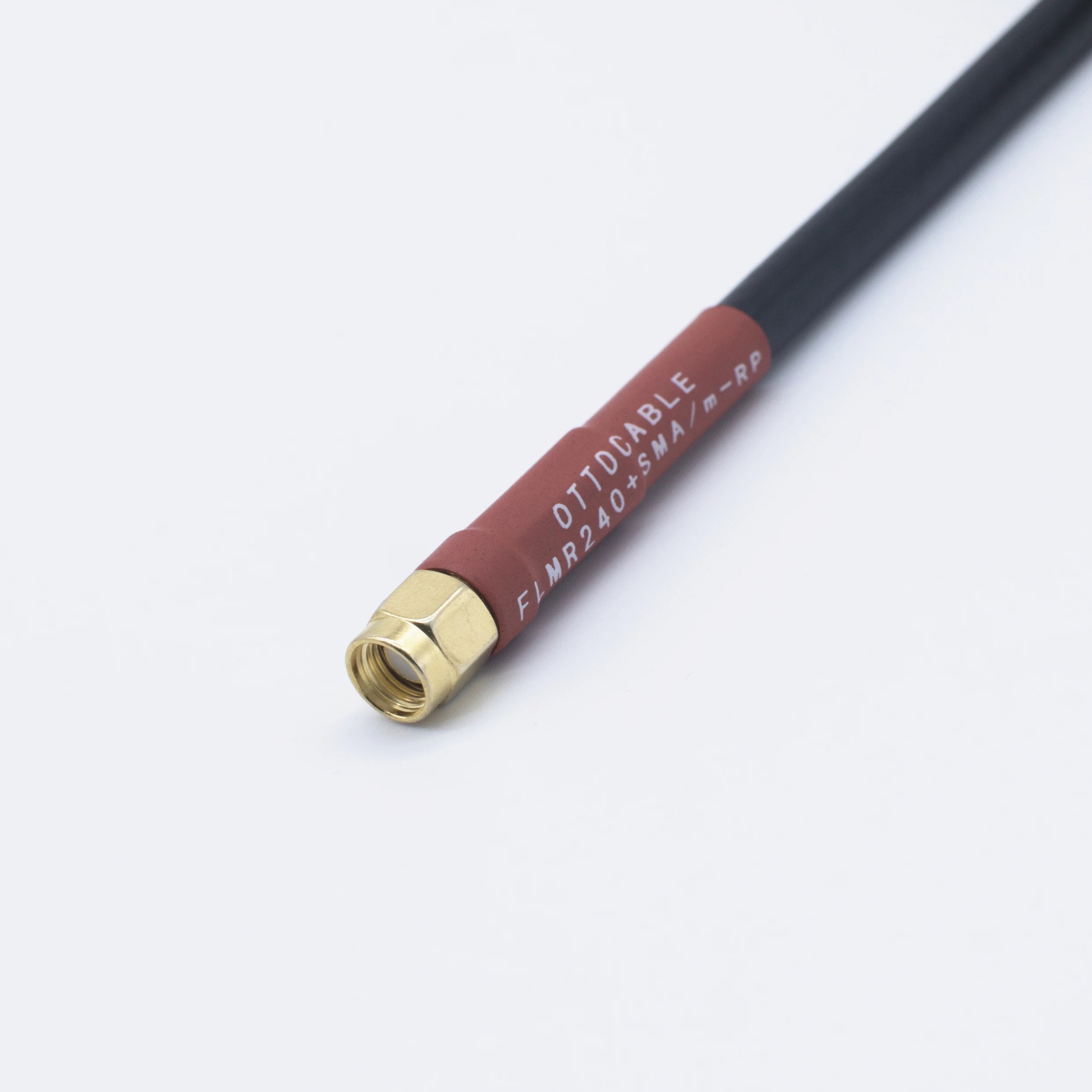

CU/CCS/CCA 50 Ом коаксиальный кабель lmr 240 с низким уровнем потери

Item

Material

Diameter(mm)

Remarks

Inner Conductor

Dielectric

First Shield

Second Shield

Jacket

Bare Copper

Foam PE

Bonded Aluminum Foil

TC Wire Braid

PVC

1.42

3.81

3.94

4.52

6.10

Impedance (Ω)

Capacitance (pF/m)

Velocity of Propagation (%)

Return Loss

Screening Effectiveness(db)

Voltage With Stand

Installation Temp(℃)

Operating Temp(℃)

50±3

79.4

84.0

≥20

≥90

1500.0

-55 to +85

-55 to +85

Frequency(MHz)

Max Attenuation(dB/100m)

150

220

450

900

1500

1800

2000

2500

9.9

12.0

17.3

24.8

32.4

35.6

37.7

42.4
